Inspection Procedure

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK PASSENGER AIRBAG ON/OFF INDICATOR OPERATION
    1. Turn the ignition switch ON.
    2. Check the passenger airbag ON/OFF indicator operation.

      HINT:

      Refer to the normal condition of the passenger airbag ON/OFF indicator (see DIAGNOSIS SYSTEM  ).

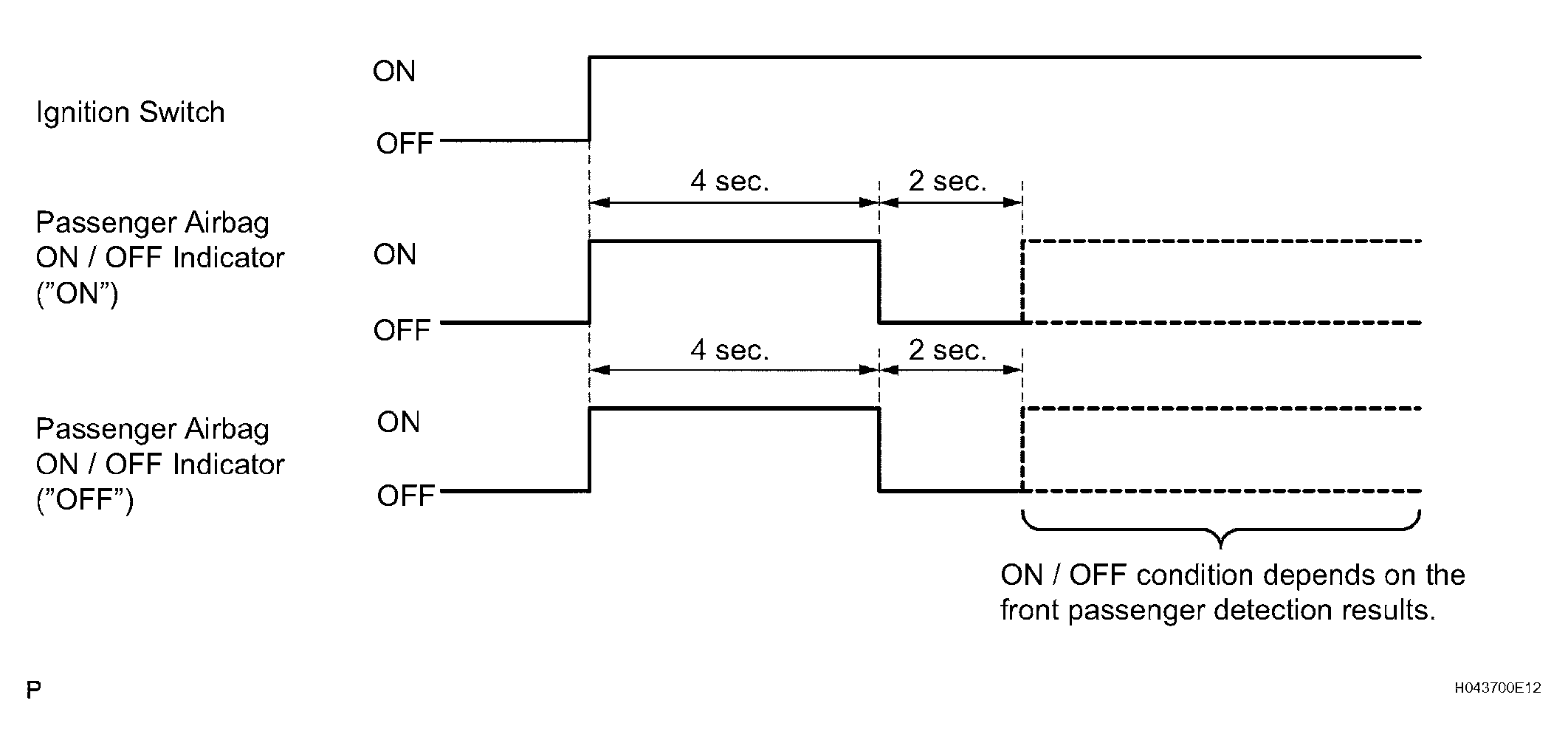

      Fig 1: Identifying Passenger Airbag ON/OFF Indicator Position Blinking Pattern
      G04438080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      PASSENGER AIRBAG ON/OFF INDICATOR OPERATION

      ON/OFF Indicator Illumination Proceed to
      Always ON A
      OFF B

    B: Go to step   10

    A: GO TO NEXT STEP

  2. CHECK CONNECTION OF CONNECTOR
    1. Turn the ignition switch OFF.
    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    3. Check that the connectors are properly connected to the center airbag sensor and the air conditioning control or center cluster integration panel.

      OK: The connectors are connected.

    NG: CONNECT CONNECTOR

    OK: GO TO NEXT STEP

  3. CHECK CONNECTOR
    1. Disconnect the connectors from the center airbag sensor and the air conditioning control or center cluster integration panel.
    2. Check that the connectors (on the center airbag sensor side and the air conditioning control side or center cluster integration panel side) are not damaged.

      OK: The connectors are not deformed or damaged.

    NG: REPAIR OR REPLACE INSTRUMENT PANEL WIRE

    OK: GO TO NEXT STEP

  4. CHECK PASSENGER AIRBAG ON/OFF INDICATOR
    1. Connect the connector to the air conditioning control or center cluster integration panel.
    2. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
    3. Turn the ignition switch ON.
    4. Check the passenger airbag ON/OFF indicator operation.

      OK: The passenger airbag ON/OFF indicator ("ON" and "OFF") does not come on.

    Fig 2: Identifying Passenger Airbag ON/OFF Indicator
    G04438081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: Go to step   6

    OK: GO TO NEXT STEP

  5. CHECK CENTER AIRBAG SENSOR ASSEMBLY
    1. Turn the ignition switch OFF.
    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    3. Connect the connector to the center airbag sensor.
    4. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
    5. Turn the ignition switch ON, and wait for at least 60 seconds.
    6. Clear the DTCs stored in memory (see DTC CHECK/CLEAR  ).
    7. Turn the ignition switch OFF.
    8. Turn the ignition switch ON, and wait for at least 60 seconds.
      Fig 3: Identifying Center Airbag Sensor Assembly
      G04438082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Check the DTCs (see DTC CHECK/CLEAR  ).

      OK: DTC B1152/28 is not output.

      HINT:

      Codes other than code B1152/28 may be output at this time, but they are not related to this check.

    NG: REPLACE CENTER AIRBAG SENSOR ASSEMBLY

    OK: USE SIMULATION METHOD TO CHECK

  6. CHECK PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT (OPEN)
    Fig 4: Checking Passenger Airbag ON/OFF Indicator Circuit (Open)
    G04438083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Turn the ignition switch OFF.
    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    3. Disconnect the connector from the air conditioning control.
    4. Using a service wire, connect terminals C26-1 (P-AB) and C26-25 (PAON) of connector "B".
    5. Measure the resistance of the wire harness side connector.

      Standard resistance: w/Navigation system

      PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT (OPEN) (W/NAVIGATIONS SYSTEM)

      Tester Connection Specified Condition
      C28-9 (PAON) - C28-21 (OFF) Below 1 Ω

      w/o Navigation system

      PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT (OPEN) (W/O NAVIGATION SYSTEM)

      Tester Connection Specified Condition
      A45-34 (PAON) - A45-35 (OFF) Below 1 Ω

    NG: REPAIR OR REPLACE INSTRUMENT PANEL WIRE

    OK: GO TO NEXT STEP

  7. CHECK PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT (SHORT)
    Fig 5: Checking Passenger Airbag ON/OFF Indicator Circuit (Short)
    G04438084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the service wire from connector "B".
    2. Measure the resistance of the wire harness side connector.

      Standard resistance:

      w/Navigation system

      PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT (SHORT) (W/NAVIGATION SYSTEM)

      Tester Connection Specified Condition
      C28-9 (PAON) - C28-21 (OFF) 1 MΩ or higher

      w/o Navigation system

      PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT (SHORT) (W/O NAVIGATION SYSTEM)

      Tester Connection Specified Condition
      A45-34 (PAON) - A45-35 (OFF) 1 MΩ or higher

    NG: REPAIR OR REPLACE INSTRUMENT PANEL WIRE

    OK: GO TO NEXT STEP

  8. CHECK PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT (SHORT TO GROUND)
    Fig 6: Checking Passenger Airbag ON/OFF Indicator Circuit (Short To Ground)
    G04438085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the resistance of the wire harness side connector.

      Standard resistance:

      w/Navigation system

      PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT (SHORT TO GROUND) (W/NAVIGATION SYSTEM)

      Tester Connection Specified Condition
      C28-9 (PAON) - Body ground 1 MΩ or higher
      C28-21 (OFF) - Body ground 1 MΩ or higher

      w/o Navigation system

      PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT (SHORT TO GROUND) (W/O NAVIGATION SYSTEM)

      Tester Connection Specified Condition
      A45-34 (PAON) - Body ground 1 MΩ or higher
      A45-35 (OFF) - Body ground 1 MΩ or higher

    NG: REPAIR OR REPLACE INSTRUMENT PANEL WIRE

    OK: GO TO NEXT STEP

  9. CHECK PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT (SHORT TO B+)
    Fig 7: Checking Passenger Airbag ON/OFF Indicator Circuit (Short To B+)
    G04438086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
    2. Turn the ignition switch ON.
    3. Measure the voltage of the wire harness side connector.

      Standard voltage:

      w/Navigation system

      PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT (SHORT TO B+) (W/NAVIGATION SYSTEM)

      Tester Connection Specified Condition
      C28-9 (PAON) - Body ground Below 1 V
      C28-21 (OFF) - Body ground Below 1 V

      w/o Navigation system

      PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT (SHORT TO B+) (W/O NAVIGATION SYSTEM)

      Tester Connection Specified Condition
      A45-34 (PAON) - Body ground Below 1 V
      A45-35 (OFF) - Body ground Below 1 V

    OK: REPAIR OR REPLACE INSTRUMENT PANEL WIRE

    NG: REPLACE AIR CONDITIONING CONTROL ASSEMBLY

  10. CHECK CONNECTION OF CONNECTOR
    1. Turn the ignition switch OFF.
    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    3. Check that the connectors are properly connected to the center airbag sensor and the air conditioning control.

      OK: The connectors are connected.

    NG: CONNECT CONNECTOR

    OK: GO TO NEXT STEP

  11. CHECK CONNECTOR
    1. Disconnect the connectors from the center airbag sensor and the air conditioning control.
    2. Check that the connectors (on the center airbag sensor side and the air conditioning control side) are not damaged.

      OK: The connectors are not deformed or damaged.

    NG: REPAIR OR REPLACE INSTRUMENT PANEL WIRE

    OK: GO TO NEXT STEP

  12. CHECK PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT (OPEN)

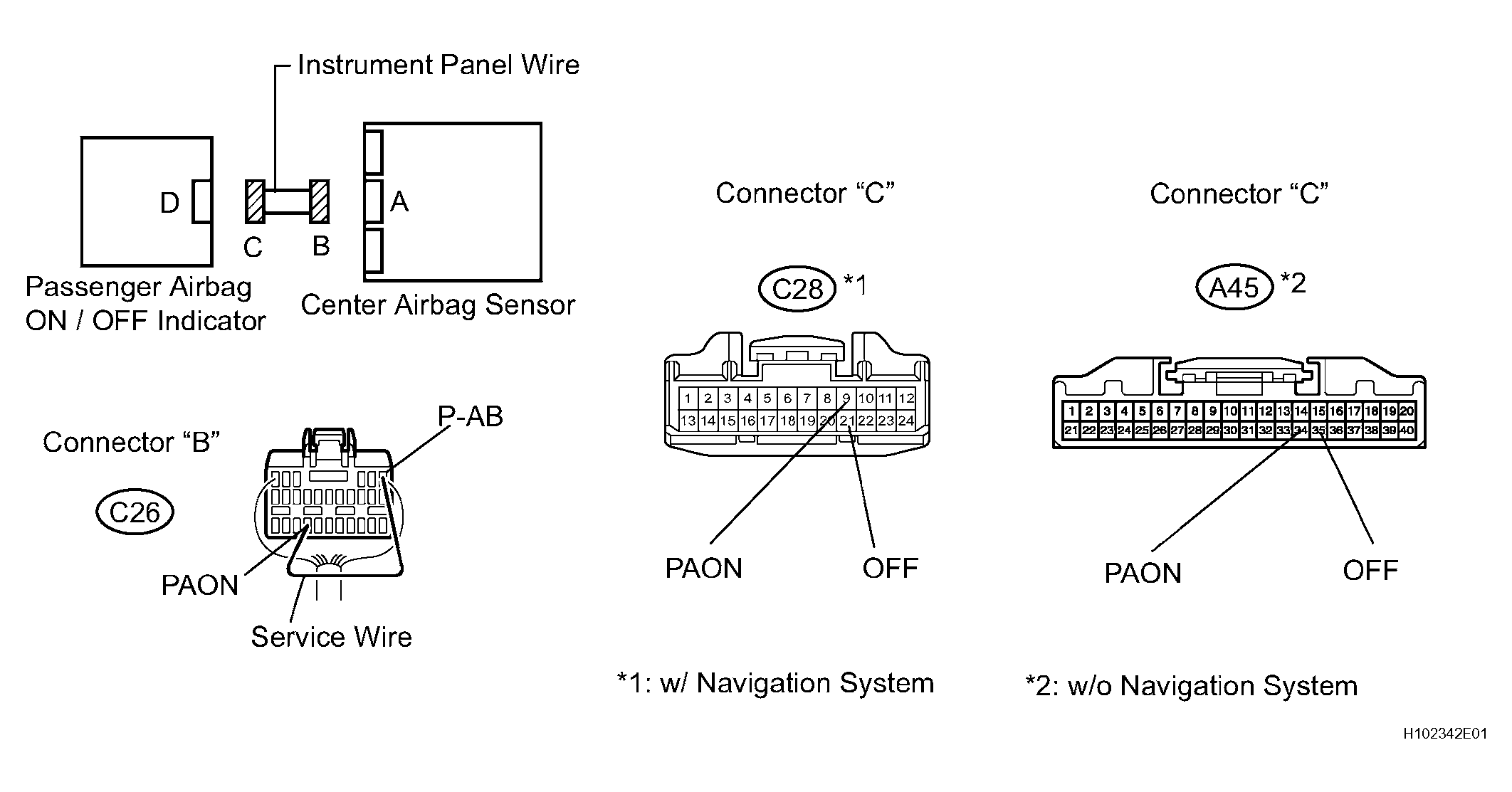

    Fig 8: Checking Passenger Airbag ON/OFF Indicator Circuit (Open)
    G04438087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Turn the ignition switch OFF.
    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    3. Disconnect the connector from the air conditioning control.
    4. Using a service wire, connect terminals C26-1 (P-AB) and C26-25 (PAON) of connector "B".
    5. Measure the resistance of the wire harness side connector.

      Standard resistance:

      w/Navigation system

      PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT (OPEN) (W/NAVIGATION SYSTEM)

      Tester Connection Specified Condition
      C28-9 (PAON) - C28-21 (OFF) Below 1 Ω

      w/o Navigation system

      PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT (OPEN) (W/O NAVIGATION SYSTEM)

      Tester Connection Specified Condition
      A45-34 (PAON) - A45-35 (OFF) Below 1 Ω

    NG: REPAIR OR REPLACE INSTRUMENT PANEL WIRE

    OK: GO TO NEXT STEP

  13. CHECK PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT (SHORT)

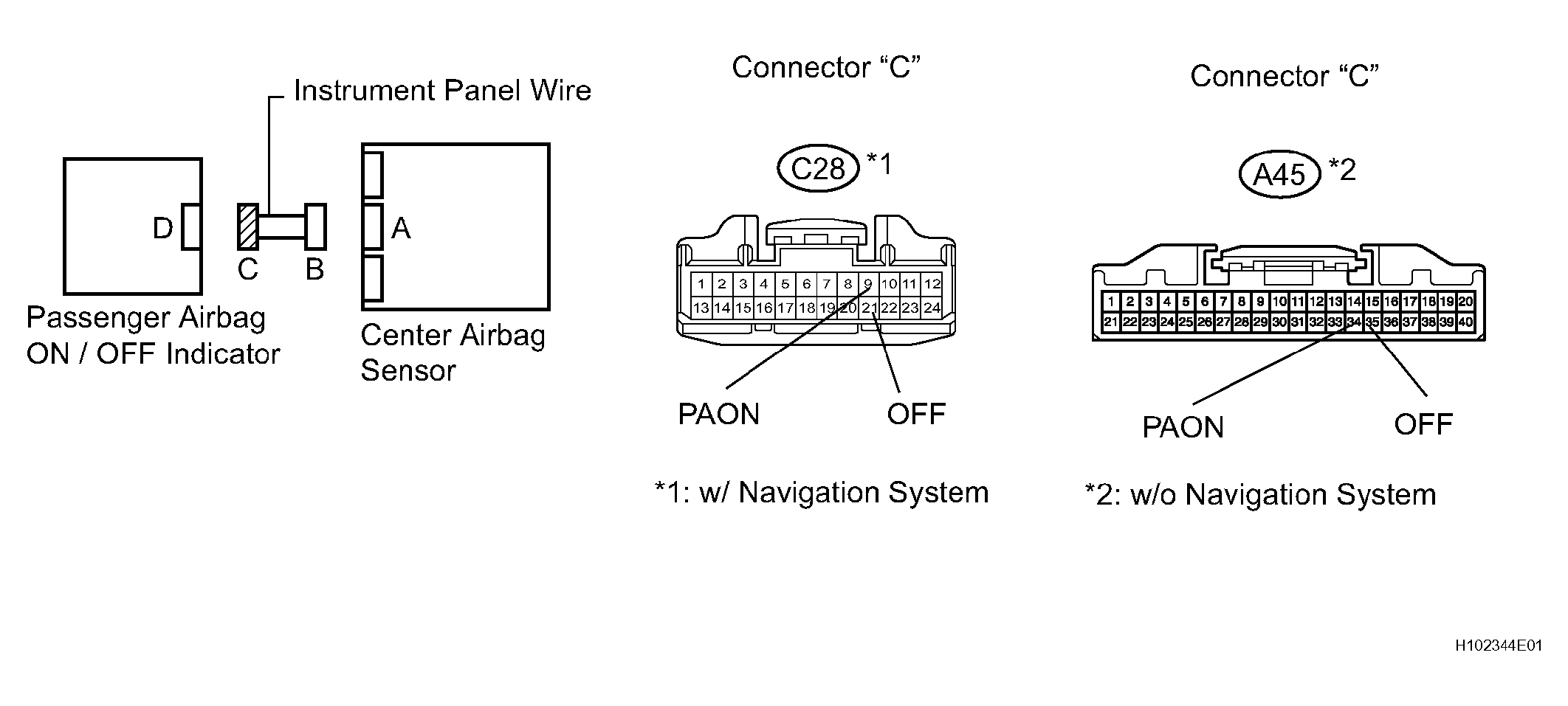

    Fig 9: Checking Passenger Airbag ON/OFF Indicator Circuit (Short)
    G04438088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the service wire from connector "B".
    2. Measure the resistance of the wire harness side connector.

      Standard resistance:

      w/Navigation system

      PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT (SHORT) (W/NAVIGATION SYSTEM)

      Tester Connection Specified Condition
      C28-9 (PAON) - C28-21 (OFF) 1 MΩ or higher

      w/o Navigation system

      PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT (SHORT) (W/O NAVIGATION SYSTEM)

      Tester Connection Specified Condition
      A45-34 (PAON) - A45-35 (OFF) 1 MΩ or higher

    NG: REPAIR OR REPLACE INSTRUMENT PANEL WIRE

    OK: GO TO NEXT STEP

  14. CHECK PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT (SHORT TO GROUND)

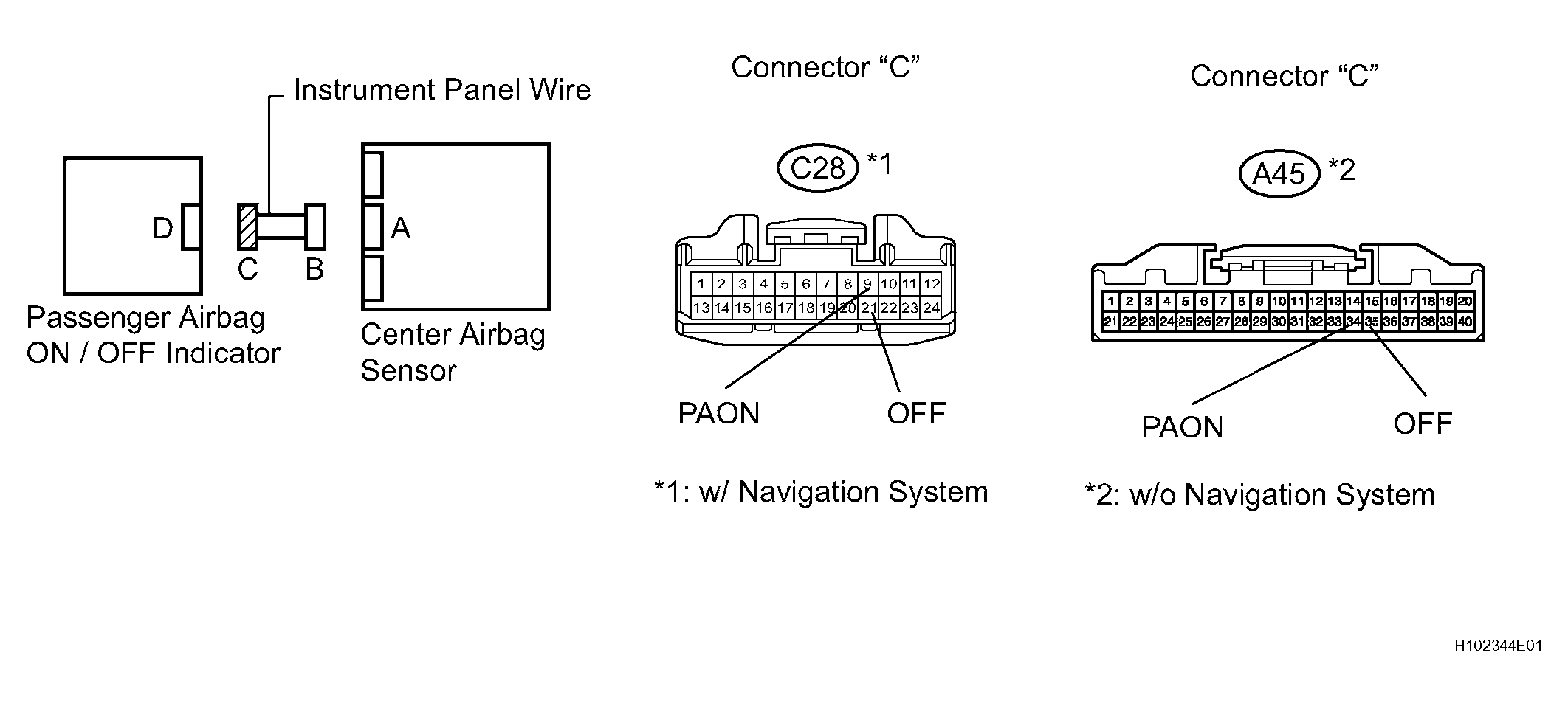

    Fig 10: Checking Passenger Airbag ON/OFF Indicator Circuit (Short To Ground)
    G04438089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the resistance of the wire harness side connector.

      Standard resistance:

      w/Navigation system

      PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT (SHORT TO GROUND) (W/NAVIGATION SYSTEM)

      Tester Connection Specified Condition
      C28-9 (PAON) - Body ground 1 MΩ or higher
      C28-21 (OFF) - Body ground 1 MΩ or higher

      w/o Navigation system

      PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT (SHORT TO GROUND) (W/O NAVIGATION SYSTEM)

      Tester Connection Specified Condition
      A45-34 (PAON) - Body ground 1 MΩ or higher
      A45-35 (OFF) - Body ground 1 MΩ or higher

    NG: REPAIR OR REPLACE INSTRUMENT PANEL WIRE

    OK: GO TO NEXT STEP

  15. CHECK PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT (SHORT TO B+)

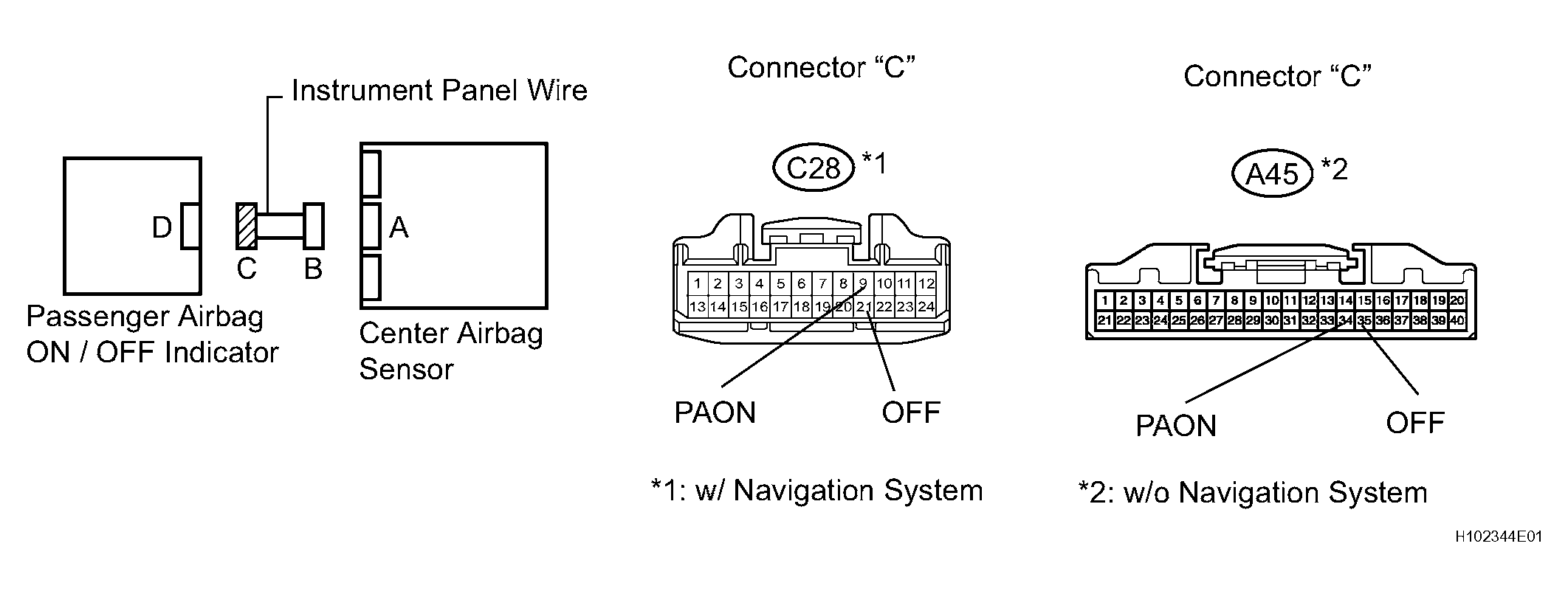

    Fig 11: Checking Passenger Airbag ON/OFF Indicator Circuit (Short To B+)
    G04438090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
    2. Turn the ignition switch ON.
    3. Measure the voltage of the wire harness side connector.

      Standard voltage:

      w/ Navigation system

      PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT (SHORT TO B+) (W/NAVIGATION SYSTEM)

      Tester Connection Specified Condition
      C28-9 (PAON) - Body ground Below 1 V
      C28-21 (OFF) - Body ground Below 1 V

      w/o Navigation system

      PASSENGER AIRBAG ON/OFF INDICATOR CIRCUIT (SHORT TO B+) (W/O NAVIGATION SYSTEM)

      Tester Connection Specified Condition
      A45-34 (PAON) - Body ground Below 1 V
      A45-35 (OFF) - Body ground Below 1 V

    NG: REPAIR OR REPLACE INSTRUMENT PANEL WIRE

    OK: GO TO NEXT STEP

  16. CHECK WIRE HARNESS (ON/OFF INDICATOR - POWER SOURCE)
    1. Turn the ignition switch ON.
    2. Measure the voltage and resistance of the wire harness side connector.

      Standard voltage:

      w/Navigation system

      WIRE HARNESS (ON/OFF INDICATOR - POWER SOURCE) VOLTAGE (W/NAVIGATION SYSTEM)

      Tester Connection Specified Condition
      C28-8 (IG) - Body ground 10 to 14 V

      w/o Navigation system

      WIRE HARNESS (ON/OFF INDICATOR - POWER SOURCE) VOLTAGE (W/O NAVIGATION SYSTEM)

      Tester Connection Specified Condition
      A47-22 (IG) - Body ground 10 to 14 V

      Standard resistance:

      w/ Navigation system

      WIRE HARNESS (ON/OFF INDICATOR - POWER SOURCE) RESISTANCE (W/NAVIGATION SYSTEM)

      Tester Connection Specified Condition
      C28-16 (GND) - Body ground 1 MΩ or higher

      w/o Navigation system

      WIRE HARNESS (ON/OFF INDICATOR - POWER SOURCE) RESISTANCE (W/O NAVIGATION SYSTEM)

      Tester Connection Specified Condition
      A47-12 (GND) - Body ground 1 MΩ or higher

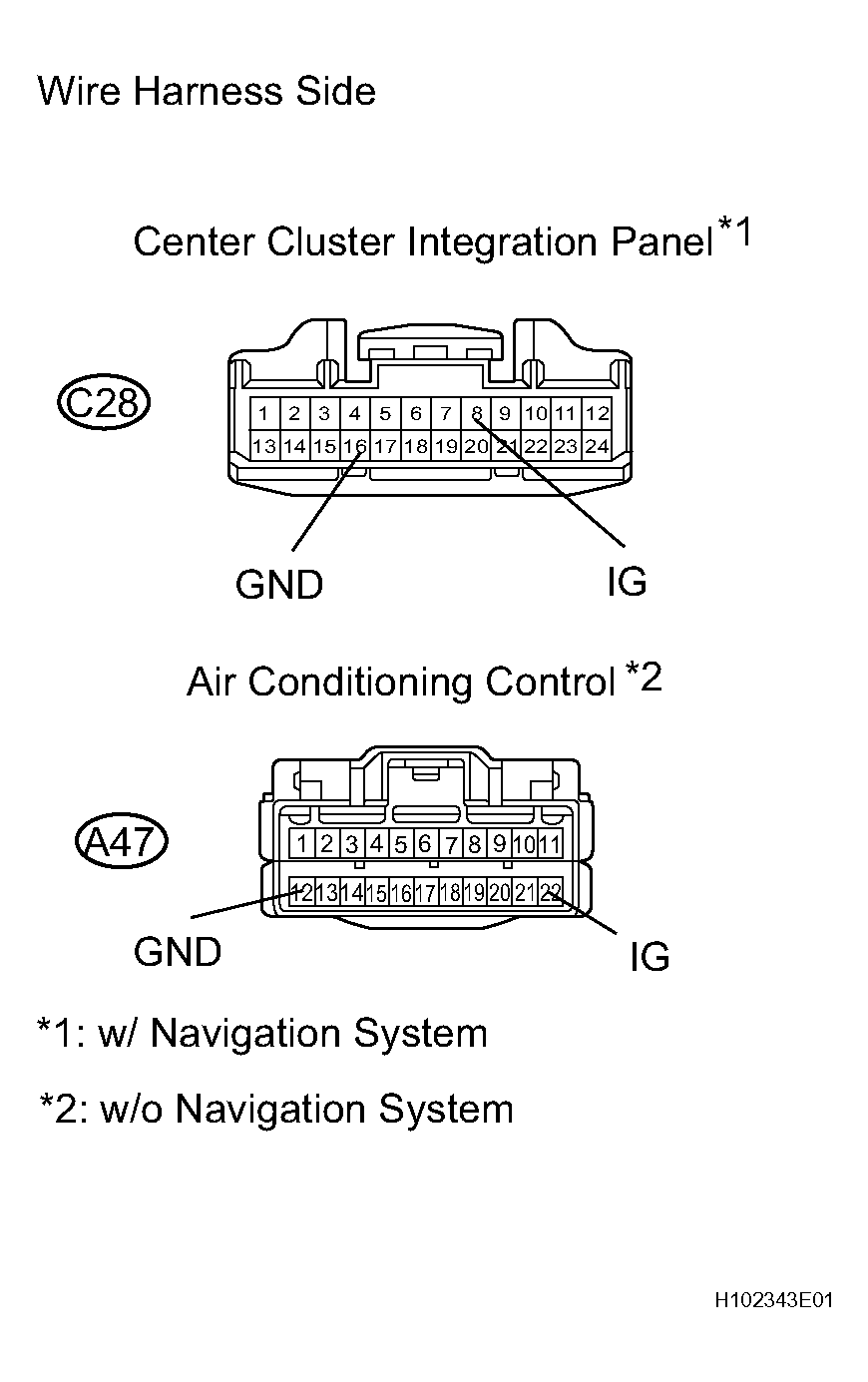

      Fig 12: Checking Wire Harness (ON/OFF Indicator - Power Source)
      G04438091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE POWER SOURCE CIRCUIT

    OK: GO TO NEXT STEP

  17. CHECK PASSENGER AIRBAG ON/OFF INDICATOR
    1. Turn the ignition switch OFF.
    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    3. Connect the connector to the air conditioning control.
    4. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
    5. Turn the ignition switch ON.
    6. Check the passenger airbag ON/OFF indicator condition.

      OK:

      Fig 13: Checking Passenger Airbag ON/OFF Indicator
      G04438092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      PASSENGER AIRBAG ON/OFF INDICATOR CONDITION TABLE

      Tester Connection Passenger Airbag ON/OFF Indicator Condition
      C26-25 (PAON) - Body ground "ON" comes on
      C26-1 (P-AB) - Body ground "OFF" comes on

      Result:

      PASSENGER AIRBAG ON/OFF INDICATOR RESULT TABLE

      Result Proceed to
      OK A
      NG (w/Navigation System) B
      NG (w/o Navigation System) C

    B: REPLACE CENTER CLUSTER INTEGRATION SWITCH ASSEMBLY

    C: REPLACE AIR CONDITIONING CONTROL ASSEMBLY

    A: GO TO NEXT STEP

  18. CHECK CENTER AIRBAG SENSOR ASSEMBLY
    1. Turn the ignition switch OFF.
    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    3. Connect the connector to the center airbag sensor.
    4. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
    5. Turn the ignition switch ON, and wait for at least 60 seconds.
    6. Clear the DTCs stored in memory (see DTC CHECK/CLEAR  ).
    7. Turn the ignition switch OFF.
      Fig 14: Checking Center Airbag Sensor Assembly
      G04438093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Turn the ignition switch ON, and wait for at least 60 seconds.
    9. Check the DTCs (see DTC CHECK/CLEAR  ).

      OK: DTC B1152/28 is not output.

      HINT:

      Codes other than code B1152/28 may be output at this time, but they are not related to this check.

    NG: REPLACE CENTER AIRBAG SENSOR ASSEMBLY

    OK: USE SIMULATION METHOD TO CHECK

scientia non olet · About LEMON Manuals
