Inspection Procedure

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

CHECK NO. 2 FLOOR WIRE (SIDE SQUIB RH CIRCUIT)
1. Turn the ignition switch to LOCK.
2. Disconnect the negative (-) terminal cable from the battery, and wait at least for 90 seconds.
3. Disconnect the connectors from the center airbag sensor and the side airbag RH (side squib RH).
4. Measure the resistance between SFR+ and SFR- of the S19 No. 2 floor wire connector on the side airbag RH (side squib RH) side.
  Standard resistance: Below 1 Ω

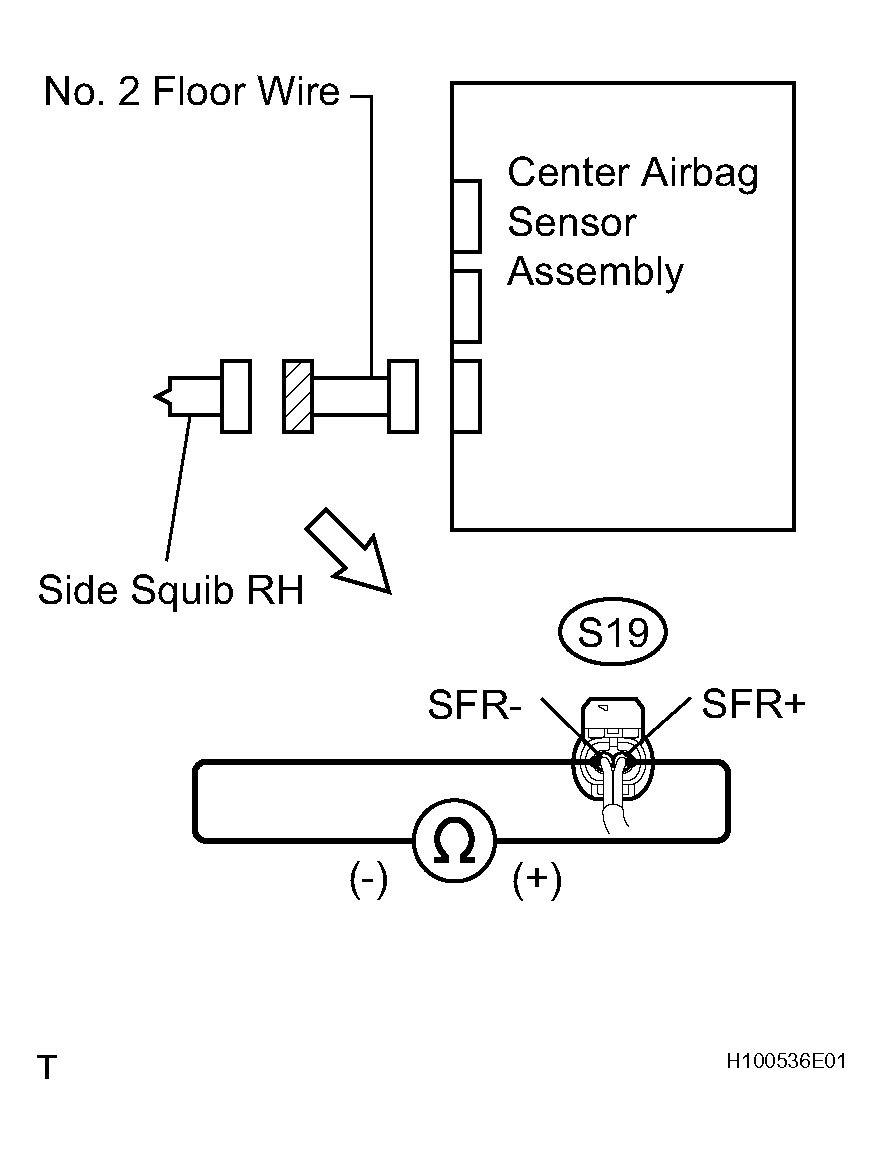

Fig 1: Checking No. 2 Floor Wire (Side Squib RH Circuit)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE NO. 2 FLOOR WIRE

OK: GO TO NEXT STEP
CHECK CENTER AIRBAG SENSOR ASSEMBLY
1. Connect the connector to the center airbag sensor.
2. Using a service wire, connect SFR+ and SFR- of the S19 No. 2 floor wire connector on the side airbag RH (side squib RH) side.
3. Connect the negative (-) terminal cable to the battery, and wait at least for 2 seconds.
4. Turn the ignition switch to ON, and wait at least for 10 seconds.
5. Clear the DTC stored in memory (see DTC CHECK/CLEAR ).
6. Turn the ignition switch to LOCK, and wait at least for 10 seconds.
7. Turn the ignition switch to ON, and wait at least for 10 seconds.
8. Check the DTC (see DTC CHECK/CLEAR ).
  OK: DTC B0111/44 is not output.

  HINT:

  Codes other than code B0111/44 may be output at this time, but they are not relevant to this check.

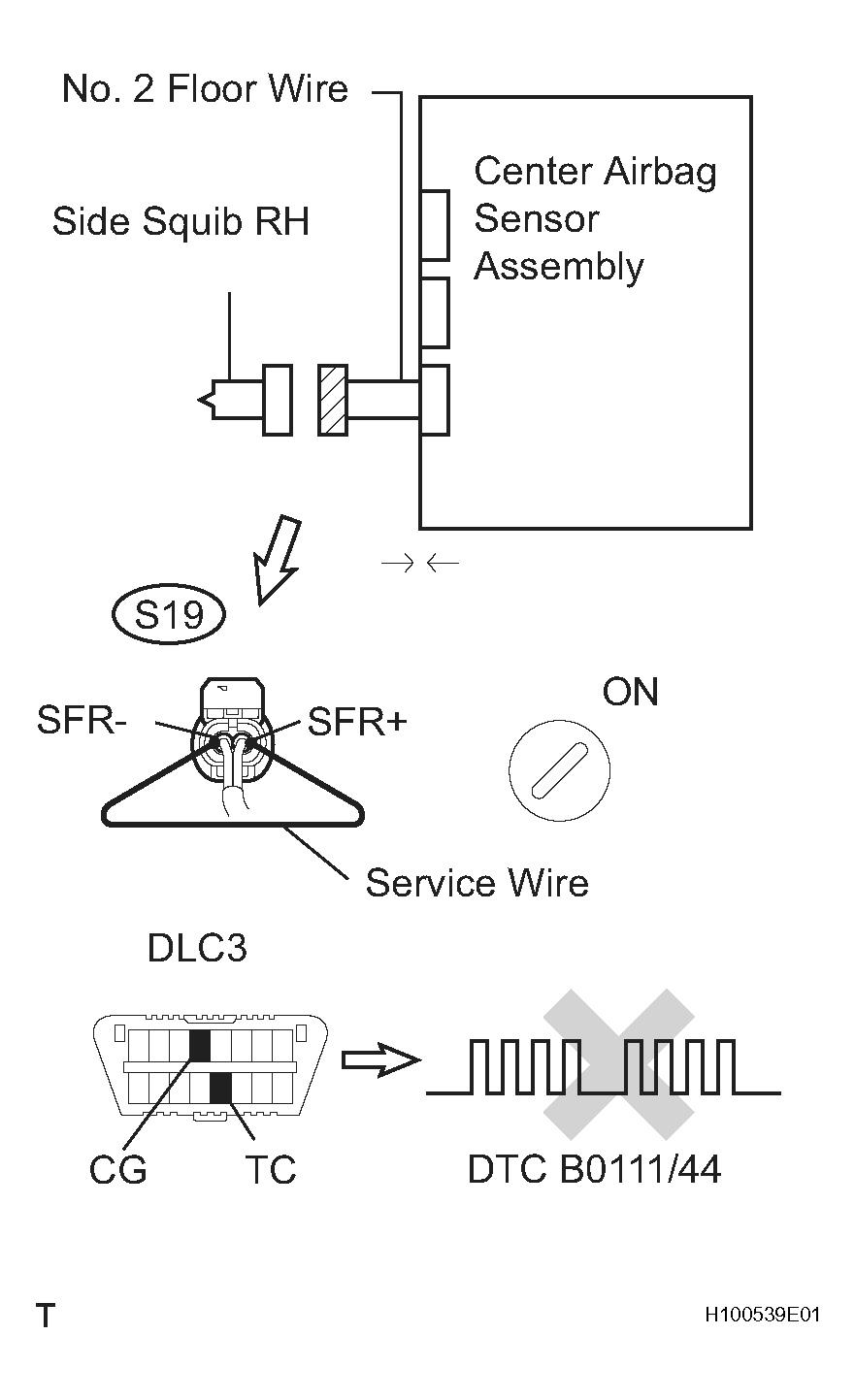

Fig 2: Checking Center Airbag Sensor Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE CENTER AIRBAG SENSOR ASSEMBLY

OK: GO TO NEXT STEP
CHECK SIDE SQUIB RH
1. Turn the ignition switch to LOCK.
2. Disconnect the negative (-) terminal cable from the battery, and wait at least for 90 seconds.
3. Connect the side airbag RH (side squib RH) connector.
4. Connect the negative (-) terminal cable to the battery, and wait at least for 2 seconds.
5. Turn the ignition switch to ON, and wait at least for 10 seconds.
6. Clear the DTC stored in memory (see DTC CHECK/CLEAR ).
7. Turn the ignition switch to LOCK, and wait at least for 10 seconds.
8. Turn the ignition switch to ON, and wait at least for 10 seconds.
9. Check the DTC (see DTC CHECK/CLEAR ).
  OK: DTC B0111/44 is not output.

  HINT:

  Codes other than code B0111/44 may be output at this time, but they are not relevant to this check.

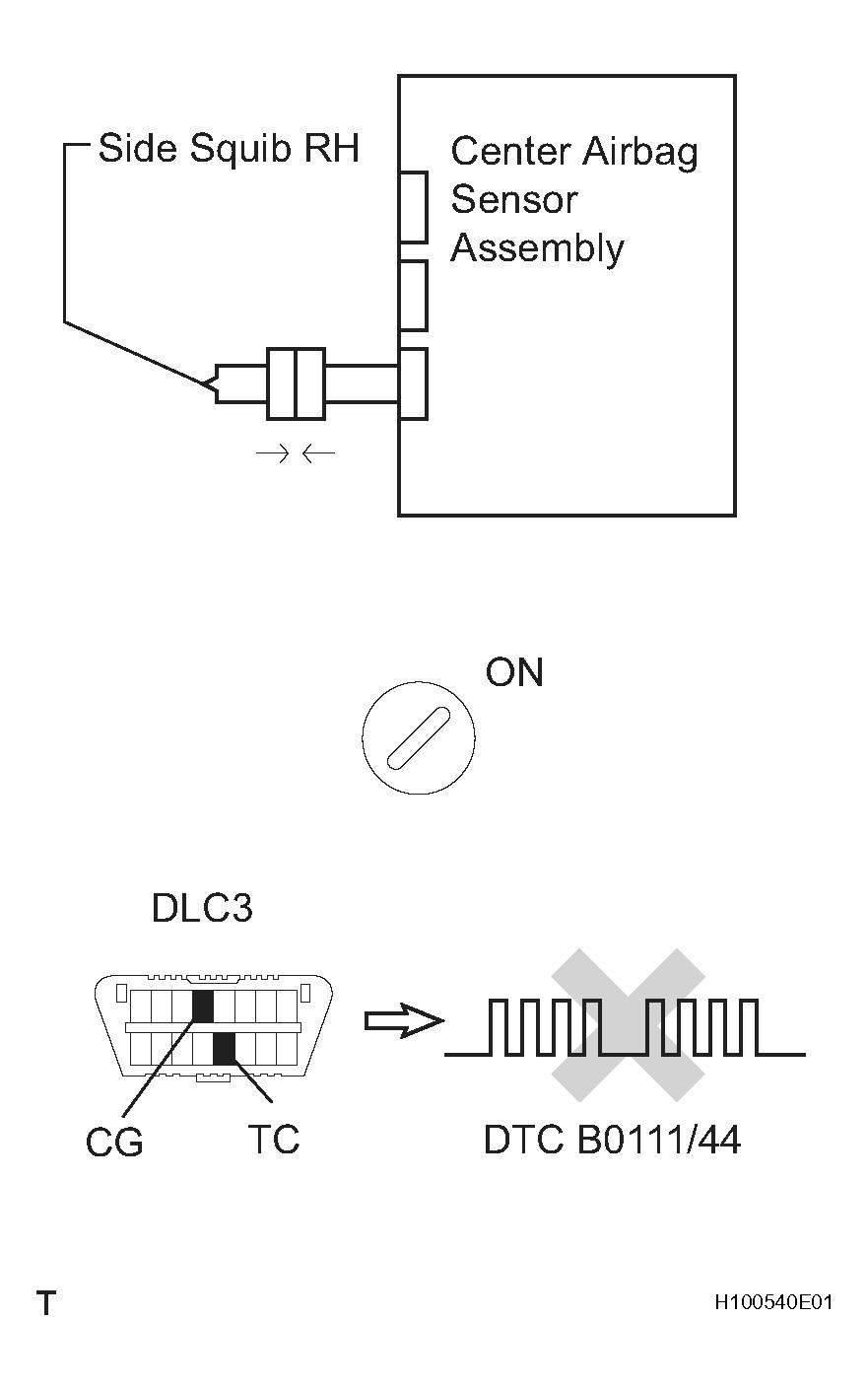

Fig 3: Checking Side Squib RH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE SIDE AIRBAG ASSEMBLY RH (SIDE SQUIB RH)

OK: USE SIMULATION METHOD TO CHECK
