Inspection Procedure

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK DRIVER SIDE SQUIB CIRCUIT
    1. Turn the ignition switch to LOCK.
    2. Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
    3. Disconnect the connectors from the center airbag sensor and the steering wheel pad.
    4. Measure the resistance between D+ and D-of the orange connector on the steering wheel pad (driver side squib) side between the center airbag sensor and the steering wheel pad (driver side squib).

      Standard resistance: Below 1 Ω

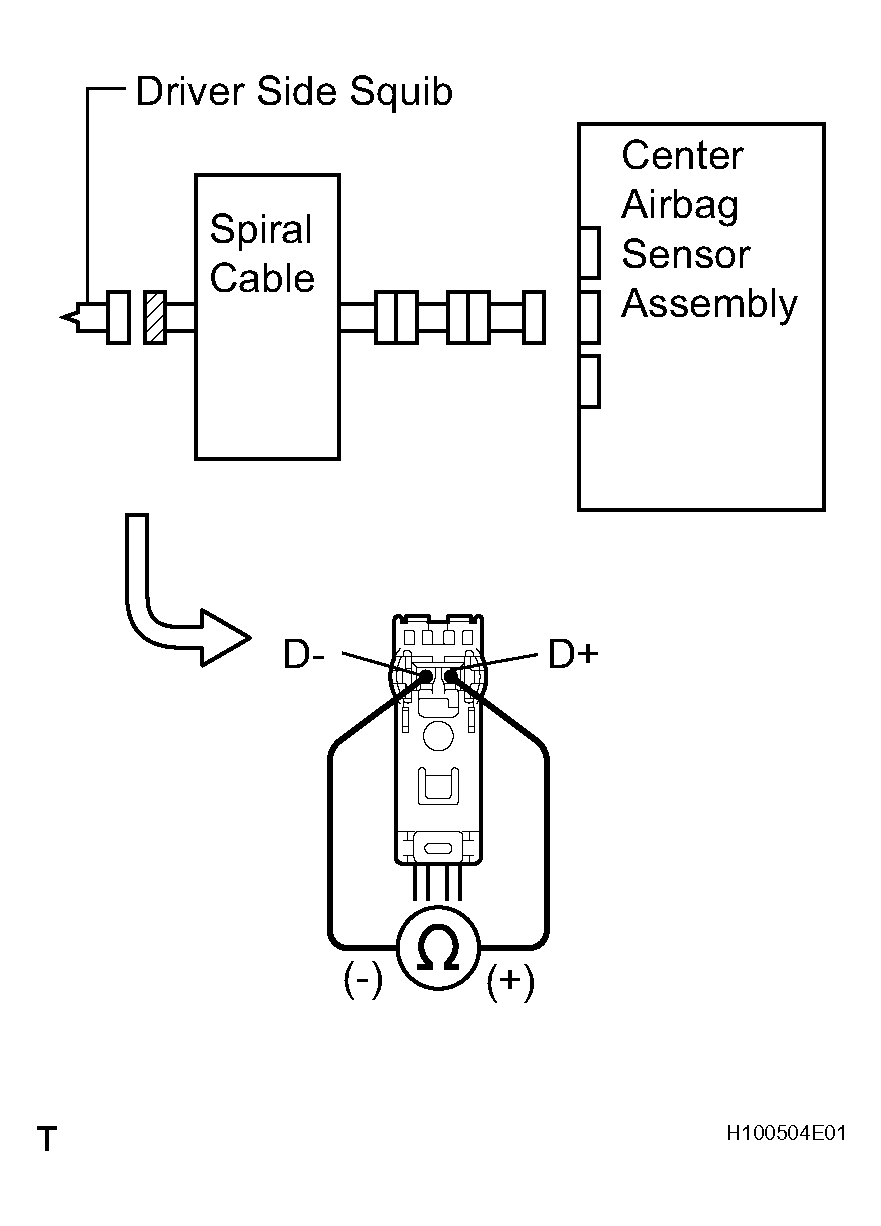

    Fig 1: Checking Driver Side Squib Circuit
    G04437927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: Go to step   4

    OK: GO TO NEXT STEP

  2. CHECK CENTER AIRBAG SENSOR ASSEMBLY
    1. Connect the connector to the center airbag sensor.
    2. Using a service wire, connect D+ and D-of the orange connector on the steering wheel pad (driver side squib) side between the center airbag sensor and the steering wheel pad (driver side squib).
    3. Connect the negative (-) terminal cable to the battery, and wait at least for 2 seconds.
    4. Turn the ignition switch to ON, and wait at least for 10 seconds.
    5. Clear the DTC stored in memory (see DTC CHECK/CLEAR  ).
    6. Turn the ignition switch to LOCK, and wait at least for 10 seconds.
    7. Turn the ignition switch to ON, and wait at least for 10 seconds.
    8. Check the DTC (see DTC CHECK/CLEAR  ).

      OK: DTC B0101/14 is not output.

      HINT:

      Codes other than code B0101/14 may be output at this time, but they are not relevant to this check.

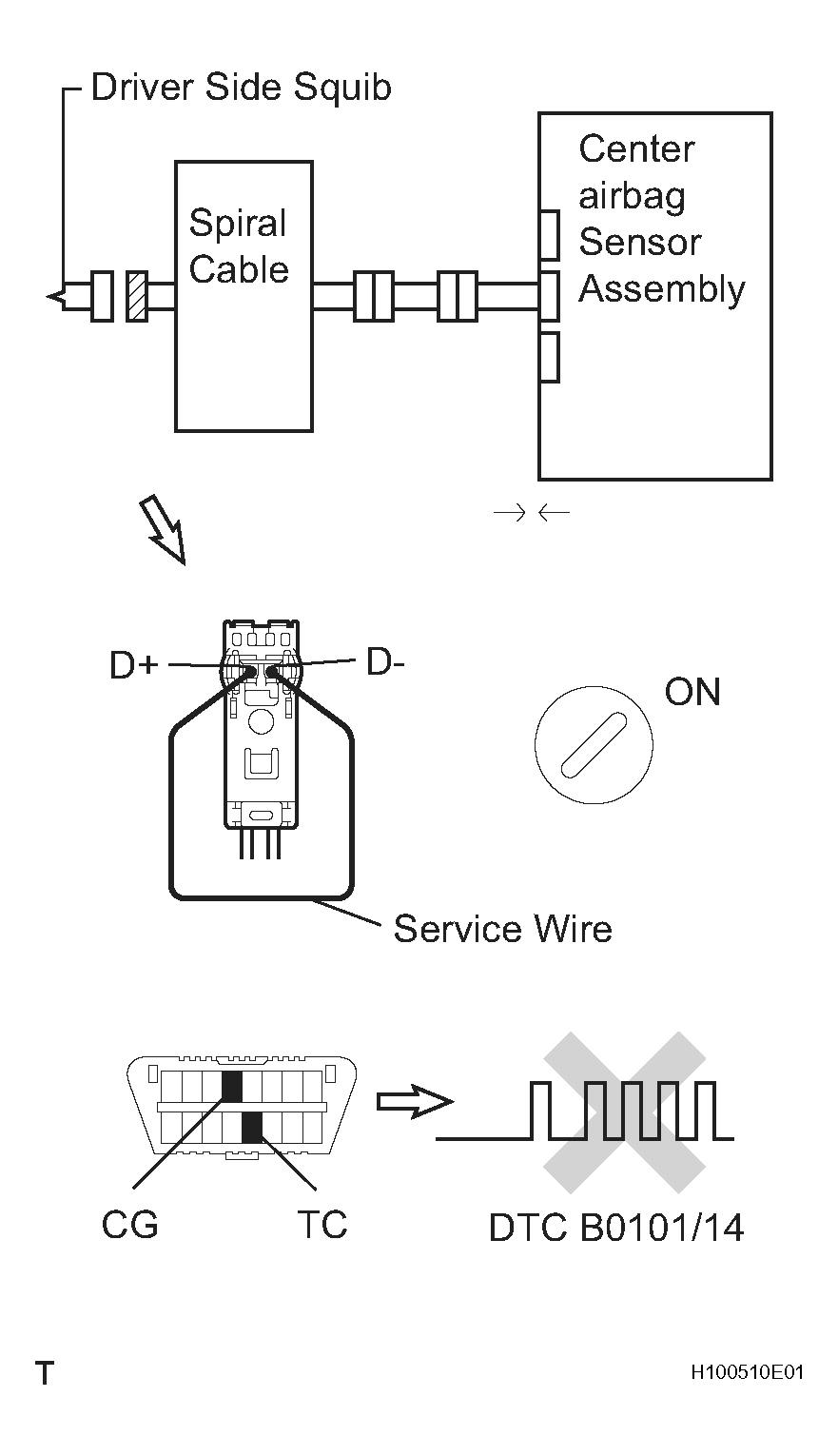

    Fig 2: Checking Center Airbag Sensor Assembly
    G04437928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE CENTER AIRBAG SENSOR ASSEMBLY

    OK: GO TO NEXT STEP

  3. CHECK DRIVER SIDE SQUIB
    1. Turn the ignition switch to LOCK.
    2. Disconnect the negative (-) terminal cable from the battery, and wait at least for 90 seconds.
    3. Connect the steering wheel pad (driver side squib) to the spiral cable.
    4. Connect the negative (-) terminal cable to the battery, and wait at least for 2 seconds.
    5. Turn the ignition switch to ON, and wait at least for 10 seconds.
    6. Clear the DTC stored in memory (see DTC CHECK/CLEAR  ).
    7. Turn the ignition switch to LOCK, and wait at least for 10 seconds.
    8. Turn the ignition switch to ON, and wait at least for 10 seconds.
    9. Check the DTC (see DTC CHECK/CLEAR  ).

      OK: DTC B0101/14 is not output.

      HINT:

      Codes other than code B0101/14 may be output at this time, but they are not relevant to this check.

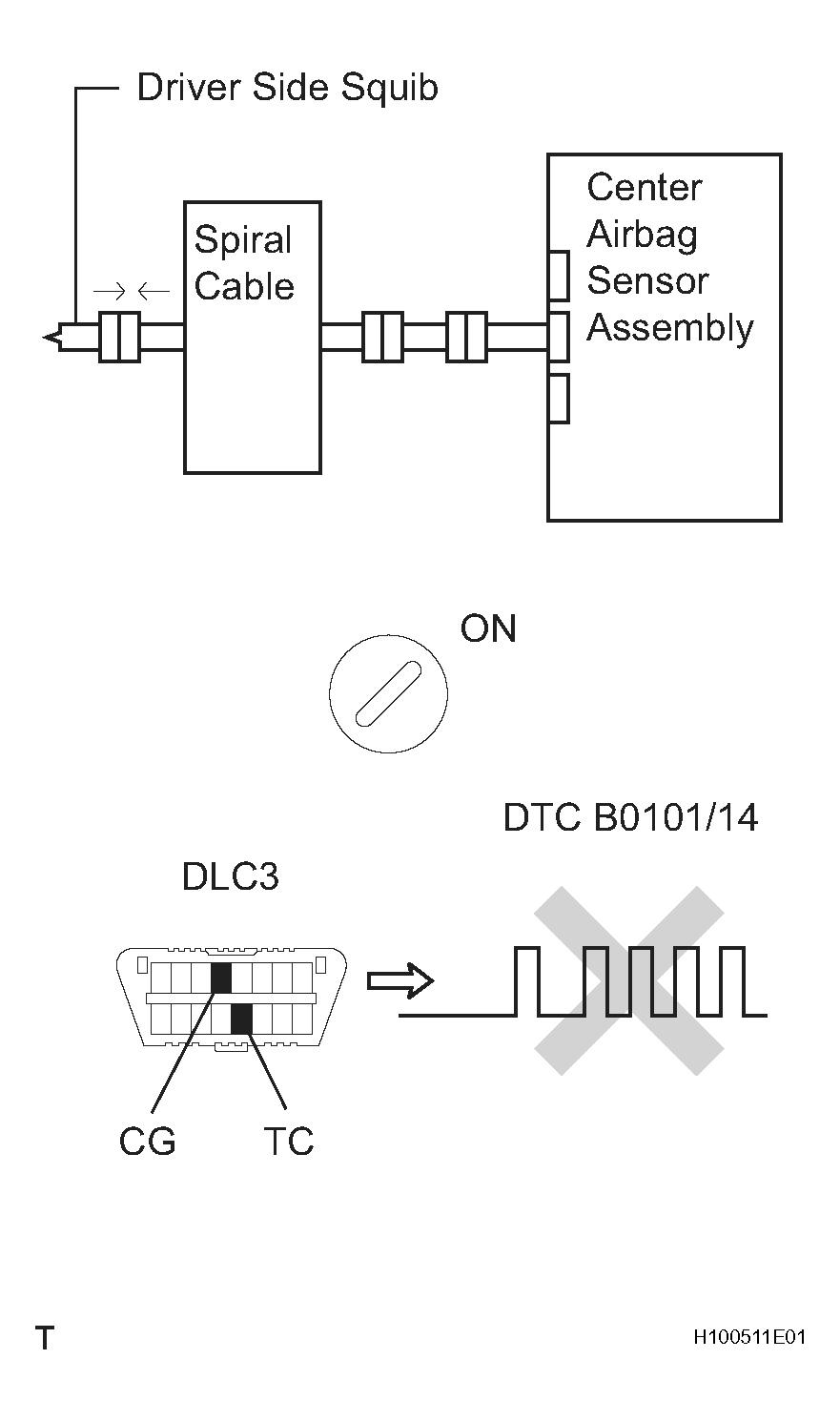

    Fig 3: Checking Driver Side Squib
    G04437929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE STEERING WHEEL PAD (DRIVER SIDE SQUIB)

    OK: REPLACE CENTER AIRBAG SENSOR ASSEMBLY

  4. CHECK SPIRAL CABLE
    1. Disconnect the spiral cable connector from the column wire.
    2. Measure the resistance between D+ and D-of the orange spiral cable connector on the steering wheel pad (driver side squib) side.

      Standard resistance: Below 1 Ω

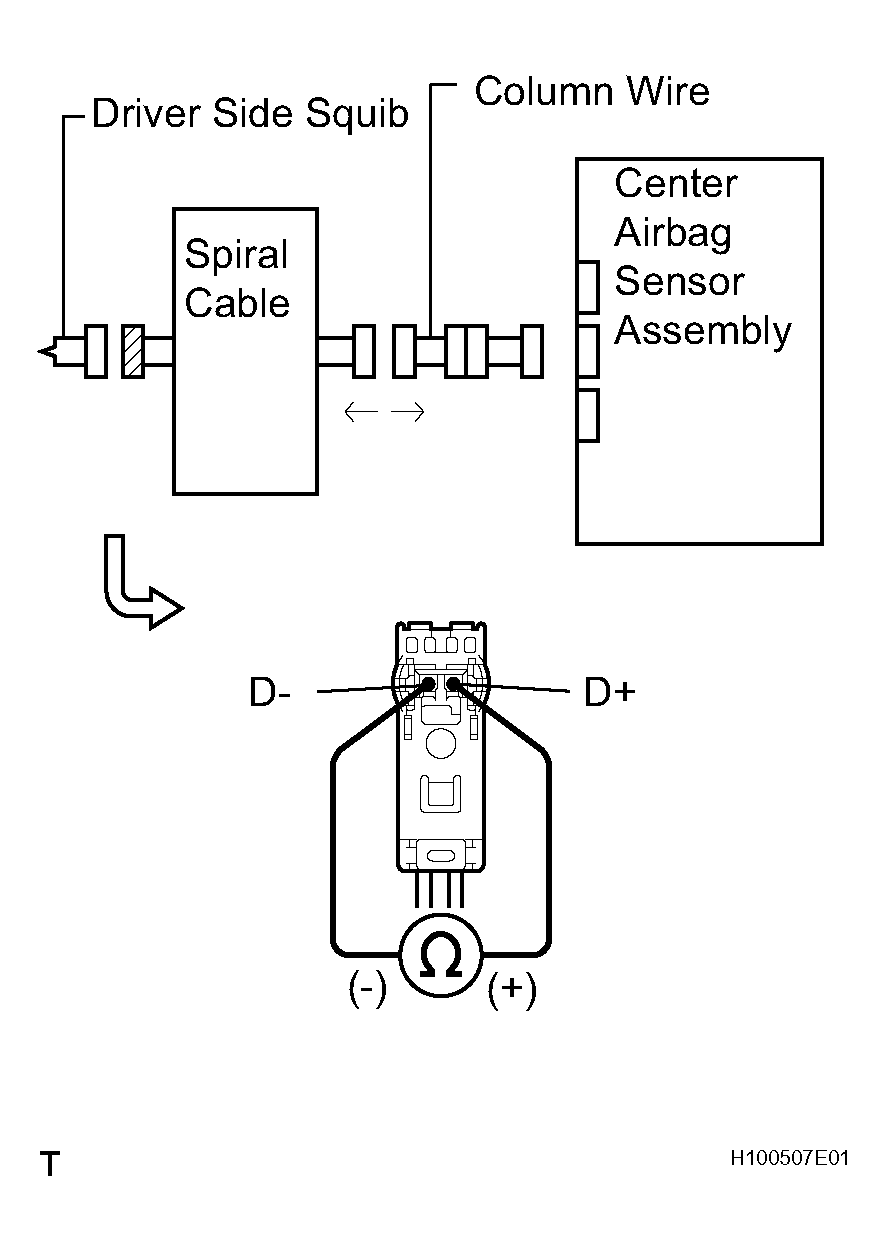

    Fig 4: Checking Spiral Cable
    G04437930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE SPIRAL CABLE

    OK: GO TO NEXT STEP

  5. CHECK COLUMN WIRE
    1. Disconnect the column wire connector from the dash wire.
    2. Measure the resistance between D+ and D-of the A28 column wire connector on the spiral cable side.

      Standard resistance: Below 1 Ω

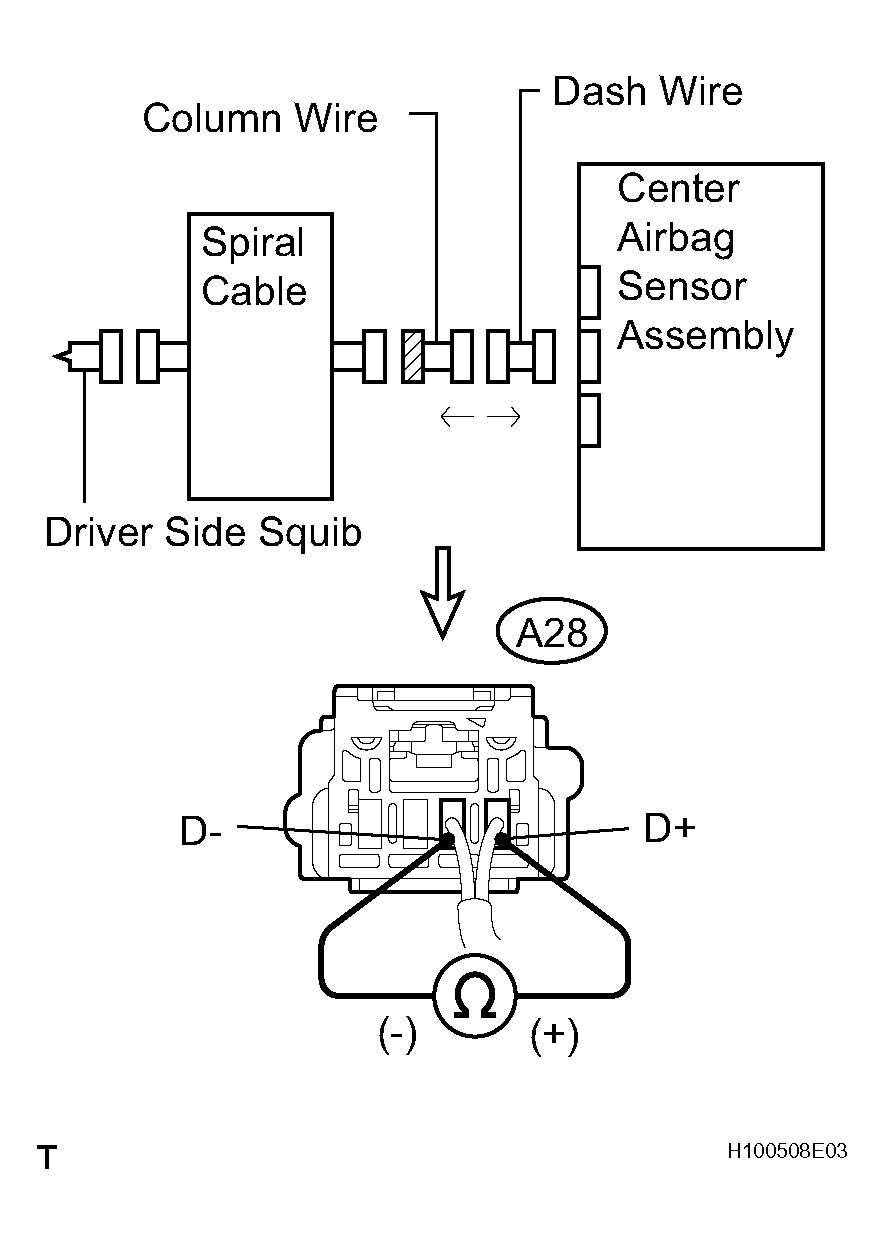

    Fig 5: Checking Column Wire
    G04437931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE COLUMN WIRE

    OK: GO TO NEXT STEP

  6. CHECK DASH WIRE
    1. Measure the resistance between D+ and D- of the II4 dash wire connector on the column wire side.

      Standard resistance: Below 1 Ω

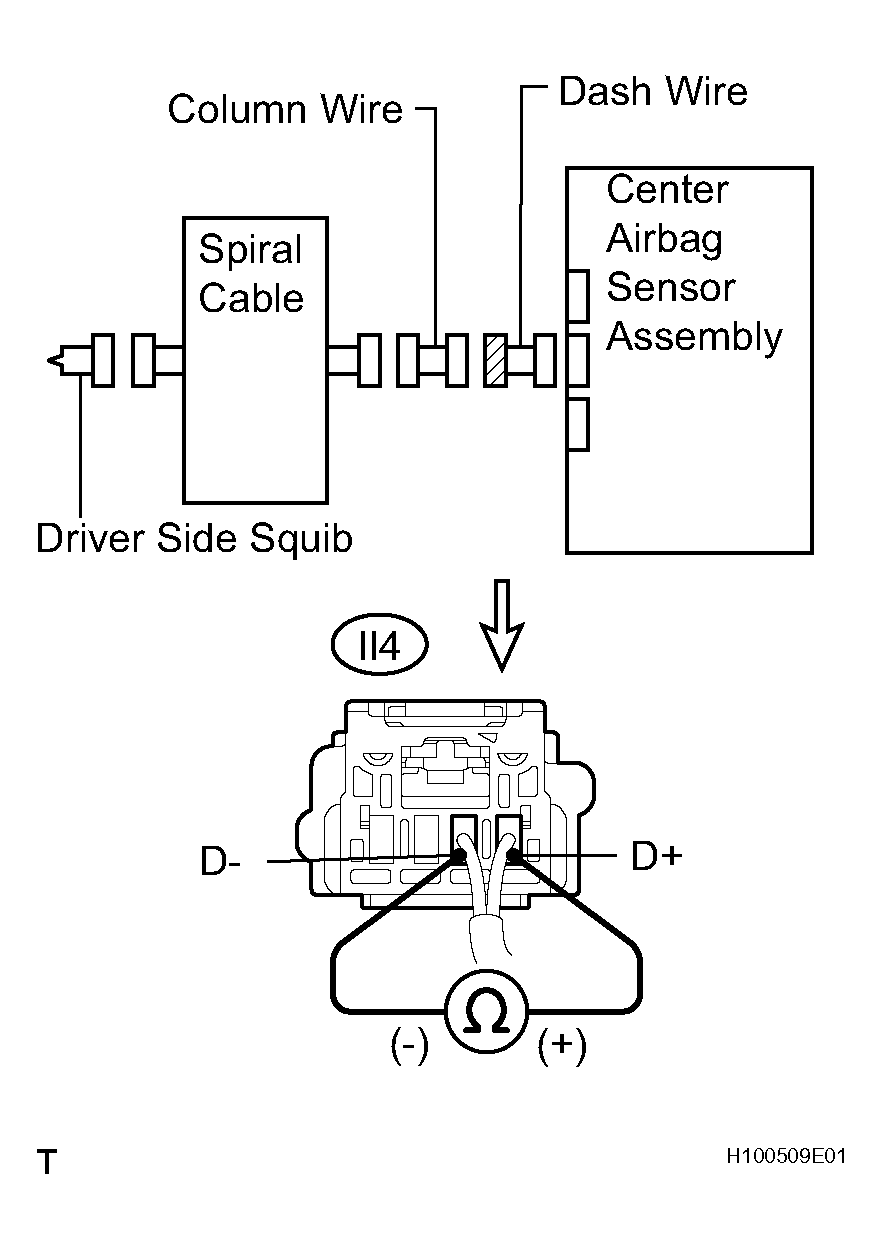

    Fig 6: Checking Dash Wire
    G04437932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE DASH WIRE

    OK: USE SIMULATION METHOD TO CHECK
