Inspection Procedure

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT NAVIGATION ECU

Measure the voltage of the ECU.

Standard voltage

NAVIGATION ECU

Tester Connection	Condition	Specified Condition
N2-14 (REV) - Body ground	Ignition switch ON, shift lever R position	10 to 14 V

Fig 1: Inspecting Navigation ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
NG: GO TO NEXT STEP

CHECK WIRE HARNESS (NAVIGATION ECU - PARK/NEUTRAL POSITION SWITCH)

Disconnect the N2 ECU connector.
Disconnect the P1 switch connector.

Measure the resistance of the wire harness side connectors.

Standard resistance

NAVIGATION ECU - PARK/NEUTRAL POSITION SWITCH

Tester Connection	Specified Condition
N2-14 (REV) - P1-1	Below 1 Ω
N2-14 (REV) - Body ground	10 kΩ or higher

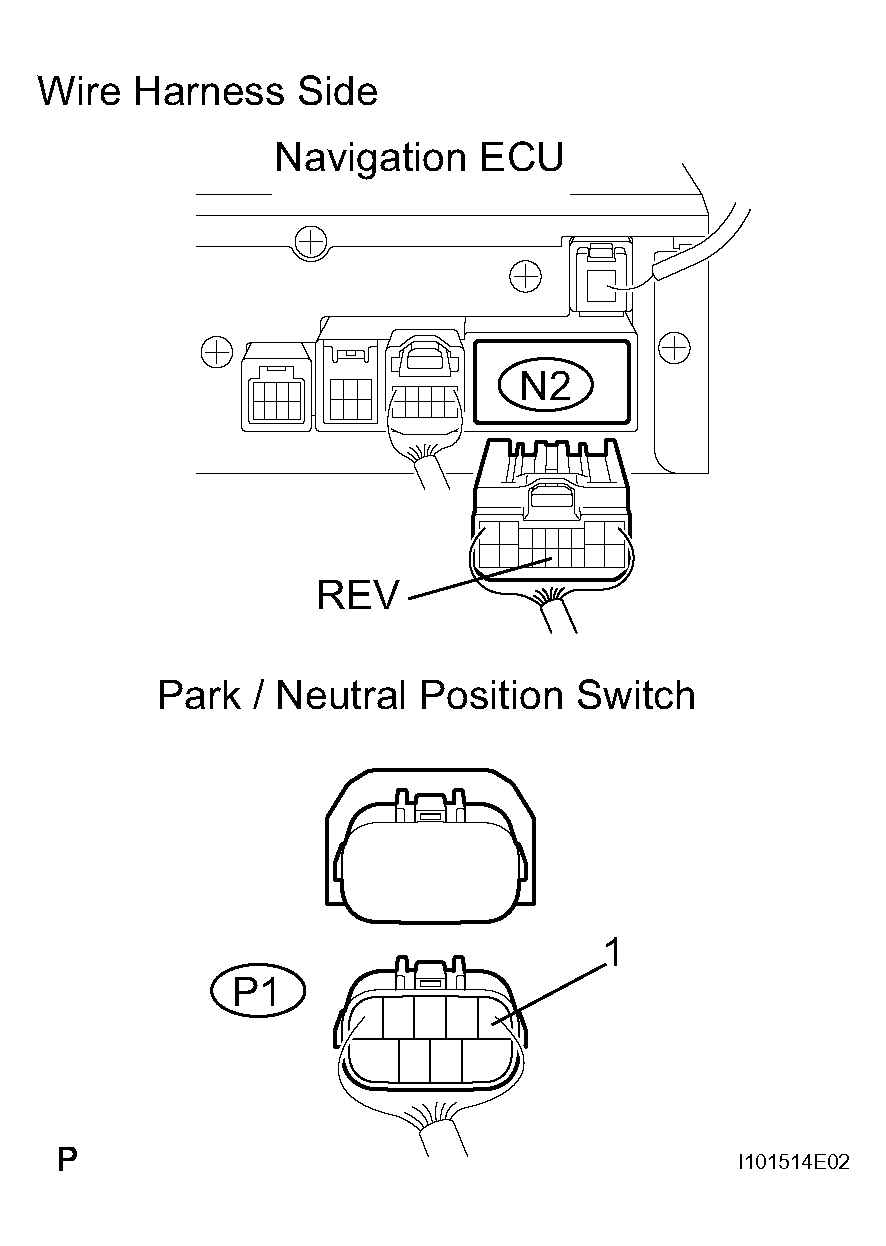

Fig 2: Checking Wire Harness (Navigation ECU - Park/Neutral Position Switch)

OK: REPLACE PARK/NEUTRAL POSITION SWITCH ASSEMBLY
NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
