Rear Axle Shaft: Reassembly

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL REAR AXLE SHAFT BEARING
1. Using SST and a press, press in the bearing.
  SST 09950-60020 (09951-00890)

  Fig 1: Pressing In Rear Axle Shaft Bearing Using SST & Press
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR AXLE BEARING CASE LH
1. Position the backing plate on the bearing case and using a press and 2 socket wrenches, press in the 4 serration bolts.

  Fig 2: Pressing In Serration Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR AXLE SHAFT OUTER OIL SEAL
1. Using SST and a hammer, tap in a new oil seal.
  SST 09950-60020 (09951-00810), 09950-70010 (09951-07100)
2. Coat MP grease to the oil seal lip.

  Fig 3: Tapping In Rear Axle Shaft Outer Oil Seal Using SST & Hammer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL BRAKE DRUM OIL DEFLECTOR
1. Position a new gasket and the oil deflector on the axle shaft and install a washer and nut to a new hub bolt, as shown in Fig 4 , and install the 5 hub bolts by torquing the nut.
INSTALL AXLE SHAFT
1. Install the backing plate, plate washer and bearing retainer on the axle shaft.

  Fig 4: Installing Washer & Nut To New Hub Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

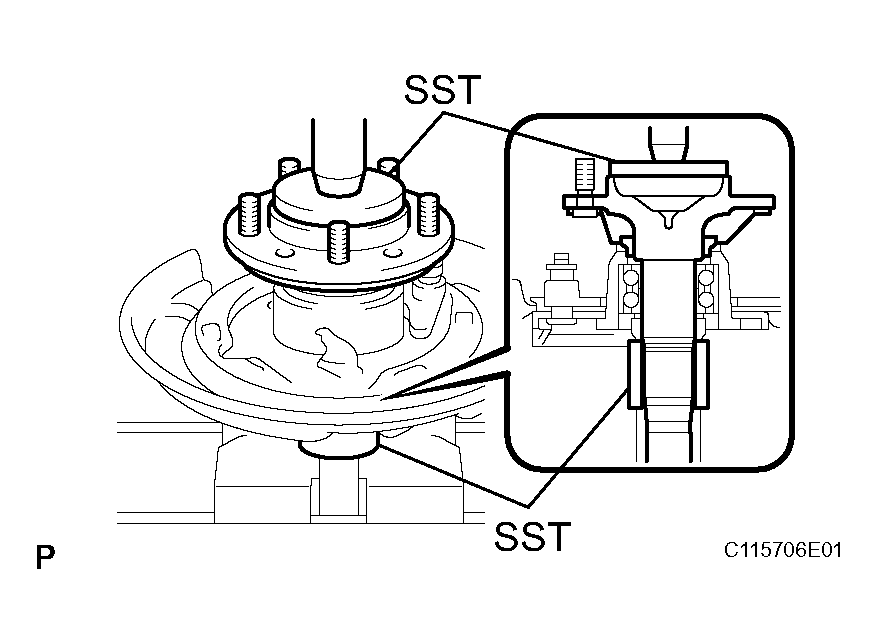

2. Using SST and a press, install the axle shaft into the backing plate.
  SST 09631-12090, 09950-60020 (09951-01030)
INSTALL REAR AXLE SHAFT SNAP RING
1. Using a snap ring expander, install a new snap ring.
INSTALL ABS SPEED SENSOR ROTOR

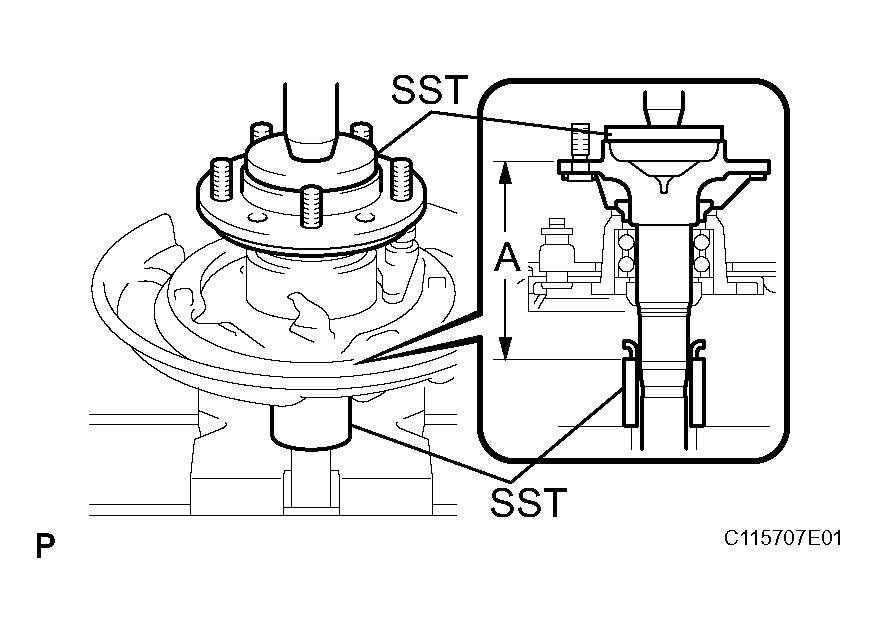

1. Using SST and a press, press in a new ABS speed sensor rotor and bearing retainer.
  SST 09631-12090, 09950-60020 (09951-01030)

  Standard length A: 170.7 +- 1.0 mm (6.720 +- 0.039 in.)

  Fig 6: Installing ABS Speed Sensor Rotor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
