Rear Axle Hub Bolt: Replacement

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.

REMOVE REAR WHEEL
REMOVE REAR DISC
1. Remove the 2 bolts, brake cylinder and disc.
2. Support the brake cylinder securely.

  Fig 1: Removing 2 Bolts From Brake Cylinder
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR AXLE HUB BOLT
1. Using a brass bar and hammer, tap out the hub bolt.

  Fig 2: Tapping Out Hub Bolt Using Brass Bar & Hammer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR AXLE HUB BOLT

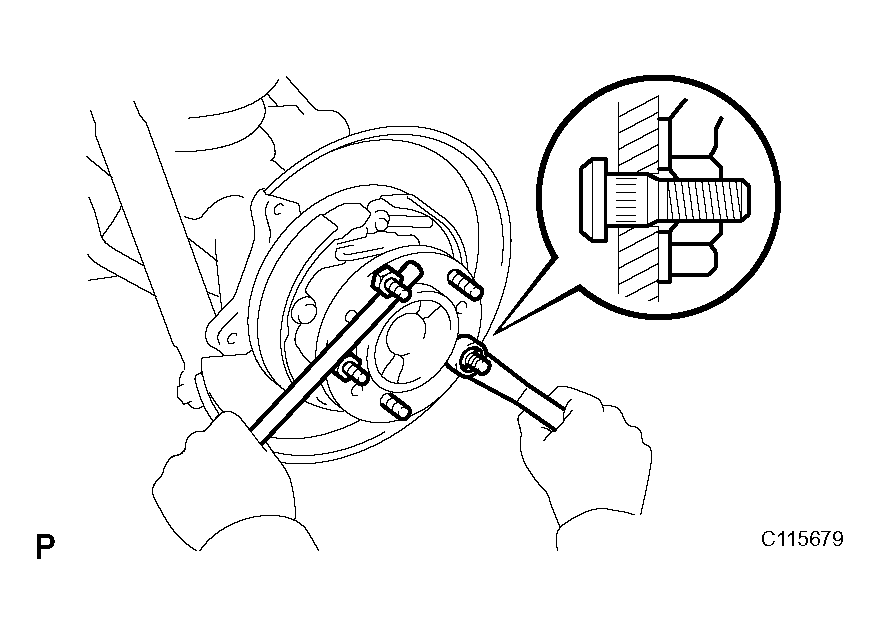

1. Install a washer and nut to a new hub bolt, as shown in Fig 3 , and install the hub bolt by torquing the nut.
INSTALL REAR DISC
1. Install the disc and brake cylinder with the 2 bolts.
  Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
INSTALL REAR WHEEL
Torque: 131 N*m (1,340 kgf*cm, 97 ft.*lbf)
