Fuel Pump Resistor: Removal

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FUEL PUMP RESISTOR
    1. Disconnect the resistor connector.
    2. Remove the bolt and resistor.

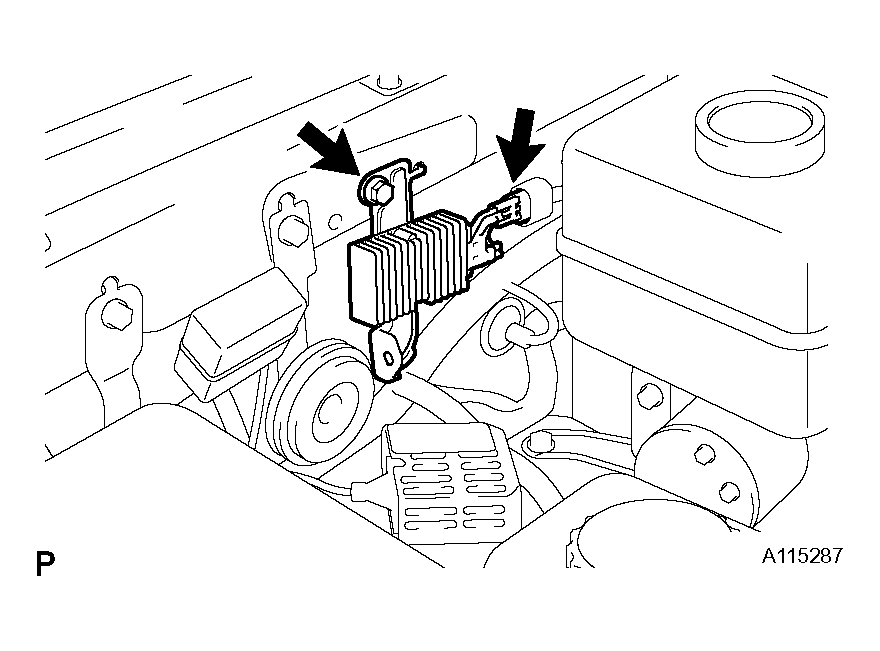

      Fig 1: Removing Fuel Pump Resistor
      G04436047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
