Rear Heater Unit: Disassembly

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE AIR MIX SERVOMOTOR
1. Remove the 3 screws and air mix servomotor.

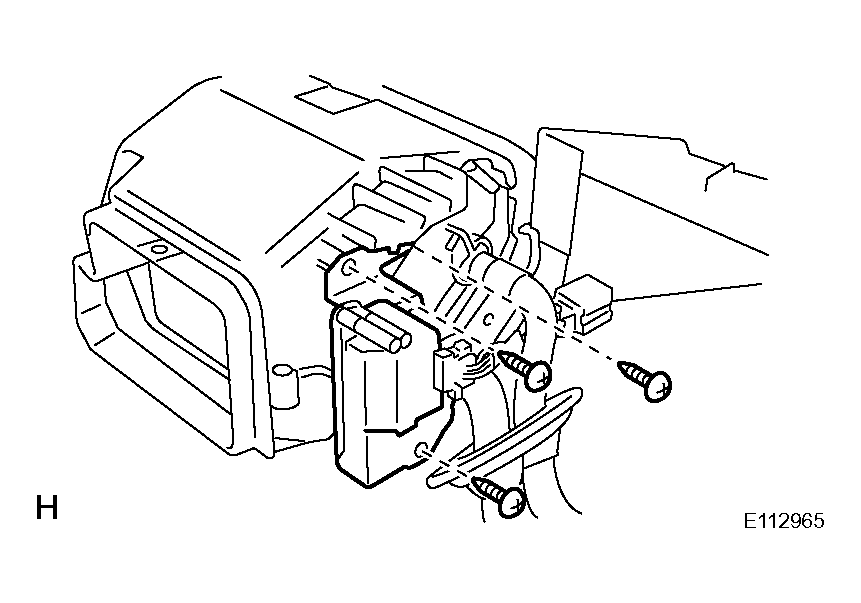

  Fig 1: Removing Air Mix Servomotor Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HEATER RADIATOR
1. Remove the 3 screws and 2 clamps.
2. Pull out the heater radiator.

  Fig 2: Removing Heater Radiator Screws & Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 screws, 2 clamps and heater radiator pipes.
4. Remove the 2 O-rings.
  HINT:

  At the time of reassembly, do not reuse the O-rings.

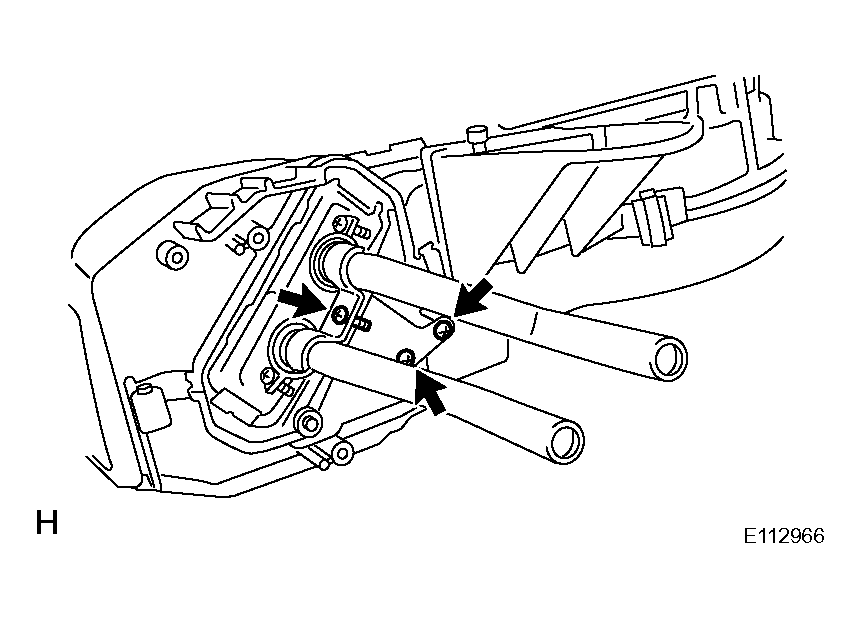

  Fig 3: Removing Screws, Clamps & Heater Radiator Pipes
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POWER TRANSISTOR
1. Remove the 2 screws and power transistor.

  Fig 4: Removing Power Transistor Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AIR INLET TEMPERATURE SENSOR
1. Disconnect the connector.
2. Remove the screw and air inlet temperature sensor.

  Fig 5: Removing Air Inlet Temperature Sensor Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BLOWER MOTOR
1. Remove the 3 screws and cover.
2. Remove the 4 screws, 3 holding springs and separate the heater cases.

  Fig 6: Removing Screws & Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the nut and fan.

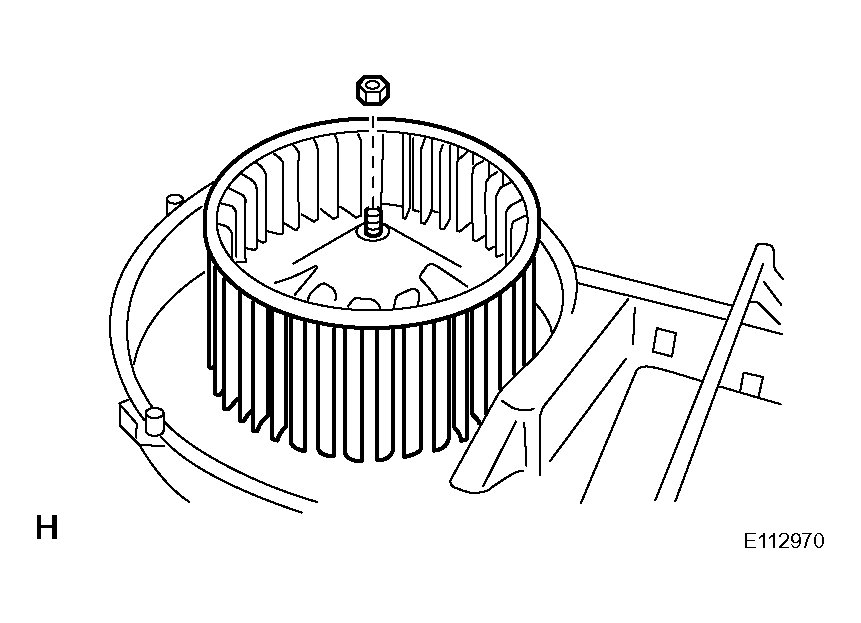

  Fig 7: Removing Nut & Fan
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the screws and blower motor.

  Fig 8: Removing Screws & Blower Motor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
