Pressure Switch: Removal
WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
- DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM (See REPLACEMENT )
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
HINT:
At the time of installation, perform initialization (see INITIALIZATION ).
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal. - REMOVE PRESSURE SWITCH
- Disconnect the connector and remove the pressure switch.
Torque: 10 N*m (100 kgf*cm, 7 ft.*lbf)
HINT:

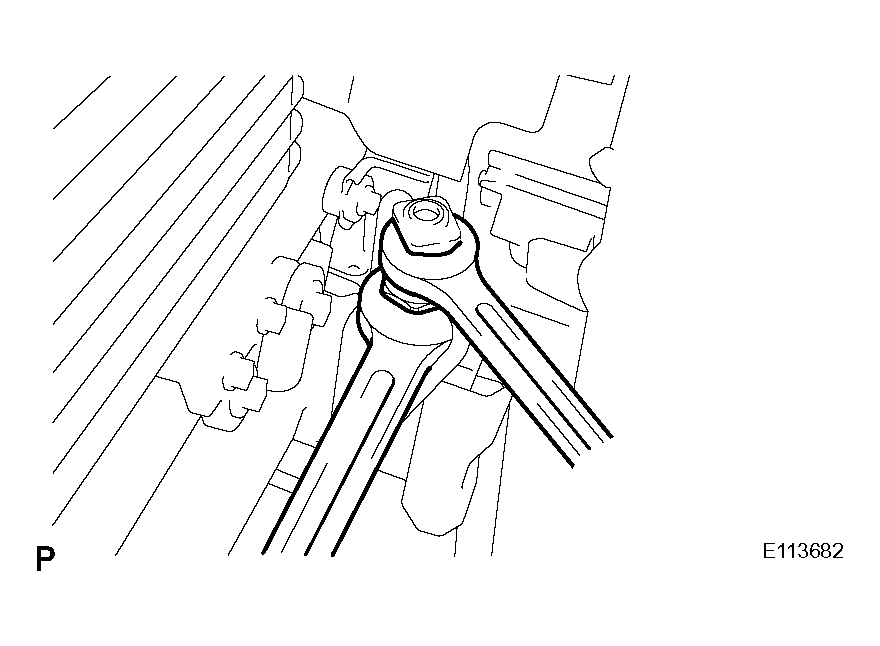

- Lock the switch mount on the tube with an open end wrench, be careful not to deform the tube, and remove the pressure switch.
- At the time of installation, lubricate a new O-ring with compressor oil and install the pressure switch.
- Disconnect the connector and remove the pressure switch.
