Front Heater Unit: Reassembly

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL AIR DUCT (Vent Duct)
1. Install the air duct with the 2 screws.
2. Connect the mode damper control link.

  Fig 1: Connecting Mode Damper Control Link
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR DUCT (Foot Duct)
1. Install the air duct with the 2 screws.

  Fig 2: Installing Air Duct Screws - Foot Duct
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR MIX SERVO MOTOR
1. Install the wire harness and tighten the claw.
2. Install the air mix servo motor with the 3 screws.
3. Connect the connector.

  Fig 3: Installing Air Mix Servo Motor Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR OUTLET SERVO MOTOR
1. Install the air outlet servo motor with the 3 screws.

  Fig 4: Installing Air Outlet Servo Motor Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HEATER RADIATOR
1. Install the heater radiator.
2. Install the screw and clamp.
3. Install the bracket with the screw.
4. Attach the packing.

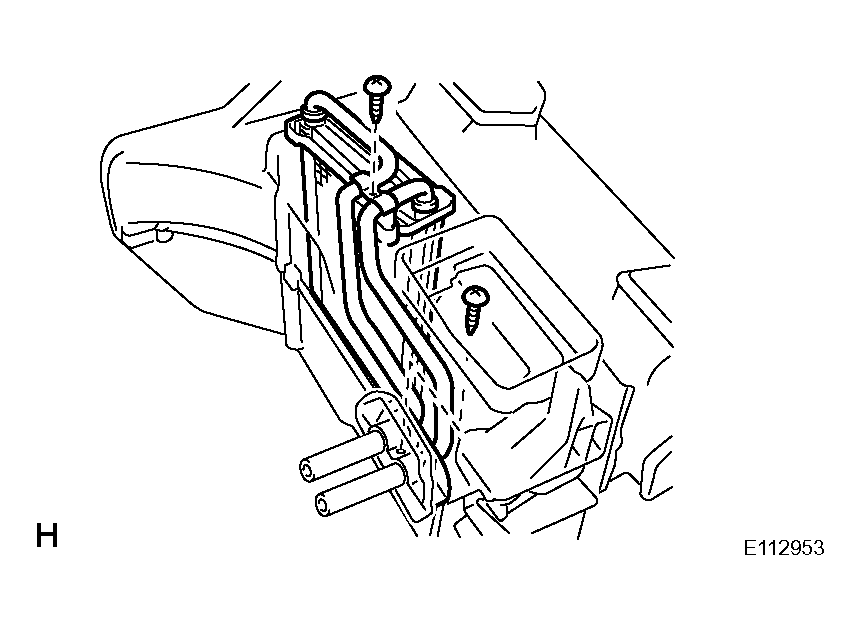

  Fig 5: Installing Heater Radiator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
