Air Refiner Element: Removal

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE GLOVE COMPARTMENT DOOR SUB-ASSEMBLY
REMOVE NO. 2 FINISH PANEL LOWER
REMOVE AIR REFINER FILTER
1. Release the 2 claws and remove the filter cover.

  Fig 1: Removing Filter Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

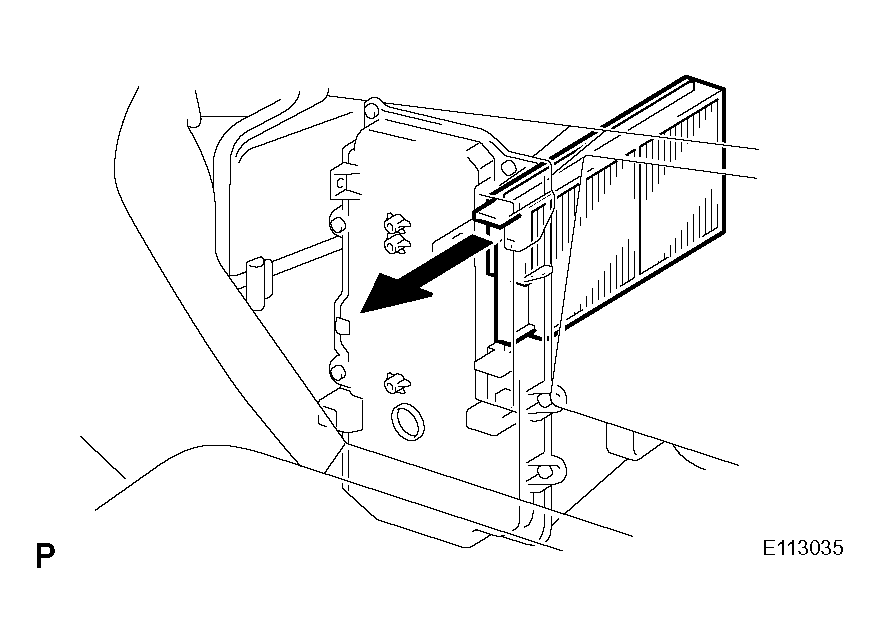

2. Pull out the air refiner filter (upper side).

  Fig 2: Pulling Out Air Refiner Filter (Upper Side)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

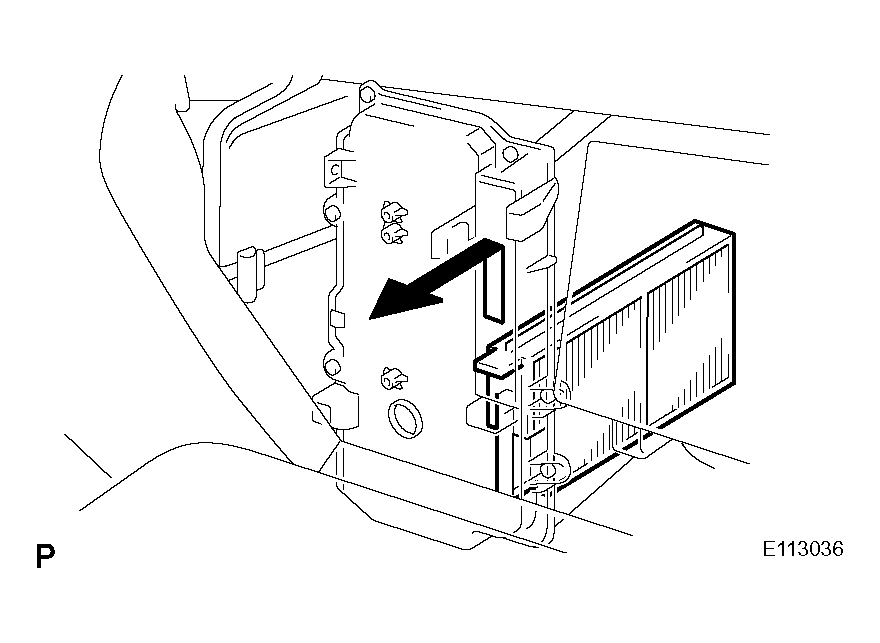

3. Pull out the filter upward, pull out the air refiner filter (lower side).

  Fig 3: Pulling Out Air Refiner Filter (Lower Side)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
