Air Outlet Control Servo Motor: Inspection

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT AIR OUTLET SERVO MOTOR

Connect the positive (+) lead from the battery to terminal 6 and the negative (-) lead to terminal 7.

Connect the negative (-) lead from the battery to each terminal and check that the shaft rotates at each position, as shown in Fig 1 .

OK: GO TO NEXT STEP

AIR OUTLET SERVO MOTOR REFERENCE

Connected terminal	Position
5	DEF.
4	FOOT/DEF.
3	FOOT
2	B/L
1	FACE

If operation is not as specified, replace the servo motor.

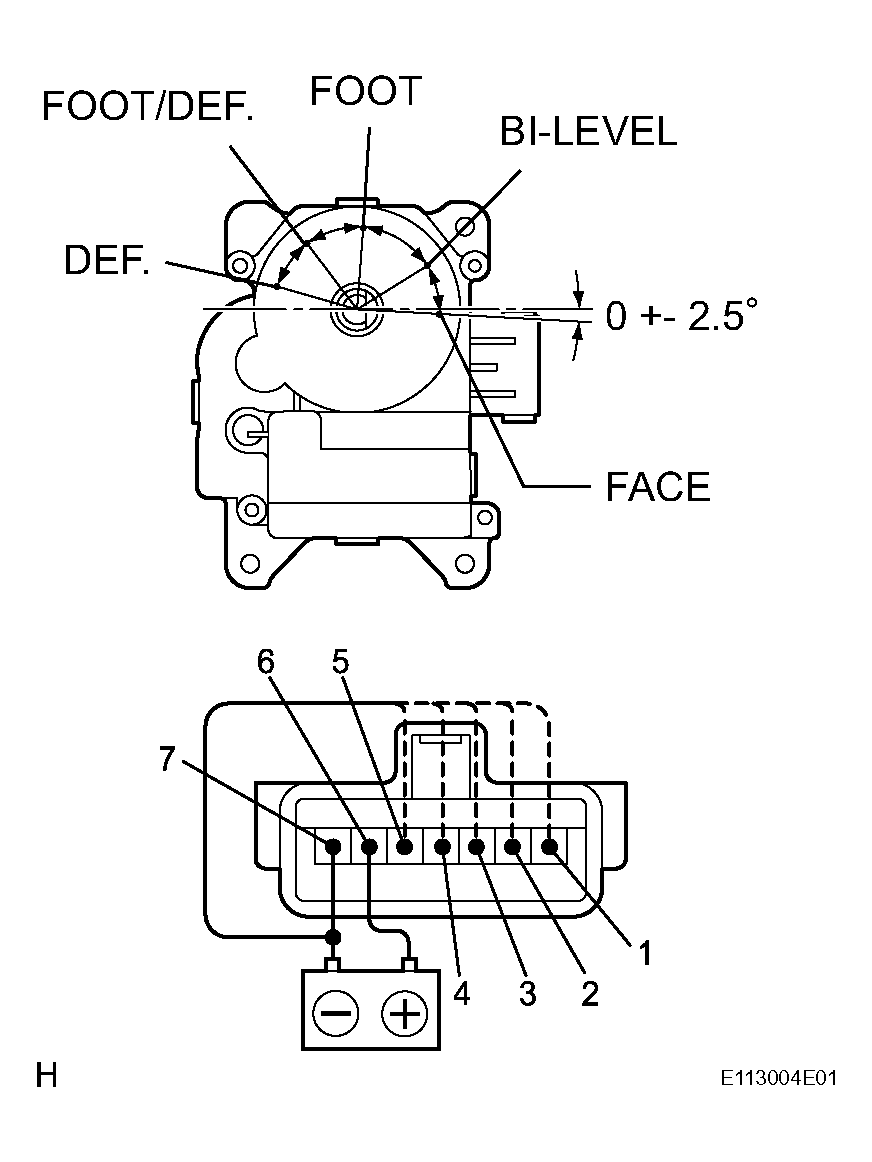

Fig 1: Inspecting Air Outlet Servo Motor
