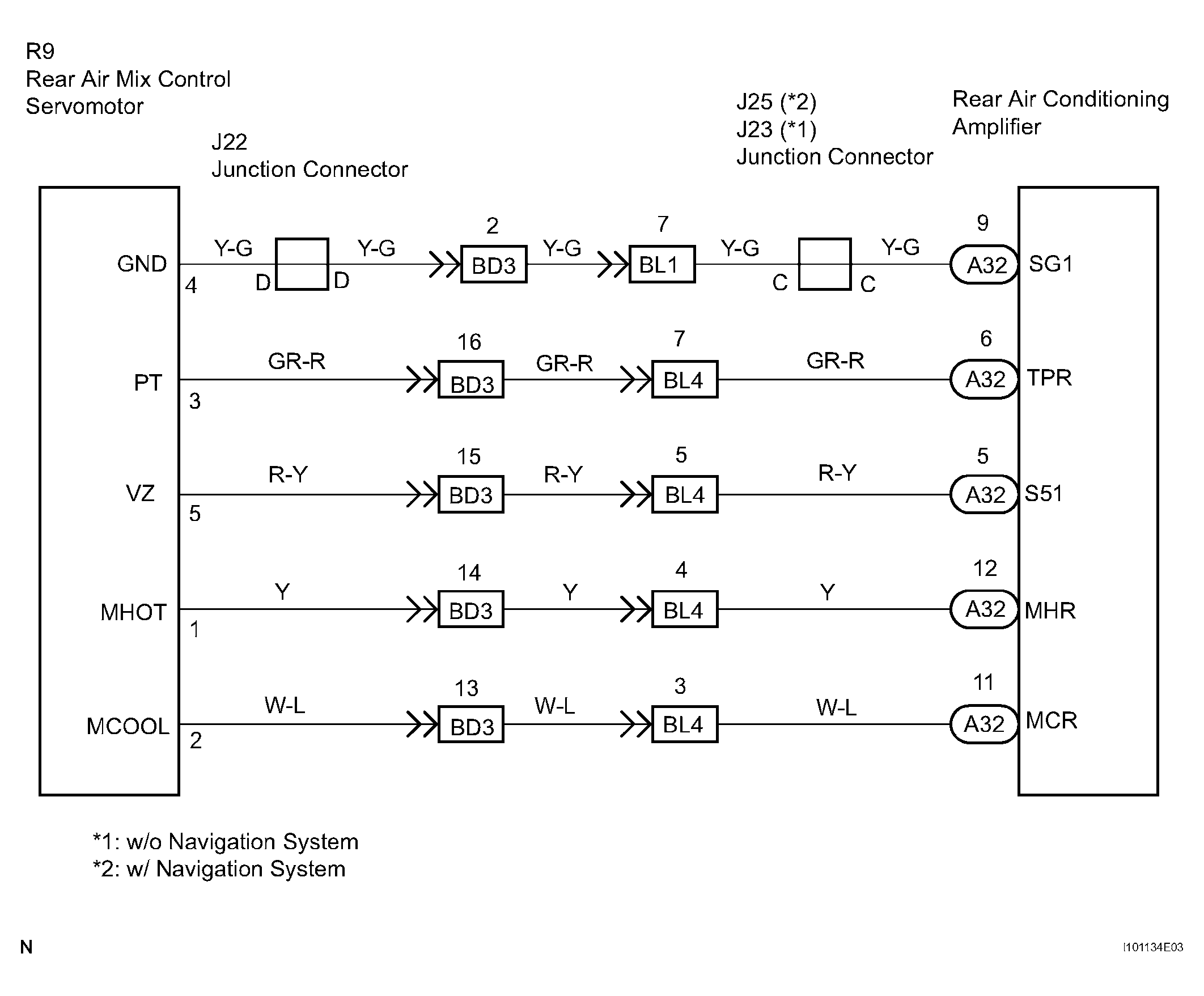

DTC 37, 47: Rear Air Mix Damper Position Sensor Circuit; Rear Air Mix Damper Control Servo Motor Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
