DTC 26: System Too Rich: Wiring Diagram

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

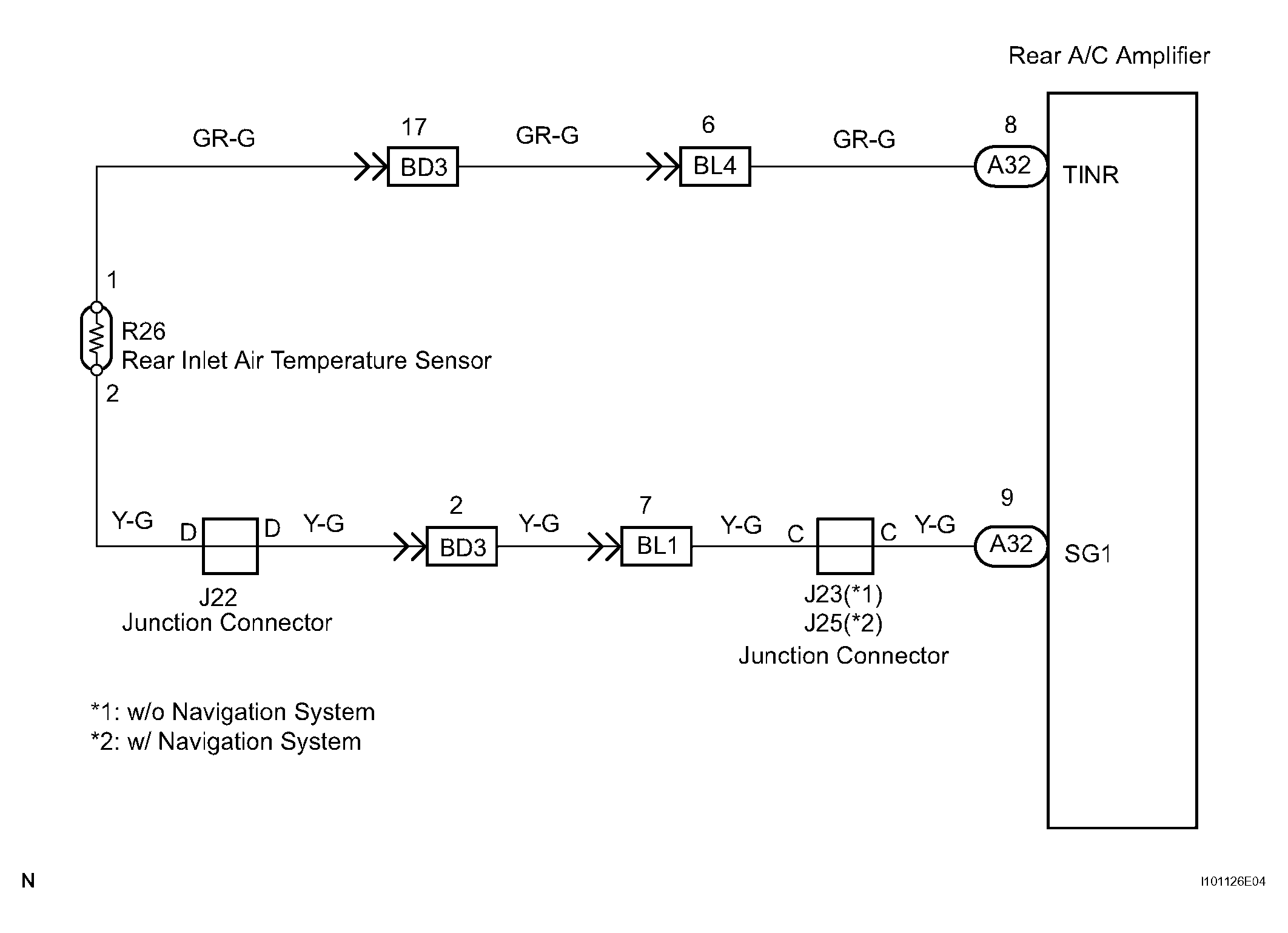

Fig 1: Rear A/C Amplifier Wiring Diagram
G04440458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
