CHECK AIR CONDITIONING AMPLIFIER
1. Remove the rear A/C amplifier with the connectors still connected.
2. Turn the ignition switch ON.
3. Measure the voltage between terminals TER (A32-7) and SG1 (A32-9) of the rear A/C amplifier connector at each temperature.
  Standard voltage: 2.0 to 2.4 V at 0°C (32°F)

  1.4 to 1.8 V at 15°C (59°F)

  HINT:
  - As the temperature increases, the voltage decreases.

    Fig 1: Measuring Voltage Between Terminals TER (A32-7) & SG1 (A32-9) Of Rear A/C Amplifier Connector
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - However, if DTC 17 is displayed, check and replace the A/C amplifier.
OK: REPLACE REAR AIR CONDITIONING AMPLIFIER

NG: GO TO NEXT STEP
INSPECT REAR EVAPORATOR TEMPERATURE SENSOR
1. Remove the rear evaporator temperature sensor.
2. Measure the resistance between terminals 1 and 2 of the evaporator temperature sensor connector at each temperature.
  Standard resistance: 4.5 to 5.2 kΩ at 0°C (32°F)

  2.0 to 2.7 kΩ at 15°C (59°F)

  HINT:

  As the temperature increases, the resistance decreases.
NG: REPLACE REAR EVAPORATOR TEMPERATURE SENSOR

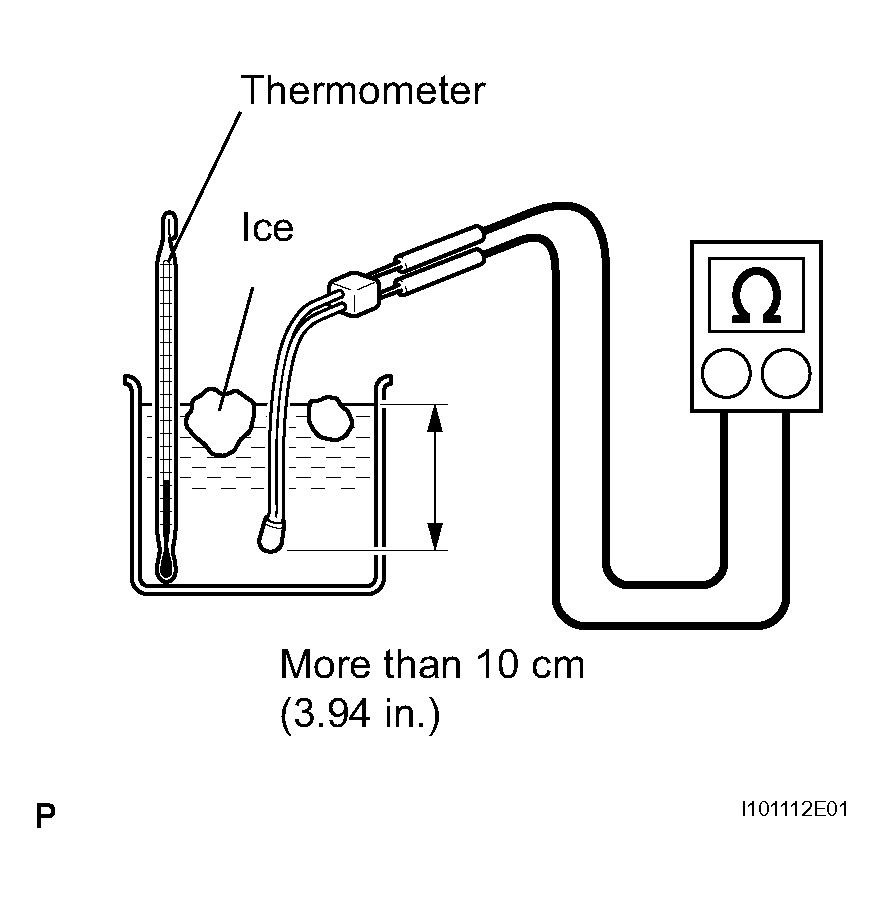

Fig 2: Inspecting Rear Evaporator Temperature Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: GO TO NEXT STEP
CHECK WIRE HARNESS (REAR AIR CONDITIONING AMPLIFIER - REAR EVAPORATOR TEMPERATURE SENSOR)
NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: REPLACE REAR AIR CONDITIONING AMPLIFIER
