Power Steering Gear: Installation

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL POWER STEERING GEAR ASSEMBLY
    1. Torque the 2 new gear assembly set bolts, nuts and washers.

      Torque: 120 N*m (1,250 kgf*cm, 89 ft.*lbf)

      HINT:

      Slide the gear assembly to the right side, slide the gear assembly to the left side and position it.

  2. INSTALL RH AND LH TIE ROD ENDS AND LOCK NUTS
    1. Screw the lock nut and tie rod end onto the rack end until the matchmarks are aligned.
    2. After adjusting toe-in, torque the nut (see FRONT WHEEL ALIGNMENT ).

      Torque: 55 N*m (560 kgf*cm, 41 ft.*lbf)

  3. CONNECT TUBE CLAMP
    1. Torque the bolt.

      Torque: 18 N*m (180 kgf*cm, 13 ft.*lbf)

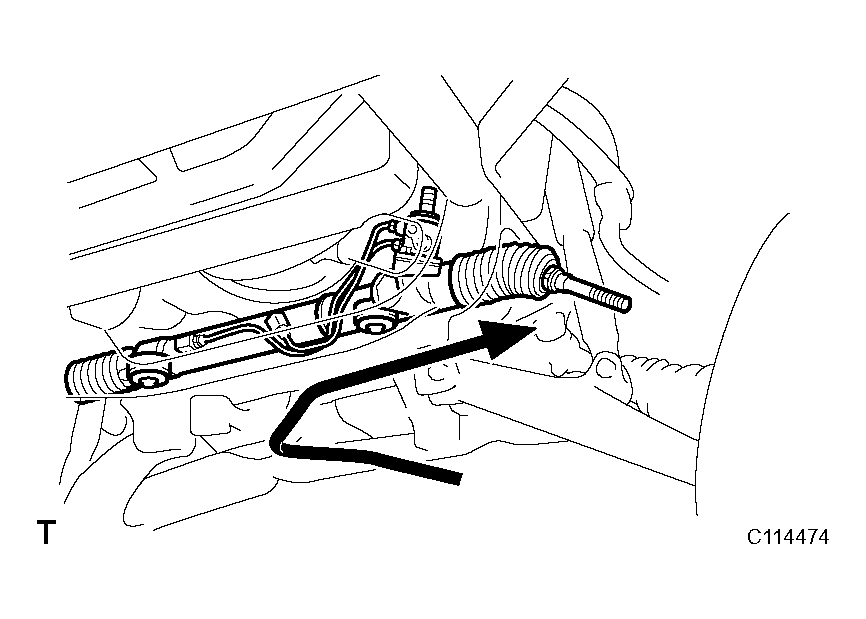

      Fig 1: Sliding Gear Assembly To Right Side
      G04437882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. CONNECT RETURN TUBE ASSEMBLY
    1. Using SST, connect the tube.

      SST 09023-38401

      Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)

      HINT:

      • Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).
      • This torque value is effective in case that SST is parallel to a torque wrench.

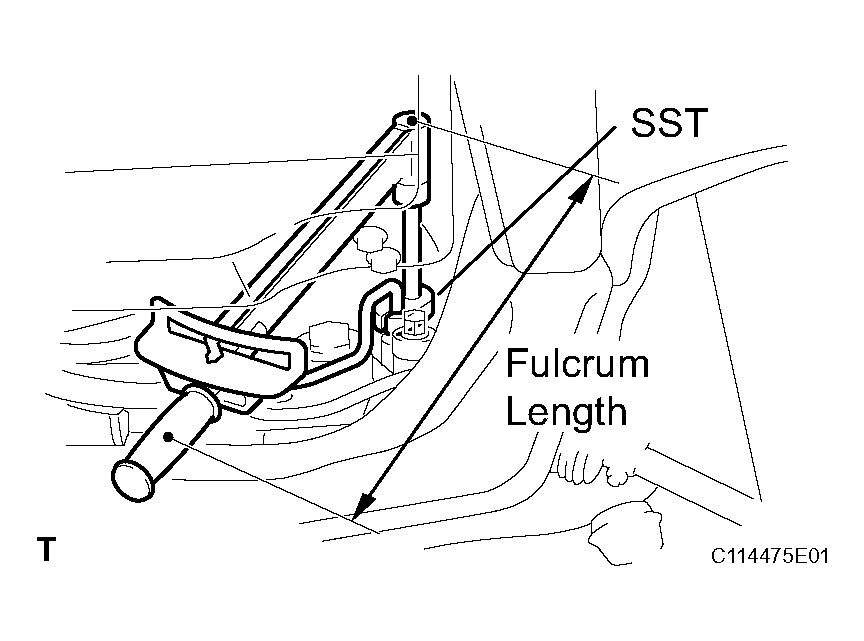

        Fig 2: Connecting Tube Using SST
        G04437883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. CONNECT PRESSURE FEED TUBE
    1. Torque the unit bolt with a new gasket.

      HINT:

      Make sure the stopper of the pressure feed tube touches the power steering gear assembly as shown in Fig 3 , then torque the bolt.

      Torque: 42 N*m (430 kgf*cm, 31 ft.*lbf)

  6. CONNECT NO. 2 INTERMEDIATE SHAFT ASSEMBLY
  7. INSTALL ENGINE OIL FILTER ASSEMBLY (See  REPLACEMENT  )
  8. CONNECT TIE ROD END SUB-ASSEMBLY LH (See  INSTALLATION  )
  9. CONNECT TIE ROD END SUB-ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  10. INSTALL NO. 2 ENGINE UNDER COVER
    1. Tighten the 8 bolts.
  11. INSTALL NO. 1 ENGINE UNDER COVER
    1. Tighten the 7 bolts.
  12. FACE FRONT WHEELS STRAIGHT AHEAD

    HINT:

    Perform it with the front of the vehicle jacked up.

  13. CENTER SPIRAL CABLE
  14. INSTALL STEERING WHEEL ASSEMBLY
    1. Align the matchmarks on the wheel and steering column main shaft.
    2. Temporarily tighten the wheel set nut.
    3. Connect the connector.
  15. BLEED AIR FROM POWER STEERING SYSTEM
  16. CHECK STEERING WHEEL CENTER POINT
  17. TORQUE STEERING WHEEL SET NUT

    Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)

  18. INSTALL STEERING WHEEL PAD (See  REMOVAL  )
  19. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  20. PERFORM INITIALIZATION
    1. Perform INITIALIZATION .
      Fig 3: Identifying Stopper Of Pressure Feed Tube
      G04437884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. CHECK FRONT WHEEL ALIGNMENT
    1. Check FRONT WHEEL ALIGNMENT .
