Front Extension Housing: Components

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

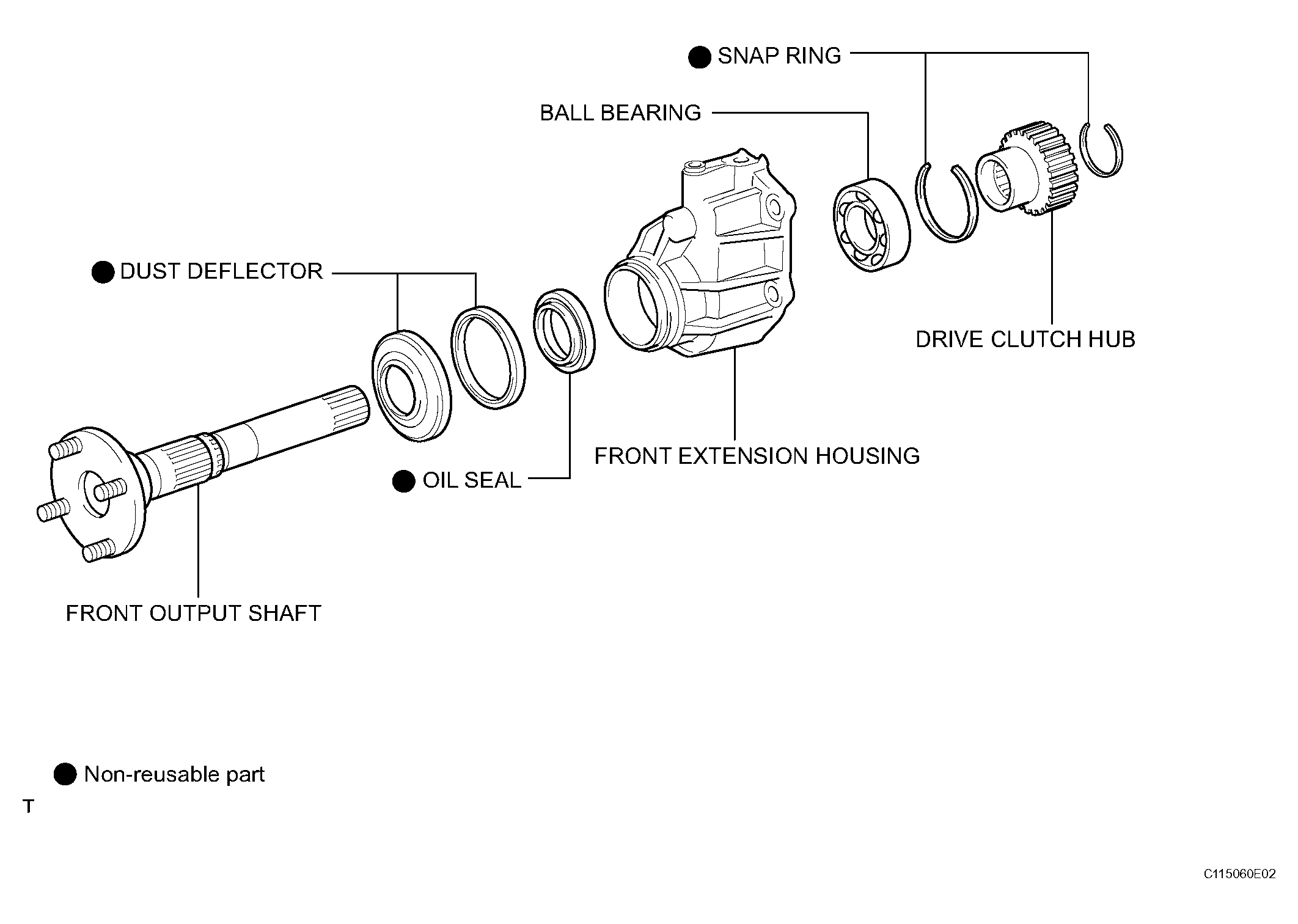

Fig 1: Identifying Front Extension Housing Components
G04437080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
