Front Propeller Shaft Assembly: Reassembly

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL UNIVERSAL JOINT SPIDER ASSEMBLY

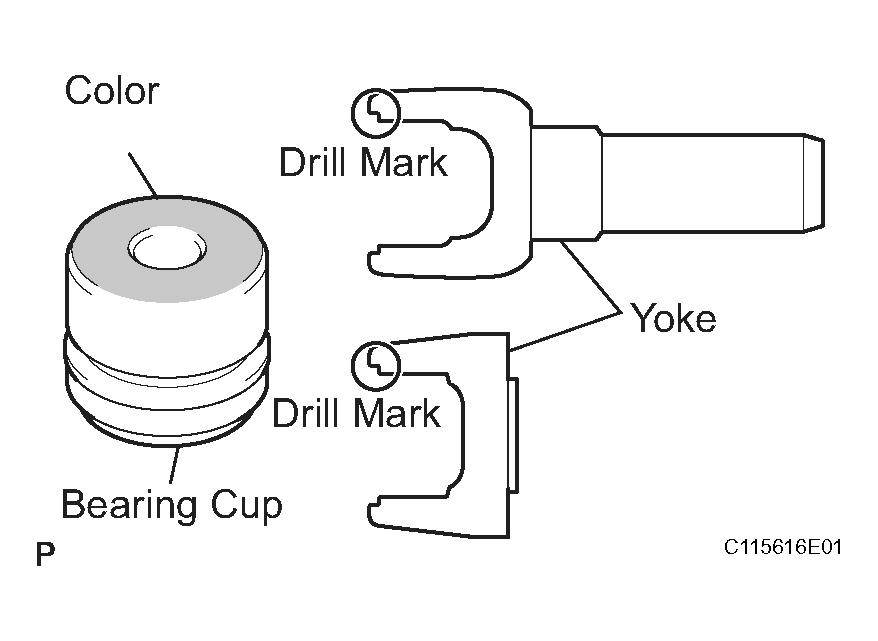

    1. Select the bearing according to whether or not there is a drill mark in the yoke information.
      UNIVERSAL JOINT SPIDER SPECIFICATION

      Yoke Bearing
      w/ Drill mark w/ Color mark (Red)
      No drill mark No color mark
      Fig 1: Installing Universal Joint Spider Assembly
      G04437132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Apply MP grease to a new spider and bearings.
      NOTE: Be careful not to apply too much grease.
      Fig 2: Applying MP Grease To New Spider & Bearings
      G04437133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Fit the spider into the flange yoke.
    4. Using SST, install the bearings on the spider.

      SST 09332-25010

      Fig 3: Installing Bearings On Spider
      G04437134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using SST, adjust both bearings so that the snap ring grooves are at maximum and equal in width.

      SST 09332-25010

      Fig 4: Adjusting Bearings
      G04437135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Install 2 new snap rings of equal thickness which will allow 0 mm (0 in.) axial play.

      HINT:

      Do not reuse the snap rings.

      Fig 5: Installing New Snap Rings
      G04437136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard snap ring thickness

      SNAP RING THICKNESS SPECIFICATION

      Color Mark Thickness
      - 1 2.28 to 2.30 mm (0.0898 to 0.0906 in.)
      - 2 2.30 to 2.32 mm (0.0906 to 0.0913 in.)
      - - 2.32 to 2.34 mm (0.0913 to 0.0921 in.)
      Brown - 2.34 to 2.36 mm (0.0921 to 0.0929 in.)
      Blue - 2.36 to 2.38 mm (0.0929 to 0.0937 in.)
      - 6 2.38 to 2.40 mm (0.0937 to 0.0945 in.)
      - 7 2.40 to 2.42 mm (0.0945 to 0.0953 in.)
      - 8 2.42 to 2.44 mm (0.0953 to 0.0961 in.)
      - 9 2.44 to 2.46 mm (0.0961 to 0.0969 in.)
      - 10 2.46 to 2.48 mm (0.0969 to 0.0976 in.)
    7. Using a hammer, tap the yoke until there is no clearance between the bearing outer race and snap ring.
    8. Align the matchmarks on the propeller shaft and flange yoke or flange yoke and sleeve yoke.
    9. Install the flange yoke to the sleeve yoke or propeller shaft.

      HINT:

      Install 2 new spider bearings and snap rings on the flange yoke side using the procedure described above.

  2. INSTALL PROPELLER SHAFT SLIDING SHAFT DUST COVER SUB-ASSEMBLY
    1. Using SST and a press, press in a new dust cover.

      SST 09636-20010

      NOTE: Place the universal joint straight when pressing in the dust cover. Apply MP grease to the 'A' part.
      Fig 6: Pressing In New Dust Cover Using SST
      G04437137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FRONT PROPELLER SHAFT UNIVERSAL JOINT SLEEVE YOKE SUB-ASSEMBLY
    1. Apply MP grease to the propeller shaft spline and sleeve yoke sliding surface.
    2. Align the matchmarks on the sleeve yoke and propeller shaft.
    3. Install the propeller shaft into the sleeve yoke.
  4. INSPECT SPIDER BEARING
    1. Check that the spider bearing moves smoothly.
    2. Check the spider bearing axial play.

      Maximum bearing axial play:

      0 mm (0 in.)

      Fig 7: Checking Spider Bearing Axial Play
      G04437138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

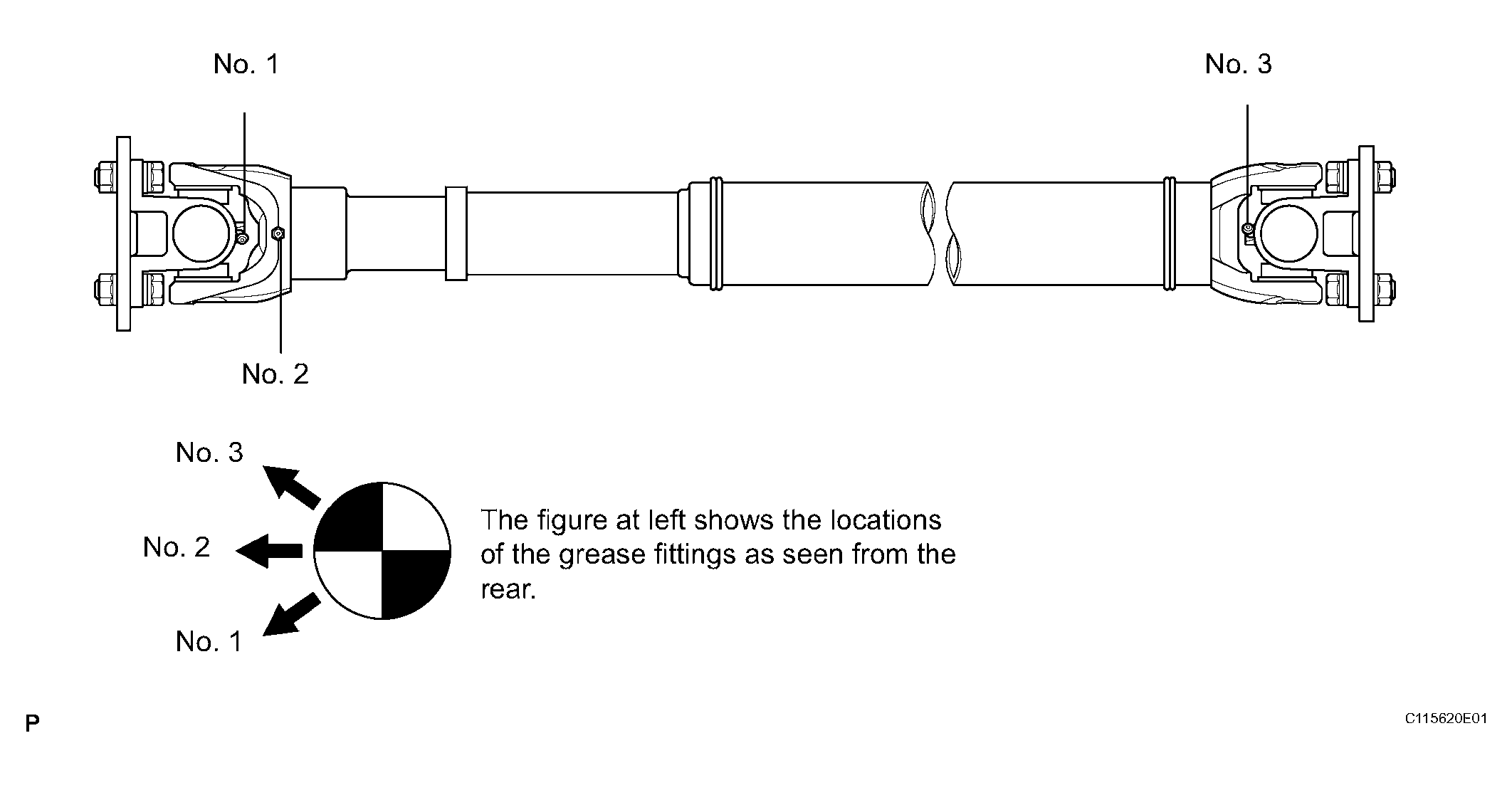

  5. INSPECT PROPELLER SHAFT GREASE FITTING DIRECTION

    HINT:

    When replacing a spider bearing, be sure that the grease fitting hole is facing the direction shown.

    Fig 8: Identifying Grease Applying Area
    G04437139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
