Exhaust Pipe And Catalytic Converter: Installation

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FRONT EXHAUST PIPE RH
1. Install a new gasket to the front exhaust pipe.
2. Install the front exhaust pipe to the exhaust manifold with 3 new nuts.
  Torque: 62 N*m (632 kgf*cm, 46 ft.*lbf)

Fig 1: Installing Front Exhaust Pipe To Exhaust Manifold With New Nuts

INSTALL FRONT EXHAUST PIPE LH
1. Install a new gasket to the front exhaust pipe.
2. Install the front exhaust pipe to the exhaust manifold with 3 new nuts.
  Torque: 62 N*m (632 kgf*cm, 46 ft.*lbf)
INSTALL FRONT NO. 2 EXHAUST PIPE
1. Install the front No. 2 exhaust pipe to the body bracket with the ring.
2. Install a new gasket to the front No. 2 exhaust pipe.
3. Connect the front No. 2 exhaust pipe to the front exhaust pipe LH with the 2 bolts and 2 new nuts.
  Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf)

  Fig 2: Connecting Front No. 2 Exhaust Pipe To Front Exhaust Pipe LH With Bolts And New Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CENTER EXHAUST PIPE
1. Install the center exhaust pipe to the body bracket with the 3 rings.
2. Install 2 new gaskets to the center exhaust pipe.
3. Connect the center exhaust pipe to the front exhaust pipe RH and front No. 2 exhaust pipe with the 4 bolts and 4 new nuts.
  Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf)

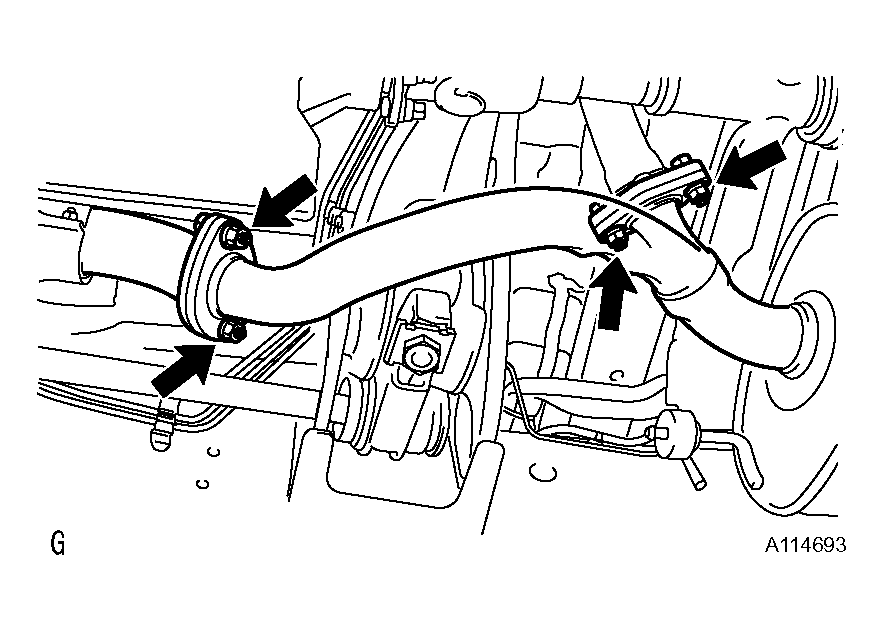

  Fig 3: Connecting Center Exhaust Pipe To Front Exhaust Pipe RH And Front No. 2 Exhaust Pipe With Bolts And New Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TAILPIPE
1. Install the tailpipe with the 2 rings.
2. Install a new gasket.
3. Install a new clamp with the bolt as shown.
  NOTE: Do not reuse the removed gasket and clamp.

  Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)

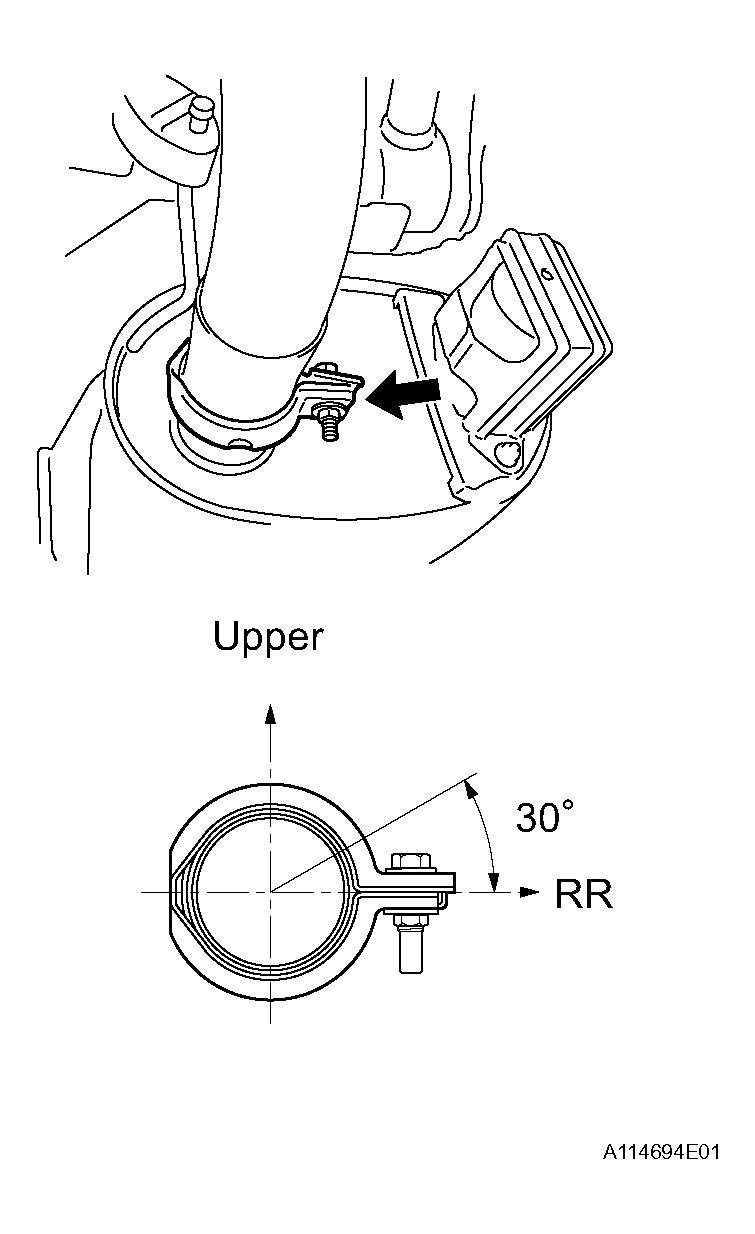

  Fig 4: Installing New Clamp With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HEATED OXYGEN SENSOR (for Bank 2 Sensor 2)
1. Using SST, install the sensor.
  SST 09224-00010

  Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf) for use without SST

  40 N*m (408 kgf*cm, 30 ft.*lbf) for use with SST

  HINT:

  Use a torque wrench with a fulcrum length of 30 cm (11.81 in.).

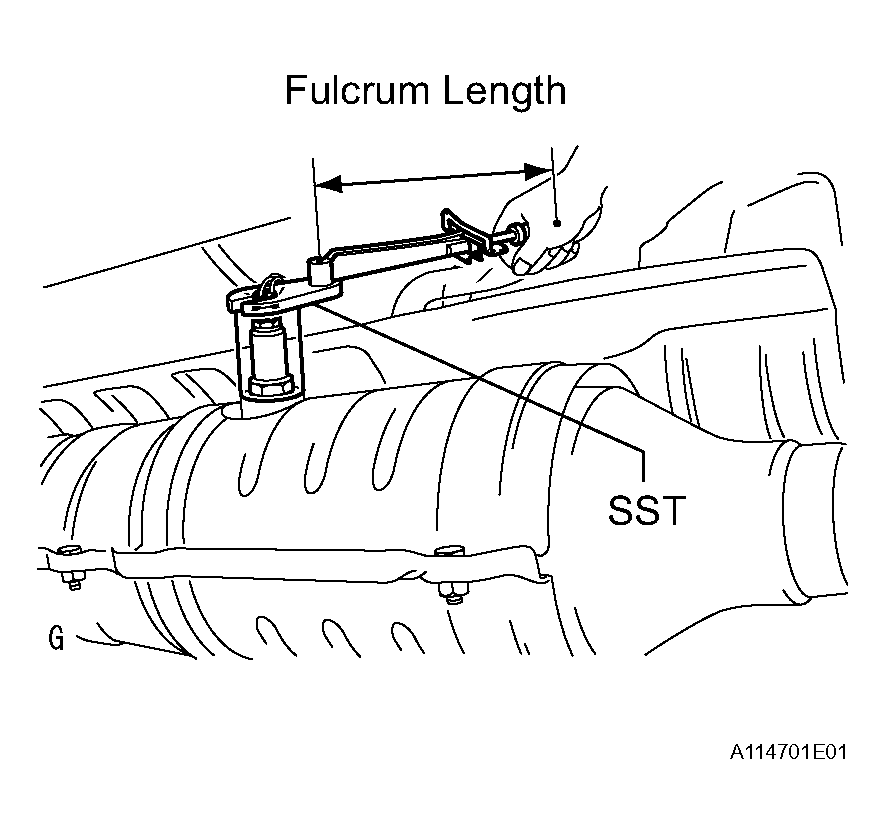

  Fig 5: Installing Sensor Using SST (For Bank 2 Sensor 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the sensor connector.

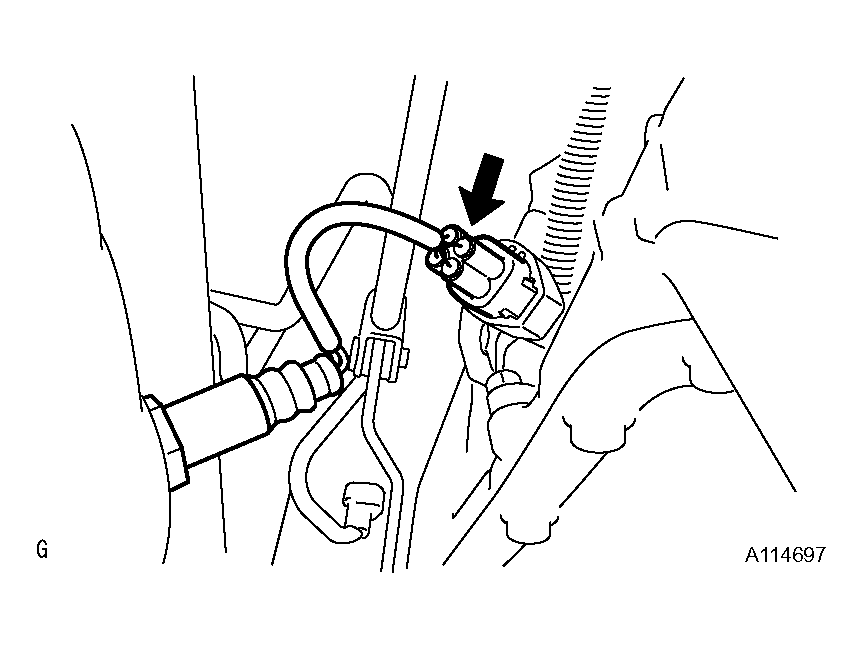

  Fig 6: Connecting Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HEATED OXYGEN SENSOR (For Bank 1 Sensor 2)
1. Using SST, install the sensor.
  SST 09224-00010

  Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf) for use without SST

  40 N*m (408 kgf*cm, 30 ft.*lbf) for use with SST

  HINT:

  Use a torque wrench with a fulcrum length of 30 cm (11.81 in.).

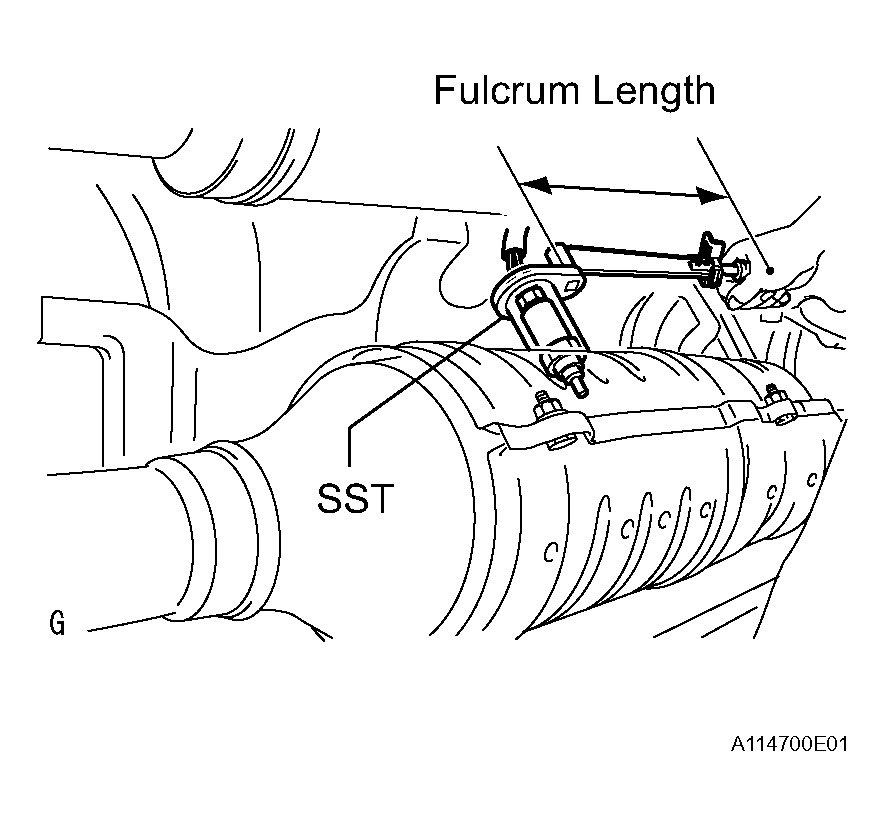

  Fig 7: Installing Sensor Using SST (For Bank 1 Sensor 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the sensor connector.
CHECK FOR EXHAUST GAS LEAKS
If gas is leaking, tighten the problem areas to stop the leak. Replace damaged parts as necessary.
