Hydraulic Brake Booster: Components

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

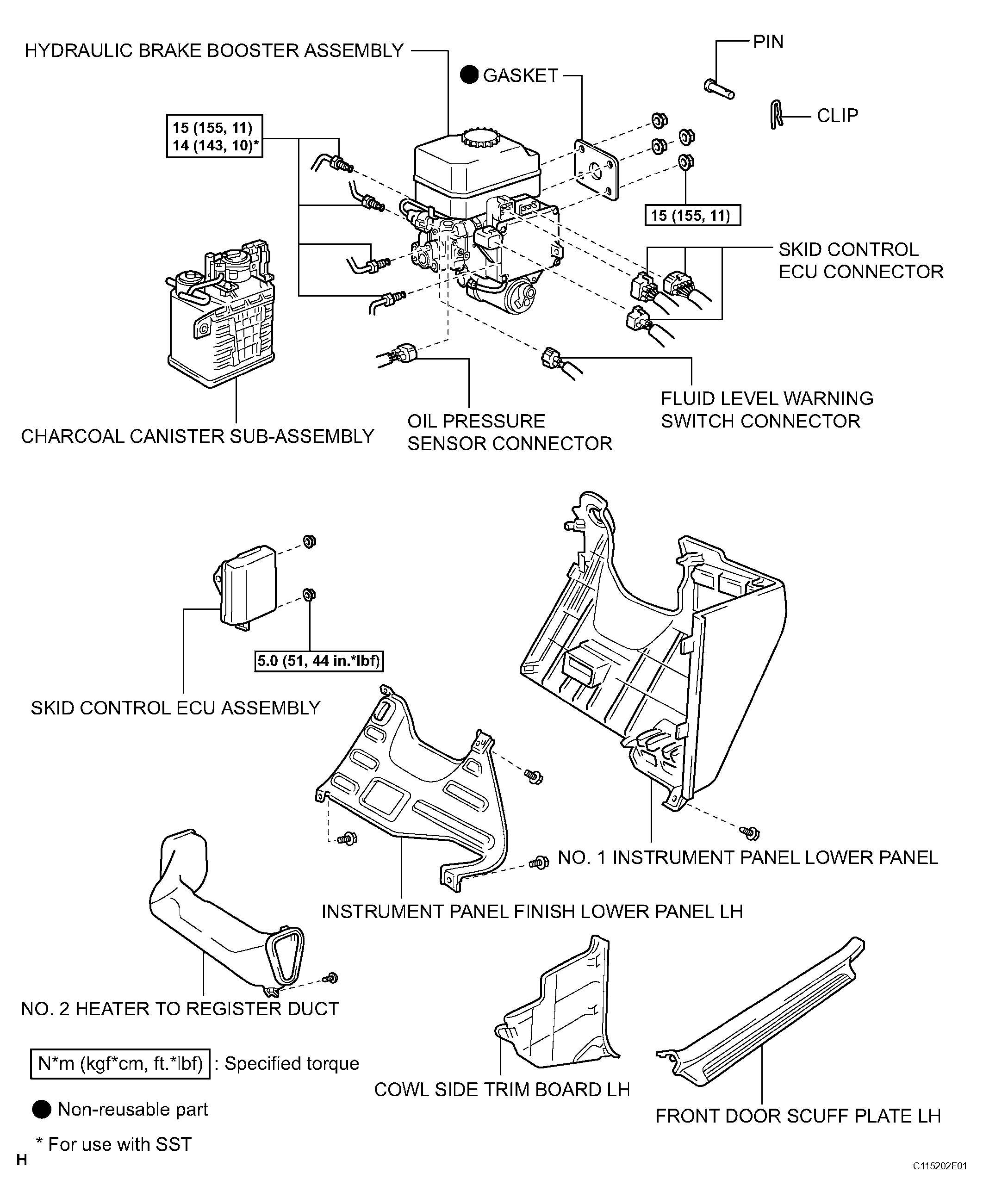

Fig 1: Hydraulic Brake Booster Replacement Components With Torque Specifications (1 Of 2)
G04437719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

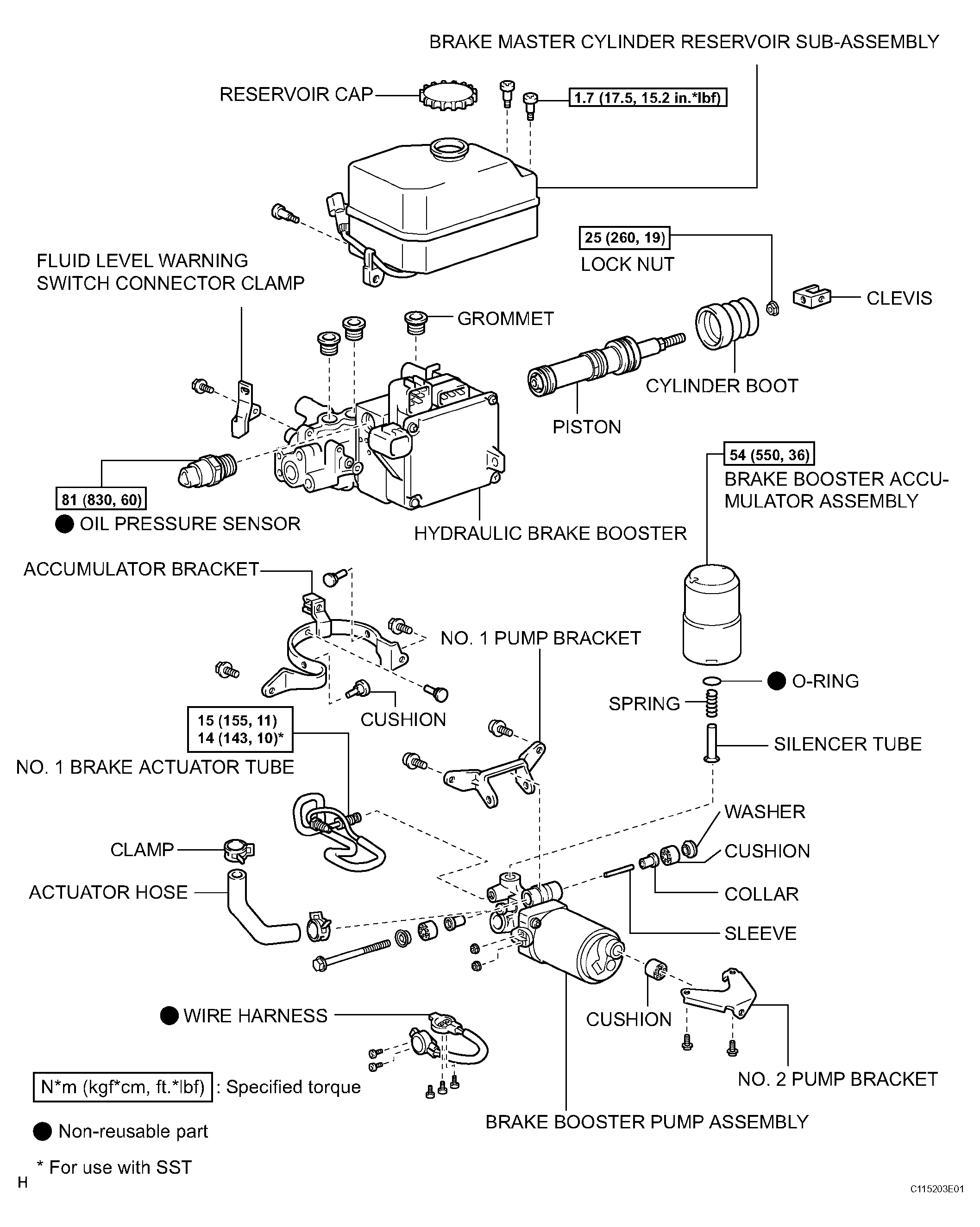

Fig 2: Hydraulic Brake Booster Replacement Components With Torque Specifications (2 Of 2)
G04437720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
