Front Brake Pad, Brake Caliper & Brake Rotor: Installation

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the LH side and RH side.
The procedures listed below are for the LH side.

INSTALL DISC BRAKE CYLINDER ASSEMBLY
1. Install the cylinder with the 2 mounting bolts.
  Torque: 123 N.m (1,250 kgf.cm, 90 ft. lb.)

  Fig 1: Installing Cylinder With Mounting Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT FRONT BRAKE FLEXIBLE HOSE
1. Connect the flexible hose with 2 new gaskets and the union bolt.
  Torque: 30 N.m (310 kgf.cm, 22 ft. lb.)

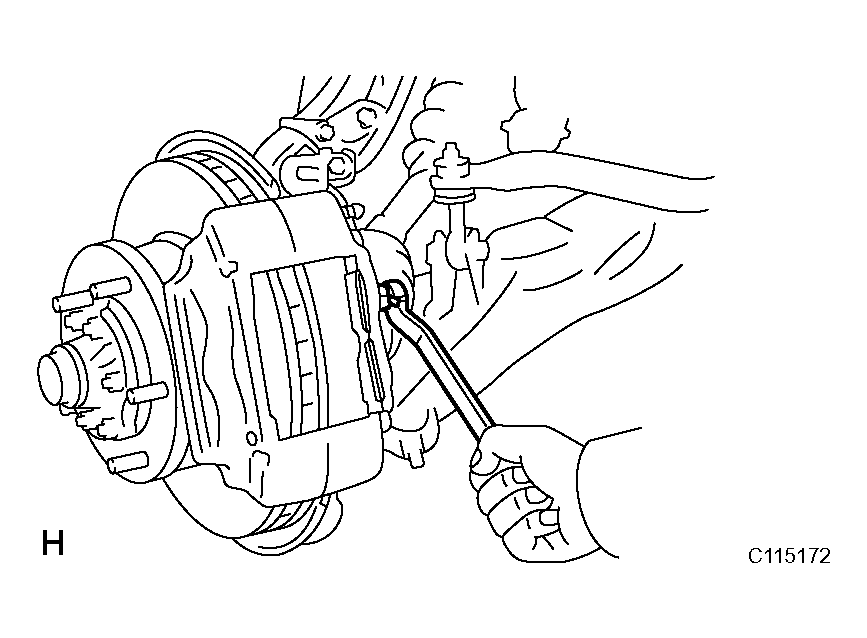

  Fig 2: Connecting Flexible Hose With New Gaskets & Union Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT DISC BRAKE PAD
1. Press in the piston with a hammer handle or an equivalent.
  HINT:
  - Always change the pads on one wheel at a time as there is a possibility of opposite position flying out.
  - If the piston is difficult to push in, loosen the bleeder plug and push in the piston while letting some brake fluid escape.

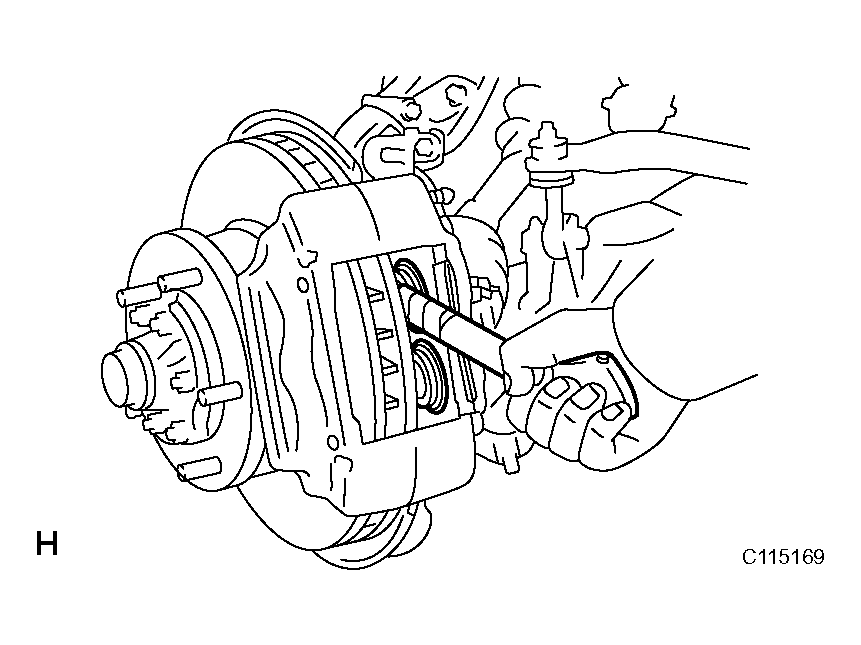

    Fig 3: Pressing In Piston With Hammer Handle Or Equivalent
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 2 pad retainers to each cylinder piston.
3. Install the anti squeal shims to each pad.
  NOTE: When replacing worn pads, the shims must be replaced together with the pads.

  HINT:

  Apply disc brake grease to both sides of the anti-squeal shims (see FRONT BRAKE ).
4. Install the 2 pads.
  HINT:

  Apply disc brake grease to the pads indicated by the arrows (see FRONT BRAKE ).
5. Install the 2 pad retainers, clip and 2 pins.

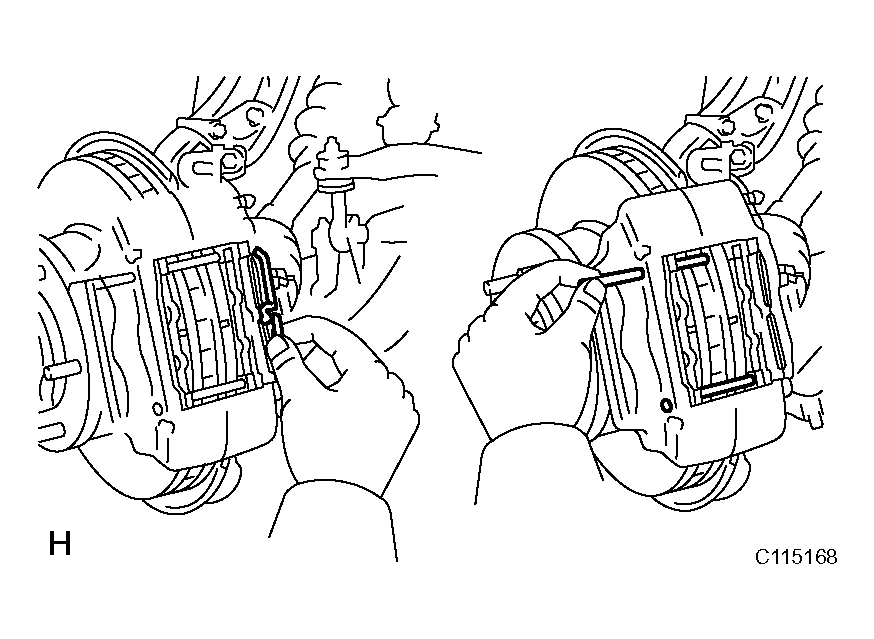

  Fig 4: Installing Pad Retainers, Clip & Pins
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FILL RESERVOIR WITH BRAKE FLUID (See BRAKE FLUID )
BLEED AIR FROM HYDRAULIC BRAKE BOOSTER
1. Procedures when using intelligent tester (see PRECAUTION ).
2. Procedures when using ABS actuator checker (see BRAKE FLUID ).
BLEED AIR FROM BRAKE LINE (See BLEEDING )
CHECK BRAKE FLUID LEVEL IN RESERVOIR (See BLEEDING )
CHECK FOR BRAKE FLUID LEAKAGE (See INSTALLATION )
INSTALL FRONT WHEEL
