Air Pump: Removal

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCHARGE FUEL SYSTEM PRESSURE (See  REMOVAL  )
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  3. DRAIN ENGINE COOLANT (See  COOLANT  )
  4. REMOVE V-BANK COVER SUB-ASSEMBLY (See  REMOVAL  )
  5. DISCONNECT FUEL RETURN HOSE (See  REMOVAL  )
  6. DISCONNECT FUEL MAIN HOSE (See  REMOVAL  )
  7. REMOVE INTAKE AIR CONNECTOR PIPE (See  DTC P2430 SECONDARY AIR INJECTION SYSTEM AIR FLOW / PRESSURE SENSOR CIRCUIT BANK 1: DTC P2431 SECONDARY AIR INJECTION SYSTEM AIR FLOW / PRESSURE SENSOR CIRCUIT RANGE / PERFORMANCE BANK 1: DTC P2432 SECONDARY AIR INJECTION SYSTEM AIR FLOW / PRESSURE SENSOR  )
  8. REMOVE INTAKE MANIFOLD ASSEMBLY (See  REMOVAL  )
  9. REMOVE VACUUM CONTROL VALVE SET (for Air Injection System)
    1. Remove the 2 bolts and valve set from the intake manifold.
    2. Remove the 2 vacuum hoses from the valve set.

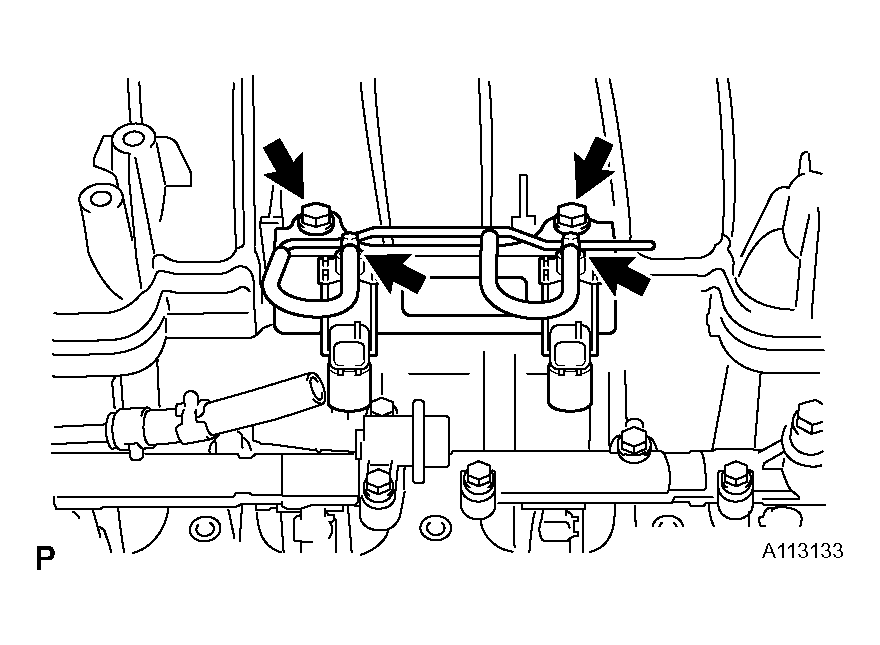

      Fig 1: Removing Vacuum Hoses From Valve Set
      G04436114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE AIR PUMP ASSEMBLY
    1. Disconnect the No. 2 air hose from the air switching valve.
    2. Disconnect the air switching valve connector.
    3. Disconnect the pressure sensor connector for the air injection system.
    4. Remove the 4 bolts and air pump.

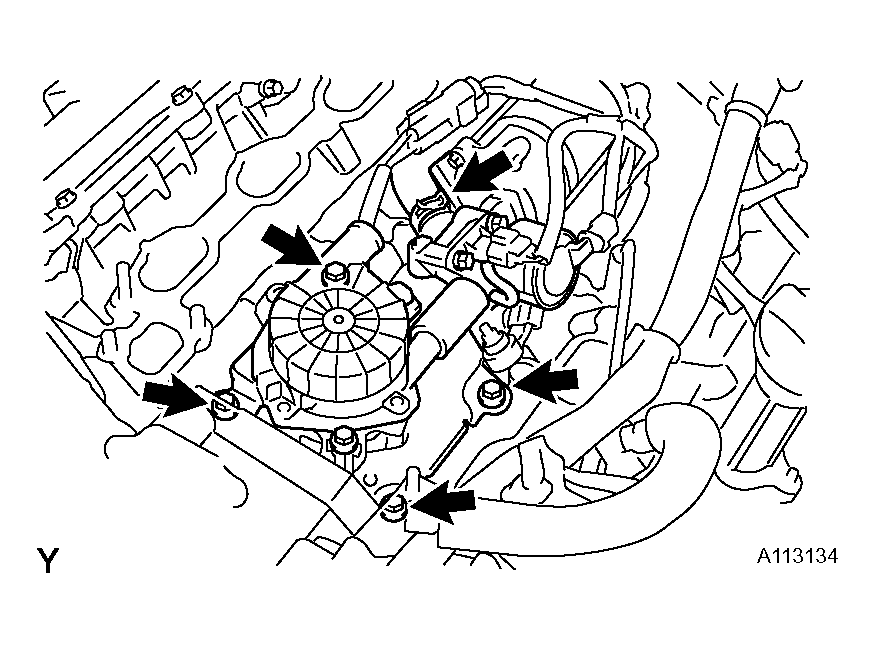

      Fig 2: Removing Bolts & Air Pump
      G04436115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 2 AIR SWITCHING VALVE
    1. Remove the 4 nuts and 2 gaskets, and disconnect the 2 No. 3 air tubes from the exhaust manifolds.
    2. Remove the 4 bolts, 2 gaskets and the 2 No. 3 air tubes from the 2 No. 2 air switching valves.

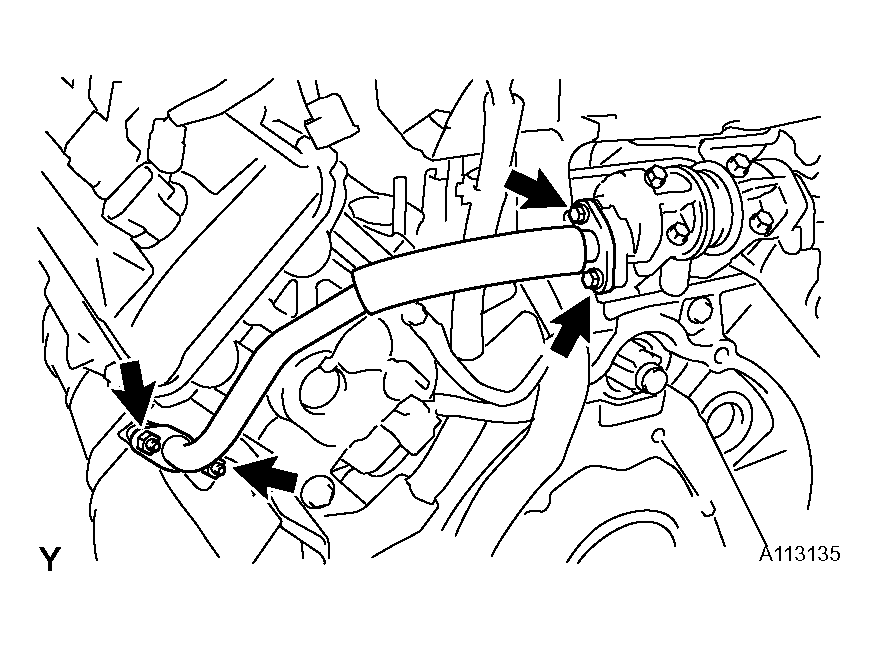

      Fig 3: Disconnecting Air Tubes From Exhaust Manifolds
      G04436116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 4 bolts, 2 gaskets and the 2 No. 2 air switching valves from the rear water by-pass joint.
    4. Remove the 2 vacuum hoses from the No. 2 air switching valves.

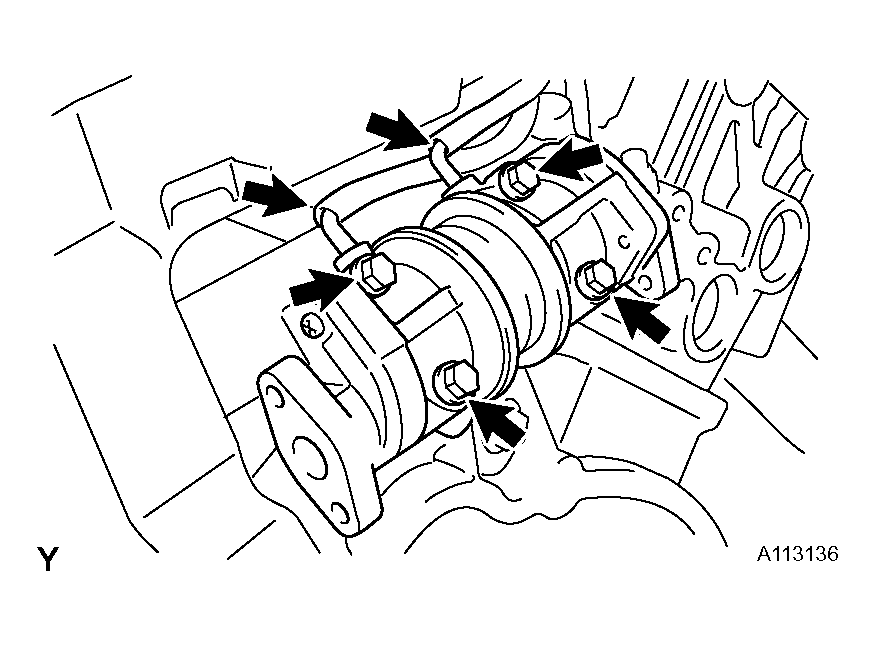

      Fig 4: Removing Bolts & Air Switching Valves From Rear Water By-Pass Joint
      G04436117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE AIR INJECTION CONTROL DRIVER
    1. Disconnect the 2 connectors from the air injection control driver.
    2. Remove the 2 bolts and air injection control driver from the vehicle body.
      Fig 5: Disconnecting Connectors From Air Injection Control Driver
      G04436118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
