Oil Pump: Reassembly

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL OIL PUMP ROTOR SET
1. Place the drive and driven rotors into the pump body with the marks facing the pump body cover side.

  Fig 1: Placing Drive & Driven Rotors Into Pump Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the pump body cover with the 10 screws.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

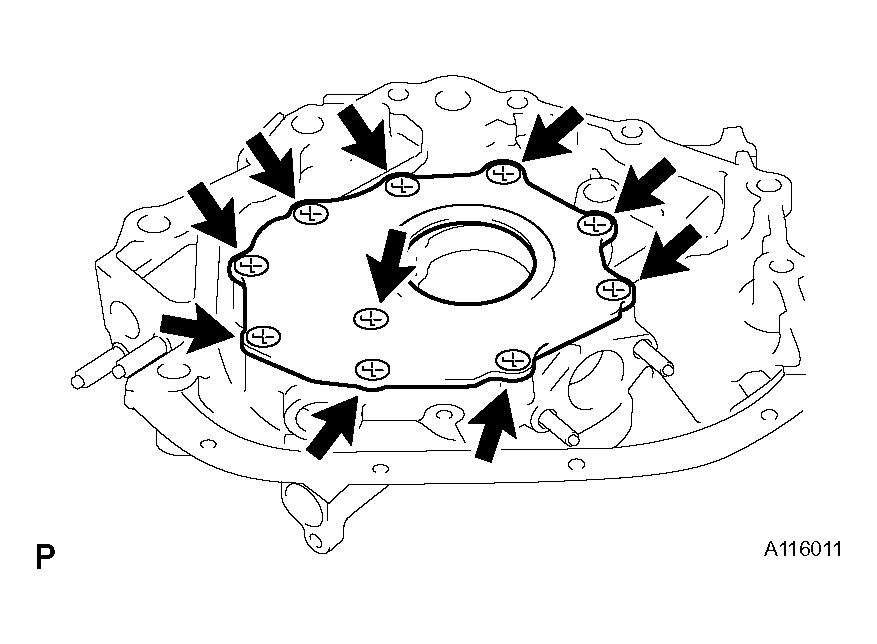

  Fig 2: Installing Pump Body Cover With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL OIL PUMP RELIEF VALVE
1. Insert the relief valve and compression spring into the oil pump body hole.
2. Install the plug.
  Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)

  Fig 3: Installing Oil Pump Relief Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
