Engine Oil Cooler: Installation

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL ENGINE OIL COOLER
    1. Clean the oil cooler contact surface on the cooler mounting.
    2. Install a new O-ring to the oil cooler.
    3. Apply a light coat of engine oil on the threads and under the head of the union bolt.
      Fig 1: Installing Engine Oil Cooler
      G04436335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the oil cooler with the plate washer and union bolt.

      Torque: 68.6 N*m (700 kgf*cm, 51 ft.*lbf)

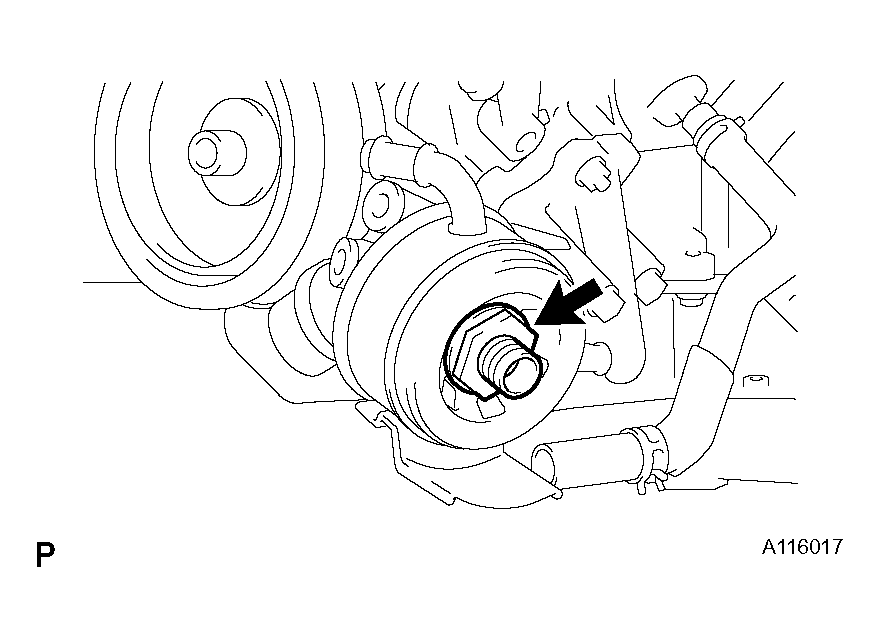

    Fig 2: Installing Oil Cooler With Plate Washer & Union Bolt
    G04436336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL OIL FILTER SUB-ASSEMBLY (See  REPLACEMENT   )
  3. INSTALL NO. 1 ENGINE UNDER COVER (See  INSTALLATION  )
  4. INSTALL ENGINE UNDER COVER REAR (See  INSTALLATION  )
  5. ADD ENGINE OIL (See  REPLACEMENT   )
  6. ADD ENGINE  COOLANT
  7. CHECK FOR ENGINE COOLANT LEAKS
    1. Check for engine coolant leaks (see COOLING SYSTEM )
  8. CHECK ENGINE OIL LEVEL (See  ON-VEHICLE INSPECTION   )
