Valve Body: Reassembly

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL SHIFT SOLENOID VALVE S2
1. Install the O-ring to the shift solenoid valve S2.
2. Install the shift solenoid valve S2 with the bolt.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

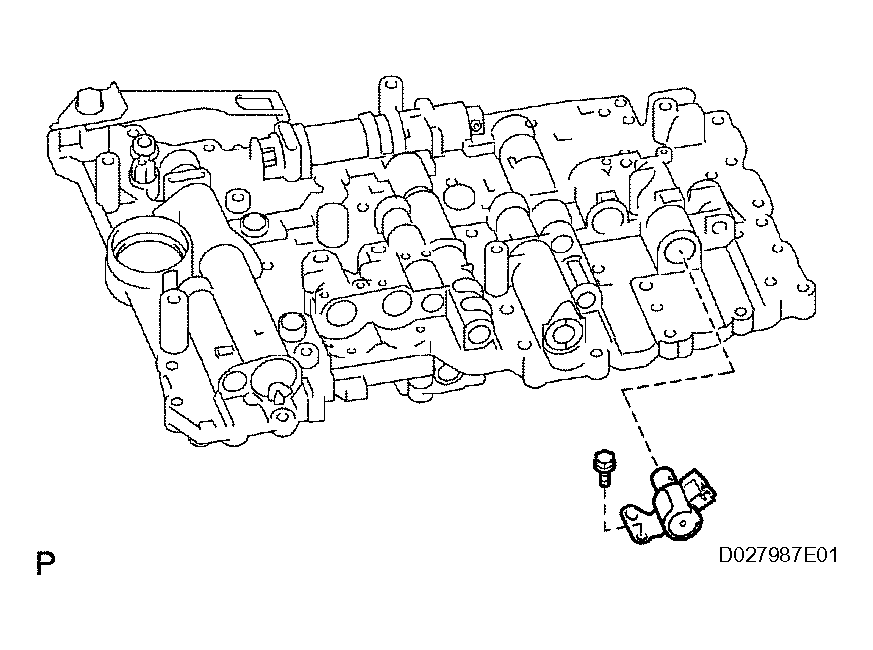

  Fig 1: Installing Shift Solenoid Valve S2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT SOLENOID VALVE S1
1. Install the O-ring to the shift solenoid valve S1.
2. Install the shift solenoid valve S1 with the bolt.
  Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

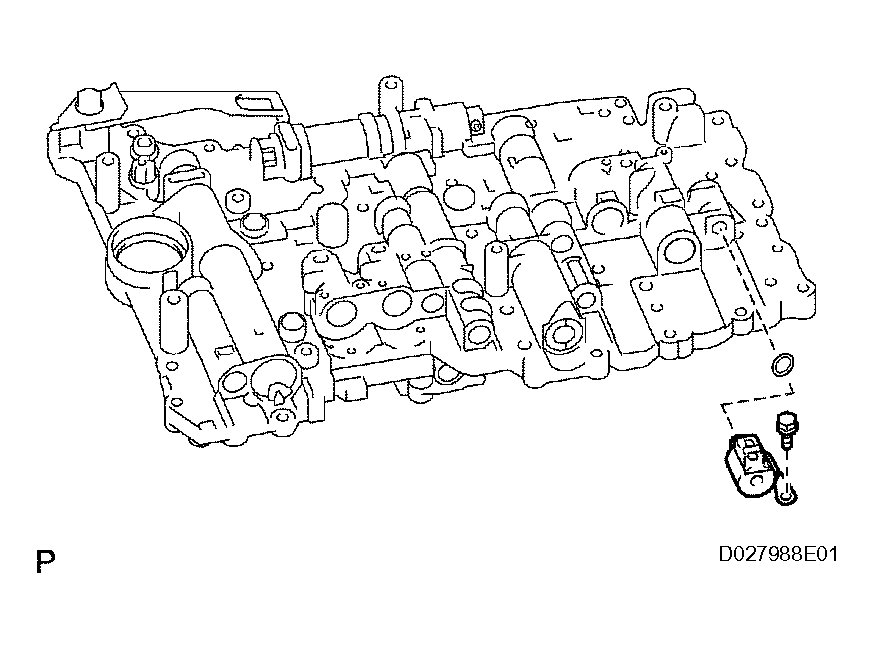

  Fig 2: Installing Shift Solenoid Valve S1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT SOLENOID VALVE SL1

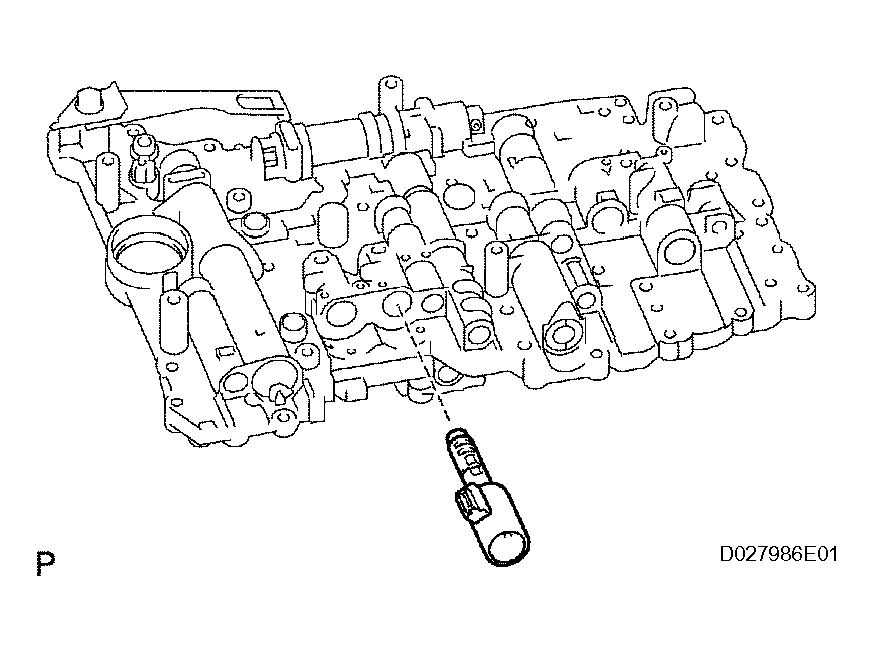

Fig 3: Installing Shift Solenoid Valve SL1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT SOLENOID VALVE SLT
1. Install the shift solenoid valve SLT.
2. Install the, 2 straight pins and solenoid lock plate with the bolt.
  Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

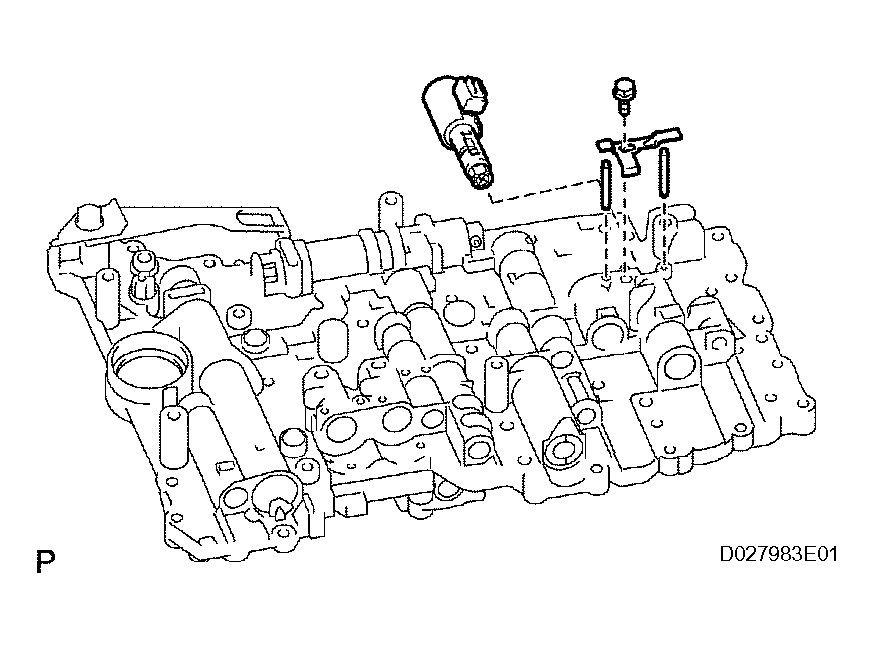

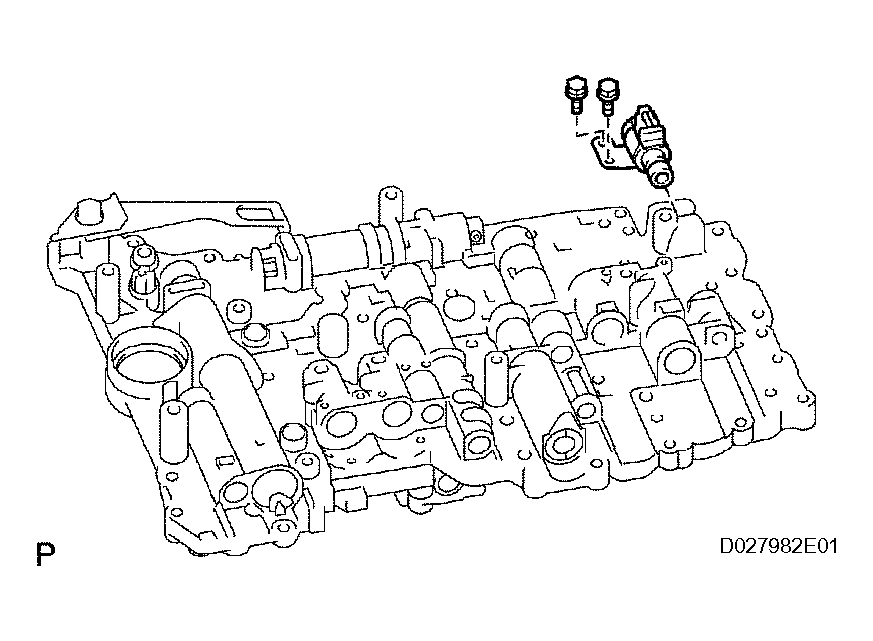

  Fig 4: Installing Shift Solenoid Valve SLT
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT SOLENOID VALVE SL2
1. Install the shift solenoid valve SL2.

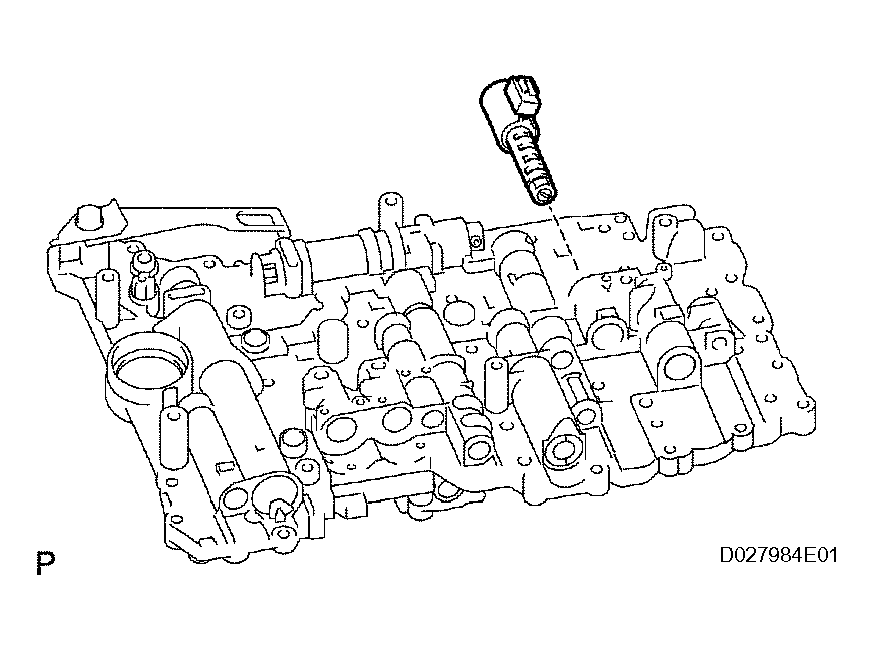

  Fig 5: Installing Shift Solenoid Valve SL2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT SOLENOID VALVE SLU
1. Install the shift solenoid valve SLU.
2. Install the bolt, 2 straight pins and solenoid lock plate.
  Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

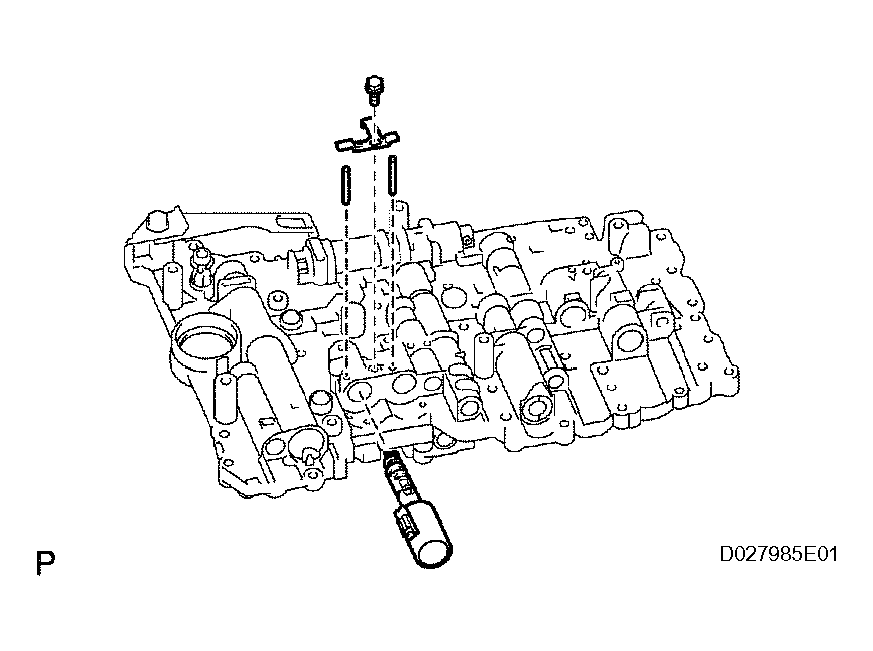

  Fig 6: Installing Shift Solenoid Valve SLU
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT SOLENOID VALVE SR
1. Install the and shift solenoid valve SR with the 2 bolts.
  Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

  Fig 7: Installing Shift Solenoid Valve SR
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMISSION VALVE BODY ASSEMBLY
1. Align the groove of the manual valve with the pin of the lever.

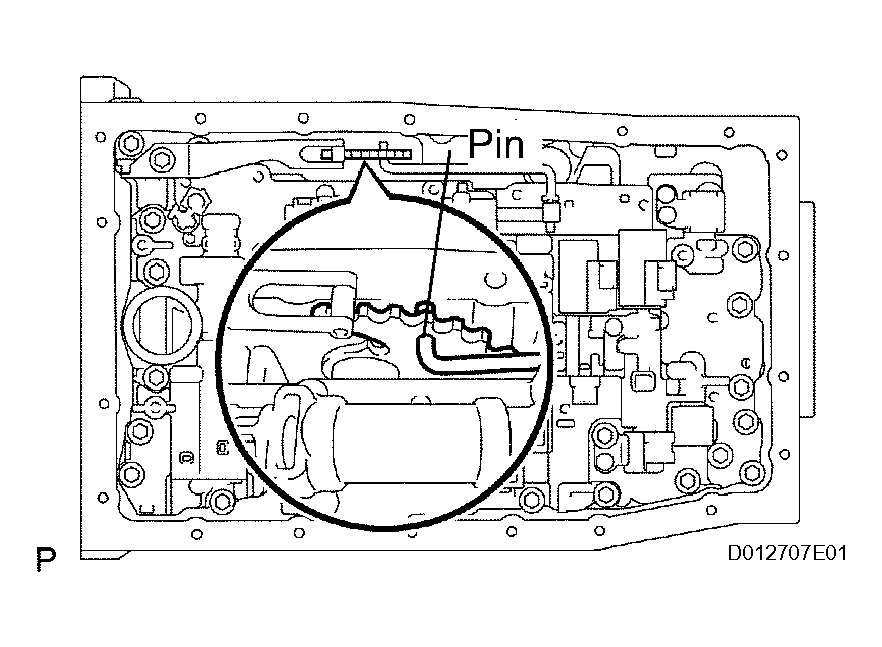

  Fig 8: Aligning Groove Of Manual Valve With Pin Of Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 19 bolts.
  Torque: 11 N*m (110 kgf*cm, 8 ft.*lbf)

  HINT:

  Each bolt length is indicated below.

  Standard bolt length: 25 mm (0.98 in.) for bolt A

  36 mm (1.42 in.) for bolt B

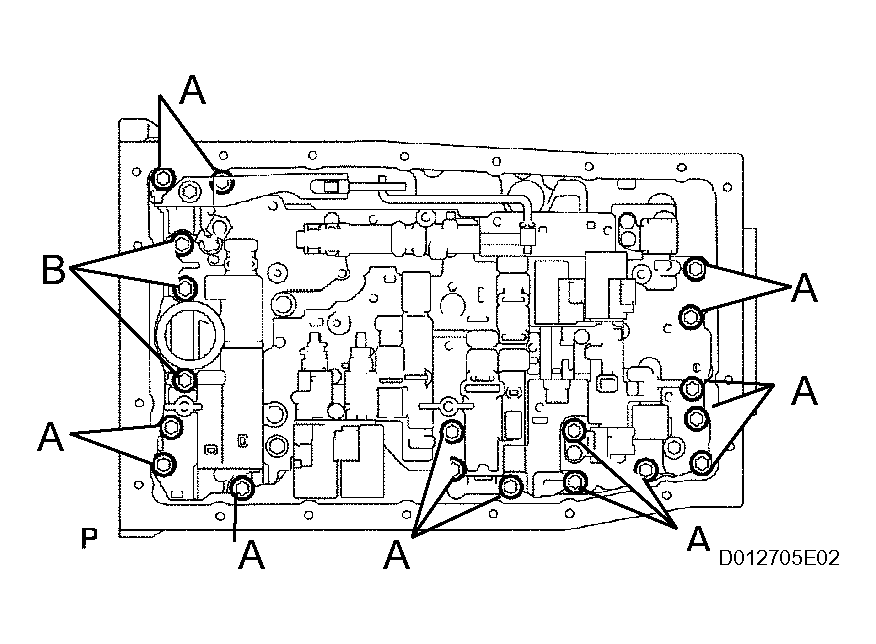

  Fig 9: Installing Transmission Valve Body Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
