Valve Body: Disassembly

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

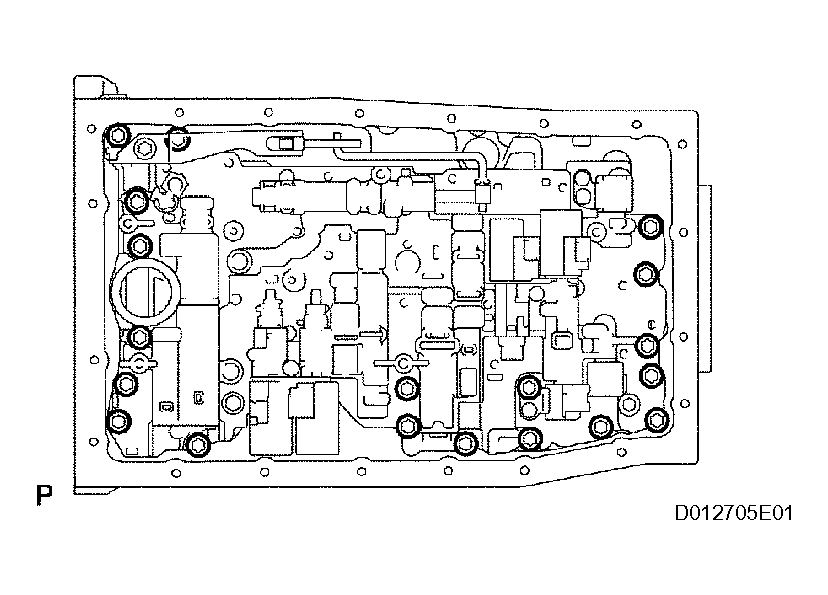

REMOVE TRANSMISSION VALVE BODY ASSEMBLY
1. Remove the 19 bolts.
2. Remove the valve body.

  Fig 1: Removing Transmission Valve Body Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

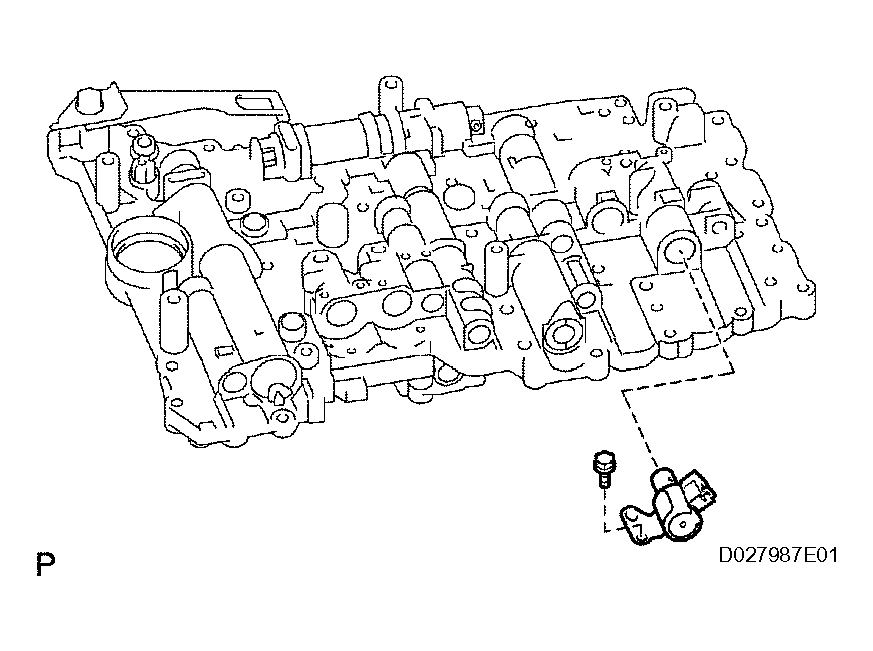

REMOVE SHIFT SOLENOID VALVE SR
1. Remove the 2 bolts and shift solenoid valve SR.

  Fig 2: Removing Shift Solenoid Valve SR
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

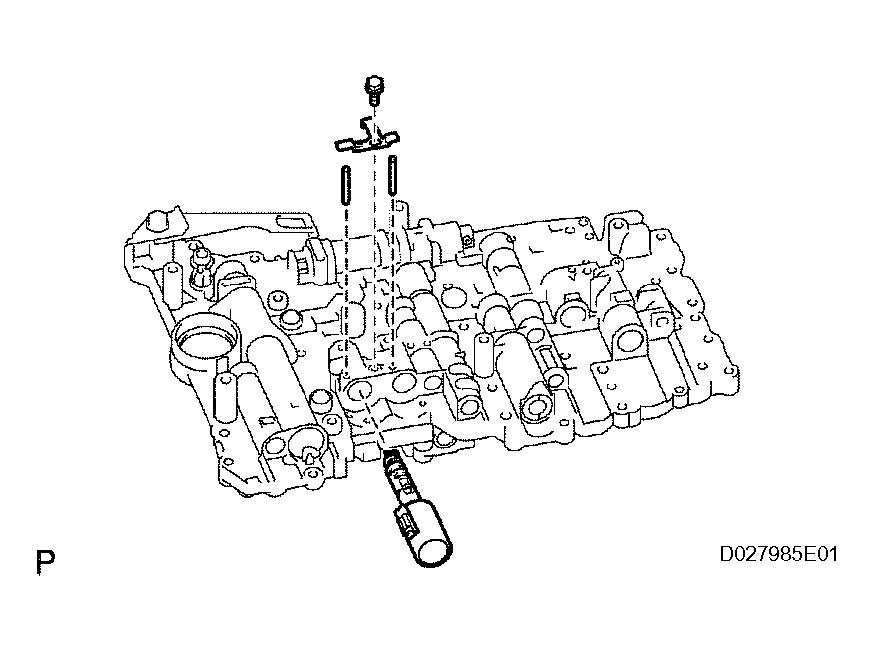

REMOVE SHIFT SOLENOID VALVE SLU
1. Remove the bolt, 2 straight pins and solenoid lock plate.
2. Remove the shift solenoid valve SLU.

  Fig 3: Removing Shift Solenoid Valve SLU
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

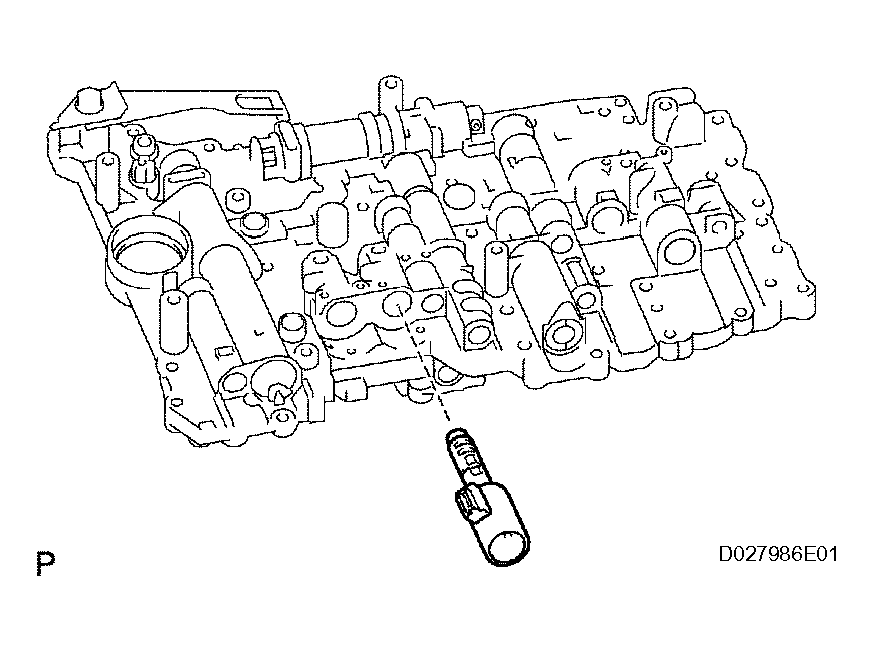

REMOVE SHIFT SOLENOID VALVE SL2

Fig 4: Removing Shift Solenoid Valve SL2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

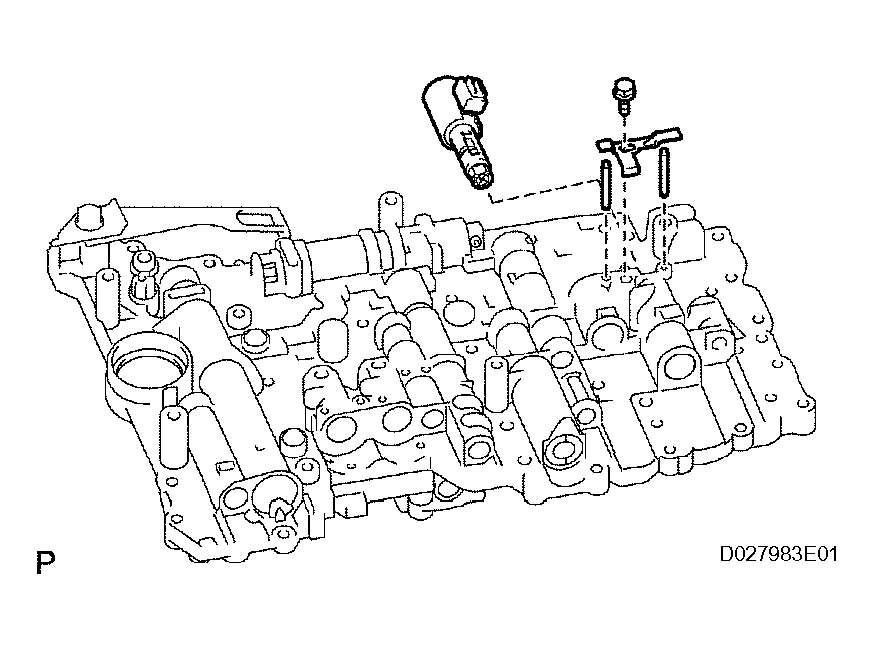

REMOVE SHIFT SOLENOID VALVE SLT
1. Remove the bolt, 2 straight pins and solenoid lock plate.
2. Remove the shift solenoid valve SLT.

  Fig 5: Removing Shift Solenoid Valve SLT
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

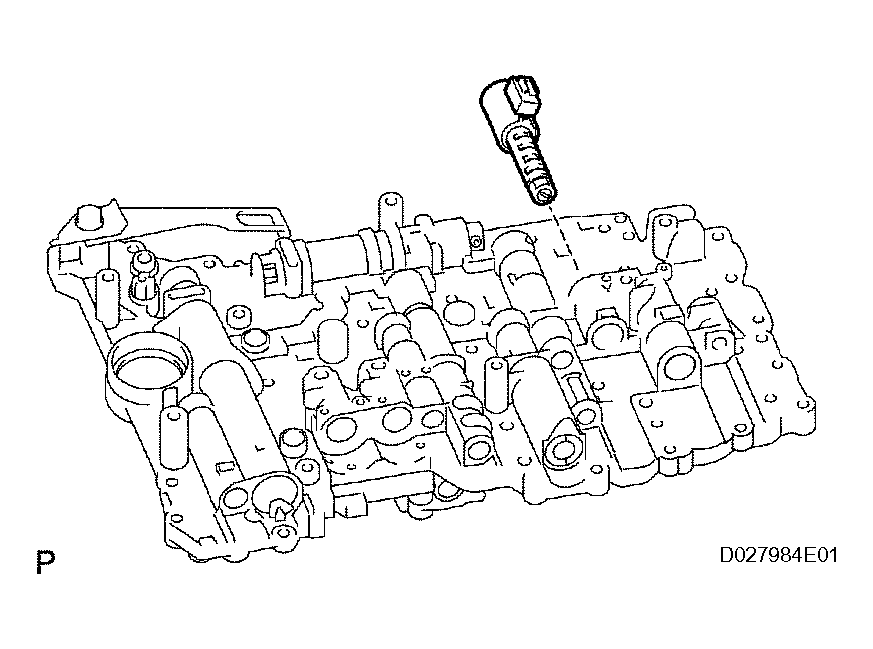

REMOVE SHIFT SOLENOID VALVE SL1
1. Remove the shift solenoid valve SL1.

  Fig 6: Removing Shift Solenoid Valve SL1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

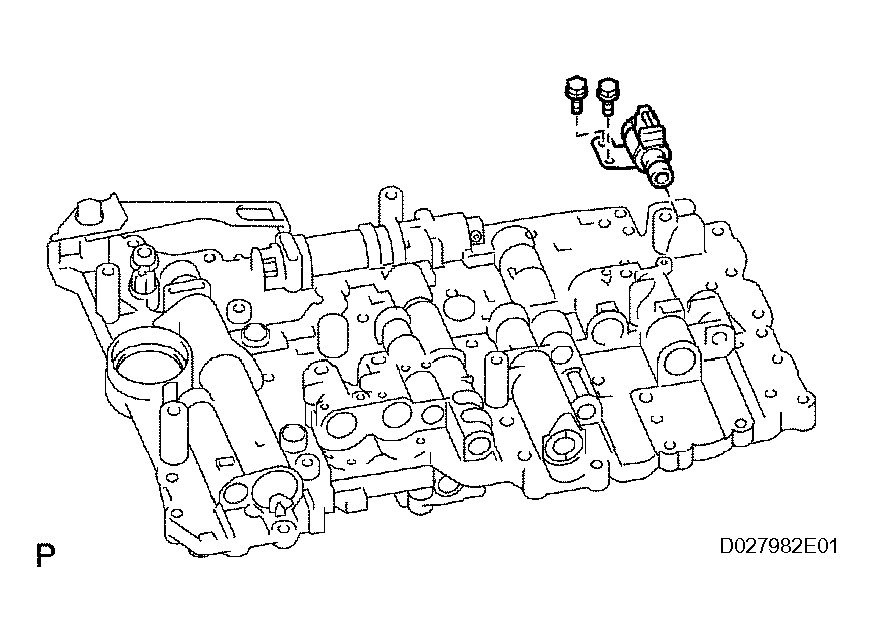

REMOVE SHIFT SOLENOID VALVE S1
1. Remove the bolt and shift solenoid valve S1.

  Fig 7: Removing Shift Solenoid Valve S1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

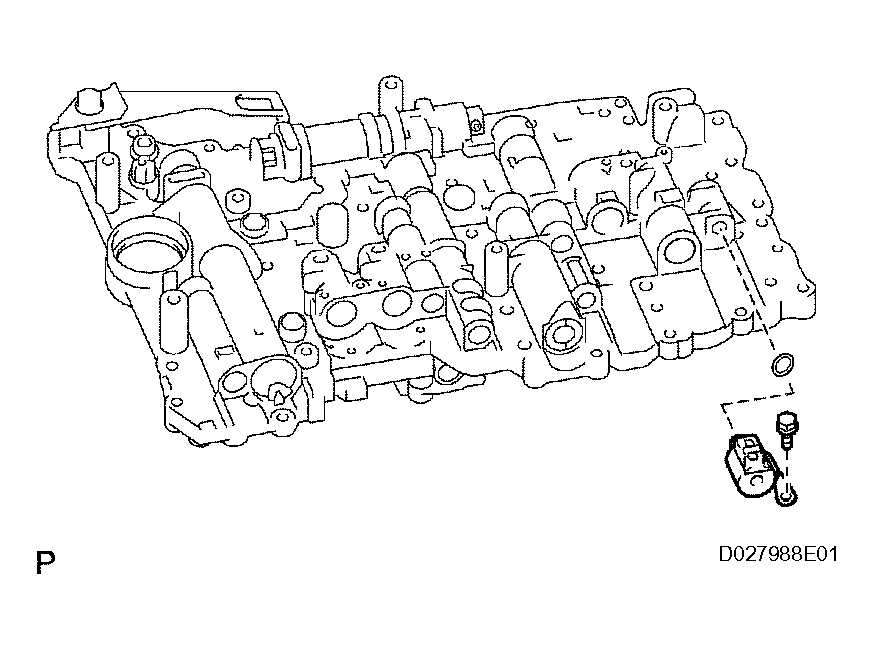

REMOVE SHIFT SOLENOID VALVE S2
1. Remove the bolt and shift solenoid valve S2.
2. Remove the O-ring from the shift solenoid valve S2.

  Fig 8: Removing Shift Solenoid Valve S2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
