Valve Body Assembly: Removal

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
DRAIN AUTOMATIC TRANSMISSION FLUID
1. Remove the drain plug and gasket, and drain ATF.
2. Install a new gasket and the drain plug.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
REMOVE AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY
NOTE: Some fluid will remain in the oil pan.
1. Remove the 20 bolts and oil pan.

  Fig 1: Removing Oil Pan
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Examine the particles in the oil pan.
  1. Remove all the magnets and use them to collect steel particles. Carefully look at the foreign matter and particles in the pan and on the magnets to anticipate the type of wear you will find in the transmission.
    Steel (magnetic): bearing, gear and clutch plate wear

    Brass (non-magnetic): bushing wear

    Fig 2: Checking Chips And Particles In Pan
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE VALVE BODY OIL STRAINER ASSEMBLY
1. Remove the 4 bolts and oil strainer.
  NOTE: Be careful as some fluid may leak out of the oil strainer.

  Fig 3: Identifying Valve Body Oil Strainer Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT TRANSMISSION WIRE
1. Remove the 2 bolts and clamp.
2. Disconnect the ATF temperature sensor.
3. Disconnect the 7 connectors from the solenoid valves.

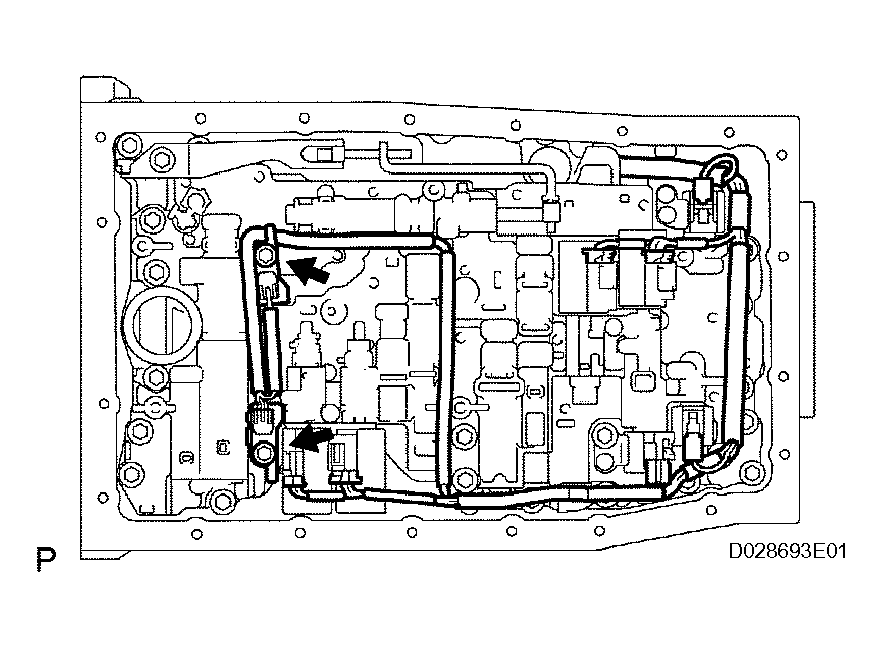

  Fig 4: Removing Bolts & Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSMISSION VALVE BODY ASSEMBLY
1. Remove the 19 bolts and valve body.
2. Remove the 3 drum seal gaskets.

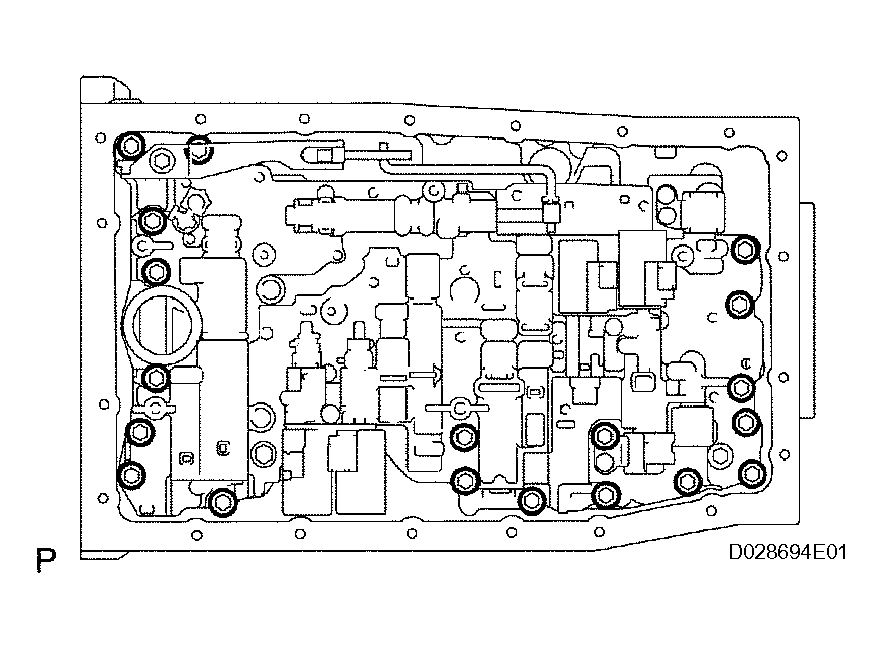

  Fig 5: Removing Transmission Valve Body Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
