Valve Body Assembly: Disassembly

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE SHIFT SOLENOID VALVE
1. Remove the bolt, lock plate, 2 pins and shift solenoid valve SLT and SL1.
2. Remove the bolt, lock plate, 2 pins and shift solenoid valves SLU and SL2.
3. Remove the 2 bolts and shift solenoid valve SR.
4. Remove the bolt and shift solenoid valve S1.
5. Remove the bolt and shift solenoid valve S2.

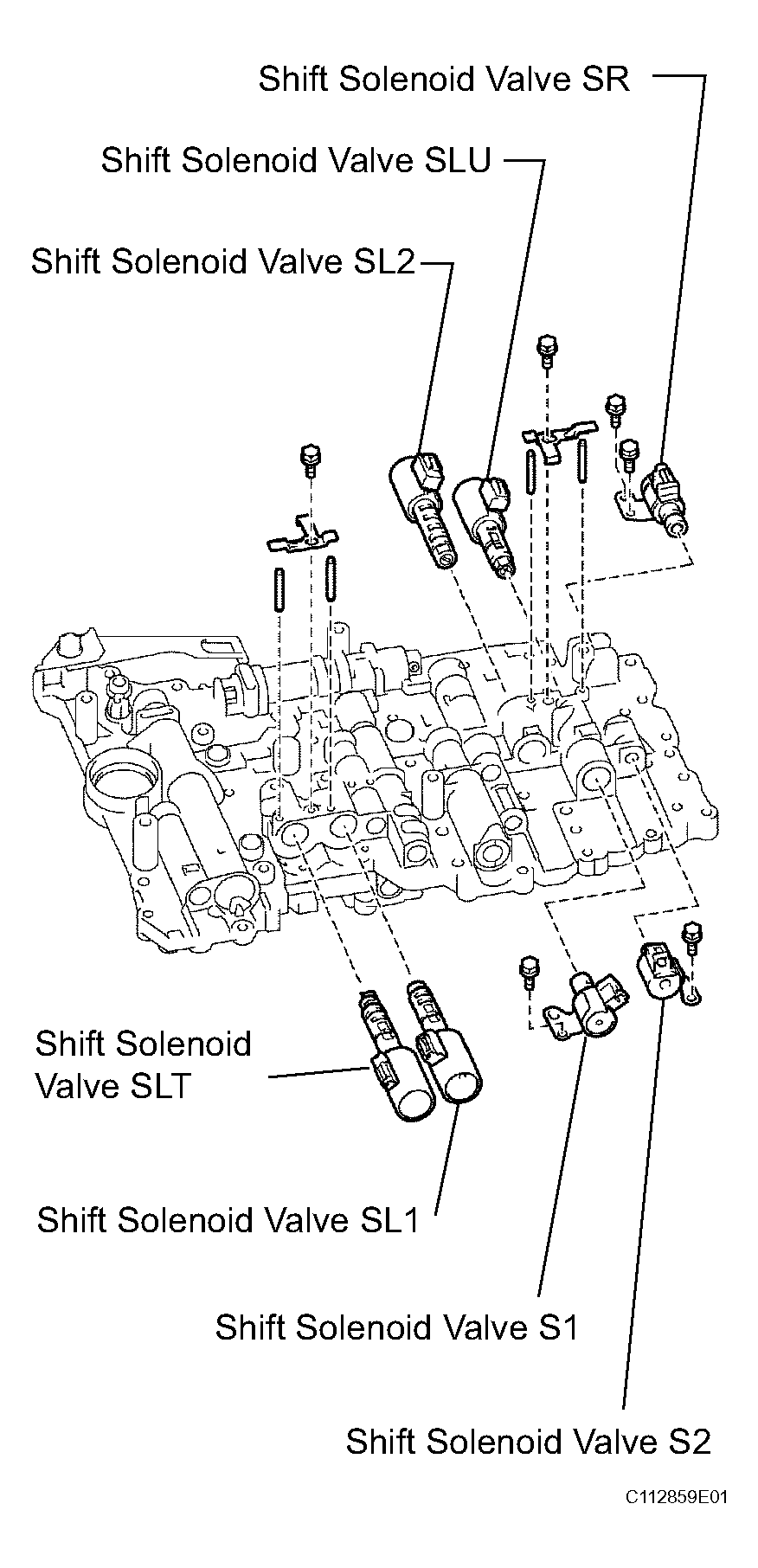

  Fig 1: Removing Shift Solenoid Valves
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
