Transmission Wire: Installation

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL TRANSMISSION WIRE
1. Install the transmission wire with the bolt.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
2. Connect the transmission wire connector.

  Fig 1: Installing Transmission Wire With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT TRANSMISSION WIRE
1. Connect the 7 connectors to the solenoid valves.
2. Install the clamp with the 2 bolts.
  Torque: 10 N*m (100 kgf*cm, 7 ft.*lbf) for bolt A

  11 N*m (110 kgf*cm, 8 ft.*lbf) for bolt B

  HINT:

  Each bolt length is indicated below.

  Standard bolt length: 36 mm (1.42 in.) for bolt A

  12 mm (0.47 in.) for bolt B
3. Connect the ATF temperature sensor.

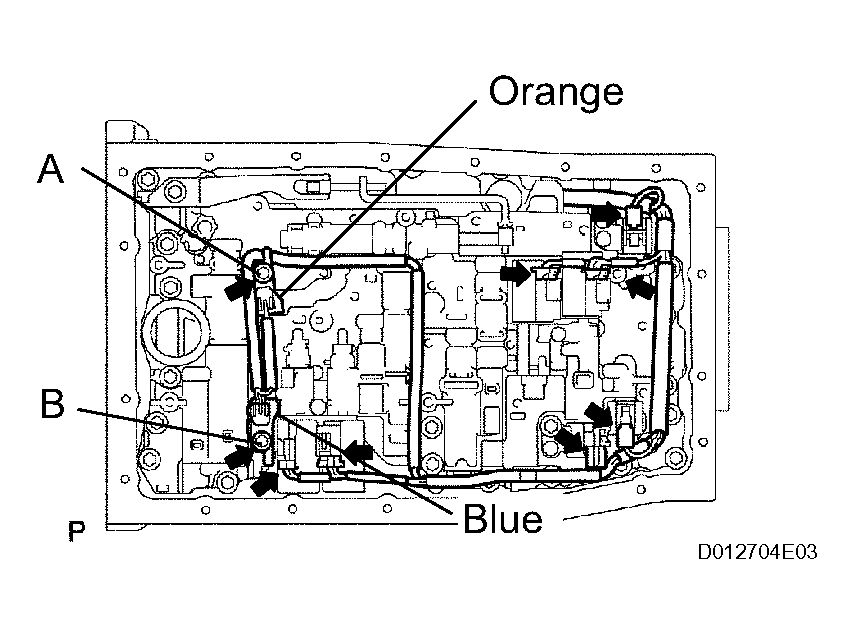

  Fig 2: Installing Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL VALVE BODY OIL STRAINER ASSEMBLY
1. Install a new O-ring and the oil strainer with the 4 bolts.
  Torque: 10 N*m (100 kgf*cm, 7 ft.*lbf)

  Fig 3: Identifying Valve Body Oil Strainer Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY
HINT:

Remove the gasket and be careful not to spill oil on the contacting surfaces of the transmission case and oil pan.
1. Install the oil pan with the 20 bolts.
  Torque: 4.4 N*m (45 kgf*cm, 39 in.*lbf)
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

  Fig 4: Installing Oil Pan With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADD AUTOMATIC TRANSMISSION FLUID
1. See AUTOMATIC TRANSMISSION FLUID .
INSPECT AUTOMATIC TRANSMISSION FLUID
1. See AUTOMATIC TRANSMISSION FLUID .
