Speed Sensor: Removal

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE SPEEDOMETER SENSOR
1. Disconnect the sensor connector.

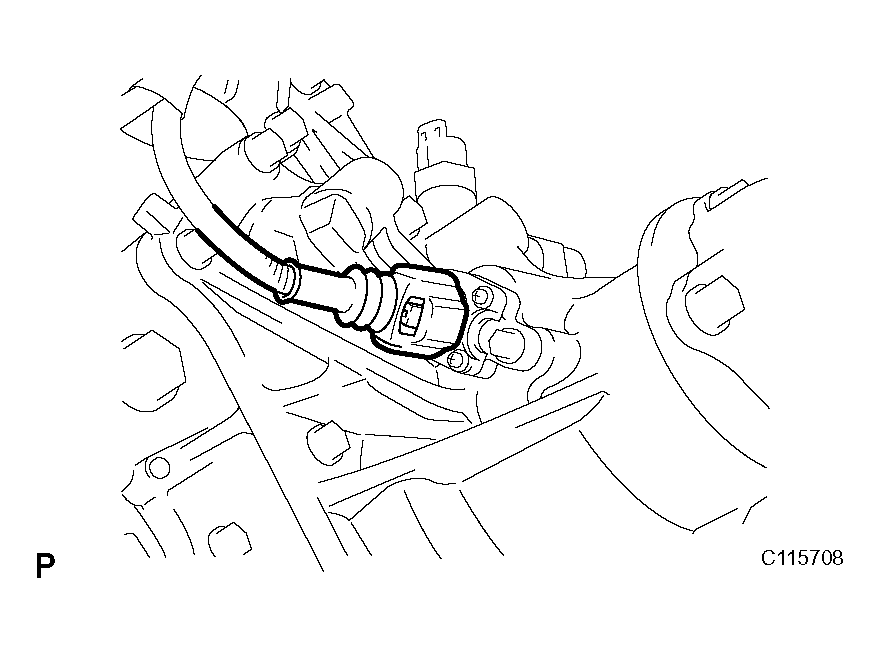

  Fig 1: Disconnecting Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and the sensor.
3. Remove the clip and the driven gear from the sensor.
4. Remove the O-ring from the sensor.

  Fig 2: Removing Speed Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSMISSION REVOLUTION SENSOR (NT) AND (SP2)
1. Disconnect the sensor connectors.
2. Remove the 2 bolts, revolution sensor (SP2) and (NT).

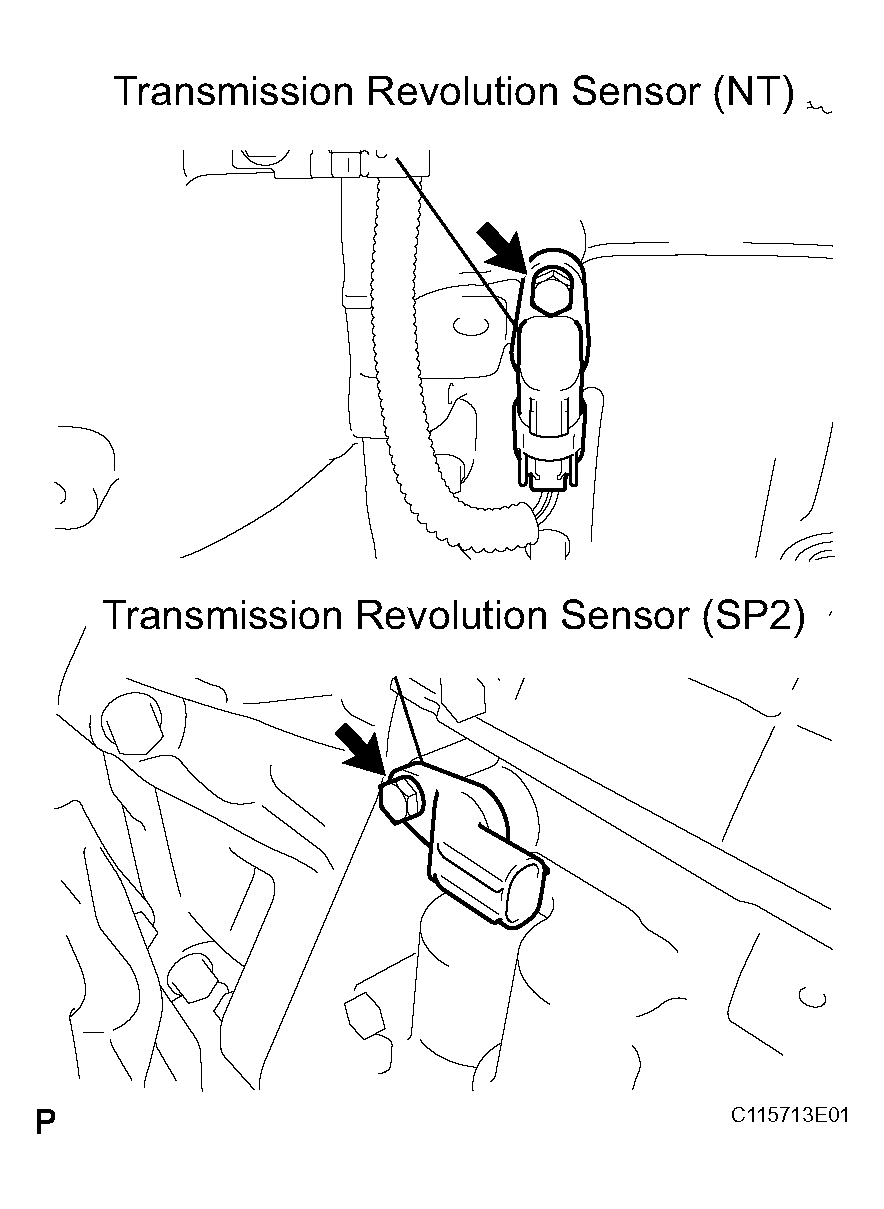

  Fig 3: Removing Transmission Revolution Sensor (NT) & (SP2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 O-rings from the revolution sensor (SP2) and (NT).

  Fig 4: Removing O-Rings From Revolution Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
