Speed Sensor: Installation

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL SPEEDOMETER SENSOR
1. Insert the speedometer driven gear in the speedometer sensor with the clip.
2. Coat a new O-ring with ATF.
3. Install the O-ring to the speedometer driven gear assembly.
4. Install the sensor with the bolt.
  Torque: 16 N*m (160 kgf*cm, 12 ft.*lbf)

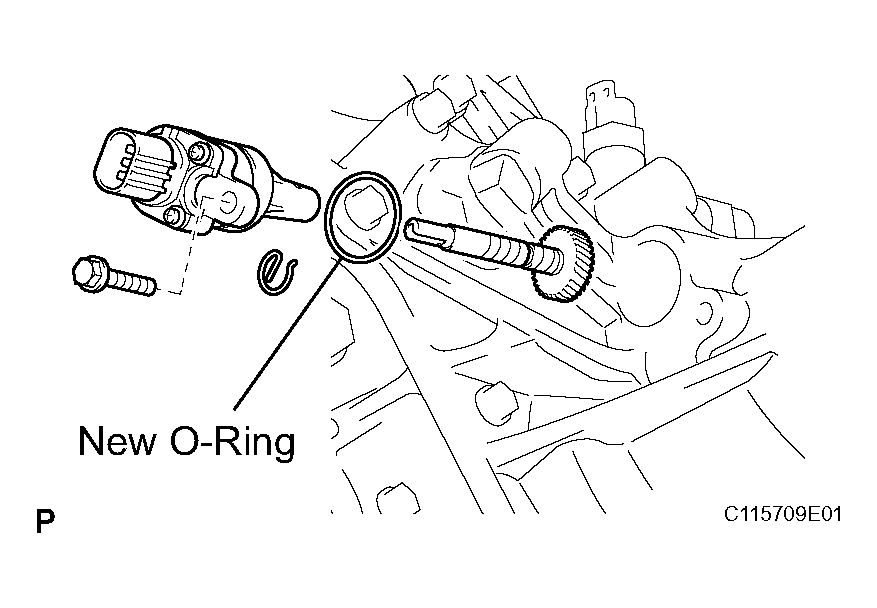

  Fig 1: Installing Speedometer Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Connect the sensor connector.

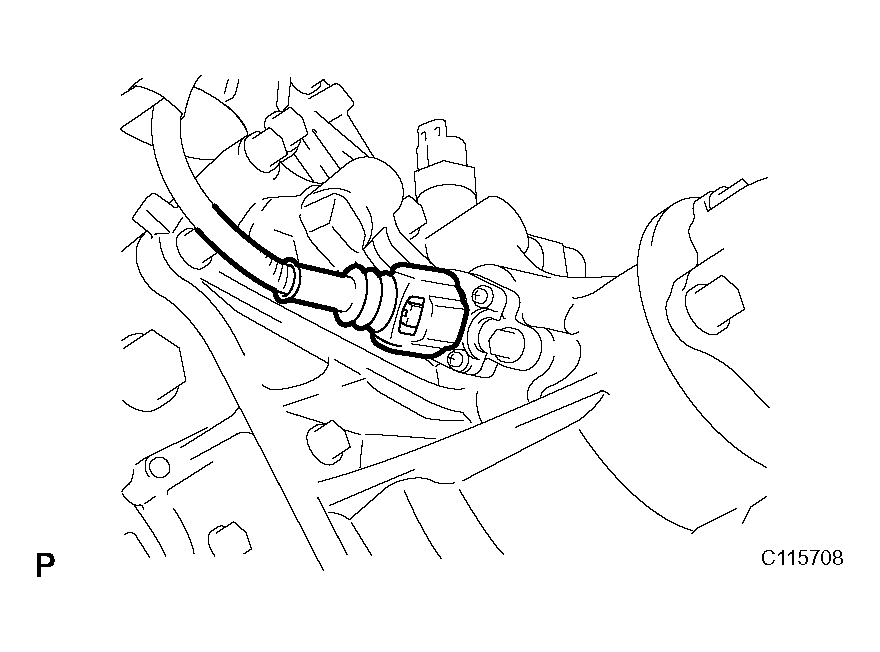

  Fig 2: Connecting Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMISSION REVOLUTION SENSOR (NT) AND VEHICLE SPEED SENSOR (SP2)
1. Coat 2 new O-rings with ATF and install them to the revolution sensor (SP2) and (NT).

  Fig 3: Installing O-Rings To Revolution Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the revolution sensor (SP2) and (NT) with the 2 bolts.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
3. Connect the sensor connectors.

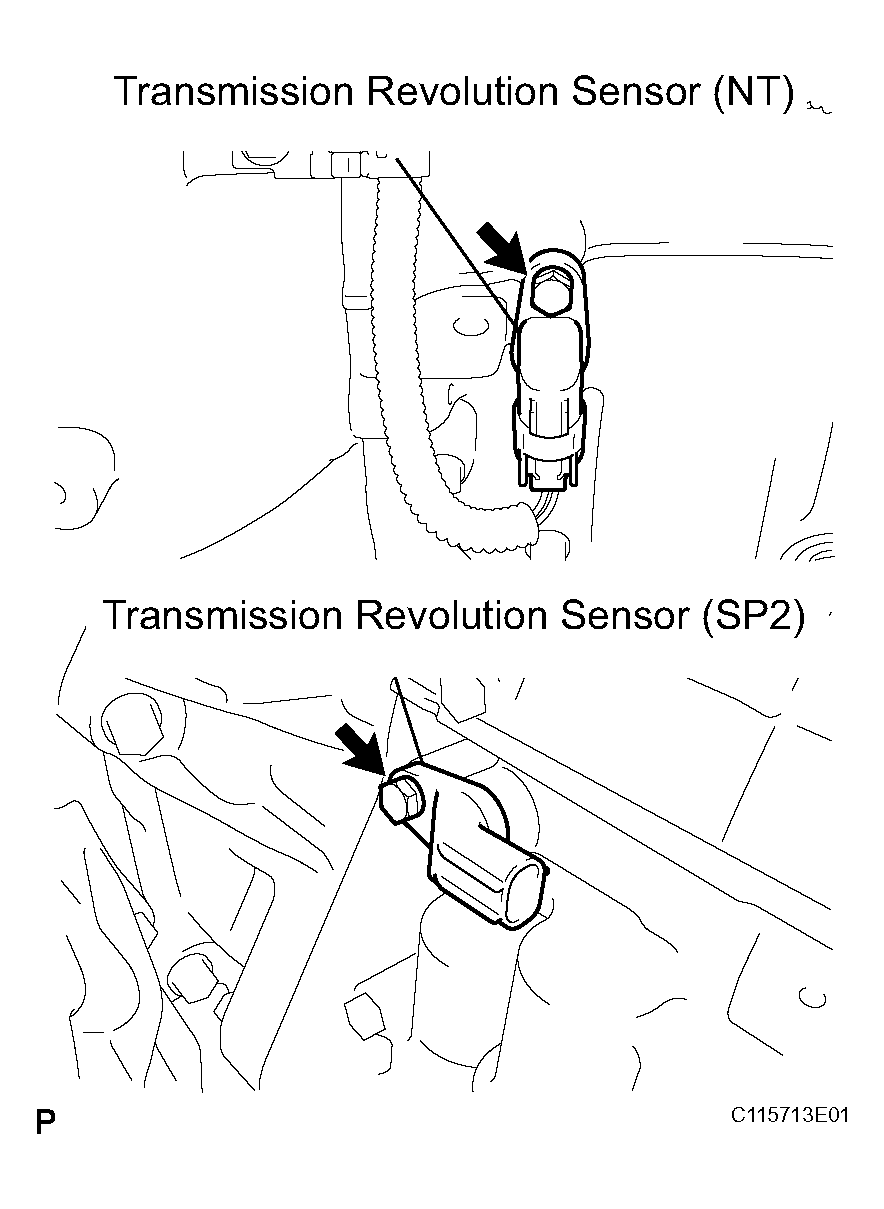

  Fig 4: Installing Transmission Revolution Sensor (SP2) & (NT)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
