Oil Pump: Reassembly

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FRONT OIL PUMP OIL SEAL
1. Using SST and a hammer, install a new oil seal.
  SST 09350-30020 (09351-32140)

  HINT:

  The oil seal end should be flush with the outer edge of the pump body.
2. Coat the oil seal lip with MP grease.
FIX FRONT OIL PUMP BODY SUB-ASSEMBLY
1. Place the oil pump body on the torque converter clutch.

  Fig 1: Installing New Oil Seal Using SST & Hammer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT OIL PUMP DRIVEN GEAR
1. Coat the driven gear with ATF.
2. Install the driven gear to the oil pump body.

  Fig 2: Installing Driven Gear To Oil Pump Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT OIL PUMP DRIVE GEAR
1. Coat the drive gear with ATF.
2. Install the drive gear to the oil pump body.

  Fig 3: Installing Drive Gear To Oil Pump Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT OIL PUMP BODY O-RING
1. Install a new O-ring to the oil pump body.

  Fig 4: Installing New O-Ring To Oil Pump Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STATOR SHAFT ASSEMBLY
1. Install the stator shaft with each bolt hole.
2. Install the 14 bolts.
  Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

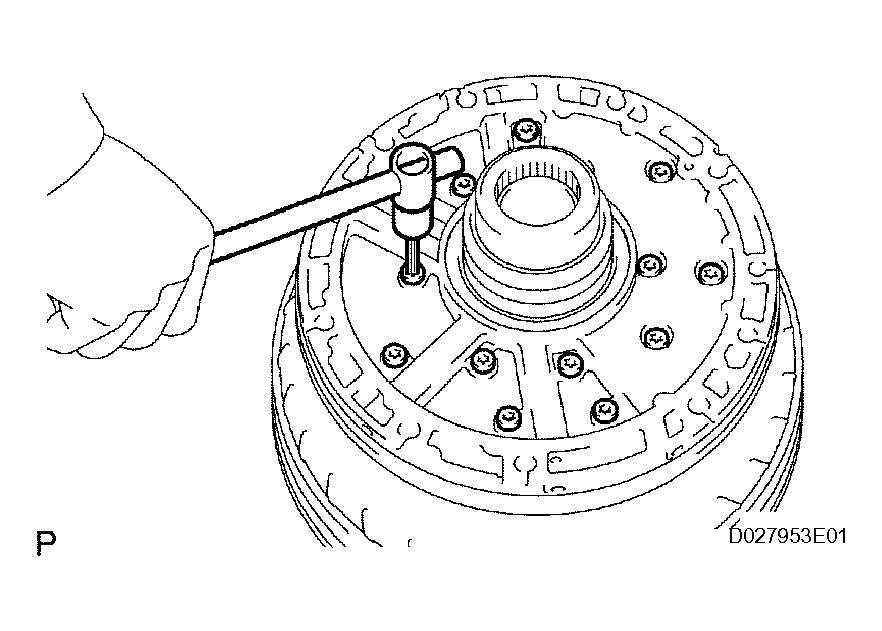

  Fig 5: Installing Stator Shaft Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CLUTCH DRUM OIL SEAL RING
1. Coat the 3 oil seal rings with ATF.
2. Squeeze the ends of the 3 oil seal rings together with the overlap distance 8 mm (0.314 in.) or less, and then install them to the starter shaft groove.
  NOTE: Do not over-spread the ring ends.

  HINT:

  After installing the oil seal rings, check that they rotate smoothly.

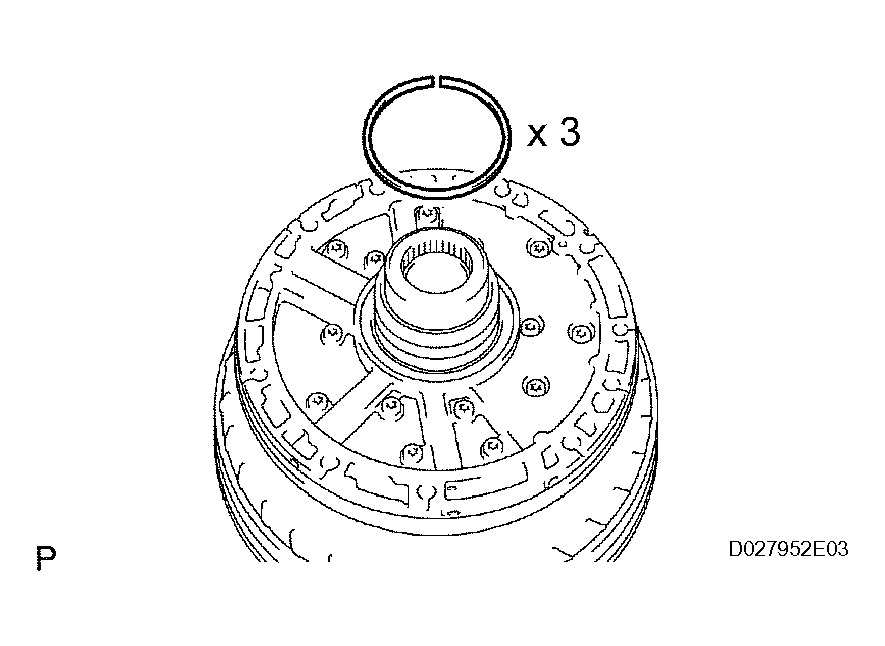

  Fig 6: Installing Clutch Drum Oil Seal Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT OIL PUMP DRIVE GEAR ROTATION (See INSPECTION )
INSTALL FRONT OIL PUMP BODY O-RING
1. Install a new O-ring to the oil pump assembly.

  Fig 7: Installing New O-Ring To Oil Pump Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
