Oil Pump: Disassembly

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT OIL PUMP BODY O-RING
1. Remove the O-ring from the oil pump assembly.

  Fig 1: Removing O-Ring From Oil Pump Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

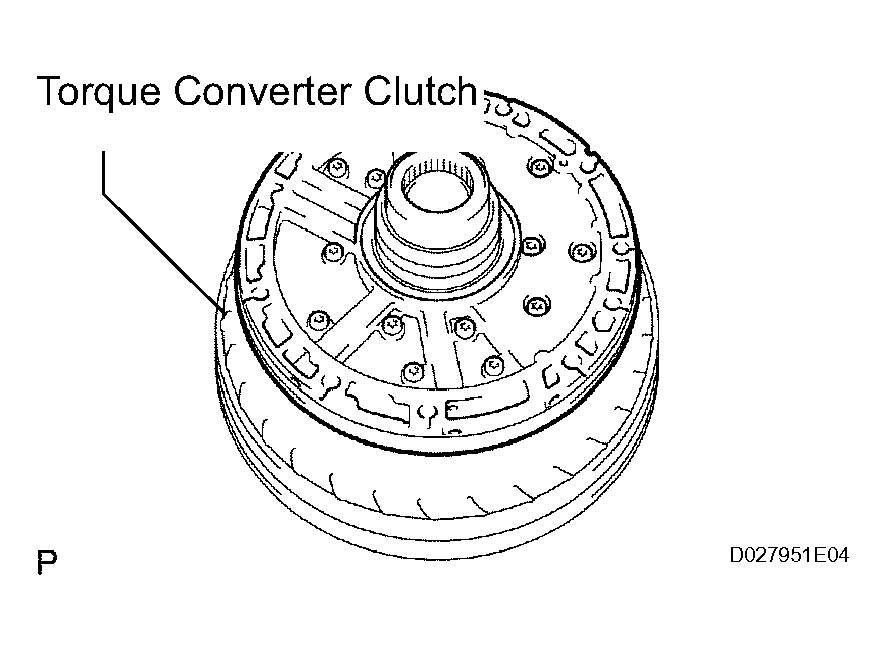

FIX OIL PUMP ASSEMBLY
1. Place the oil pump body on the torque converter clutch.

  Fig 2: Placing Oil Pump Body On Torque Converter Clutch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

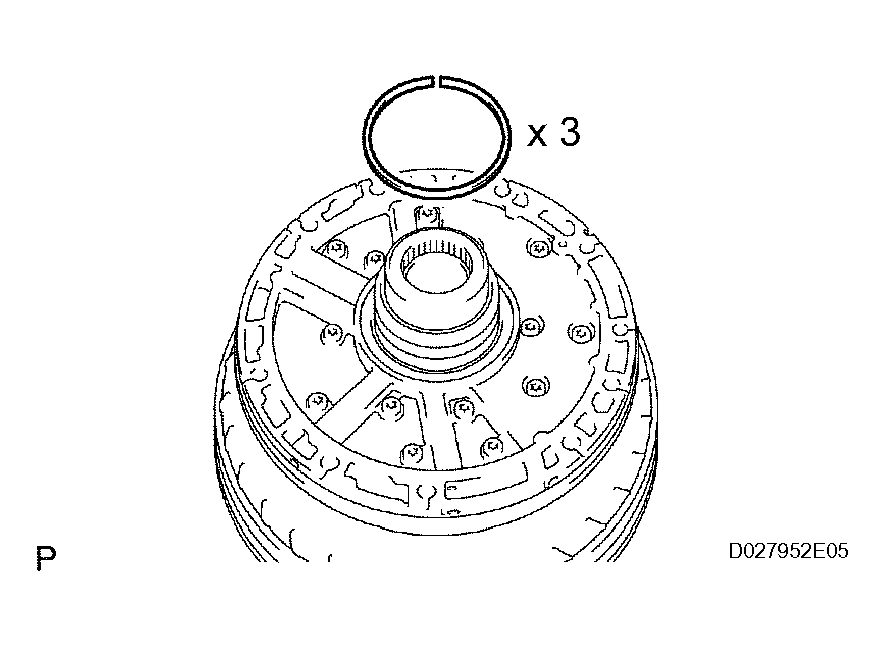

REMOVE CLUTCH DRUM OIL SEAL RING
1. Remove the 3 oil seal rings.

  Fig 3: Removing Clutch Drum Oil Seal Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

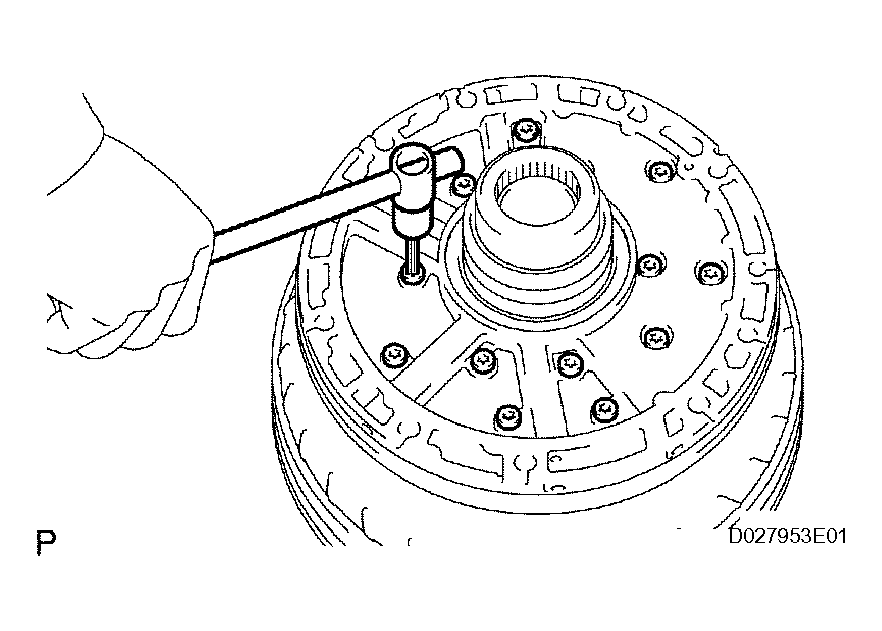

REMOVE STATOR SHAFT ASSEMBLY
1. Remove the 14 bolts, and then remove the stator shaft from the oil pump body.

  Fig 4: Removing Stator Shaft Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT OIL PUMP BODY O-RING
1. Remove the O-ring from the oil pump body.
2. Remove the oil pump body from the torque converter clutch.
INSPECT FRONT OIL PUMP BODY SUB-ASSEMBLY (See INSPECTION )
INSPECT STATOR SHAFT ASSEMBLY (See INSPECTION )
INSPECT CLEARANCE OF OIL PUMP ASSEMBLY

Fig 5: Removing Front Oil Pump Body O-Ring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT OIL PUMP DRIVE GEAR

Fig 6: Removing Front Oil Pump Drive Gear
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT OIL PUMP DRIVEN GEAR

Fig 7: Removing Front Oil Pump Driven Gear
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT OIL PUMP OIL SEAL
1. Using a screwdriver, remove the oil seal.
  NOTE: Be careful not to damage the bushing and oil pump body.

  Fig 8: Removing Front Oil Pump Oil Seal Using Screwdriver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
