Floor Shift Assembly: Removal

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE TRANSFER SHIFT LEVER KNOB
REMOVE CONSOLE PANEL SUB-ASSEMBLY UPPER
1. Remove the console panel sub-assembly upper (see REMOVAL ).
DISCONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
1. Shift into the N position.
2. Remove the nut and disconnect the No. 1 floor shift gear shifting rod from the connecting rod swivel.

  Fig 1: Disconnecting Floor Shift Gear Shifting Rod
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FLOOR SHIFT LEVER ASSEMBLY
1. Disconnect the connector.
2. Remove the 6 bolts.
  Torque: 8.3 N*m (85 kgf*cm, 73 in.*lbf)
3. Remove the floor shift lever assembly.

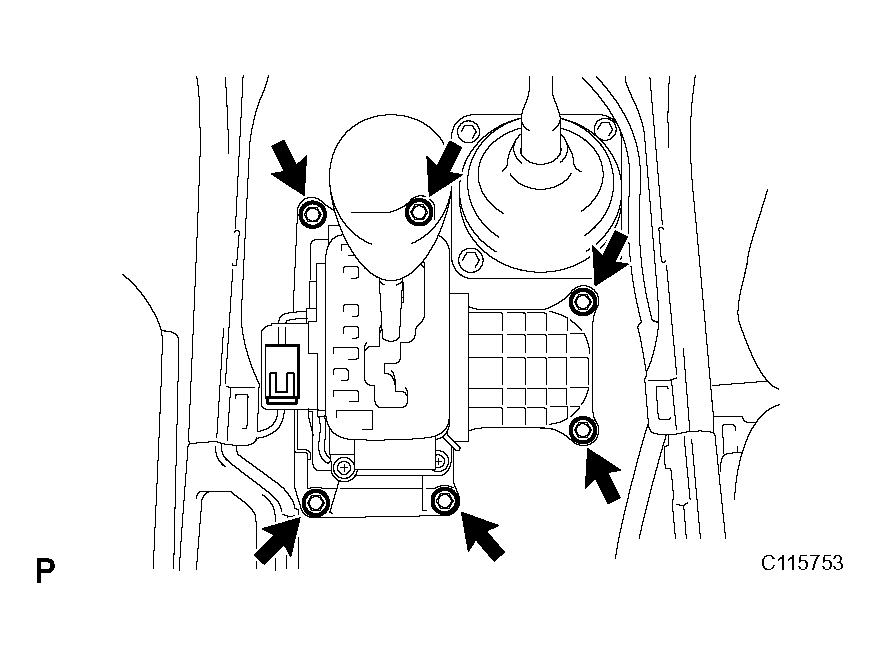

  Fig 2: Removing Floor Shift Lever Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
