Floor Shift Assembly: Installation

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FLOOR SHIFT LEVER ASSEMBLY
1. Install the floor shift lever assembly with the 6 bolts.
  Torque: 8.3 N*m (85 kgf*cm, 73 in.*lbf)
2. Connect the connector to the floor shift lever assembly.

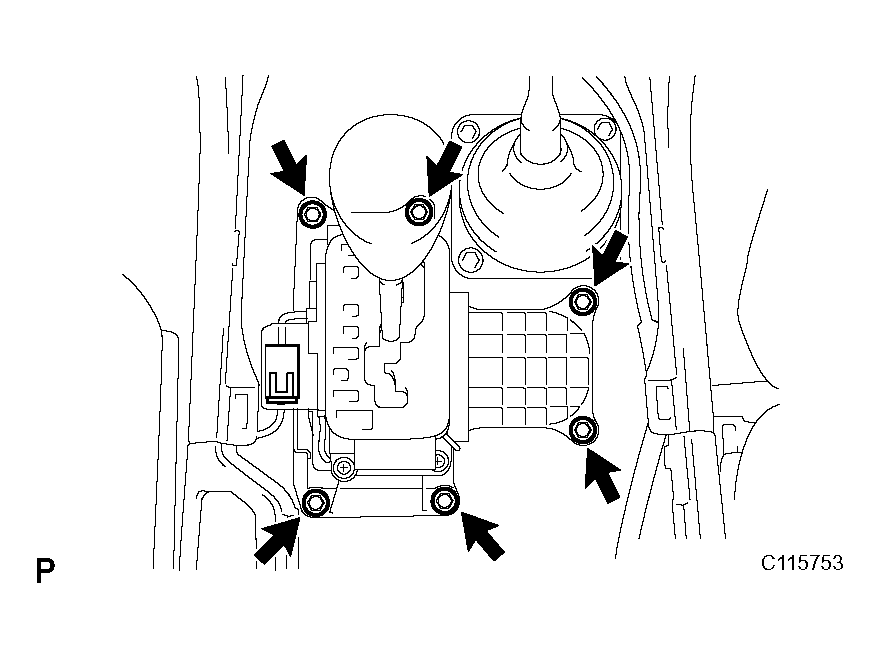

  Fig 1: Installing Floor Shift Lever Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
1. Shift into the N position.
2. Connect the No. 1 floor shift gear shifting rod and connecting rod swivel with the nut.
  Torque: 13 N*m (130 kgf*cm, 9 ft.*lbf)
INSTALL CONSOLE PANEL SUB-ASSEMBLY UPPER
1. Install console panel sub-assembly upper (see REASSEMBLY ).
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

Fig 2: Connecting No. 1 Floor Shift Gear Shifting Rod & Connecting Rod Swivel With Nut
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
