Terminals Of ECM

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

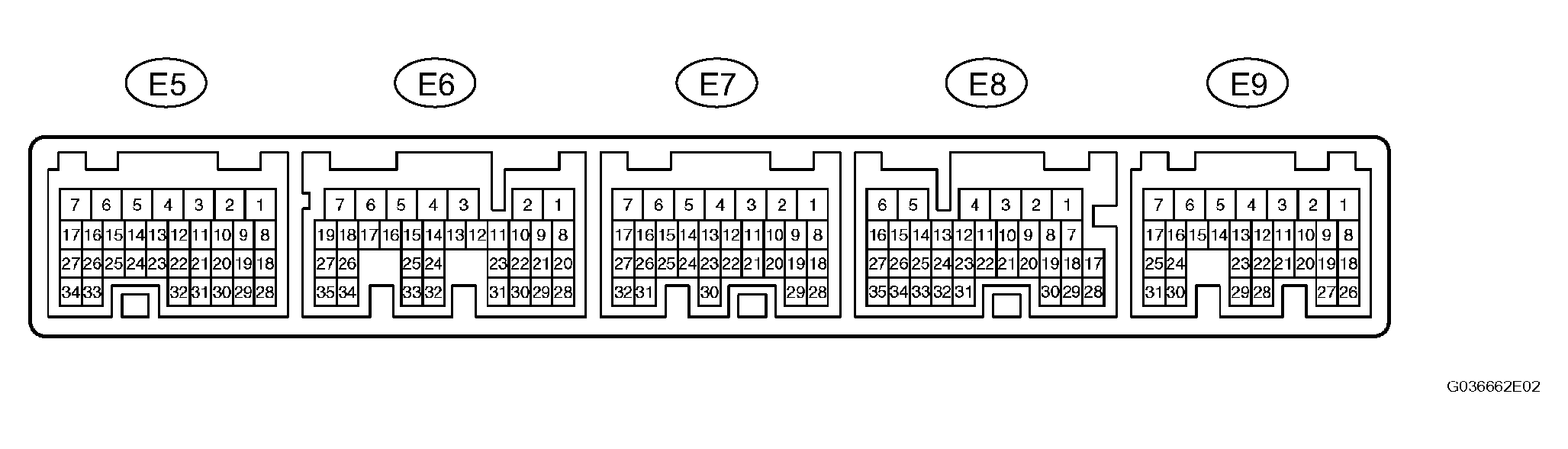

Fig 1: Identifying ECM Terminals
G04436435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Each ECM terminal's standard voltage is shown in ECM TERMINALS VOLTAGE SPECIFICATION  .

In the table, first follow the information under "Condition".

Look under "Symbols (Terminal No.)" for the terminals to be inspected. The standard voltage between the terminals is shown under "Specified Condition".

Use the illustration above as a reference for the ECM terminals.

ECM TERMINALS VOLTAGE SPECIFICATION

Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition
L4 (E7-13) - E1 (E7-1) B-L - BR L4 shift position switch signal Ignition switch ON and transfer shift lever on L4 Below 1.5 V
L4 (E7-13) - E1 (E7-1) B-L - BR L4 shift position switch signal Ignition switch ON and transfer shift lever not on L4 9 to 14 V
TFN (E6-25) - E1 (E7-1) Y-G - BR N shift position switch signal Ignition switch ON and transfer shift lever on N Below 1.5 V
TFN (E6-25) - E1 (E7-1) Y-G - BR N shift position switch signal Ignition switch ON and transfer shift lever not on N 9 to 14 V
L (E8-9) - E1 (E7-1) R-L - BR L shift position switch signal Ignition switch ON and transfer shift lever on L 9 to 14 V
L (E8-9) - E1 (E7-1) R-L - BR L shift position switch signal Ignition switch ON and transfer shift lever not on L Below 1.5 V
2 (E8-10) - E1 (E7-1) G-B - BR 2 shift position switch signal Ignition switch ON and transfer shift lever on 2 and L 9 to 14 V
2 (E8-10) - E1 (E7-1) G-B - BR 2 shift position switch signal Ignition switch ON and transfer shift lever not on 2 and L Below 1.5 V
R (E8 -11) - E1 (E7-1) R-B - BR R shift position switch signal Ignition switch ON and transfer shift lever on R 9 to 14 V
R (E8 -11) - E1 (E7-1) R-B - BR R shift position switch signal Ignition switch ON and transfer shift lever not on R Below 1.5 V
D (E8-21) - E1 (E7-1) G-Y - BR D shift position switch signal Ignition switch ON and transfer shift lever on D or 4 9 to 14 V
D (E8-21) - E1 (E7-1) G-Y - BR D shift position switch signal Ignition switch ON and transfer shift lever not on D or 4 Below 1.5 V
3 (E8-19) - E1 (E7-1) G - BR 3 shift position switch signal Ignition switch ON and transfer shift lever on 3 9 to 14 V
3 (E8-19) - E1 (E7-1) G - BR 3 shift position switch signal Ignition switch ON and transfer shift lever not on 3 Below 1.5 V
4 (E8-20) - E1 (E7-1) G-R - BR 4 shift position switch signal Ignition switch ON and transfer shift lever on 4 9 to 14 V
4 (E8-20) - E1 (E7-1) G-R - BR 4 shift position switch signal Ignition switch ON and transfer shift lever not on 4 Below 1.5 V
STP (E9-15) - E1 (E7-1) G-W - BR Stop light switch signal Brake pedal is depressed 7.5 to 14 V
STP (E9-15) - E1 (E7-1) G-W - BR Stop light switch signal Brake pedal is released Below 1.5 V
SLU+ (E6-15) - SLU- (E6-14) P-G-B SLU solenoid signal 4th (lock-up) gear or 5th (lock-up) gear Pulse generation (see Fig 2 )
S2 (E6-10) - E1 (E7-1) W - BR S2 solenoid signal Ignition switch ON Below 1.5 V
S2 (E6-10) - E1 (E7-1) W - BR S2 solenoid signal 2nd or 3rd gear 9 to 14 V
S2 (E6-10) - E1 (E7-1) W - BR S2 solenoid signal 1st, 4th or 5th gear Below 1.5 V
S1 (E6-11) - E1 (E7-1) R - BR S1 solenoid signal Ignition switch ON 9 to 14 V
S1 (E6-11) - E1 (E7-1) R - BR S1 solenoid signal 1st or 2nd gear 9 to 14 V
S1 (E6-11) - E1 (E7-1) R - BR S1 solenoid signal 3rd, 4th or 5th gear Below 1.5 V
SLT+ (E6-13) - SLT- (E6-12) G-W - G-B SLT solenoid signal Engine idle speed Pulse generation (see Fig 3 )
SR (E6-9) - E1 (E7-1) G - BR SR solenoid signal Ignition switch ON Below 1.5 V
SR (E6-9) - E1 (E7-1) G - BR SR solenoid signal 5th gear 9 to 14 V
SR (E6-9) - E1 (E7-1) G - BR SR solenoid signal 1st gear Below 1 V
SL2+ (E6-17) - SL2- (E6-16) P-B - P-L SL2 solenoid signal Engine idle speed Pulse generation (see Fig 4 )
SL1+ (E6-19) - SL1- (E6 - 18) R-L - R-W SL1 solenoid signal Engine idle speed Pulse generation (see Fig 5 )
THO1 (E6-24) - E2 (E5-28) G-Y - BR No. 1 ATF temperature sensor signal No. 1 ATF temperature: 115°C (239°F) or more Below 1.5 V
THO2 (E6-32) - E2 (E5-28) L - BR No. 2 ATF temperature sensor signal No. 2 ATF temperature: 115°C (239°F) or more Below 1.5 V
SP2+ (E6-34) - SP2- (E6-26) R - G Speed sensor (SP2) signal Vehicle speed 20 km/h (12 mph) Pulse generation (see Fig 6 )
NT+ (E6-35) - NT- (E6-27) L - W Speed sensor (NT) signal Engine idle speed (shift lever on P or N) Pulse generation (see Fig 7 )
STAR NSW (E6-8) - E1 (E7-1) B-W - BR PNP switch signal Ignition switch ON and shift lever on P or N Below 1.5 V
STAR NSW (E6-8) - E1 (E7-1) B-W - BR PNP switch signal Ignition switch ON and shift lever not on P or N 9 to 14 V
STA (E7-11) - E1 (E7-1) B-R - BR PNP switch signal Ignition switch ON and shift lever not on P or N 6.0 V or more
SNWI (E8-27) - E1 (E7-1) L-R - BR 2nd start switch signal Ignition switch ON 9 to 14 V
SNWI (E8-27) - E1 (E7-1) L-R - BR 2nd start switch signal Ignition switch ON and press 2nd start switch continuously Below 1 V
PWR (E8-31) - E1 (E7-1) L-W - BR PWR switch signal Ignition switch ON and pattern select switch "PWR" OFF 9 to 14 V
PWR (E8-31) - E1 (E7-1) L-W - BR PWR switch signal Ignition switch ON and pattern select switch "PWR" ON Below 1 V
  1. Waveform 1 (Reference)
    ITEM AND CONTENT REFERENCE

    Item Content
    Symbols (Terminal No.) SLU+ (E6-15) - SLU- (E6-14)
    Tool Setting 5 V/DIV., 1 msec./DIV.
    Condition 4th (lock-up) or 5th (lock-up) gear
    Fig 2: Voltage Waveform Graph
    G04436513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Waveform 2 (Reference)
    ITEM AND CONTENT REFERENCE

    Item Content
    Symbols (Terminal No.) SLT+ (E6-13) - SLT- (E6-12)
    Tool Setting 5 V/DIV., 1 msec./DIV.
    Condition Engine idle speed
    Fig 3: Voltage Waveform Graph
    G04436513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Waveform 3 (Reference)
    ITEM AND CONTENT REFERENCE

    Item Content
    Symbols (Terminal No.) SL2+ (E6-17) - SL2- (E6-16)
    Tool Setting 5 V/DIV., 1 msec./DIV.
    Condition Engine idle speed
    Fig 4: Voltage Waveform Graph
    G04436513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Waveform 4 (Reference)
    ITEM AND CONTENT REFERENCE

    Item Content
    Symbols (Terminal No.) SL1+ (E6-19) - SL1- (E6-18)
    Tool Setting 5 V/DIV., 1 msec./DIV.
    Condition Engine idle speed
    Fig 5: Voltage Waveform Graph
    G04436513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. Waveform 5 (Reference)
    ITEM AND CONTENT REFERENCE

    Item Content
    Symbols (Terminal No.) SP2+ (E6-34) - SP2- (E6-26)
    Tool Setting 2 V/DIV., 2 msec./DIV.
    Condition Vehicle speed 20 km/h (12 mph)
    Fig 6: Waveform Graph (Waveform 5)
    G04436440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. Waveform 6 (Reference)
    ITEM AND CONTENT REFERENCE

    Item Content
    Symbols (Terminal No.) NT+ (E6-35) - NT- (E6-27)
    Tool Setting 1 V/DIV., 2 msec./DIV.
    Condition Engine idle speed (shift lever on P or N)
    Fig 7: Waveform Graph (Waveform 6)
    G04436441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
