System Diagram

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

The configuration of the electronic control system in the A750F automatic transmission is as shown in Fig 1.

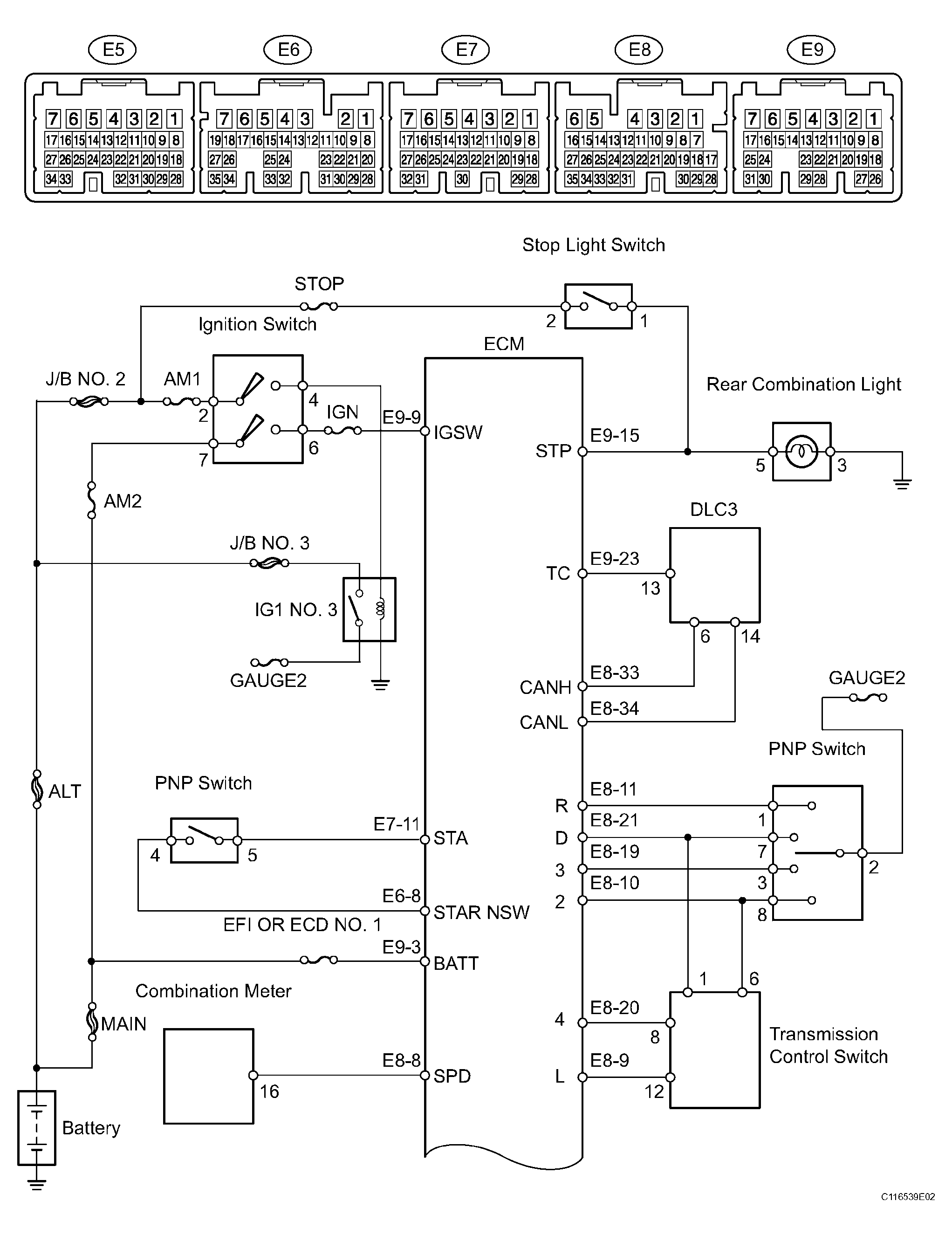

Fig 1: A750F Automatic Transmission System Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

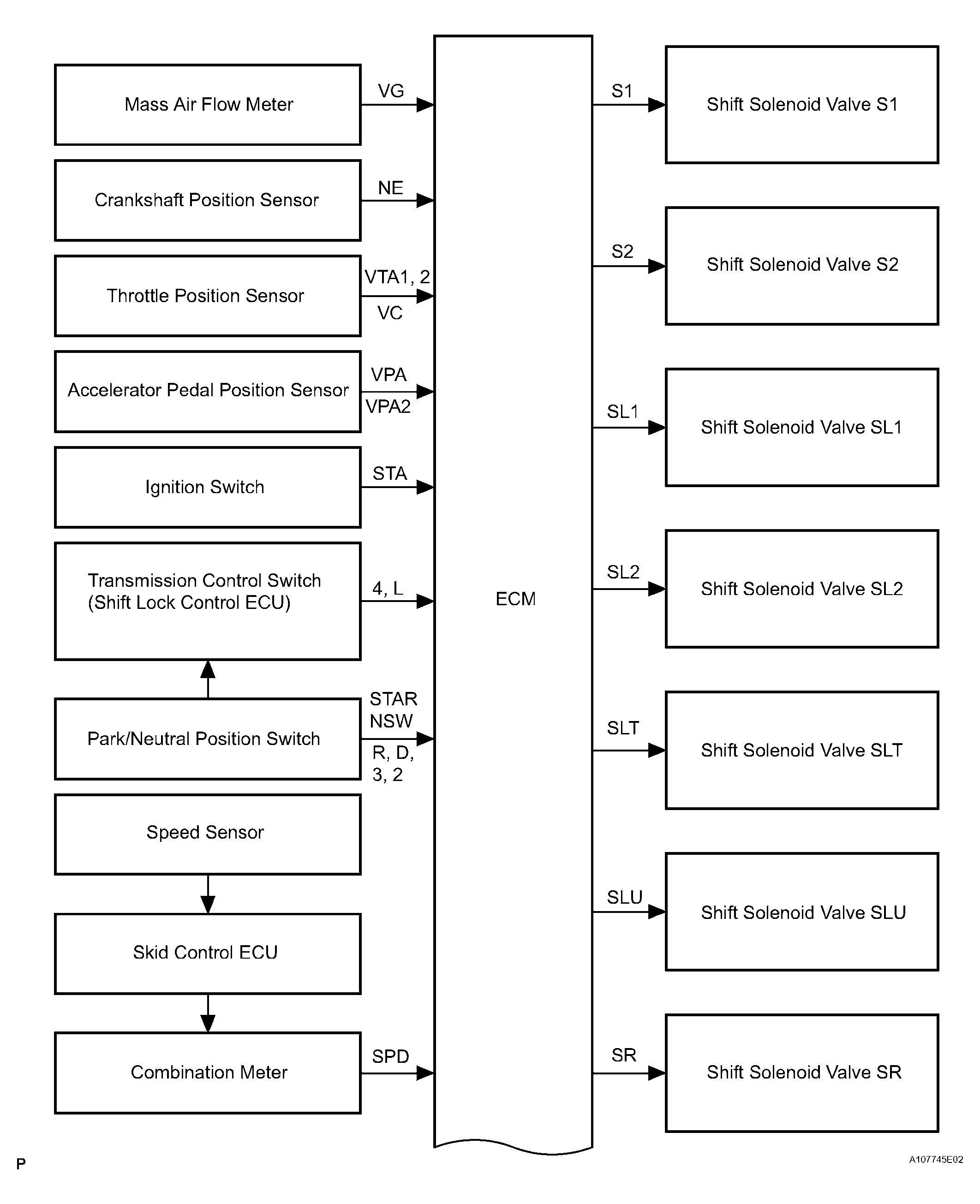

Fig 2: A750F Automatic Transmission System Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

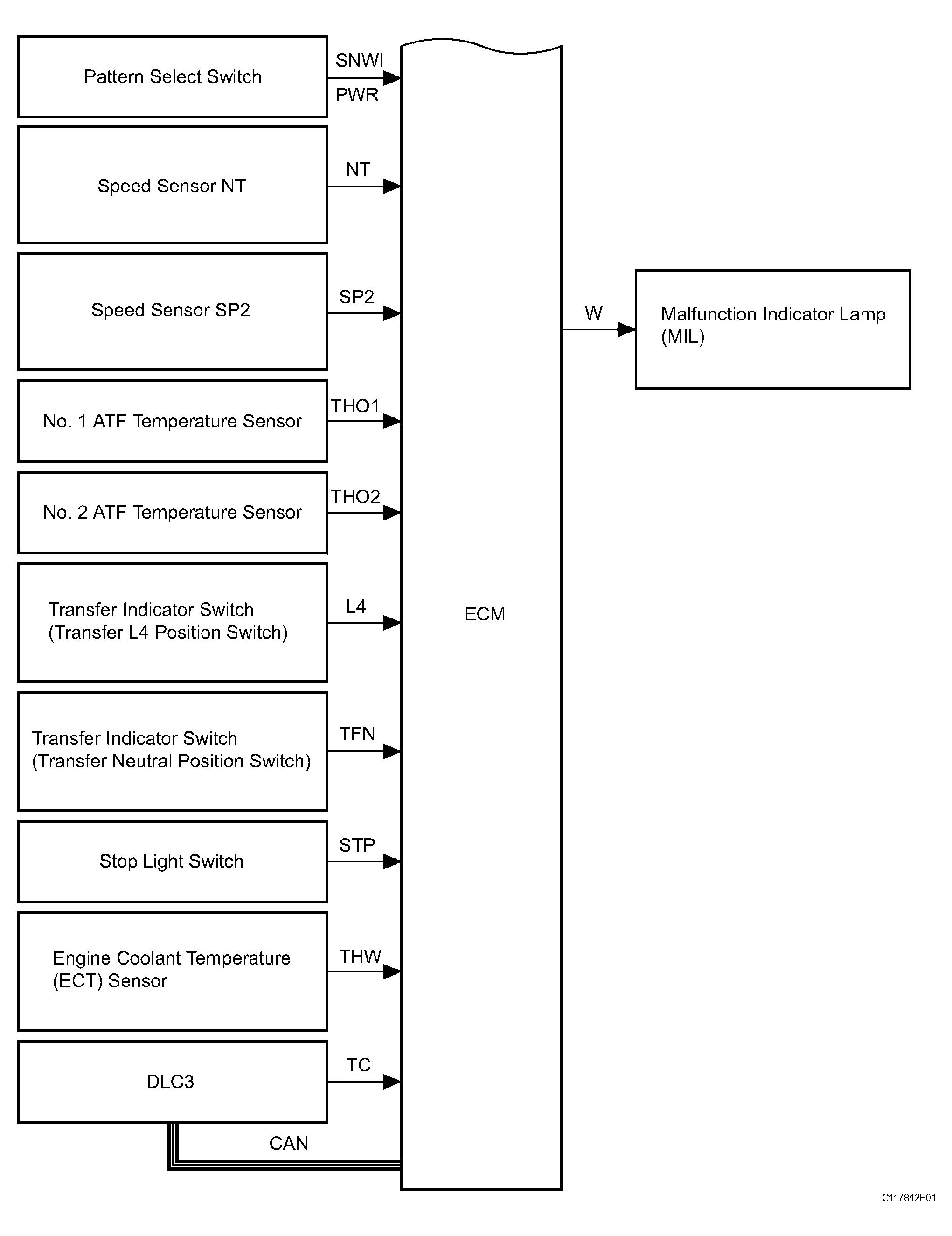

Fig 3: A750F Automatic Transmission System Diagram (3 Of 4)

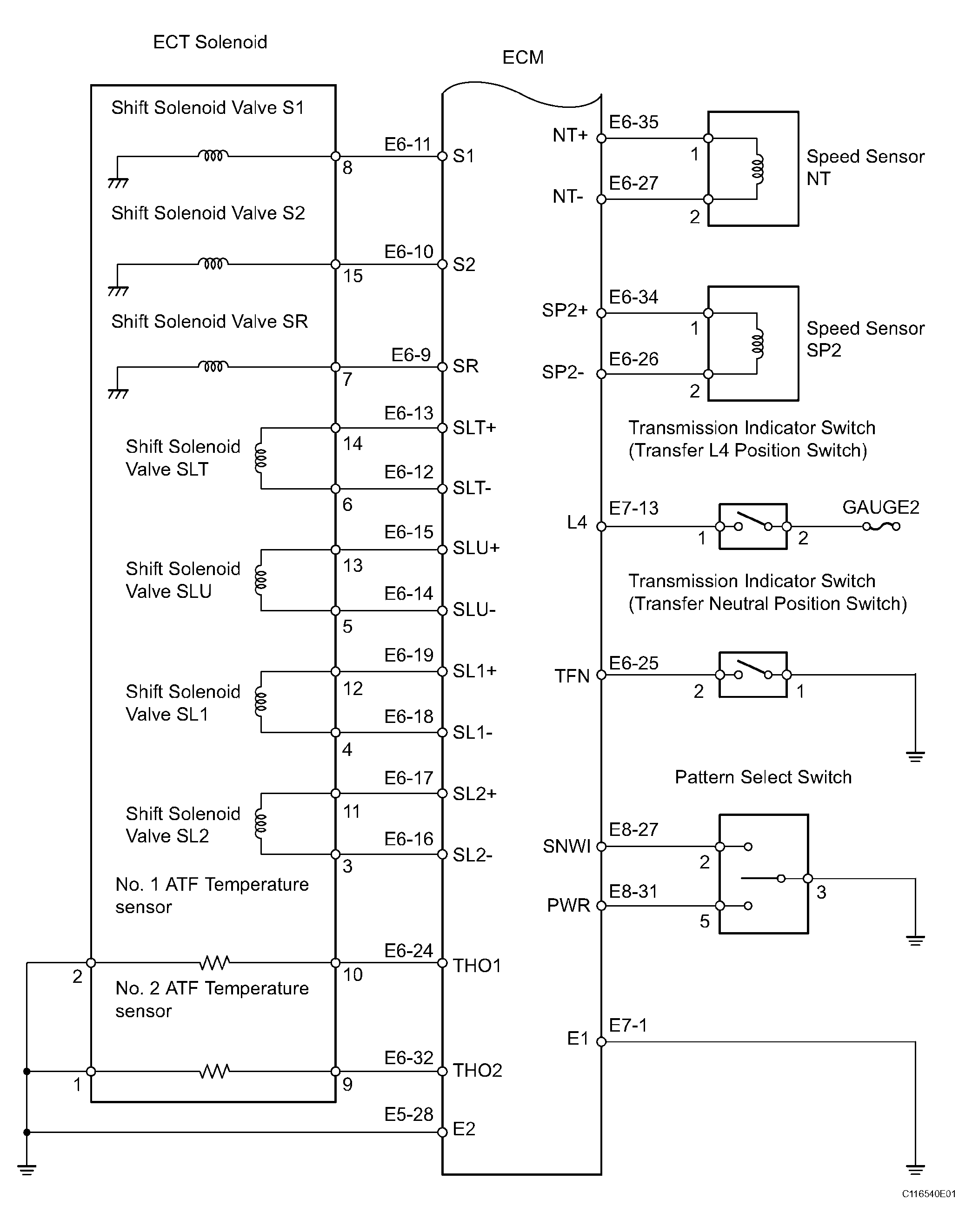

Fig 4: A750F Automatic Transmission System Diagram (4 Of 4)
