Inspection Procedure

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

READ VALUE OF DATA LIST (STP SIGNAL)

HINT:

Using the intelligent tester's DATA LIST allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to save time.

NOTE: In DATA LIST DETAIL , the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

Warm up the engine.
Turn the ignition switch OFF.
Connect the intelligent tester to the CAN VIM. Then connect the CAN VIM to the DLC3.
Turn the ignition switch ON.
Turn the intelligent tester ON.
Enter the following menus: DIAGNOSIS / ENHANCED OBD II / DATA LIST.

Read the DATA LIST using the intelligent tester.

DATA LIST DETAIL

Item	Measurement Item/Range (Display)	Normal Condition	Diagnostic Note
STOP LIGHT SW	Stop light switch status/ON or OFF	Brake pedal is depressed: ON Brake pedal is released: OFF	-

OK: Go to step 3

NG: GO TO NEXT STEP

INSPECT STOP LIGHT SWITCH

Remove the stop light switch.

Measure the resistance of the switch.

Standard resistance

TERMINALS RESISTANCE SPECIFICATION

Tester Connection	Switch Condition	Specified Condition
1 - 2	Pin pushed (pedal released)	10 kΩ or higher
1 - 2	Pin not pushed (pedal depressed)	Below 1 Ω
3 - 4	Pin pushed (pedal released)	10 kΩ or higher
3 - 4	Pin not pushed (pedal depressed)	Below 1 Ω

NG: REPLACE STOP LIGHT SWITCH

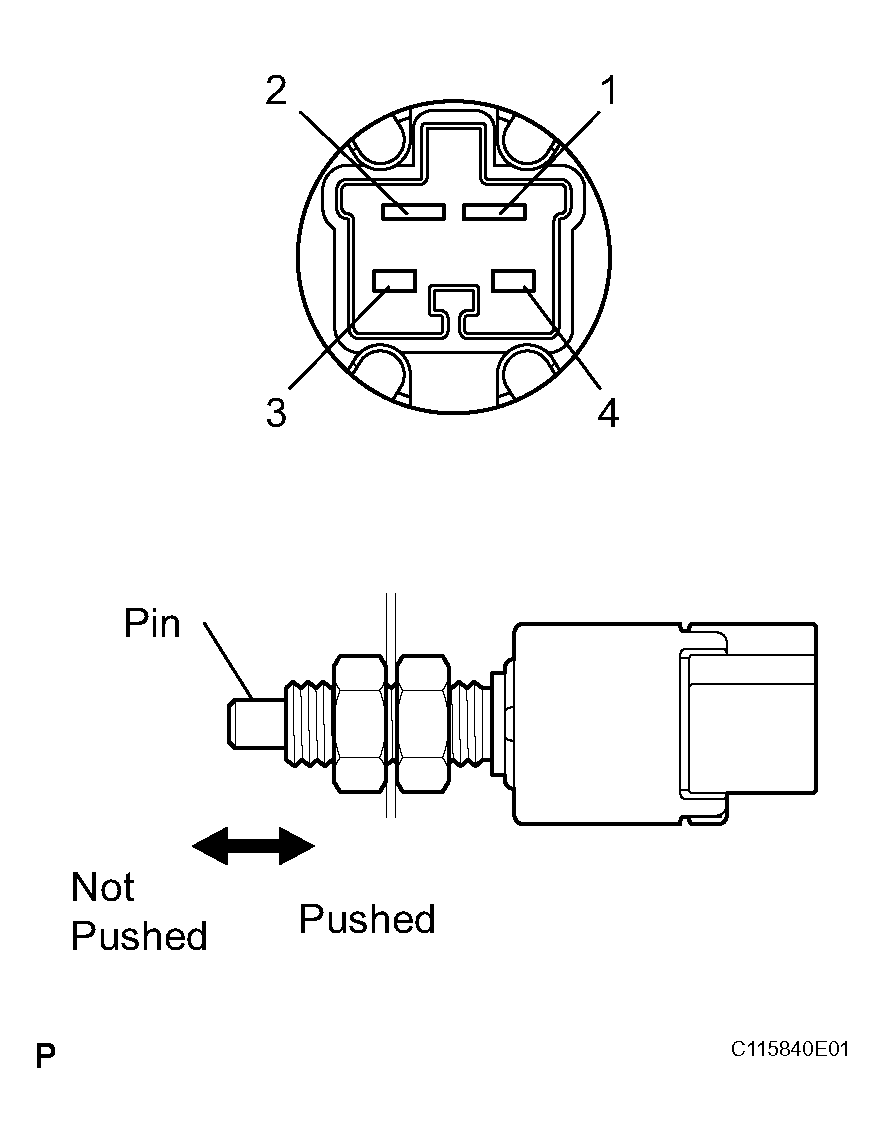

Fig 1: Inspecting Stop Light Switch

OK: GO TO NEXT STEP

CHECK WIRE HARNESS (ECM - BATTERY)
1. Check wire harness (see ELECTRONIC CIRCUIT INSPECTION PROCEDURE ).
NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: REPLACE ECM
