DTC P0705: Transmission Range Sensor Circuit Malfunction (PRNDL Input): Wiring Diagram

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

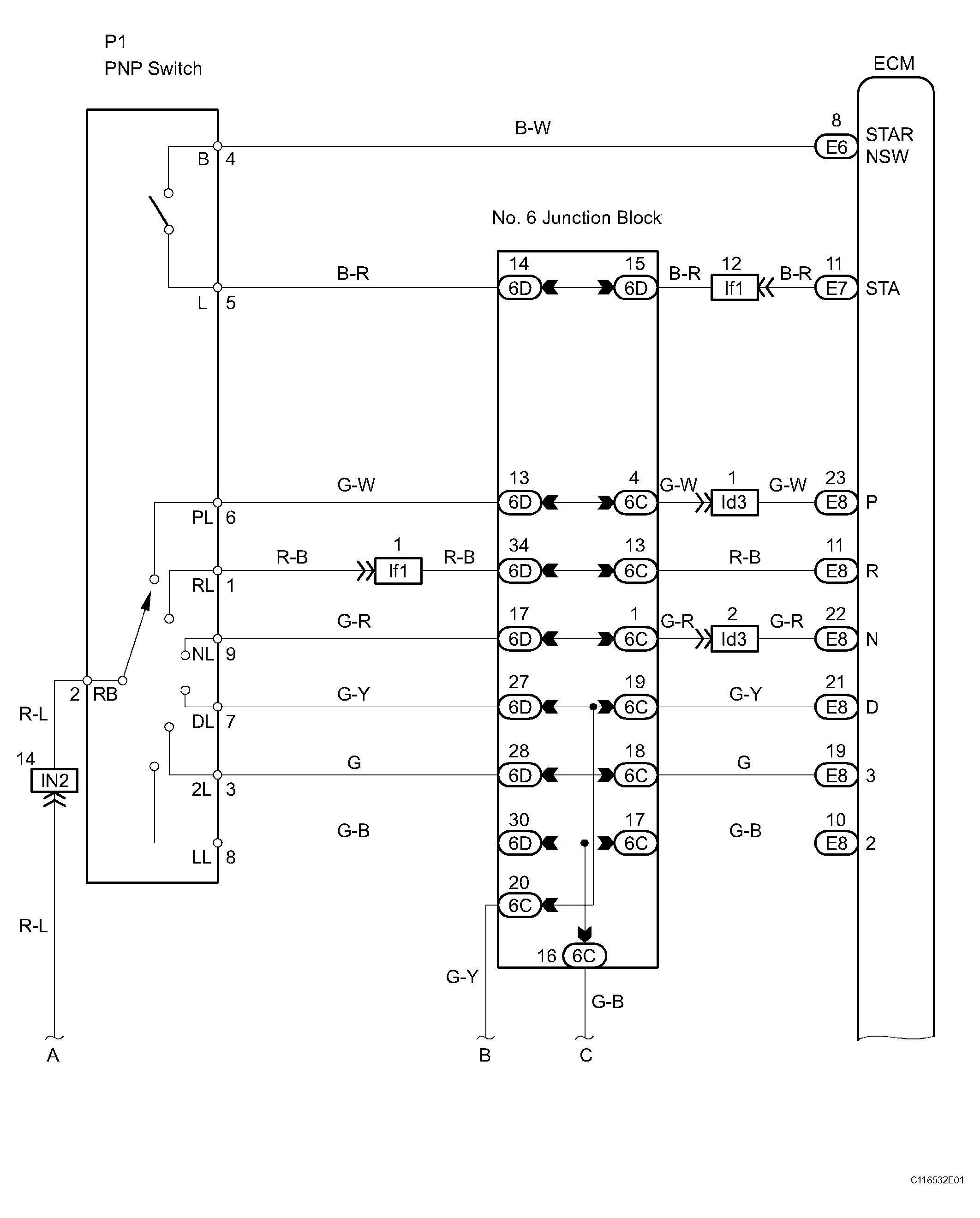

Fig 1: Transmission Range Sensor Circuit - Wiring Diagram (1 Of 2)
G04436450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

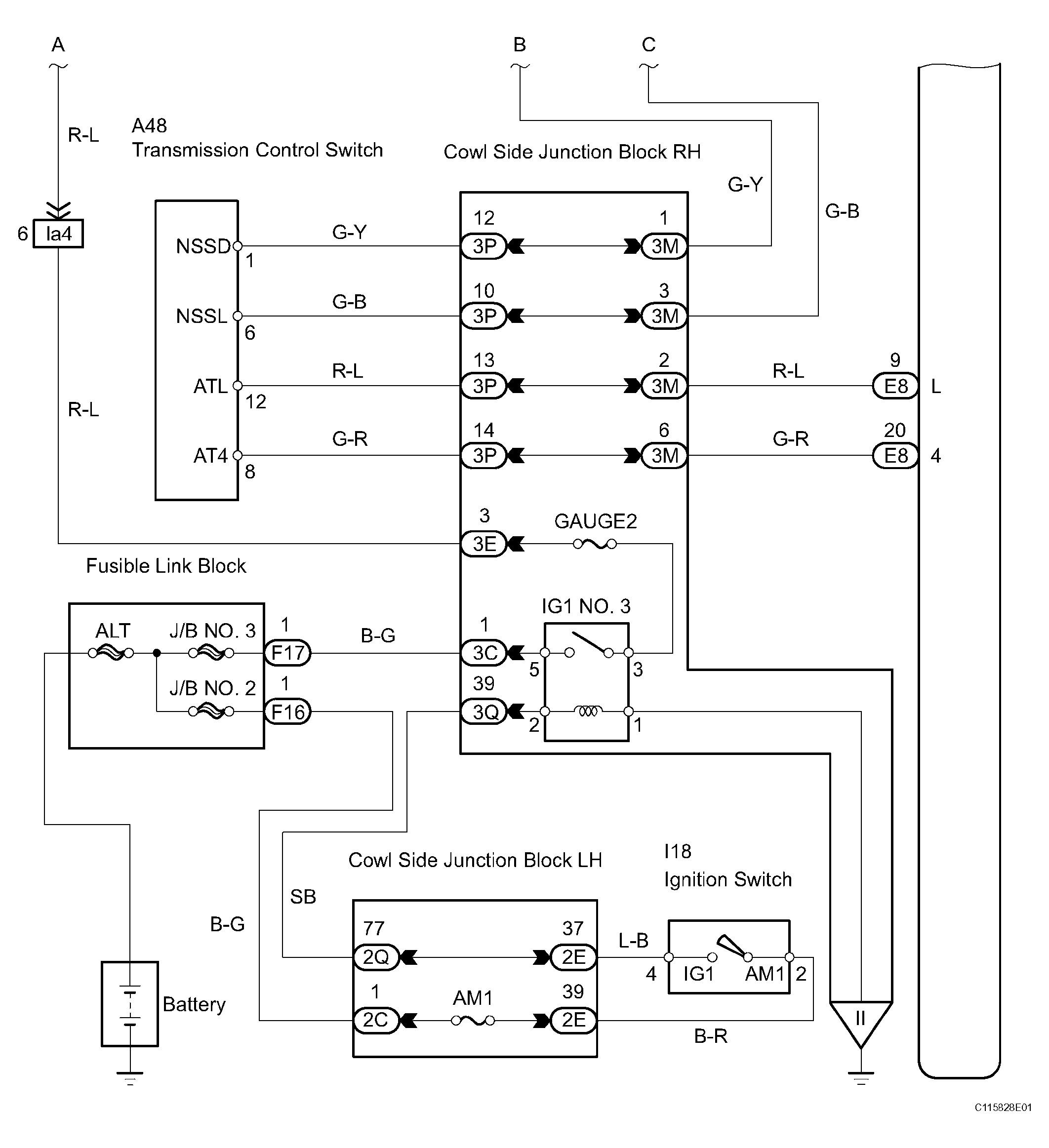

Fig 2: Transmission Range Sensor Circuit - Wiring Diagram (2 Of 2)
G04436451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
