Air Cooled Oil Cooler: Installation

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

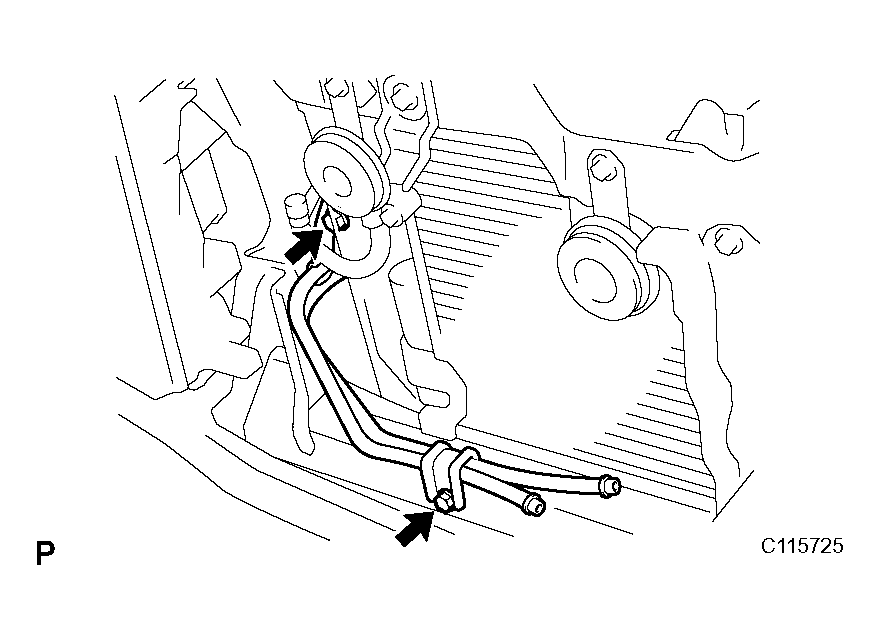

INSTALL OIL COOLER PIPE BRACKET
1. Connect the 2 hoses and move the 2 clips to the connection.
2. Install the oil cooler pipe bracket with the 2 bolts.
  Torque: 4.9 N*m (50 kgf*cm, 43 in.*lbf)

  Fig 1: Installing Oil Cooler Pipe Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

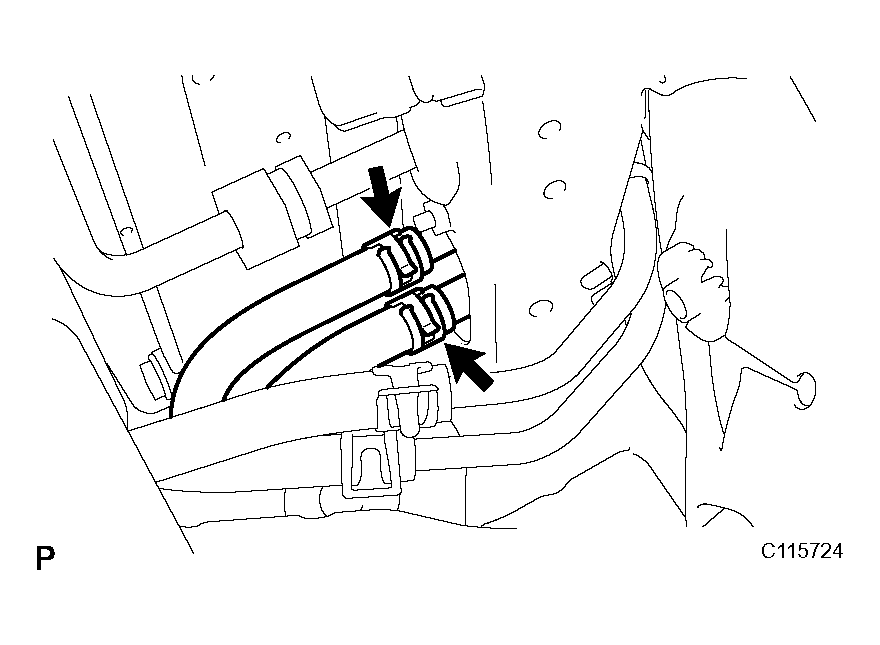

3. Connect the 2 hoses and move the 2 clips to the connection.

  Fig 2: Connecting Hoses
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL OIL COOLER ASSEMBLY
1. Install the 2 oil cooler brackets and 2 stays with the 8 bolts.
  Torque: 4.9 N*m (50 kgf*cm, 43 in.*lbf)

  Fig 3: Installing Oil Cooler Brackets & Stays
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

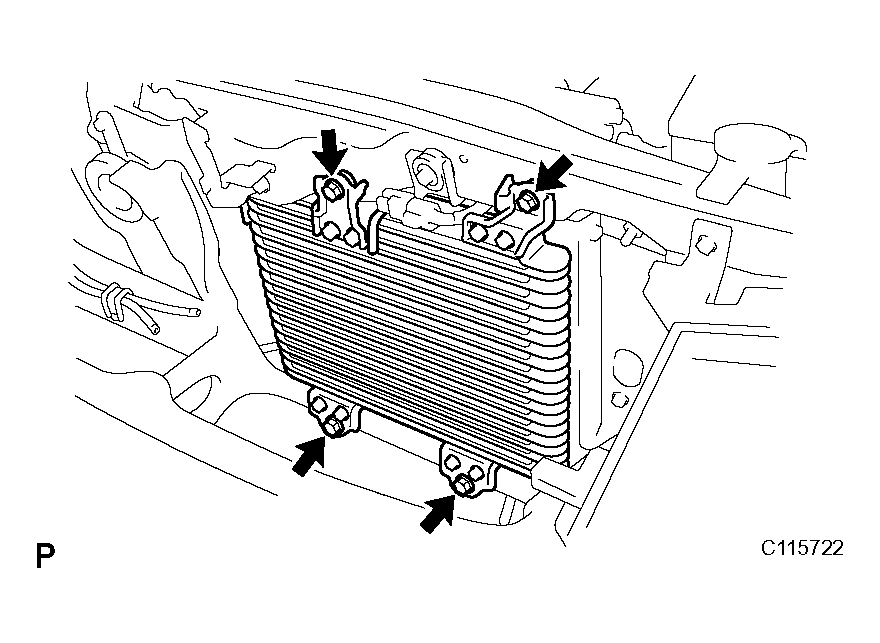

2. Install the oil cooler with the 4 bolts.
  Torque: 12 N*m (117 kgf*cm, 8 ft.*lbf)

  Fig 4: Installing Oil Cooler
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

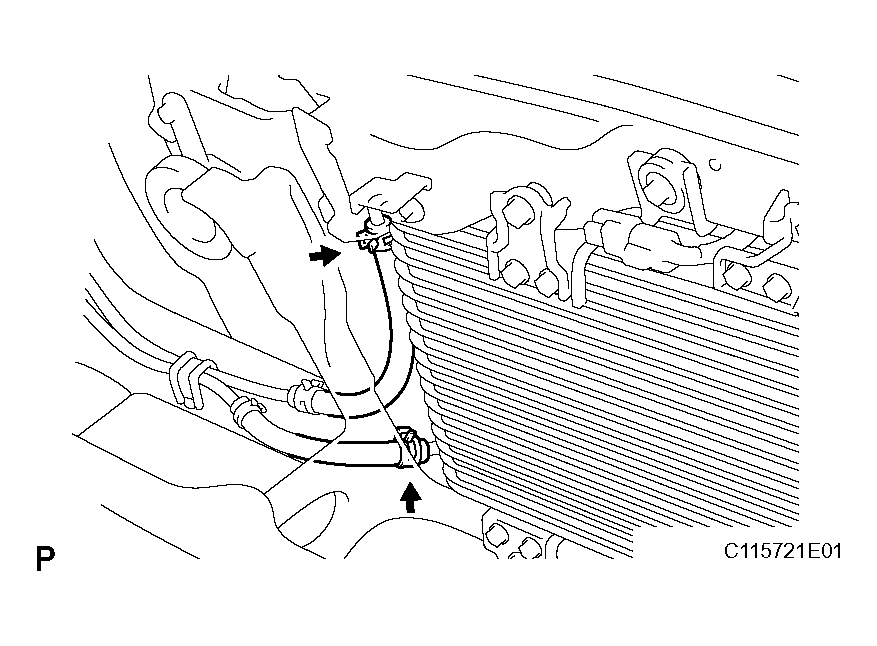

3. Connect the 2 hoses and move the 2 clips to the connection.

  Fig 5: Connecting Hoses
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

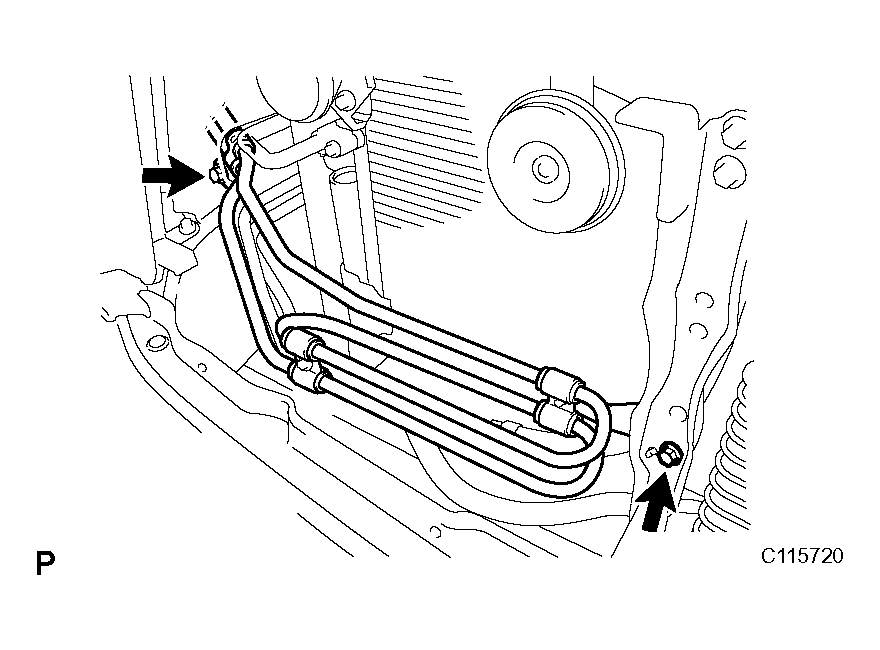

CONNECT POWER STEERING OIL COOLER SUB-ASSEMBLY
1. Connect the power steering oil cooler with the 2 bolts.
  Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)
INSTALL RADIATOR GRILLE SUB-ASSEMBLY
1. Install the radiator grille and attach the 2 clips.
ADD AUTOMATIC TRANSMISSION FLUID
1. See AUTOMATIC TRANSMISSION FLUID .
CHECK AUTOMATIC TRANSMISSION FLUID LEVEL
1. See AUTOMATIC TRANSMISSION FLUID .

  Fig 6: Connecting Power Steering Oil Cooler
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
