Timing Belt: Components

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

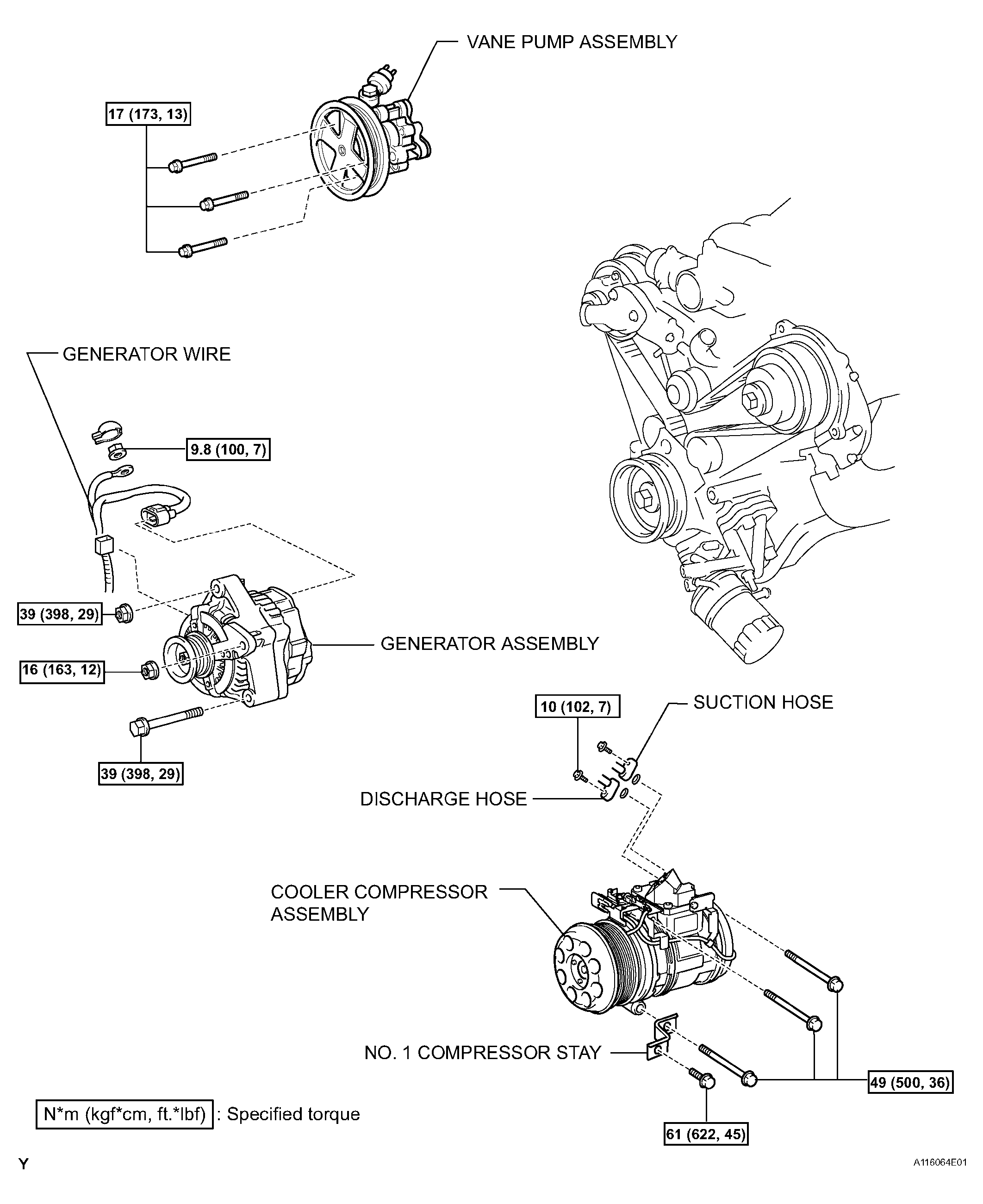

Fig 1: Identifying Timing Belt Components & Replacements (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

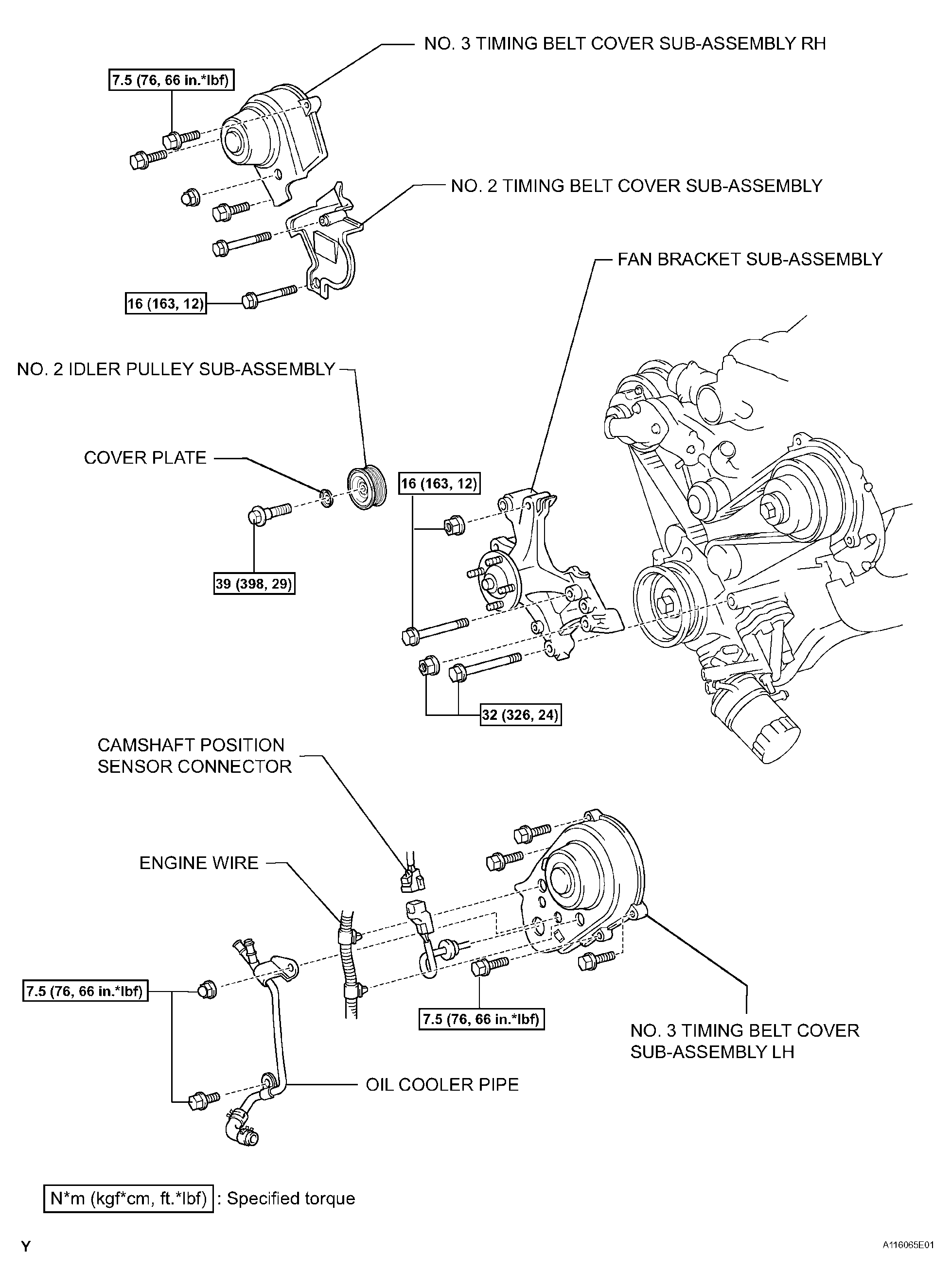

Fig 2: Identifying Timing Belt Components & Replacements (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

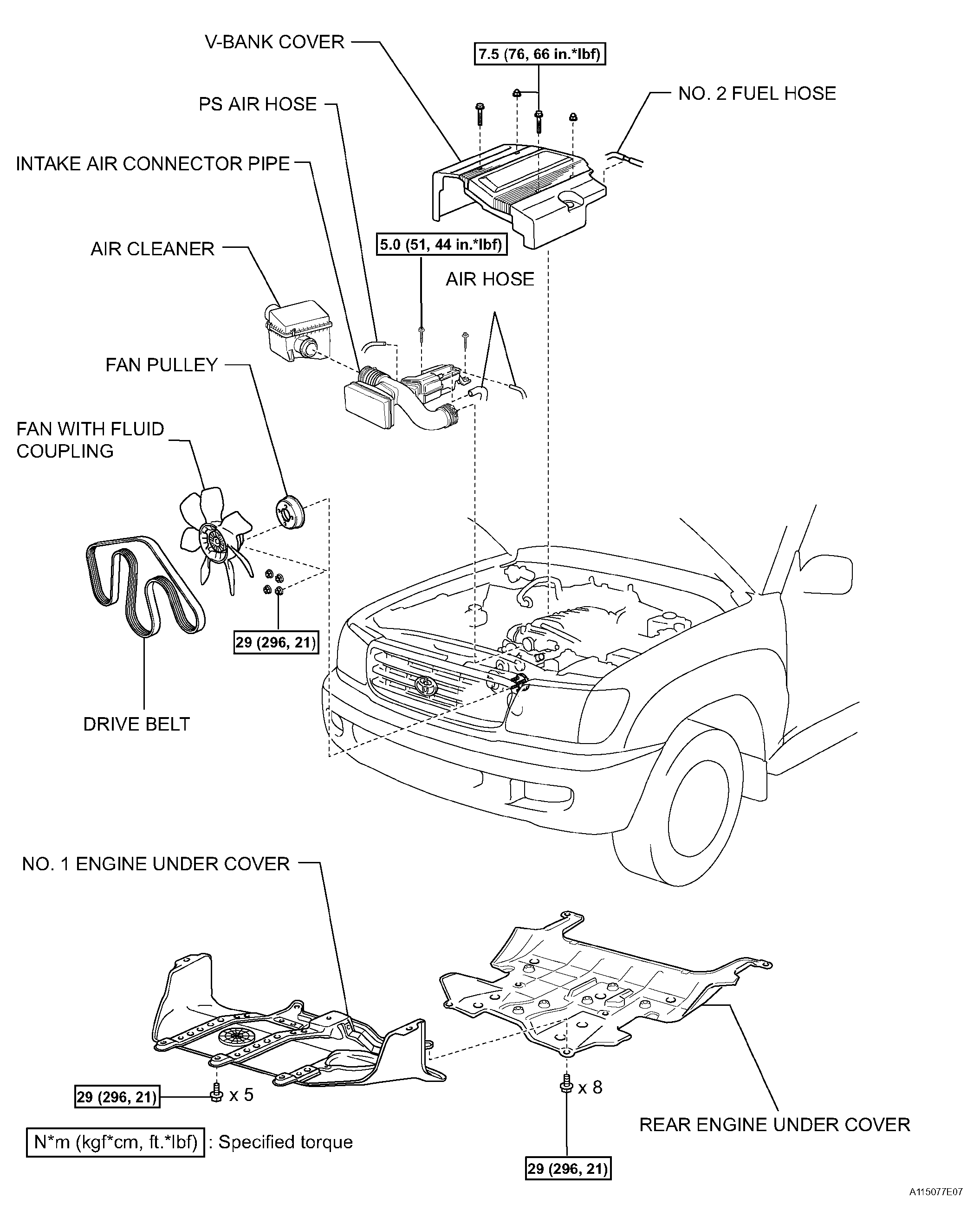

Fig 3: Identifying Timing Belt Components & Replacements (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

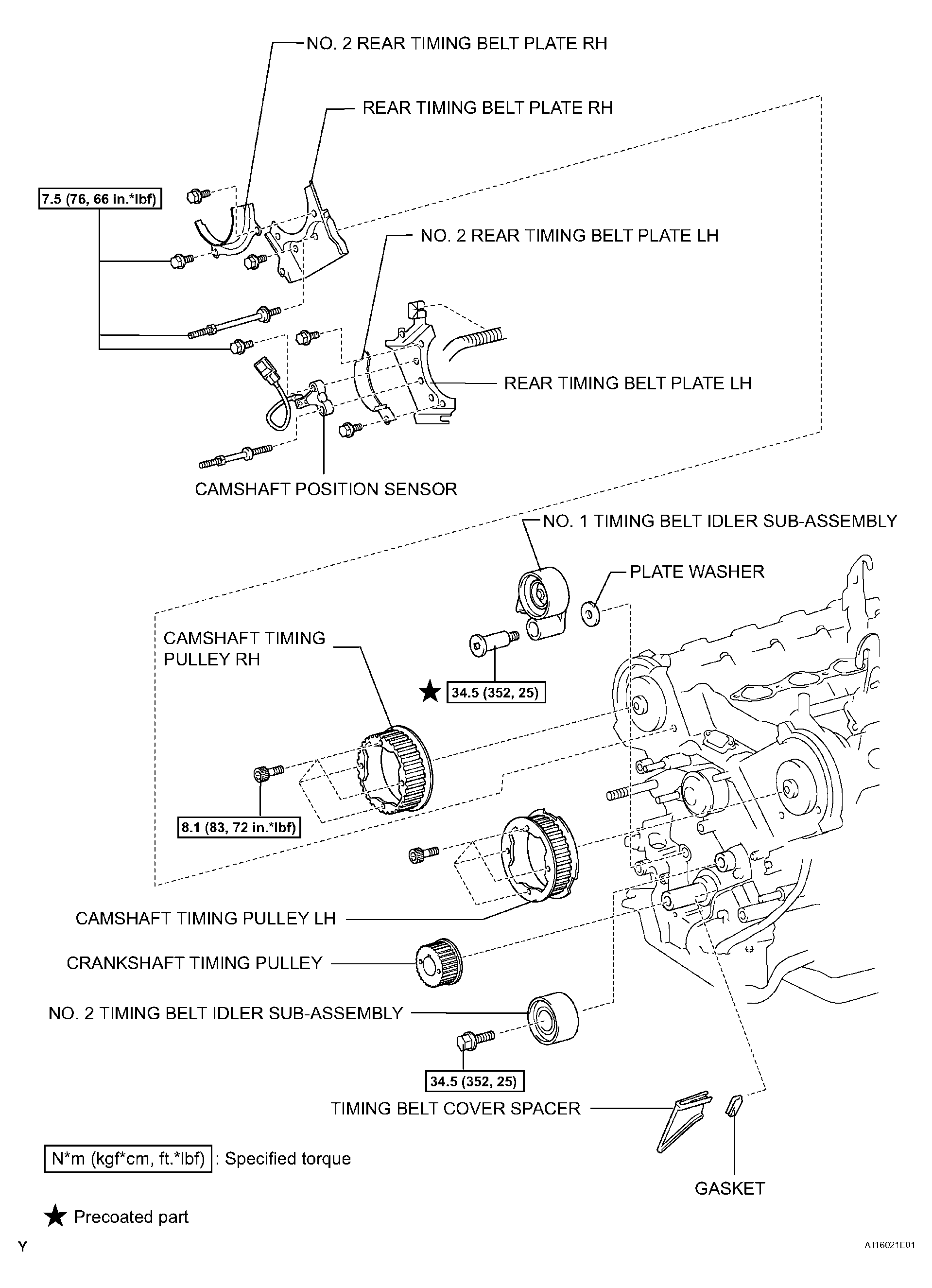

Fig 4: Identifying Timing Belt Components & Replacements (4 Of 6)

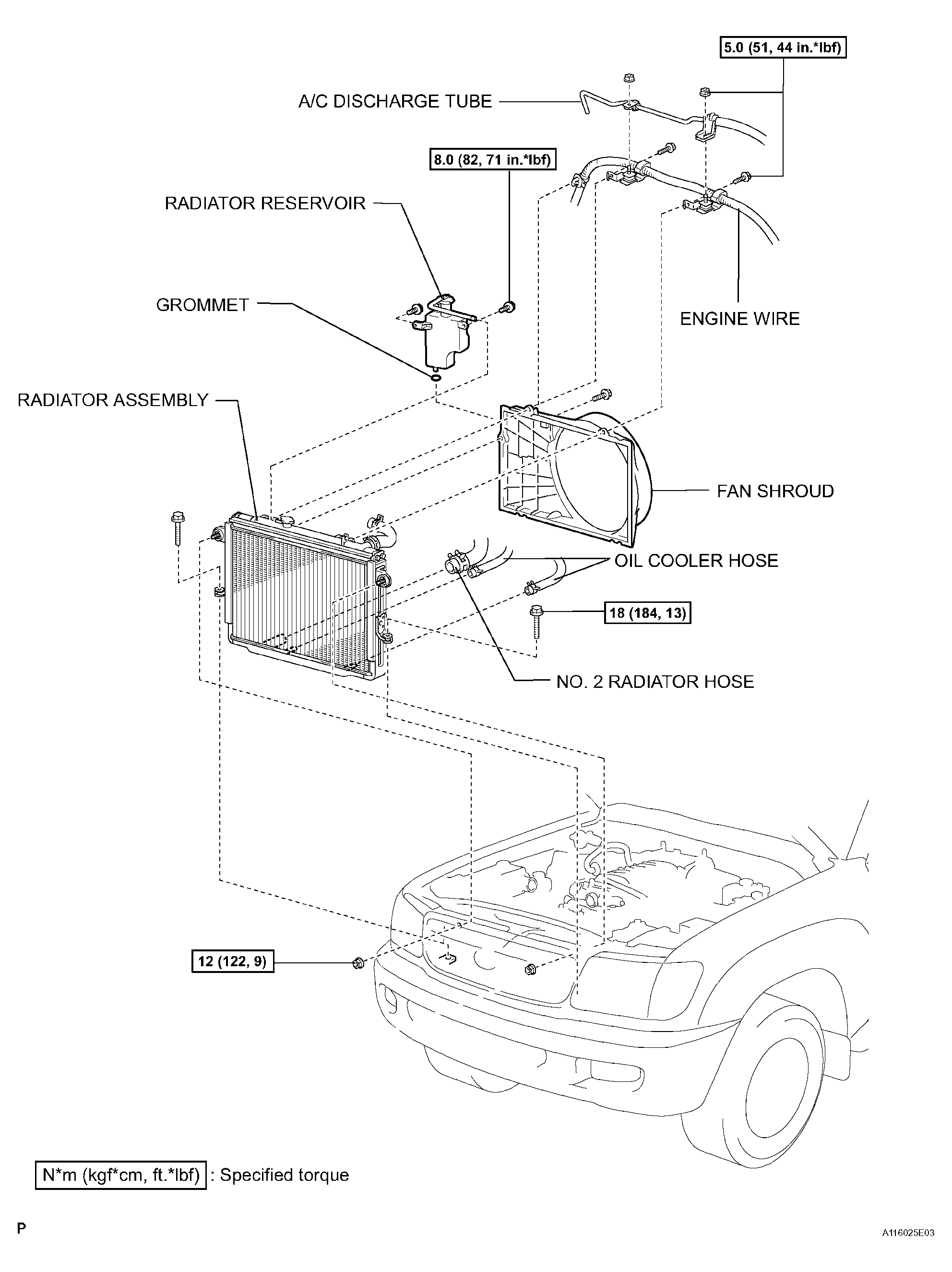

Fig 5: Identifying Timing Belt Components & Replacements (5 Of 6)

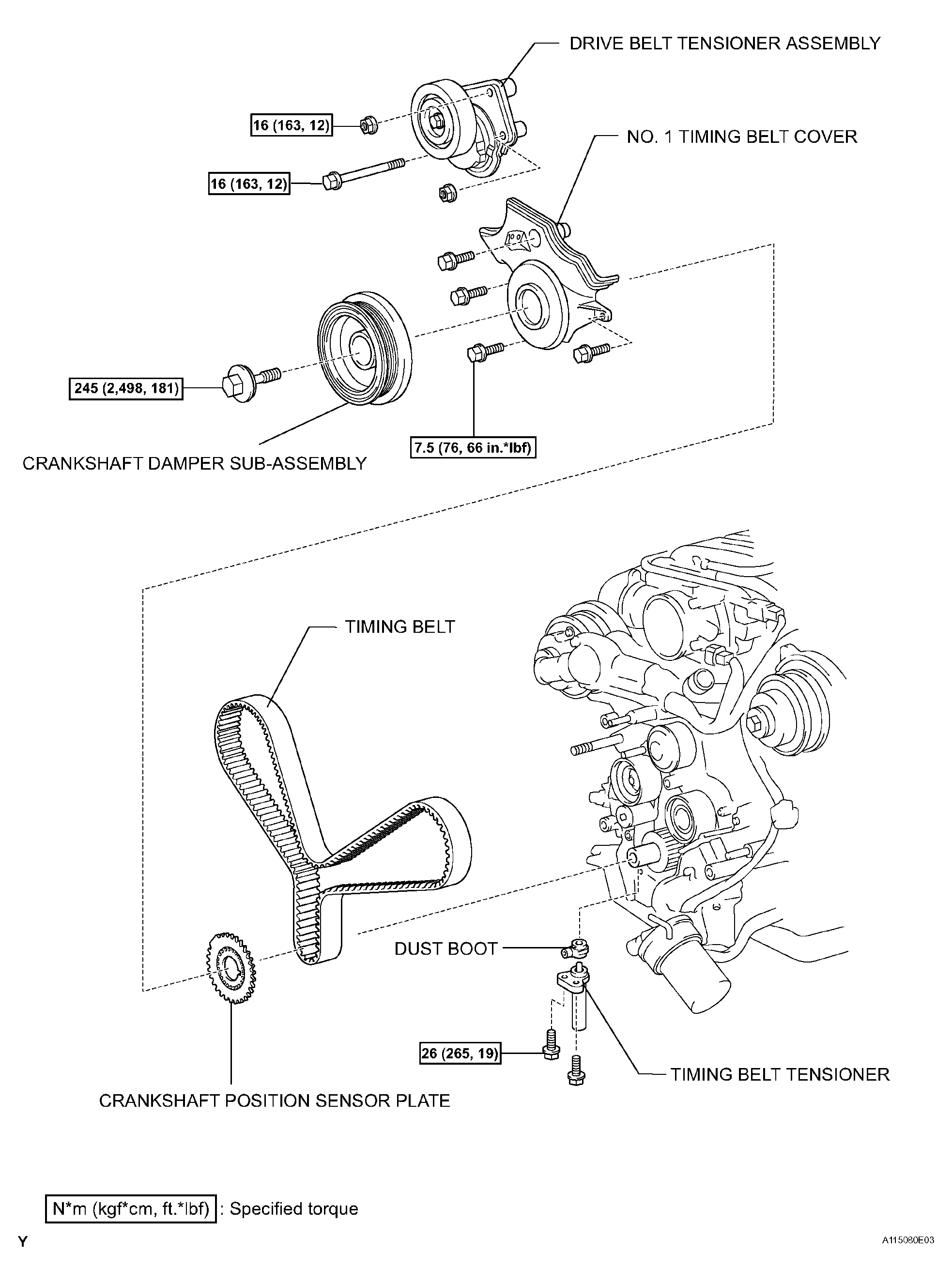

Fig 6: Identifying Timing Belt Components & Replacements (6 Of 6)
