Engine Assembly: Components

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

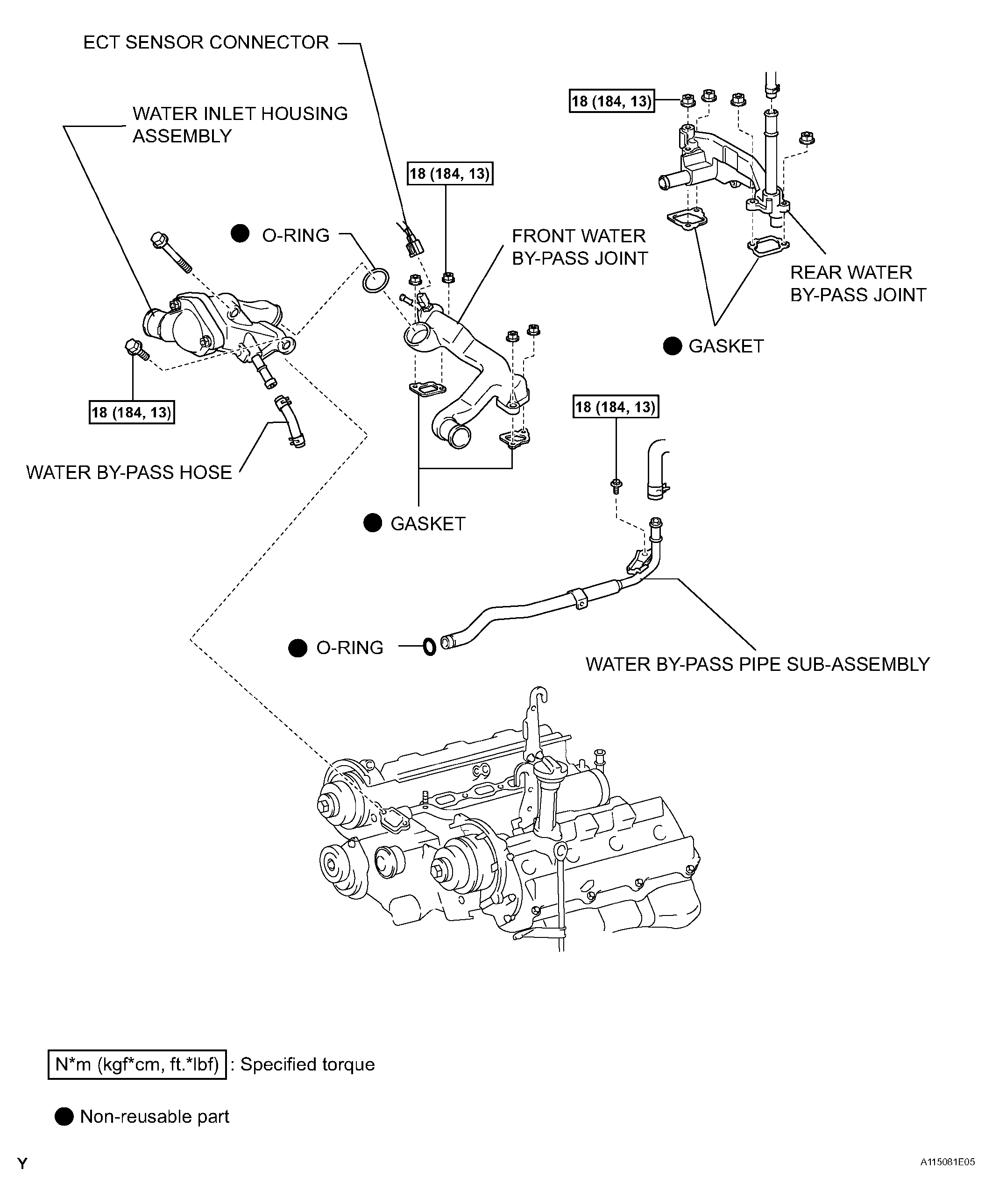

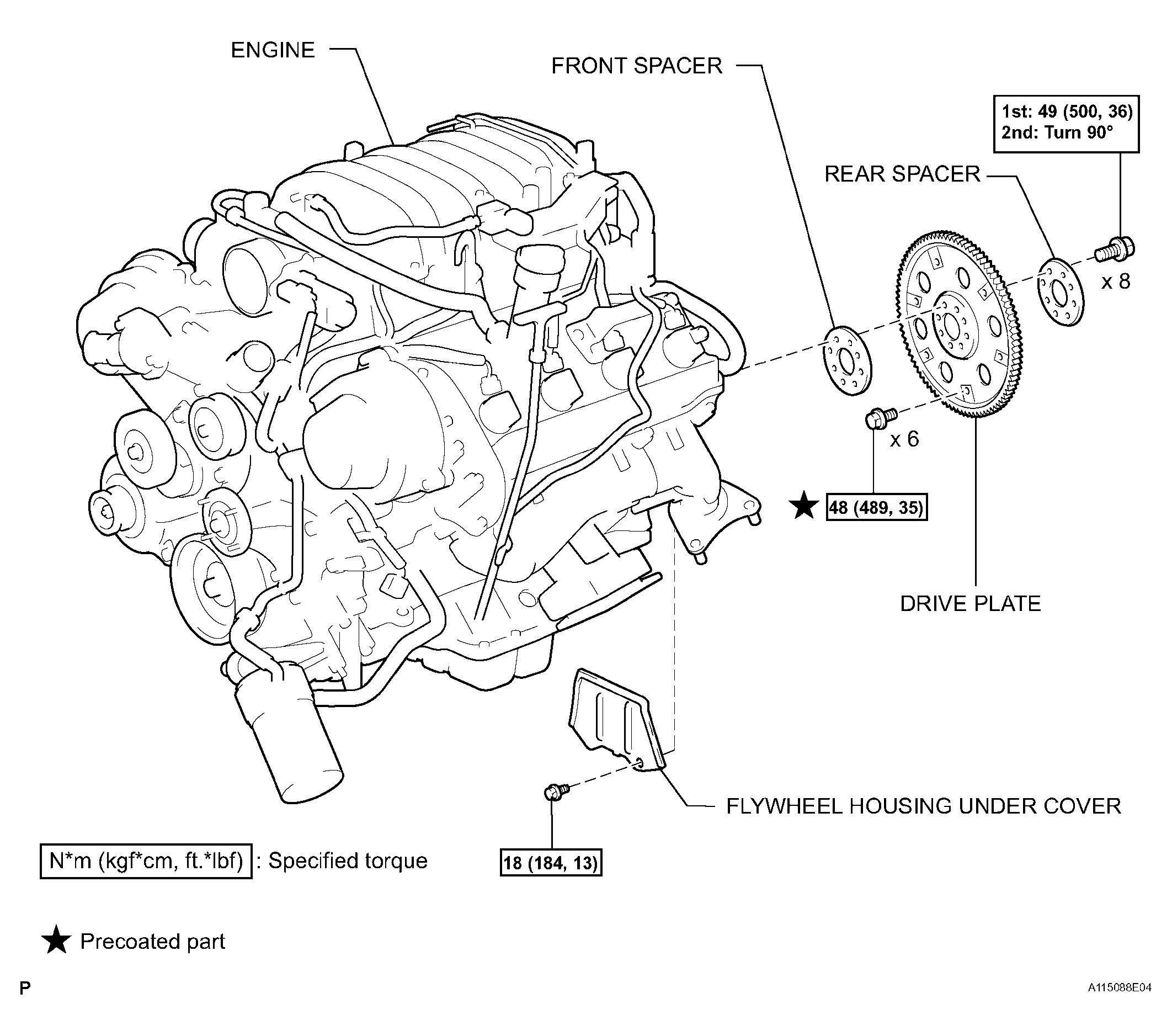

Fig 1: Identifying Engine Assembly Components & Replacements (1 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

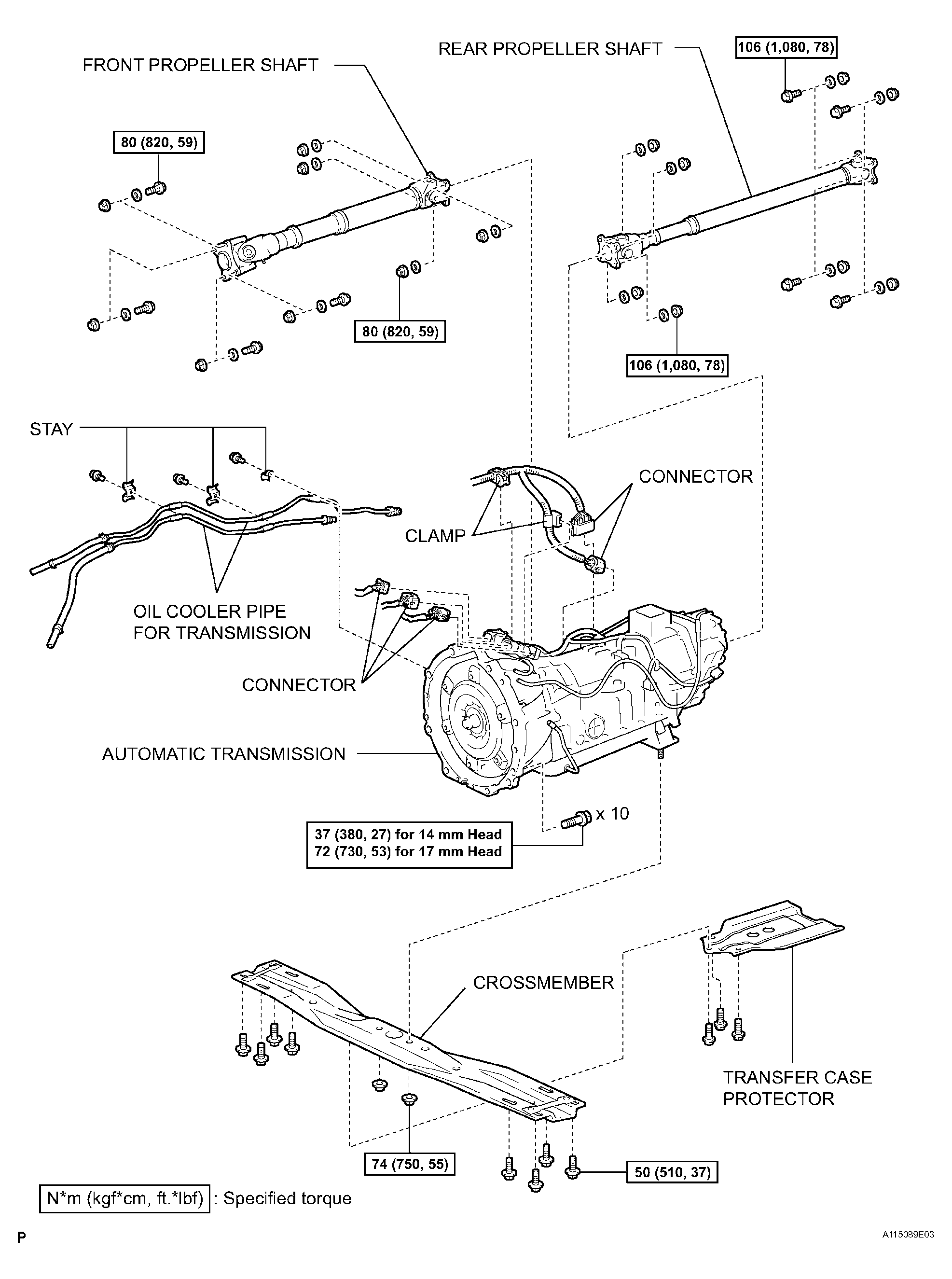

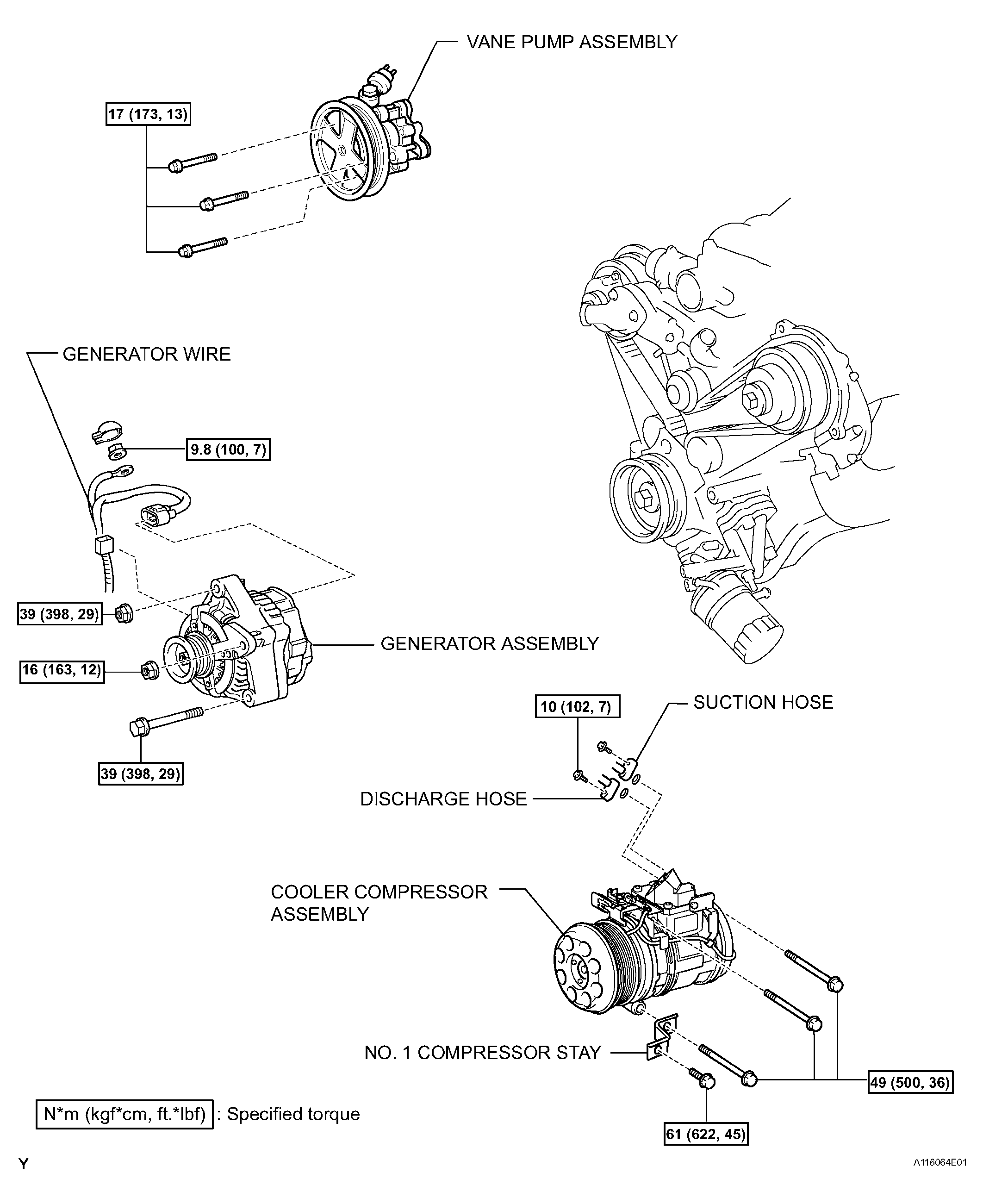

Fig 2: Identifying Engine Assembly Components & Replacements (2 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

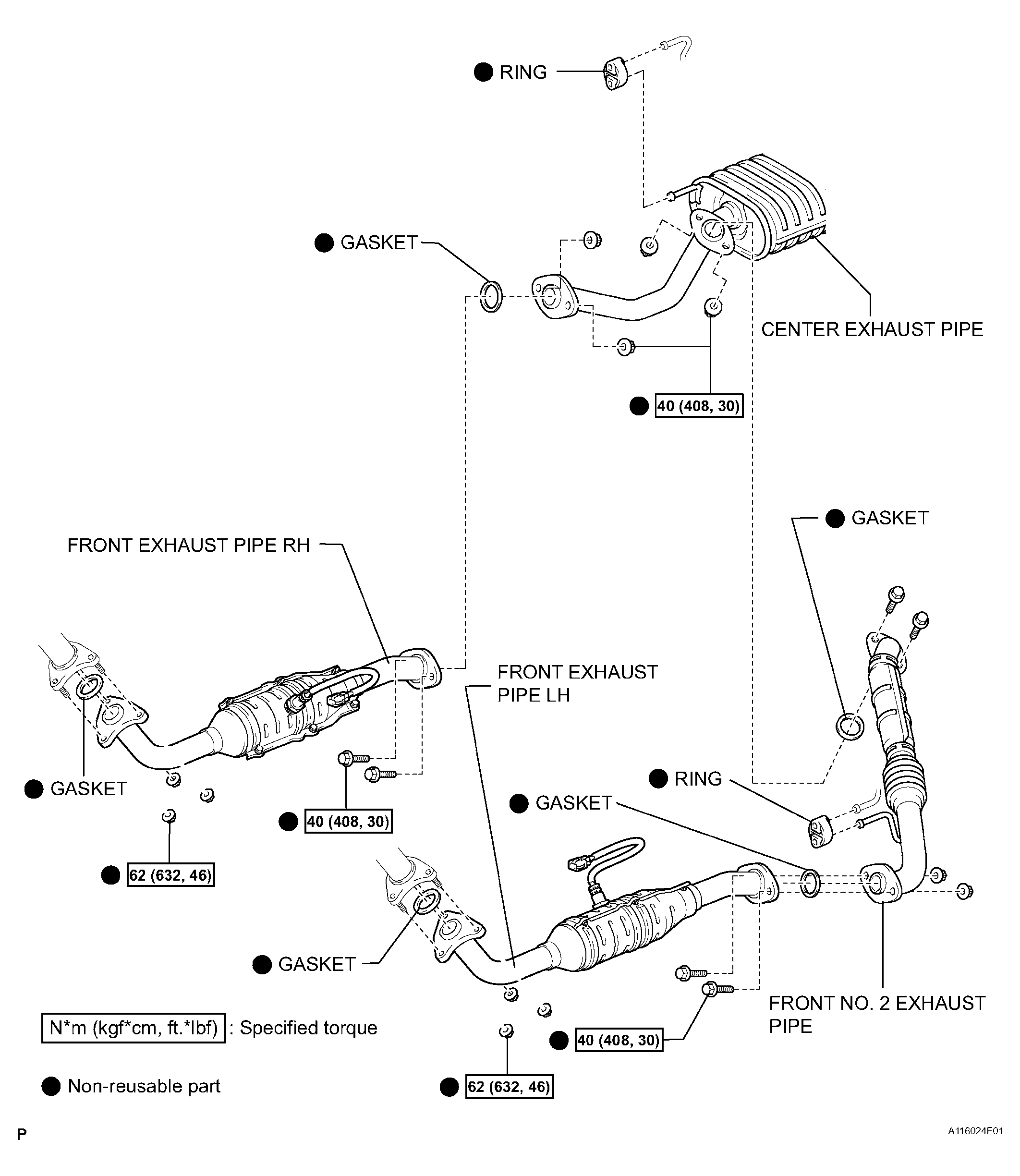

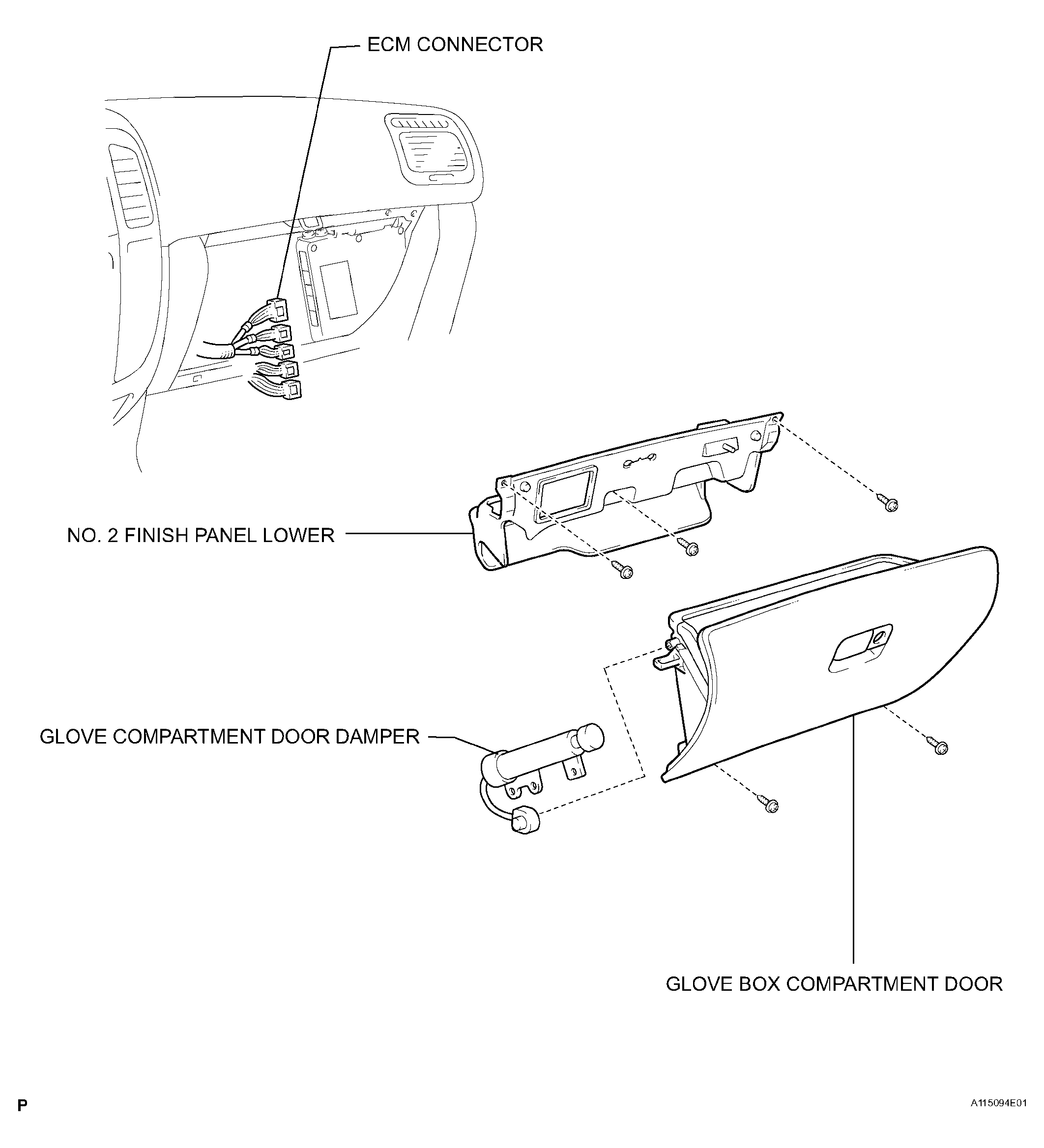

Fig 3: Identifying Engine Assembly Components & Replacements (3 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

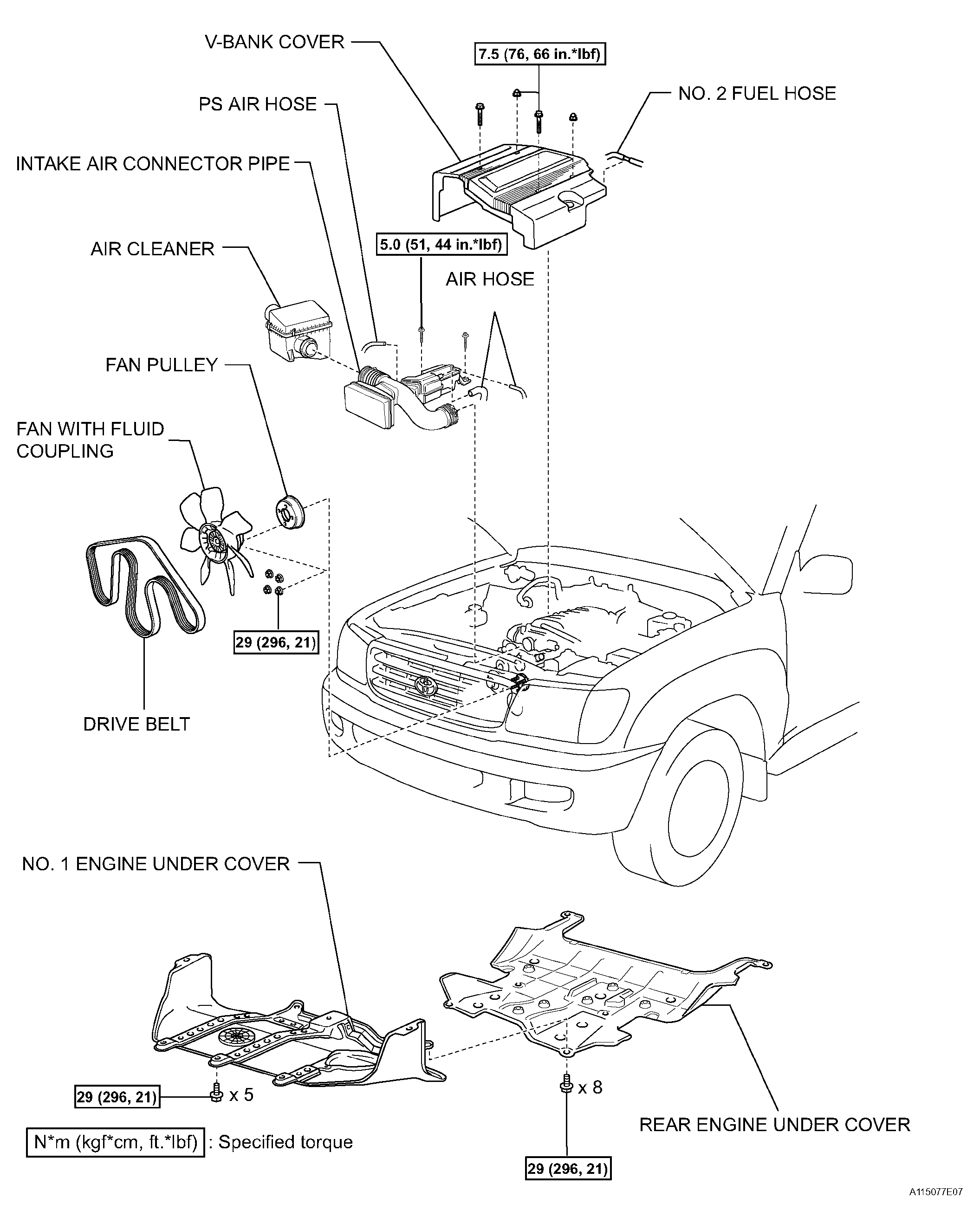

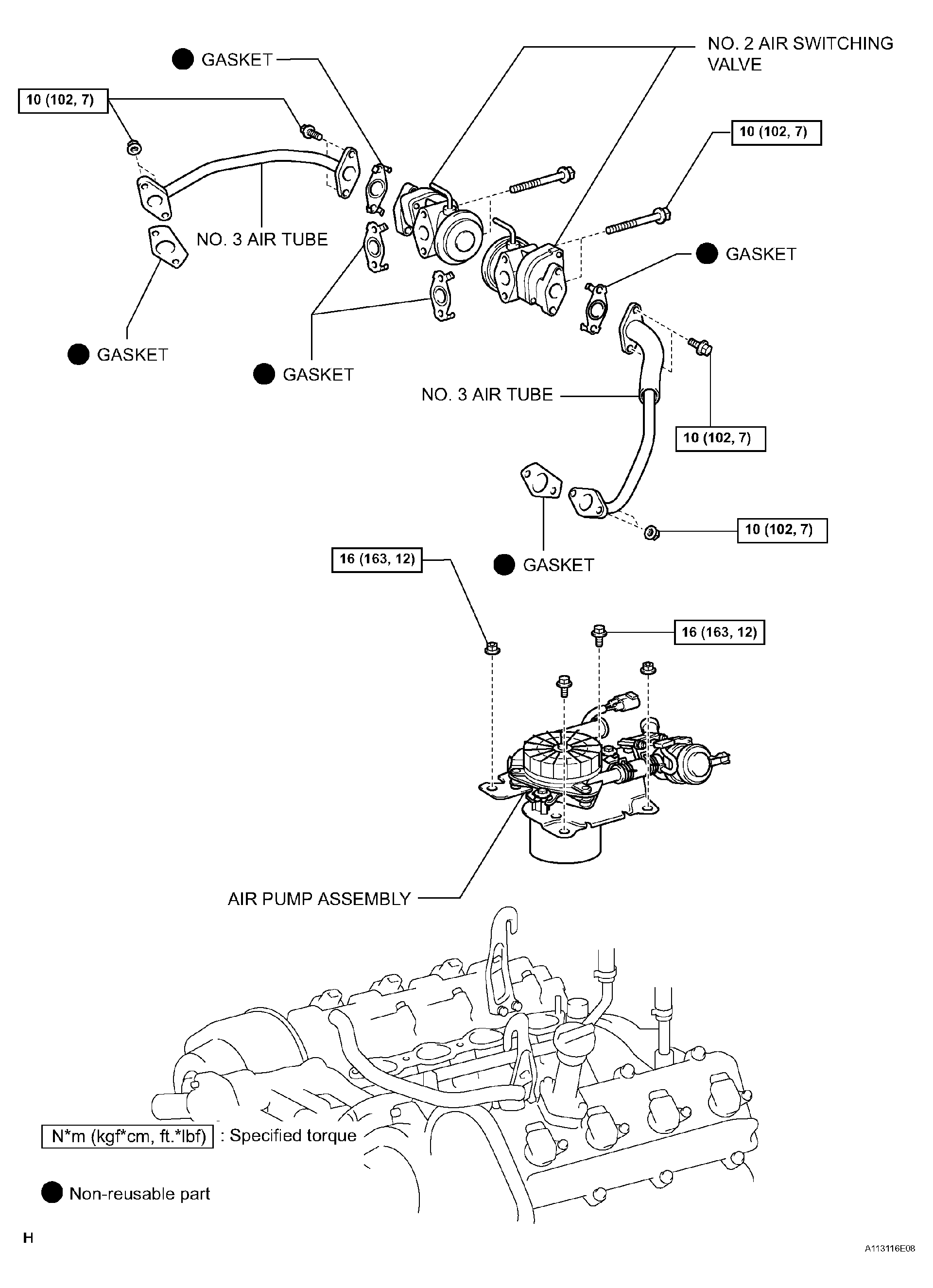

Fig 4: Identifying Engine Assembly Components & Replacements (4 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

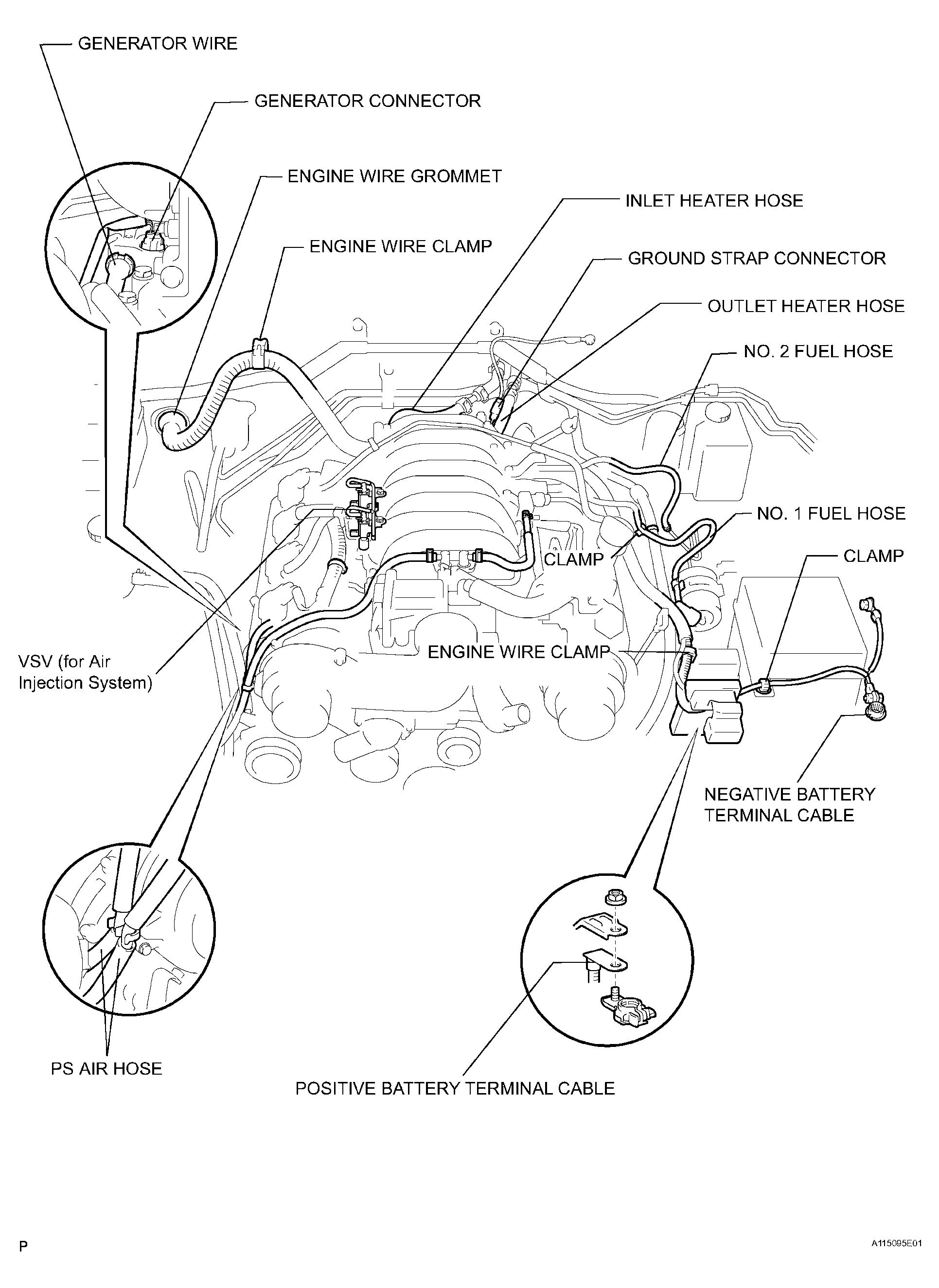

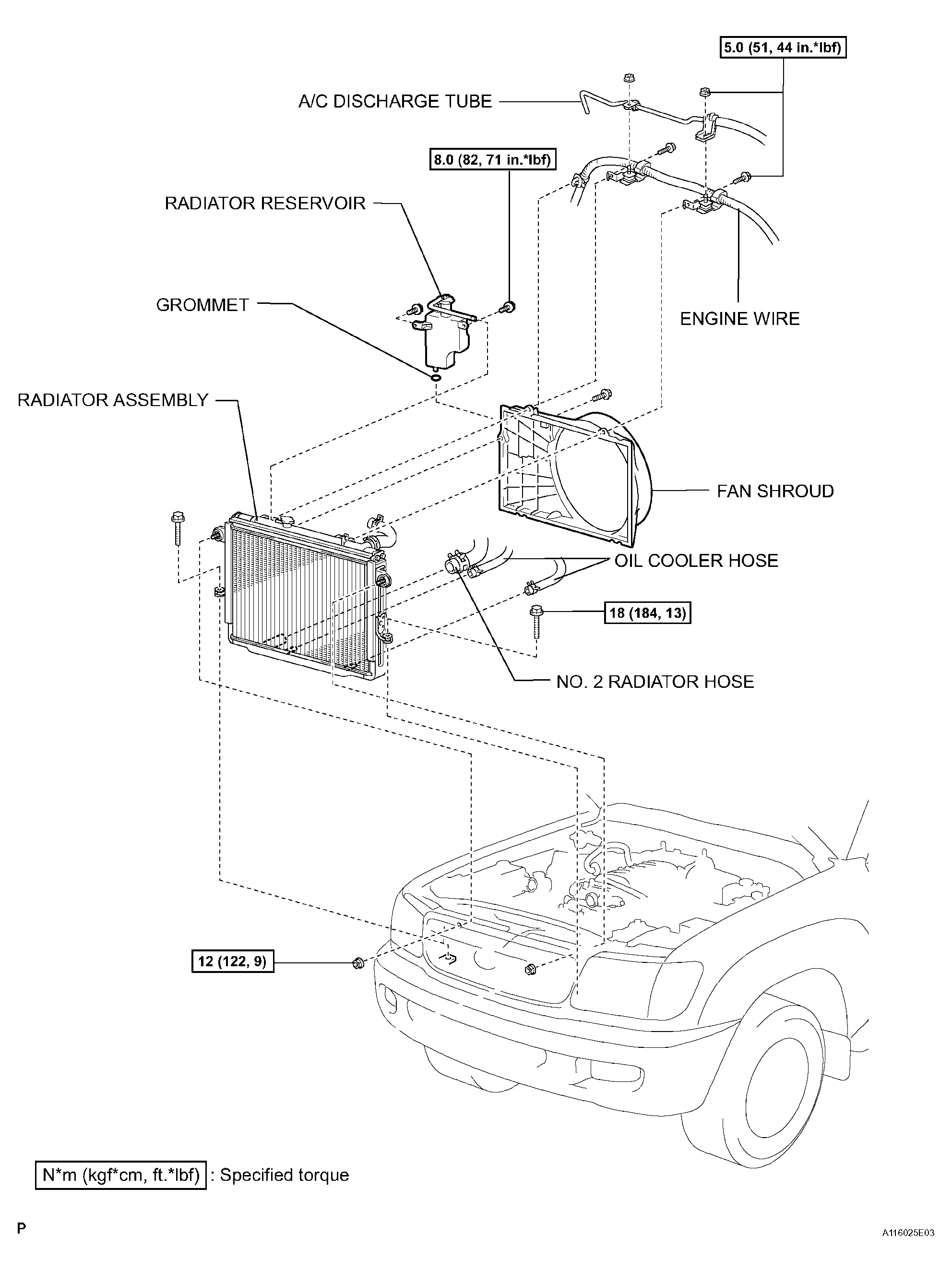

Fig 5: Identifying Engine Assembly Components & Replacements (5 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

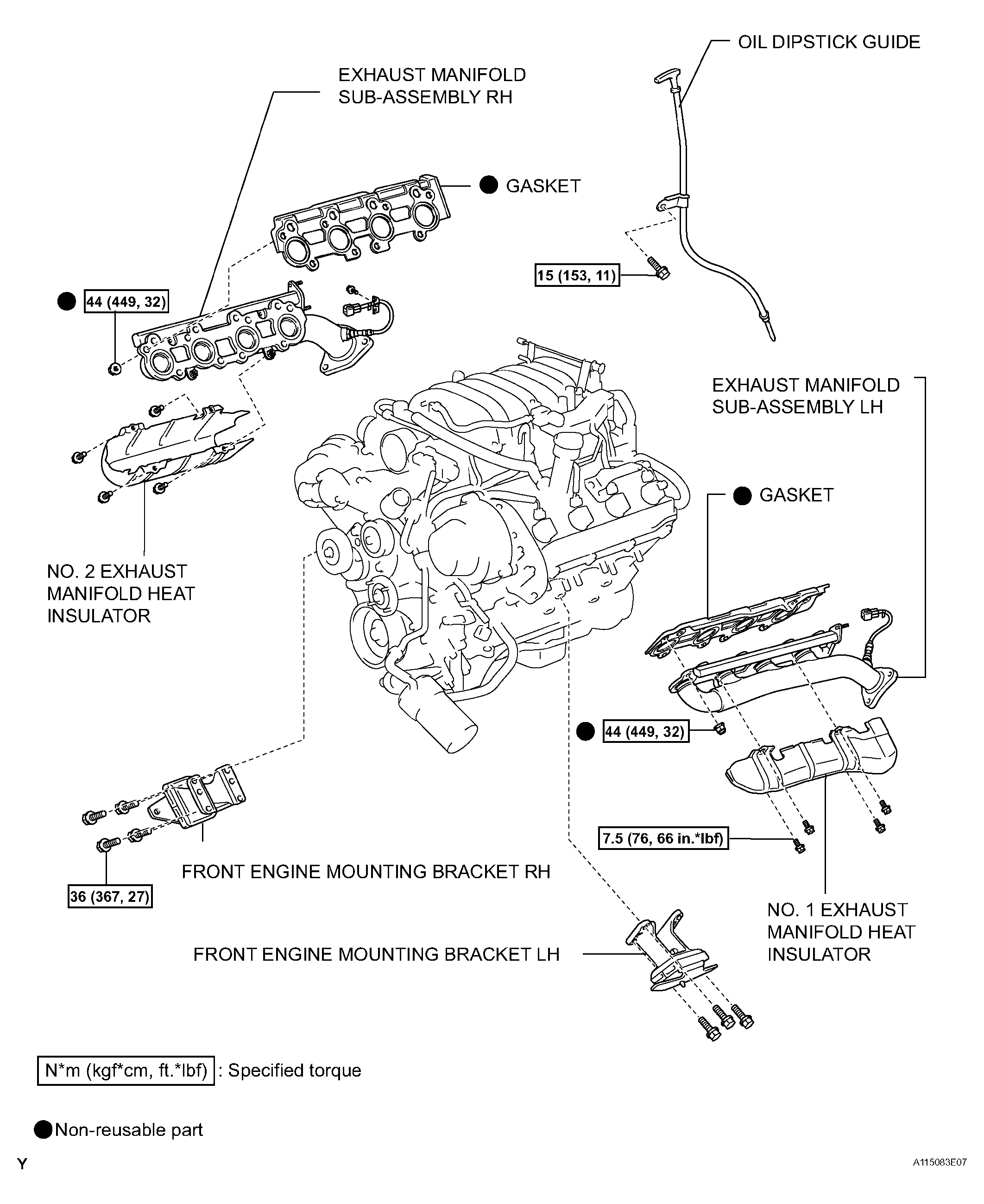

Fig 6: Identifying Engine Assembly Components & Replacements (6 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

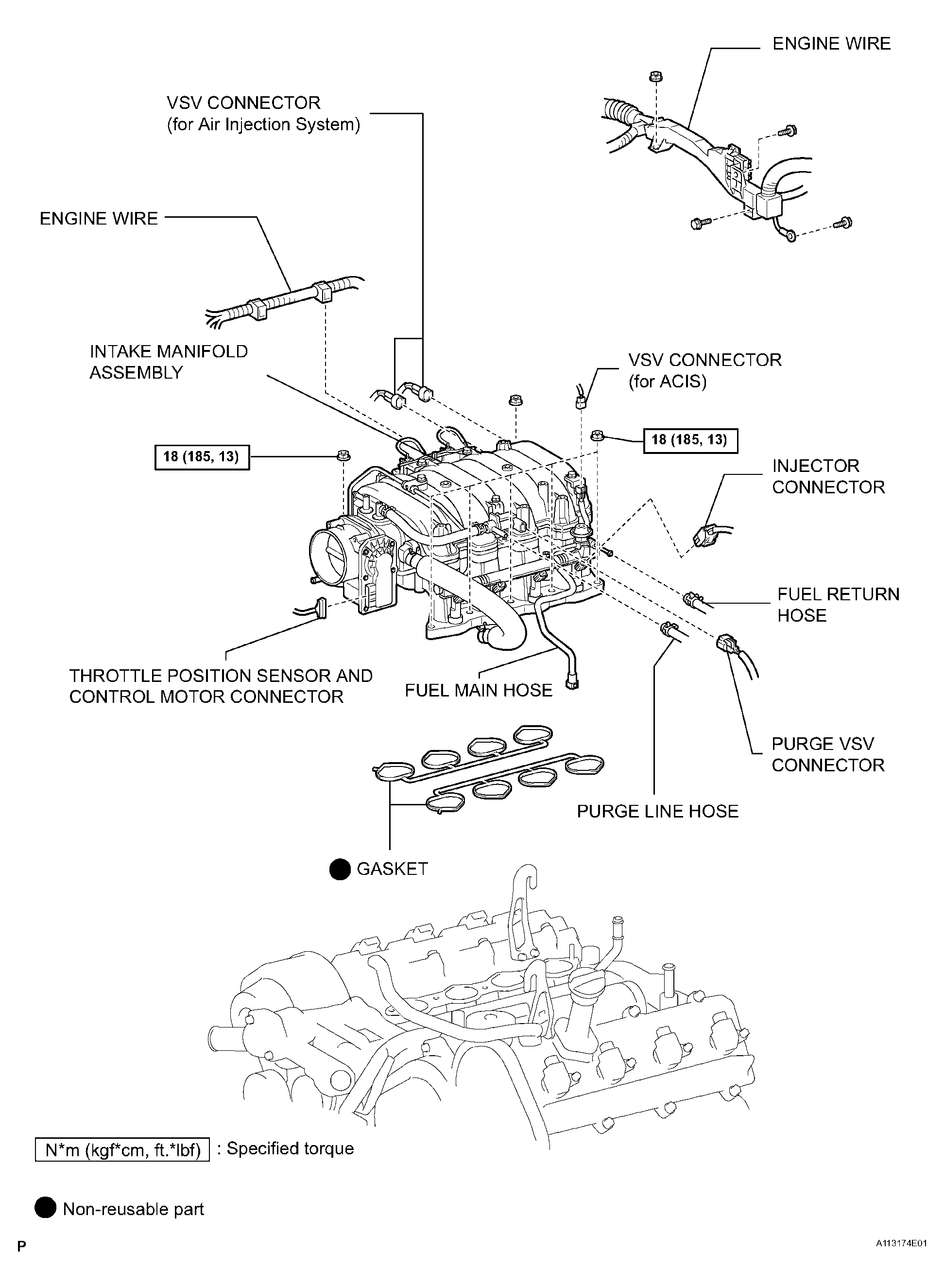

Fig 7: Identifying Engine Assembly Components & Replacements (7 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

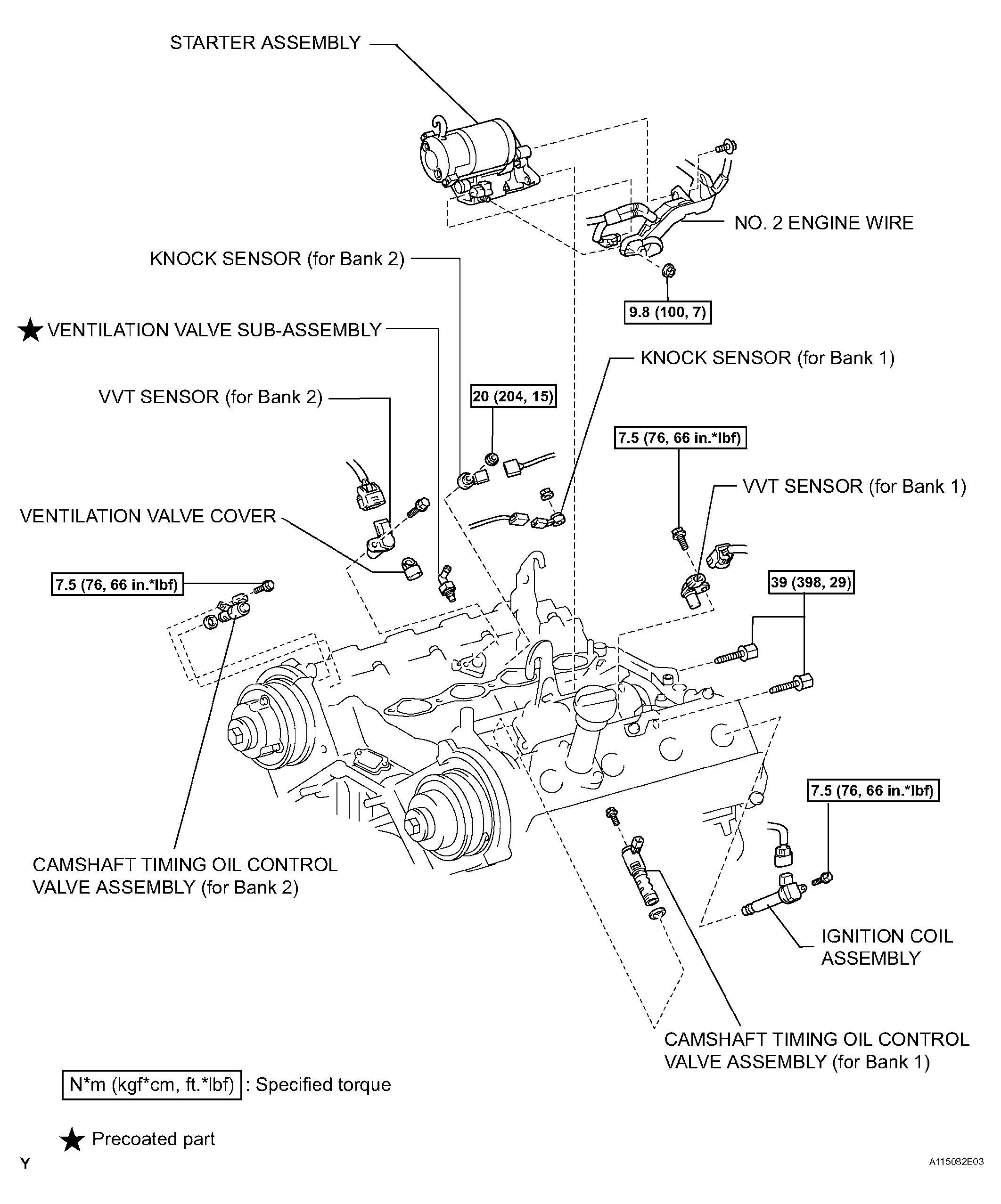

Fig 8: Identifying Engine Assembly Components & Replacements (8 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Identifying Engine Assembly Components & Replacements (9 Of 13)

Fig 10: Identifying Engine Assembly Components & Replacements (10 Of 13)

Fig 11: Identifying Engine Assembly Components & Replacements (11 Of 13)

Fig 12: Identifying Engine Assembly Components & Replacements (12 Of 13)

Fig 13: Identifying Engine Assembly Components & Replacements (13 Of 13)
