INSTALL DRIVE BELT
1. Set the belt to everything except the No. 2 idler pulley as shown in Fig 1.

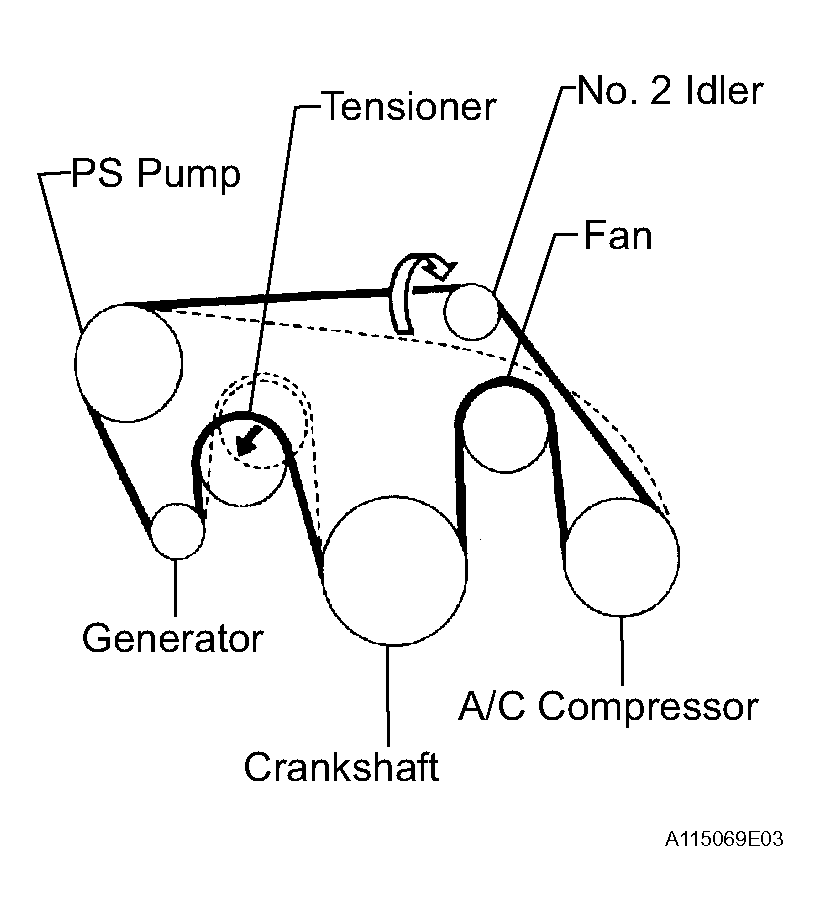

  Fig 1: Installing V Belt with Routing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Loosen the belt by turning the belt tensioner counterclockwise.
3. Set the belt to the idler pulley.
4. After a new belt has been installed, check that the mark is within the A range shown in Fig 2.

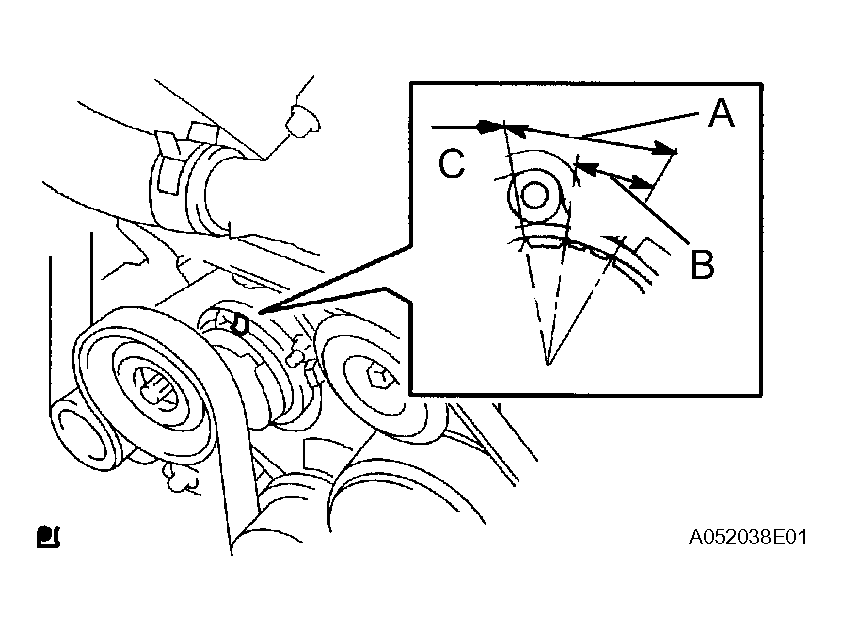

  Fig 2: Identifying Mark Is Within "A" Range
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
