Cylinder Head: Components

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

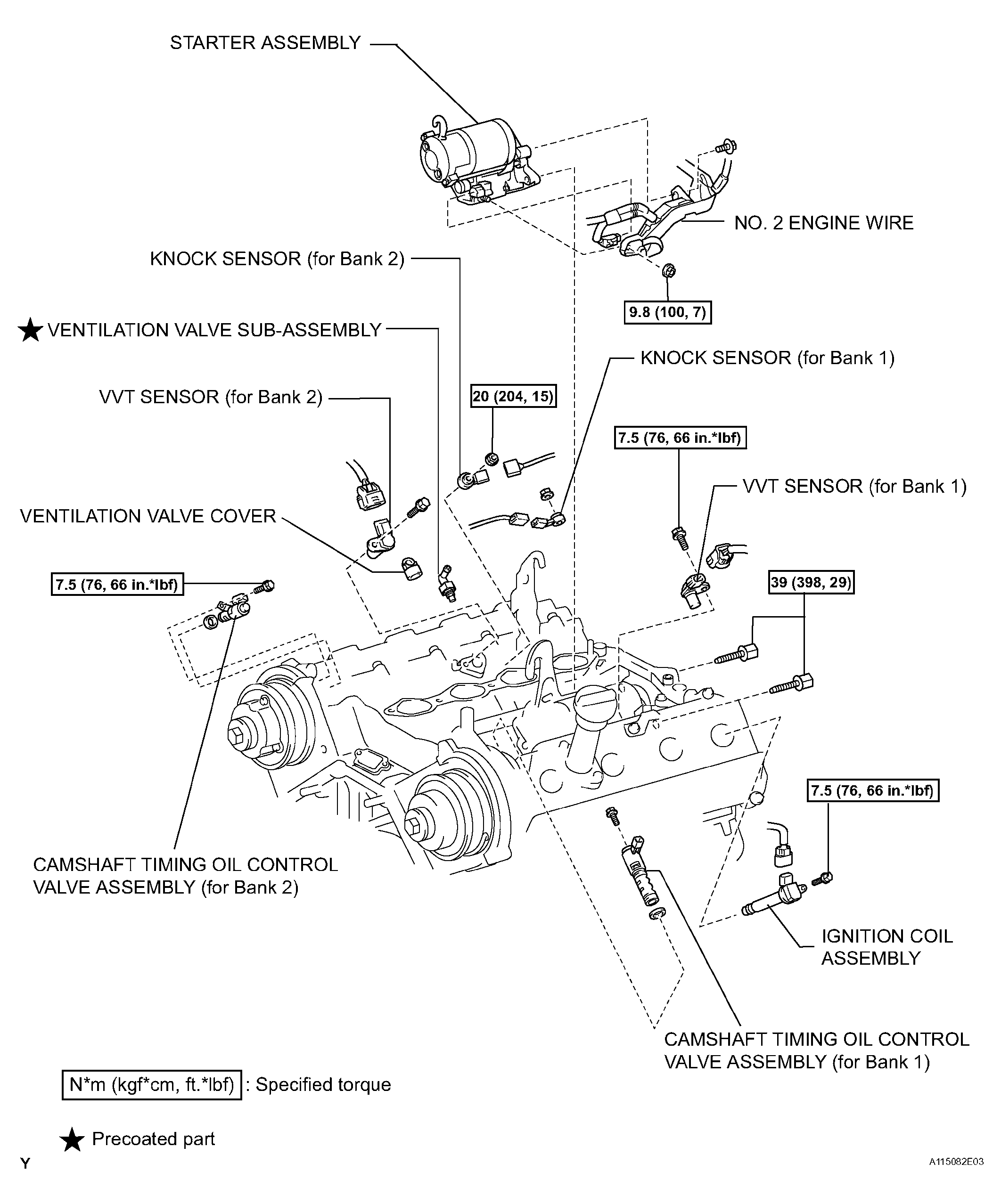

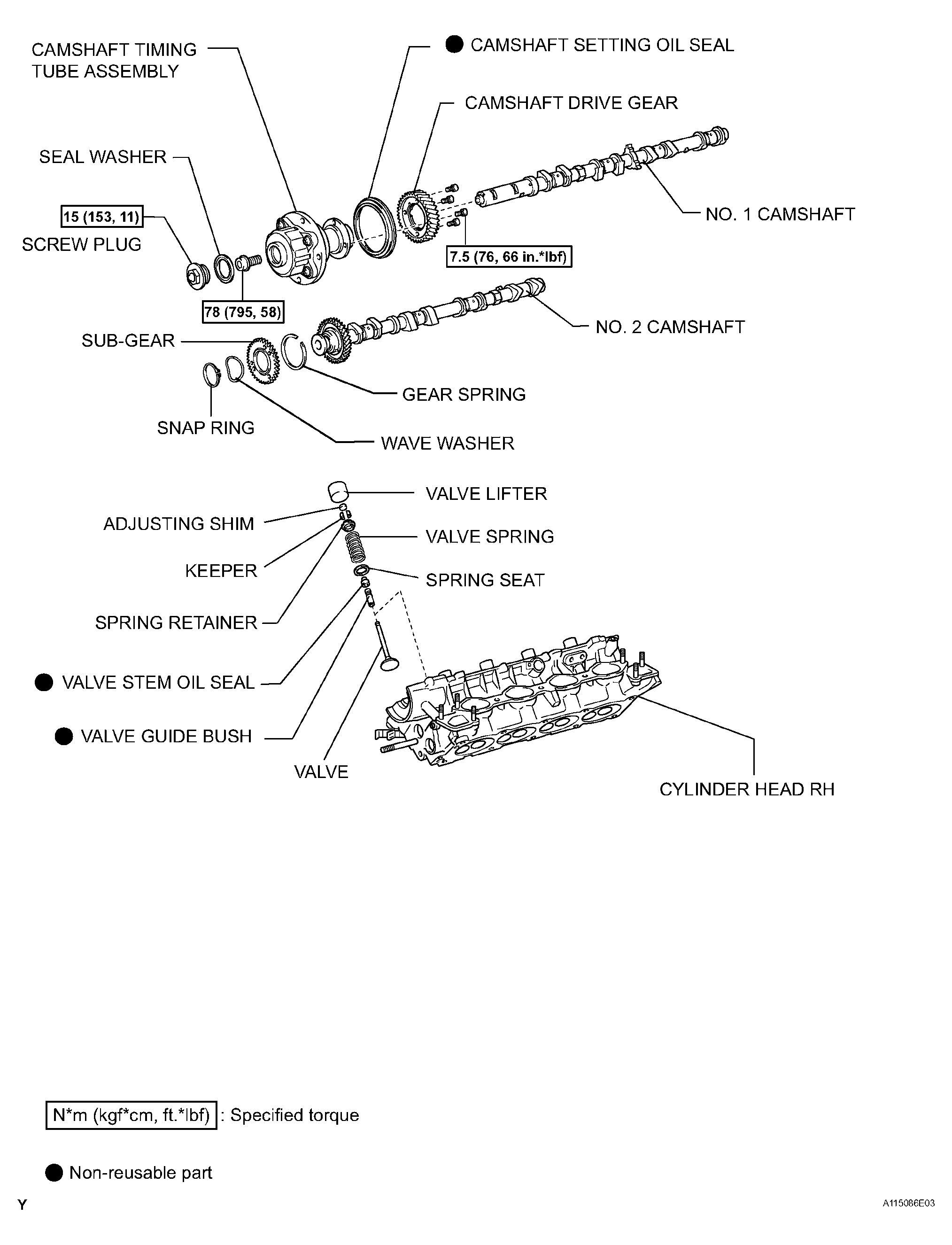

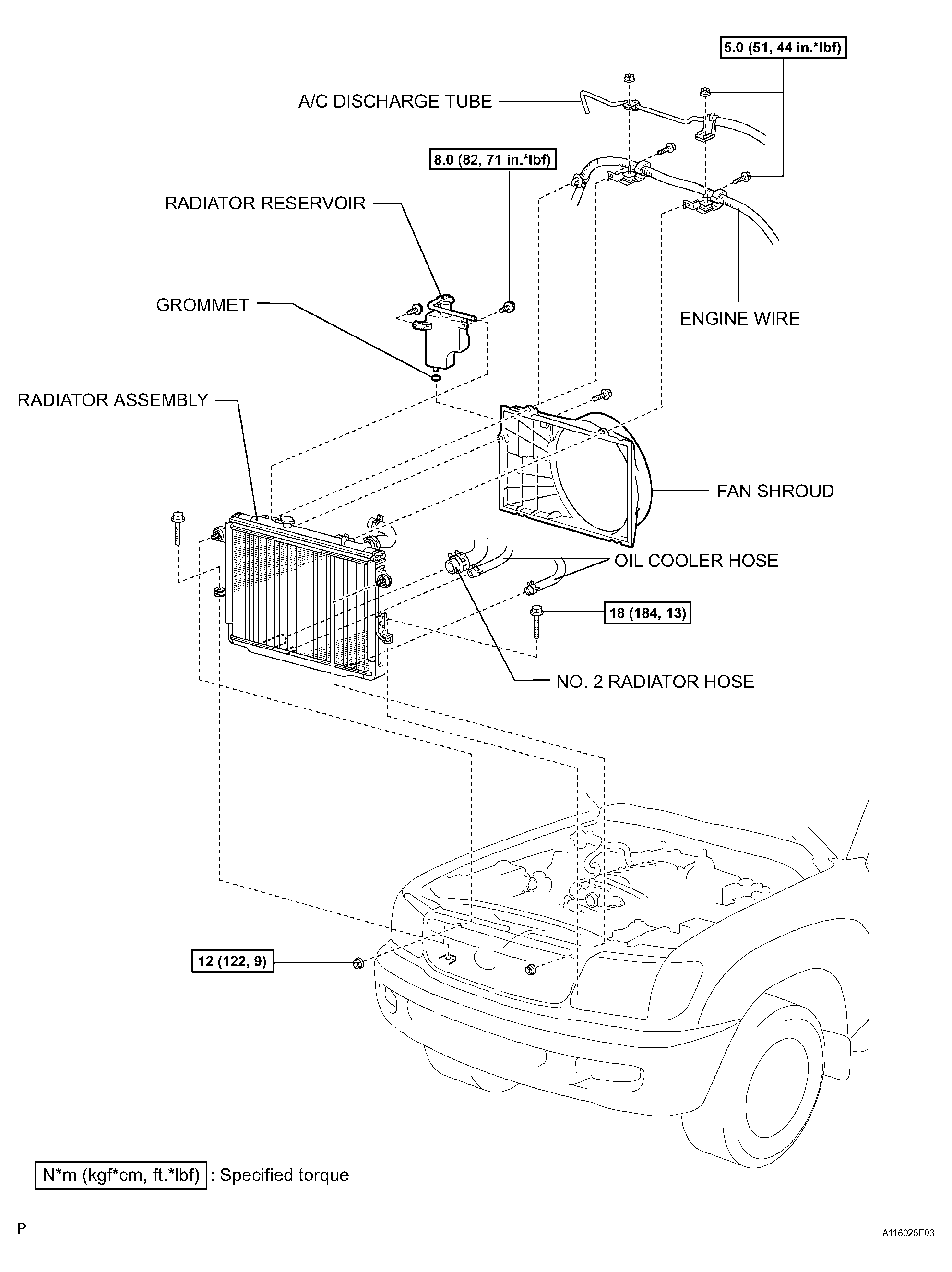

Fig 1: Identifying Cylinder Head Components & Replacements (1 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

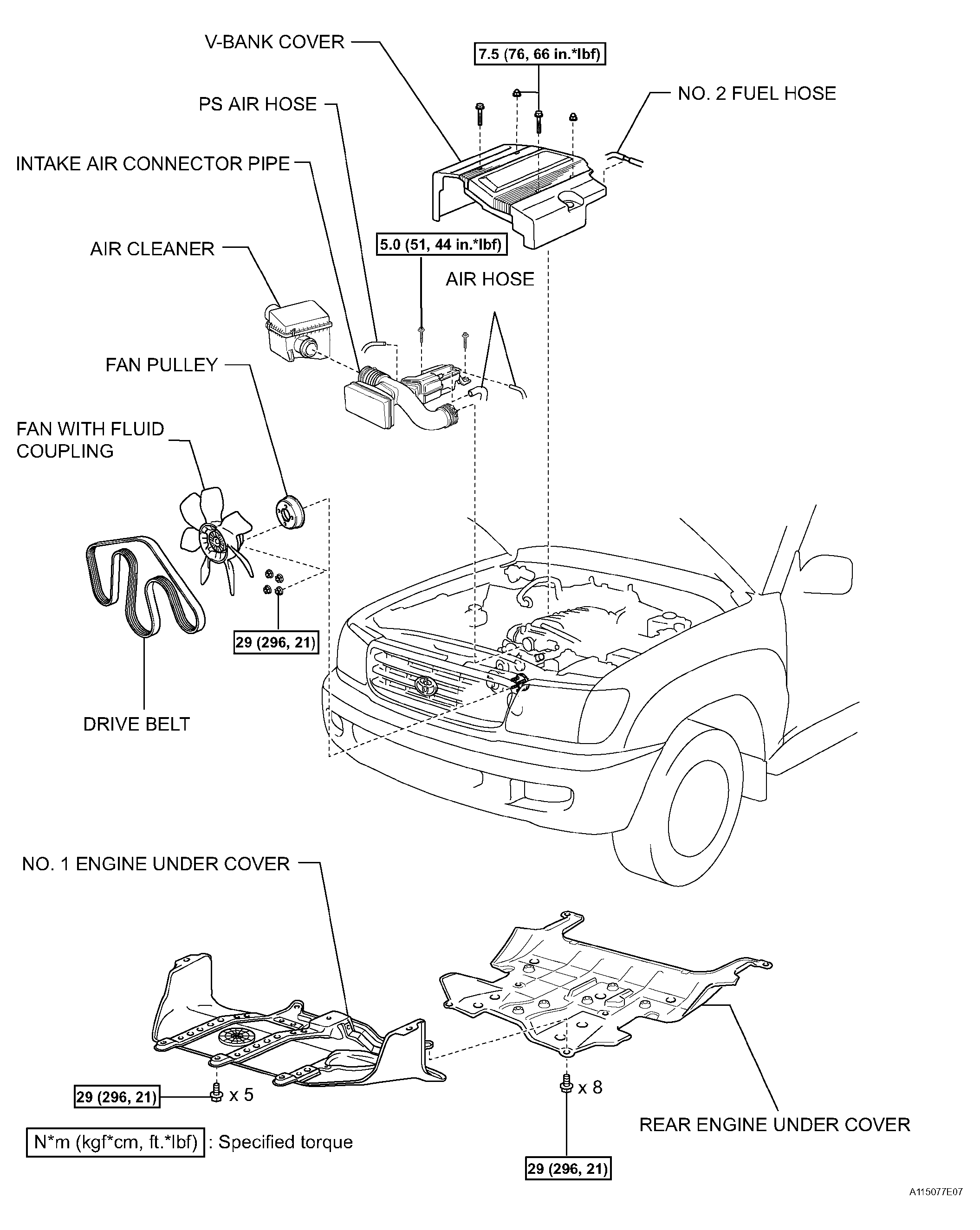

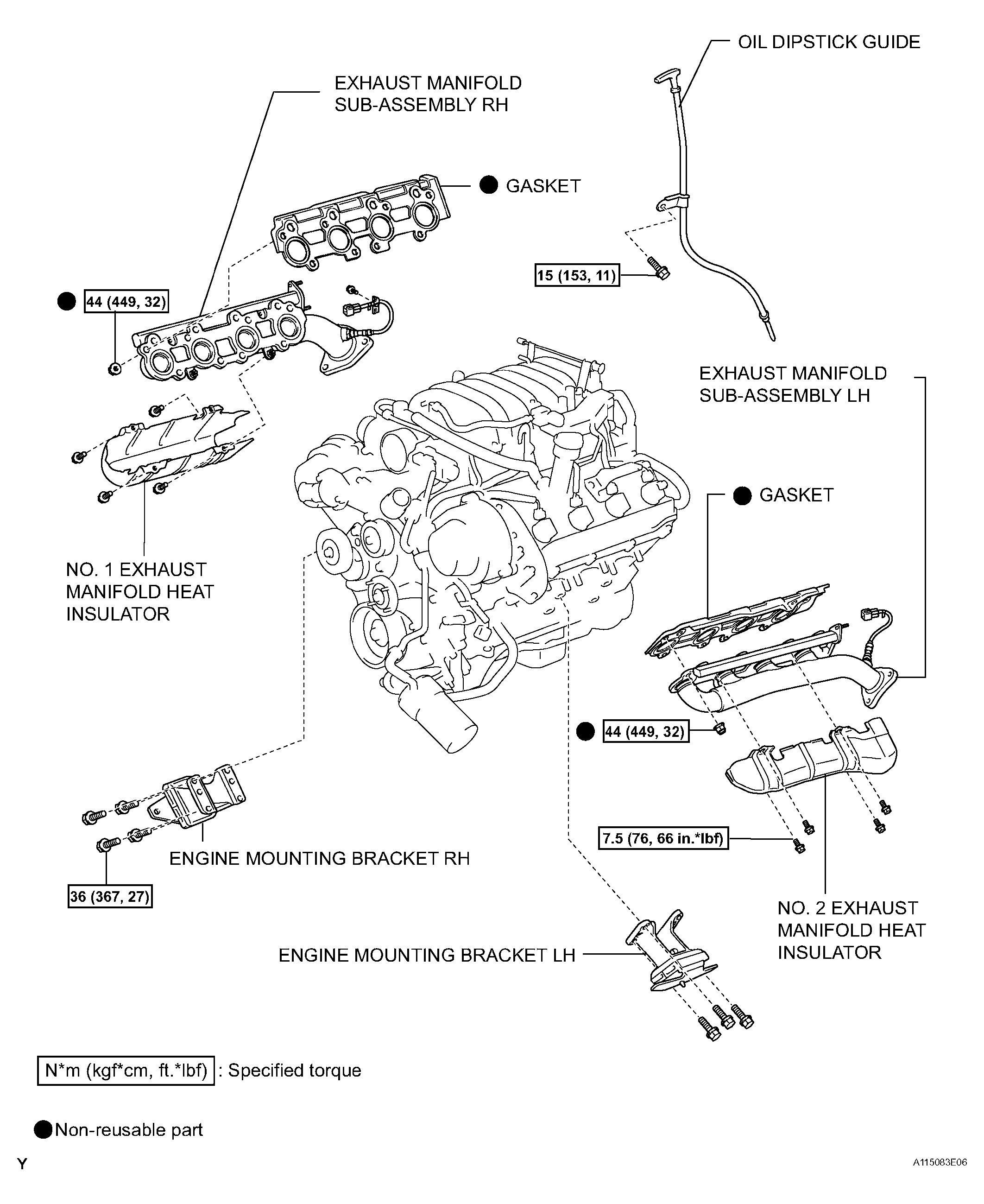

Fig 2: Identifying Cylinder Head Components & Replacements (2 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

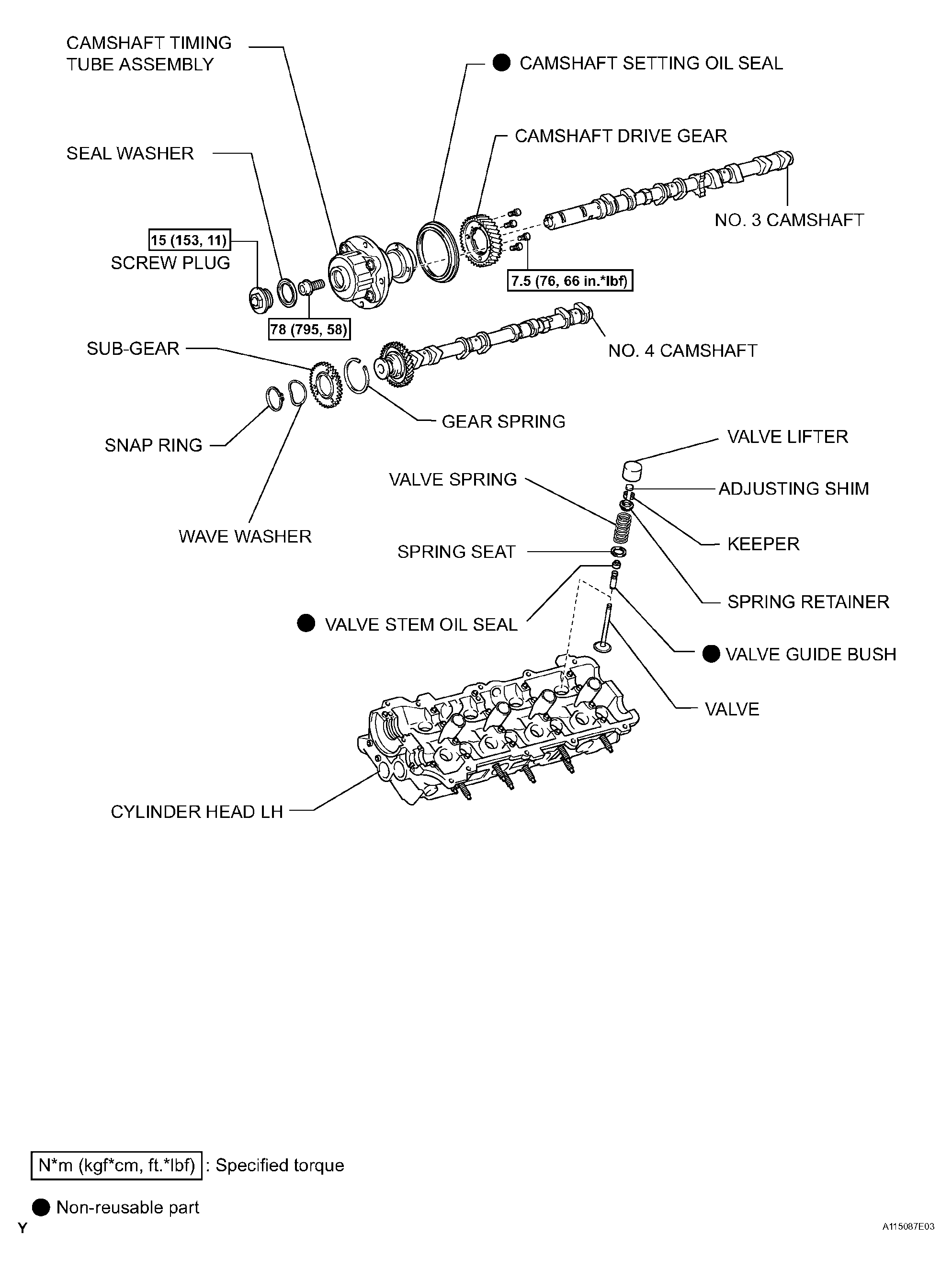

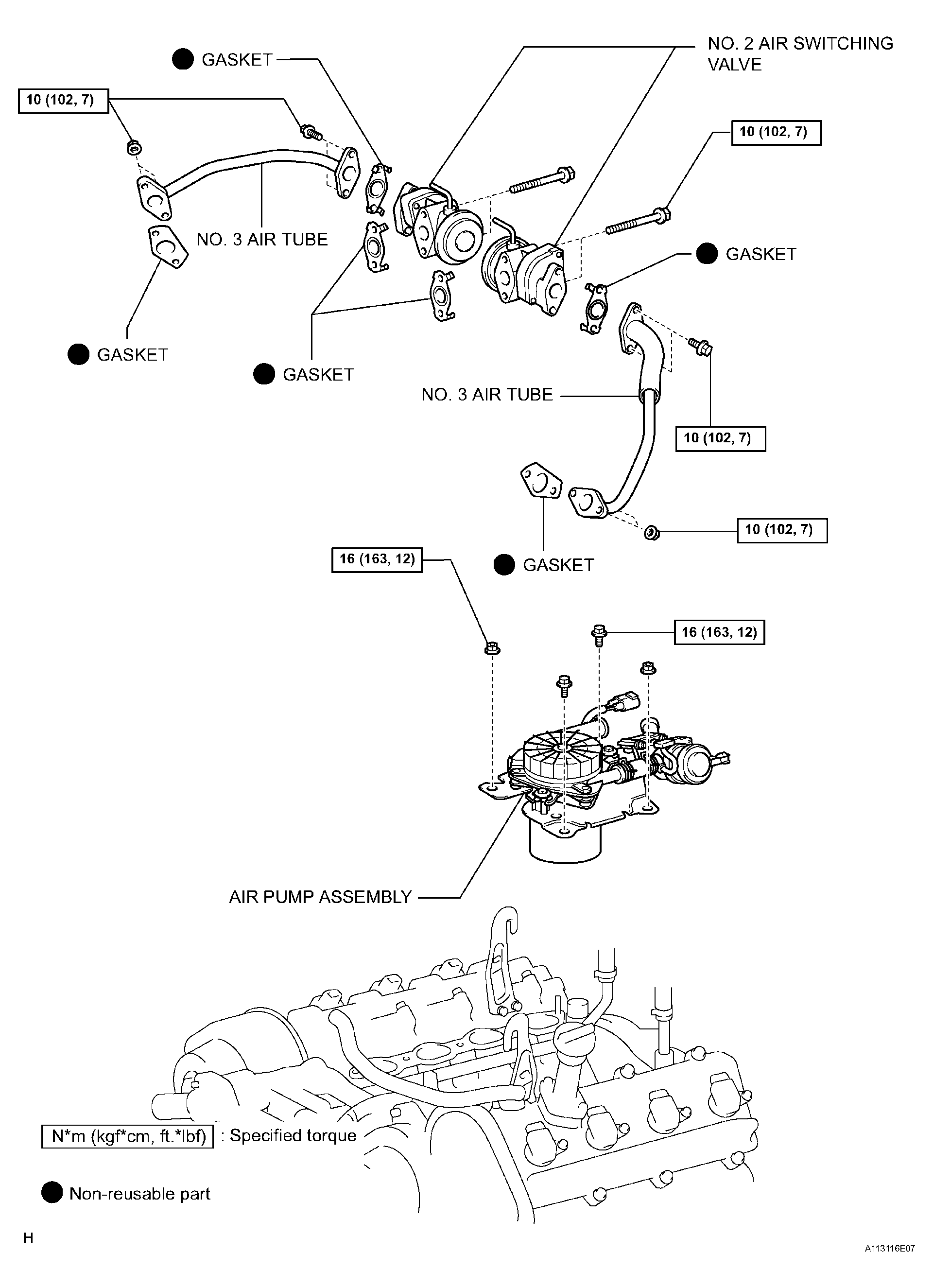

Fig 3: Identifying Cylinder Head Components & Replacements (3 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

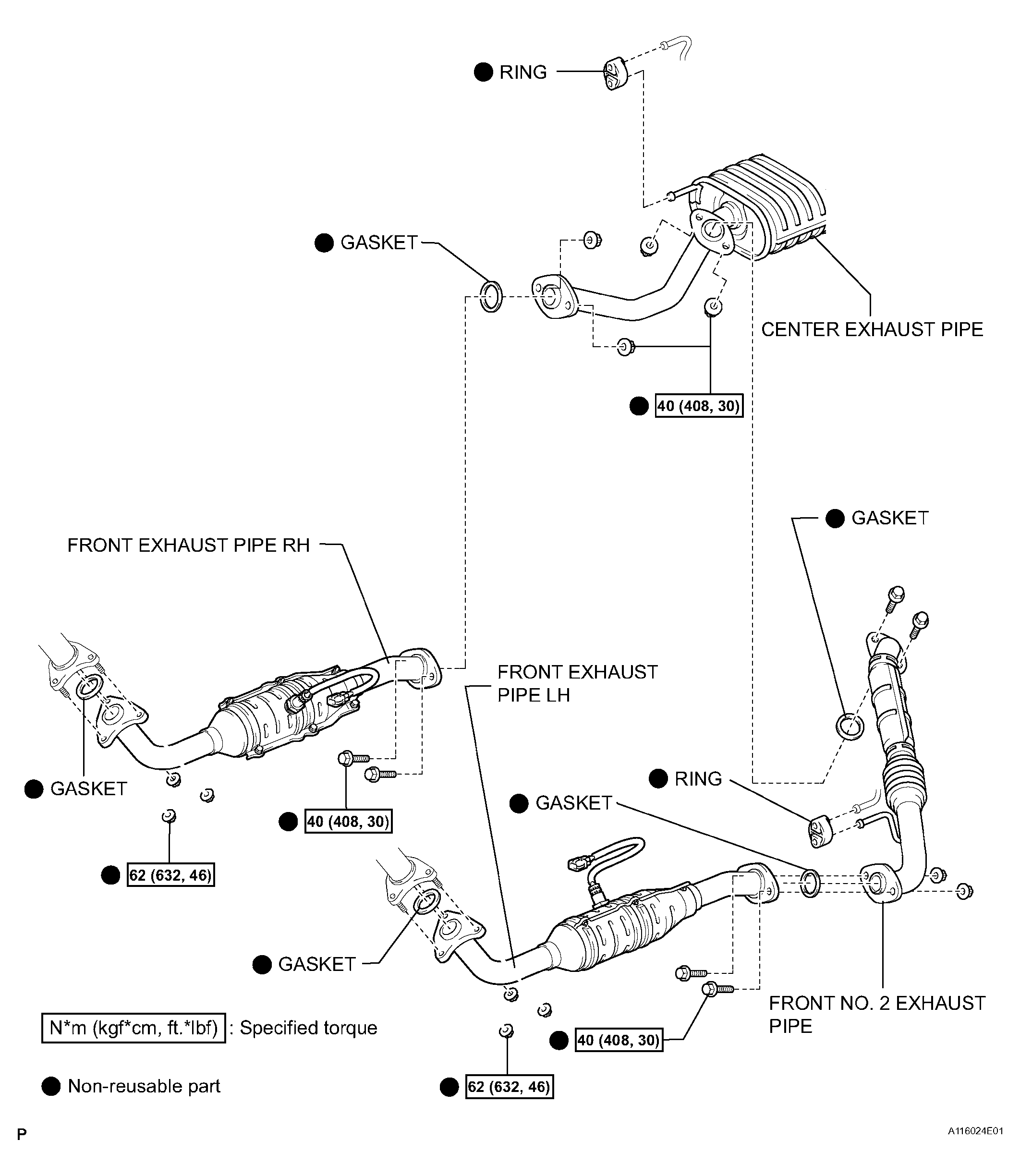

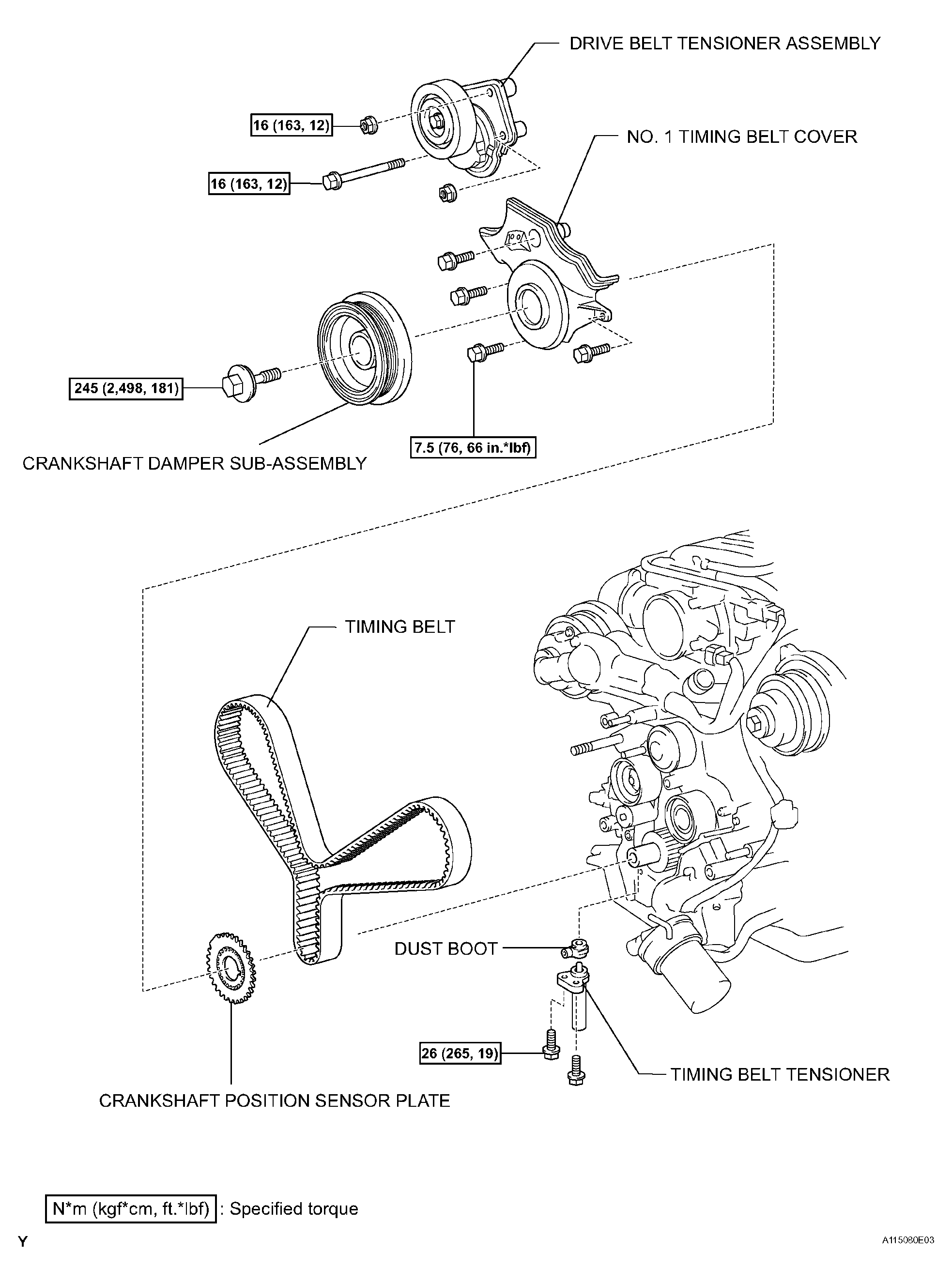

Fig 4: Identifying Cylinder Head Components & Replacements (4 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

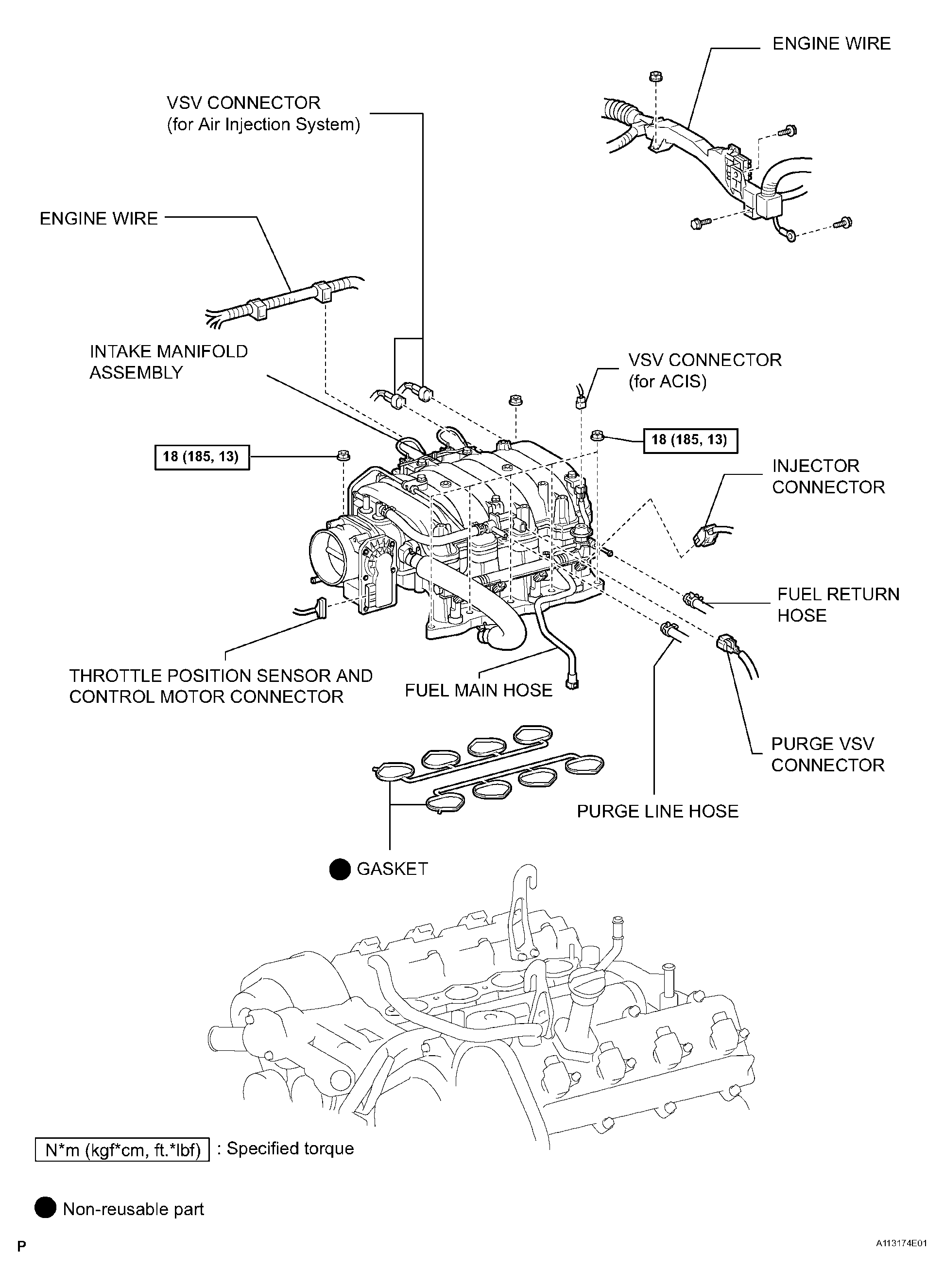

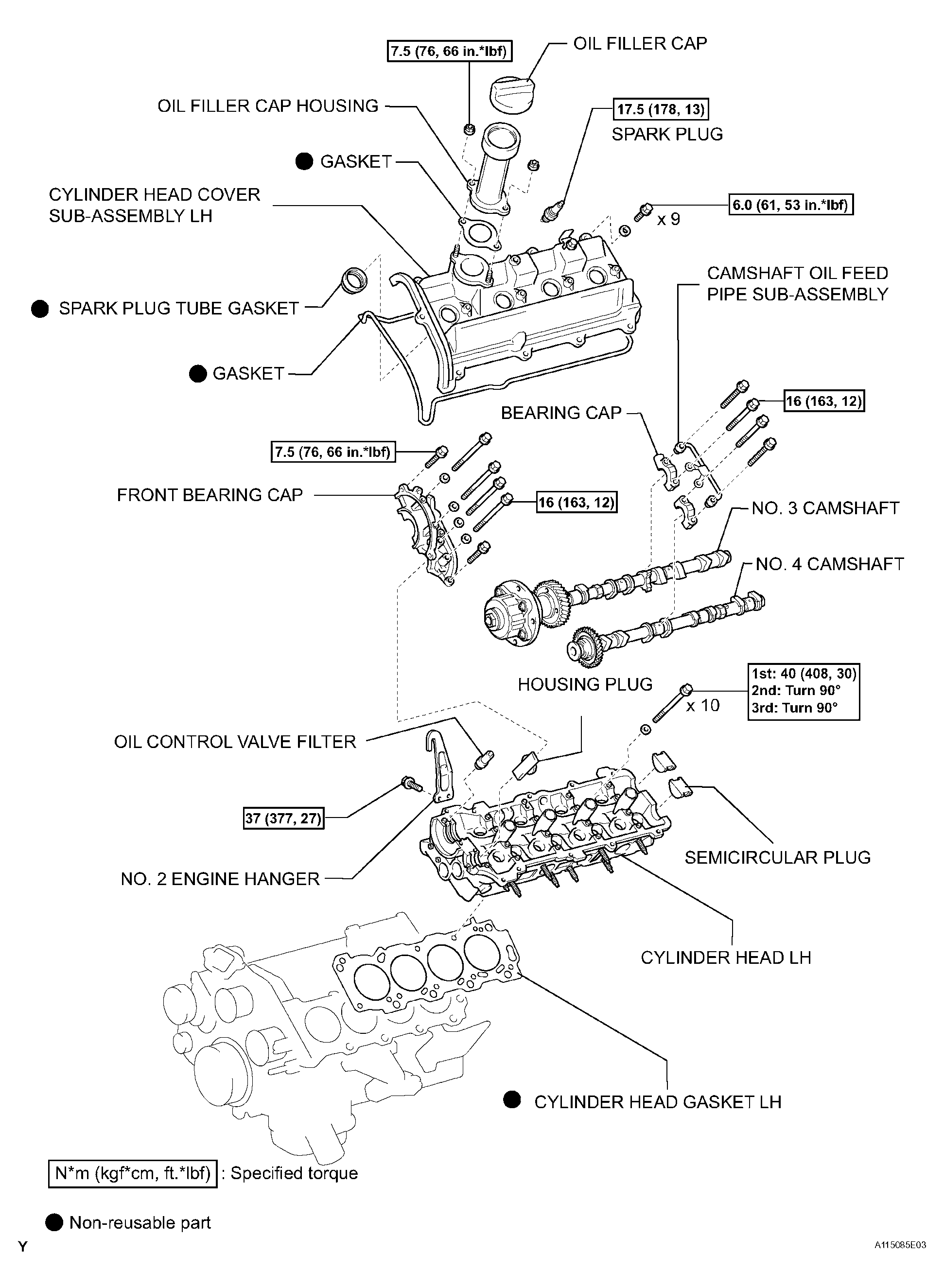

Fig 5: Identifying Cylinder Head Components & Replacements (5 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

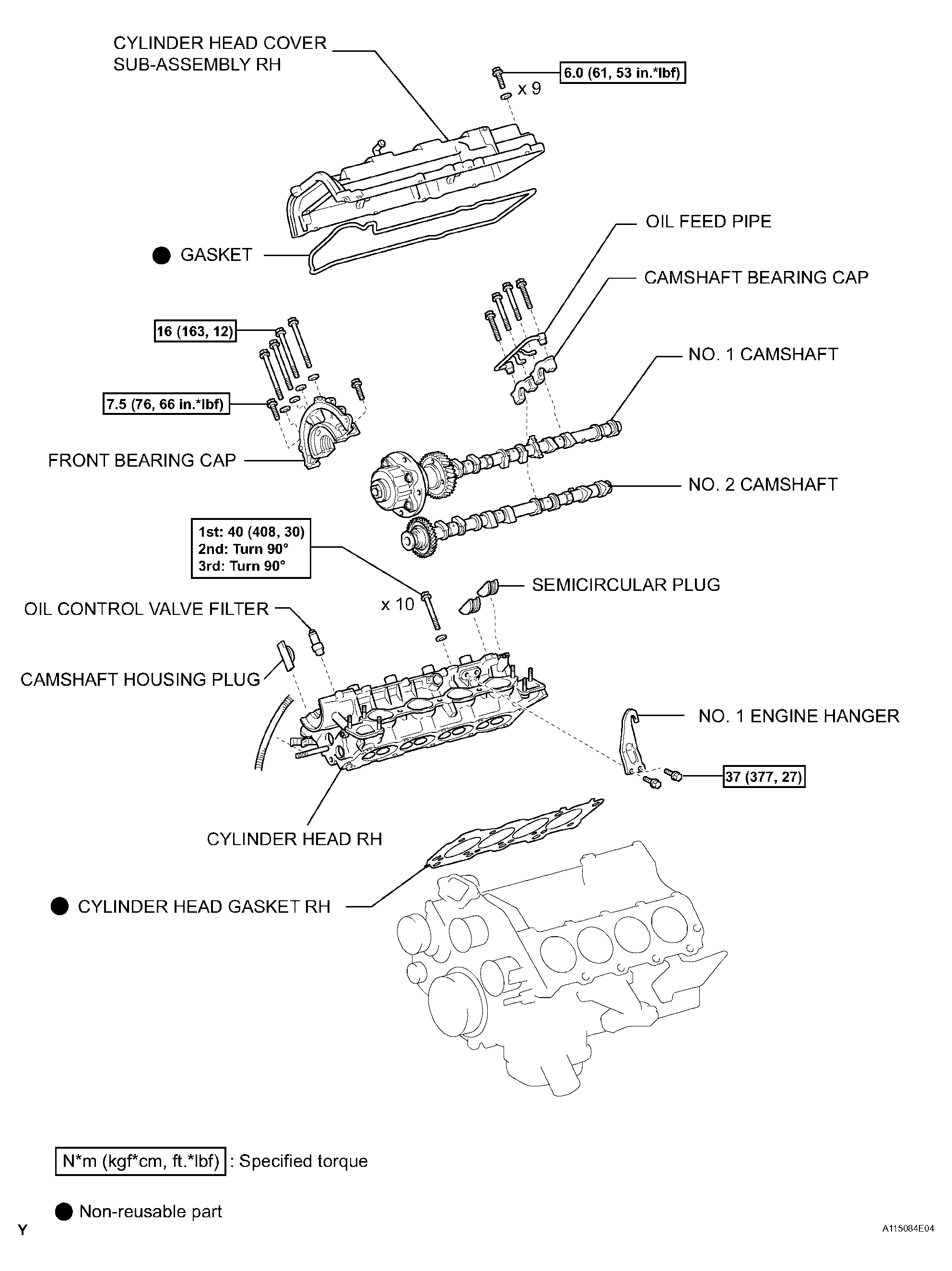

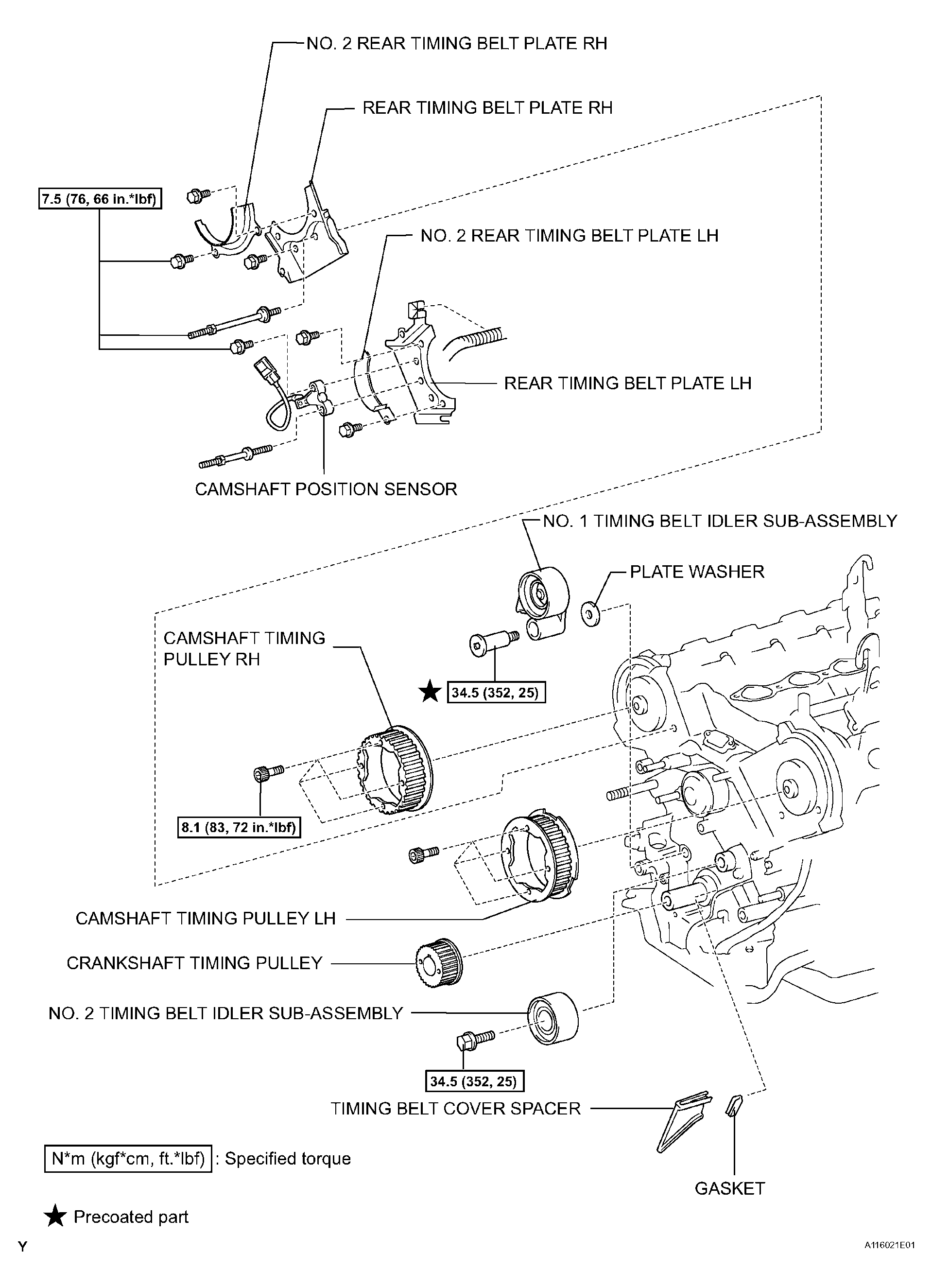

Fig 6: Identifying Cylinder Head Components & Replacements (6 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

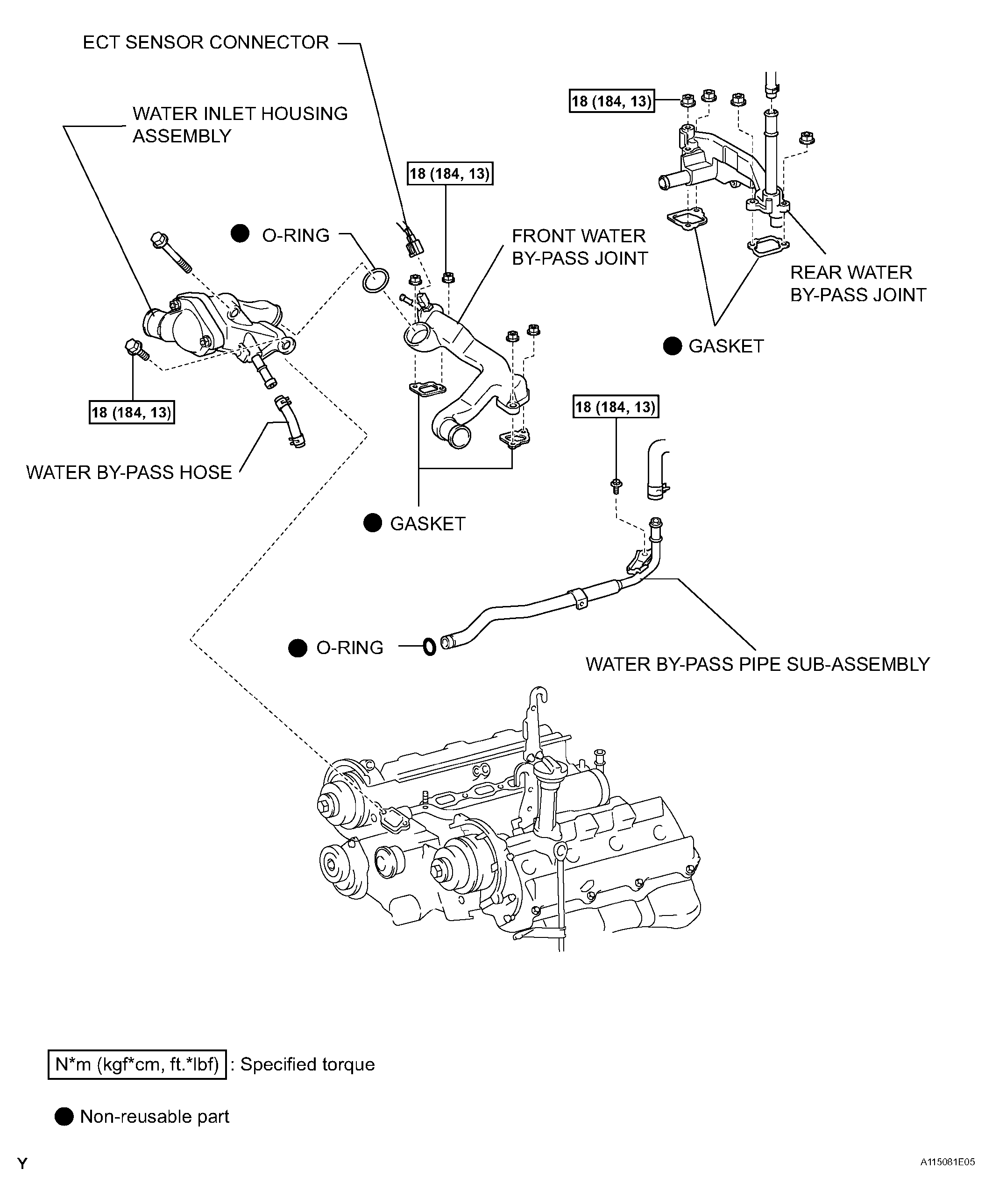

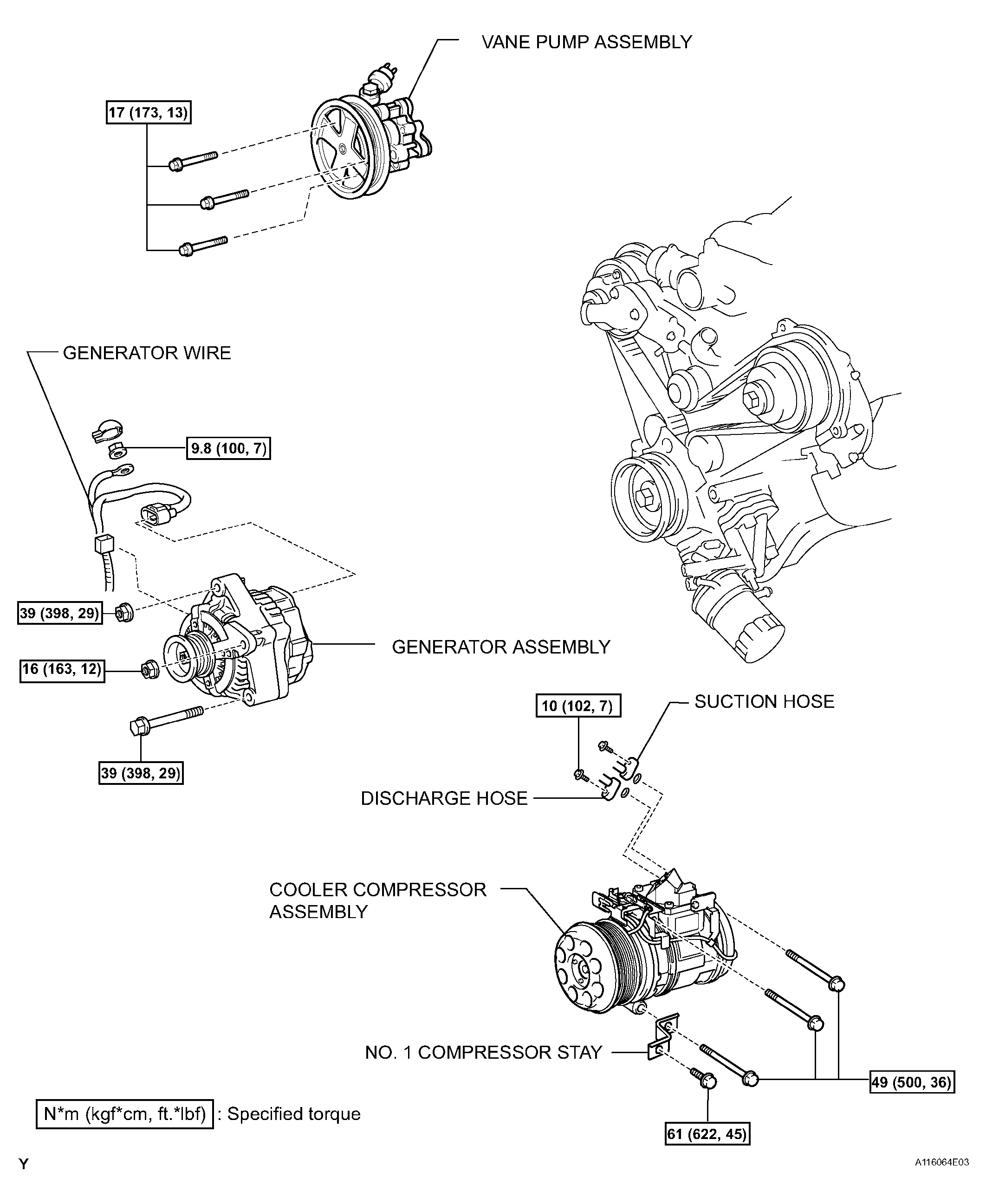

Fig 7: Identifying Cylinder Head Components & Replacements (7 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

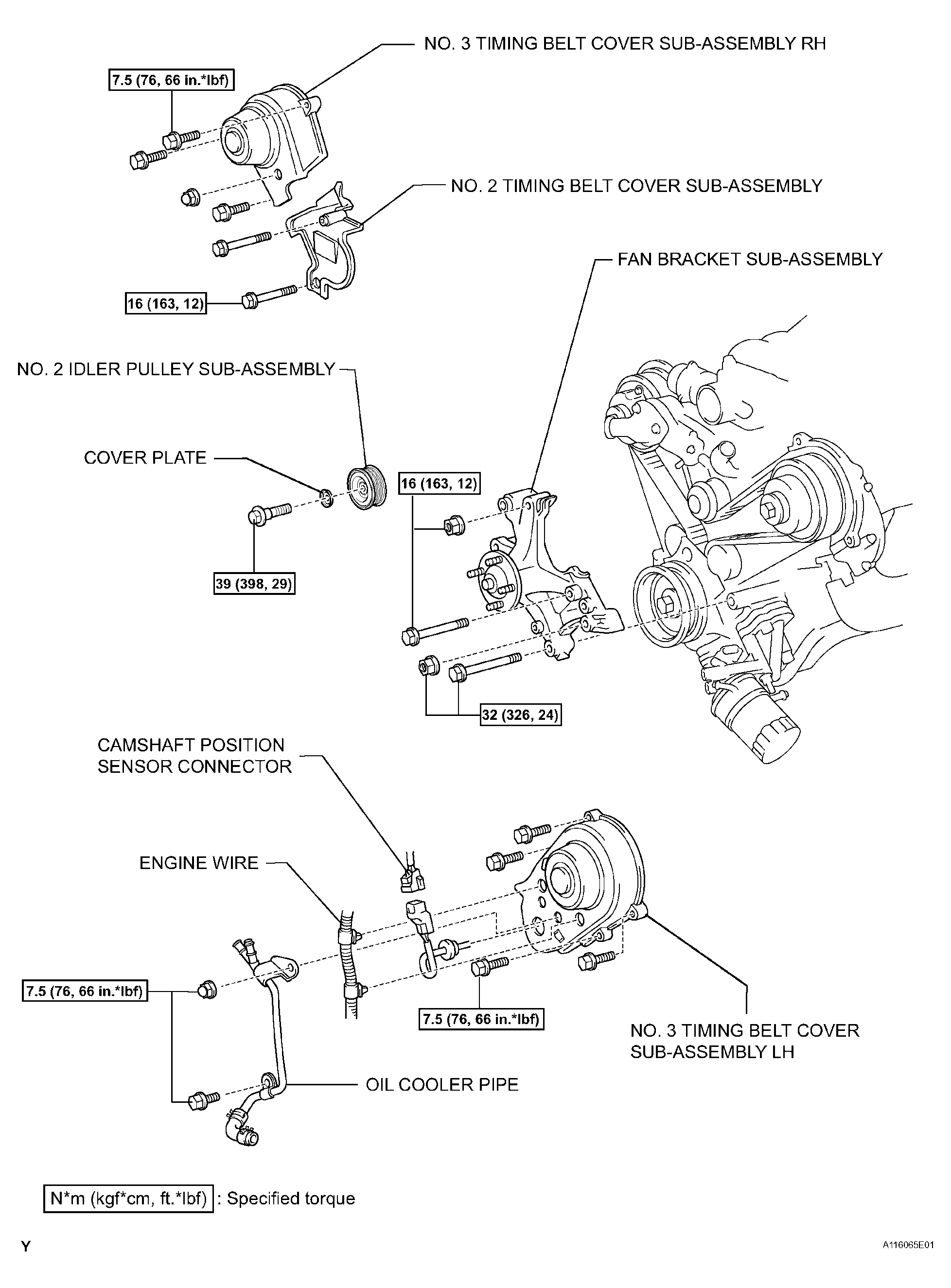

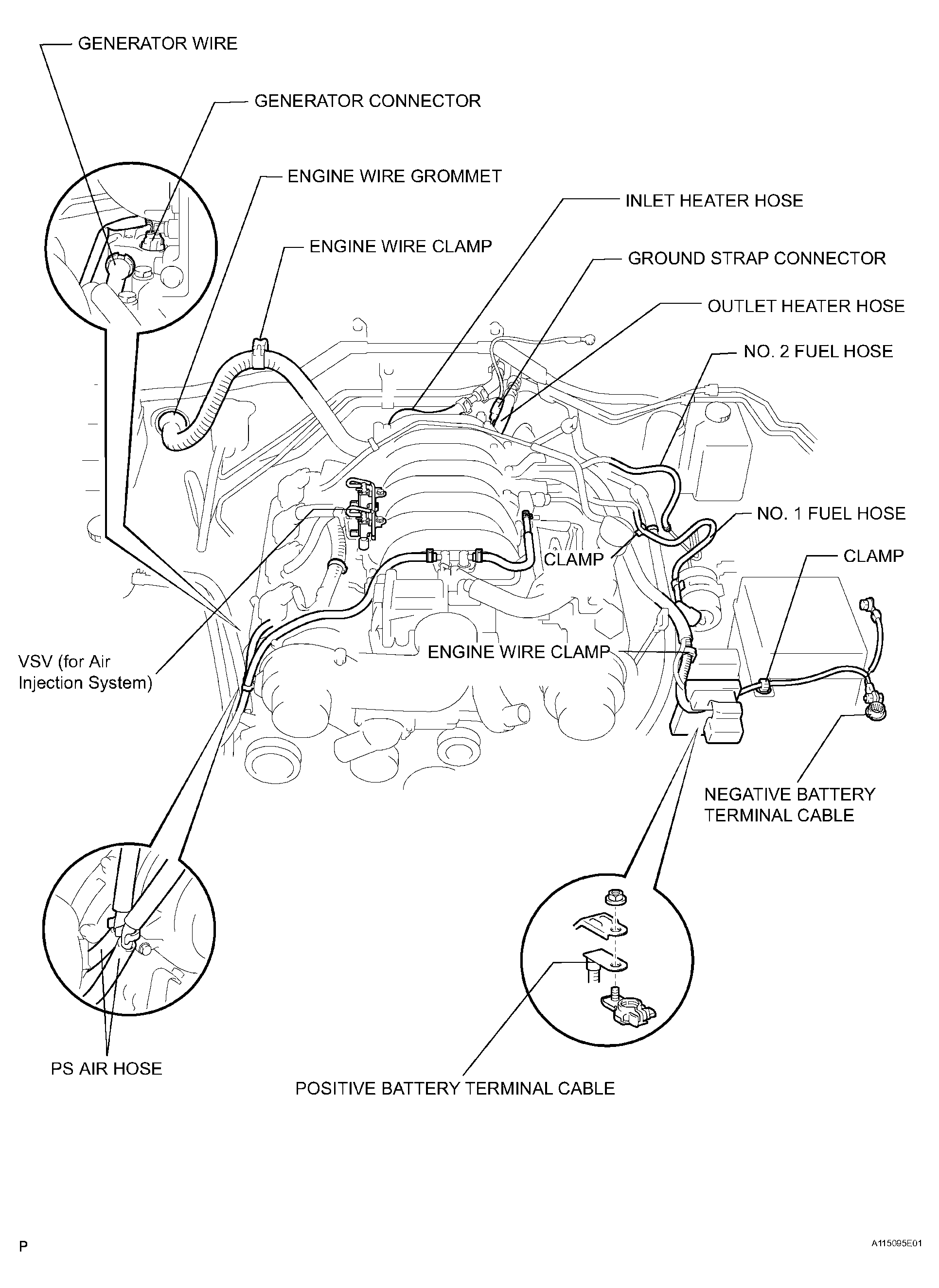

Fig 8: Identifying Cylinder Head Components & Replacements (8 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Identifying Cylinder Head Components & Replacements (9 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Identifying Cylinder Head Components & Replacements (10 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Identifying Cylinder Head Components & Replacements (11 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Identifying Cylinder Head Components & Replacements (12 Of 17)

Fig 13: Identifying Cylinder Head Components & Replacements (13 Of 17)

Fig 14: Identifying Cylinder Head Components & Replacements (14 Of 17)

Fig 15: Identifying Cylinder Head Components & Replacements (15 Of 17)

Fig 16: Identifying Cylinder Head Components & Replacements (16 Of 17)

Fig 17: Identifying Cylinder Head Components & Replacements (17 Of 17)
