Rear No. 2 Seat Assembly: Components

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

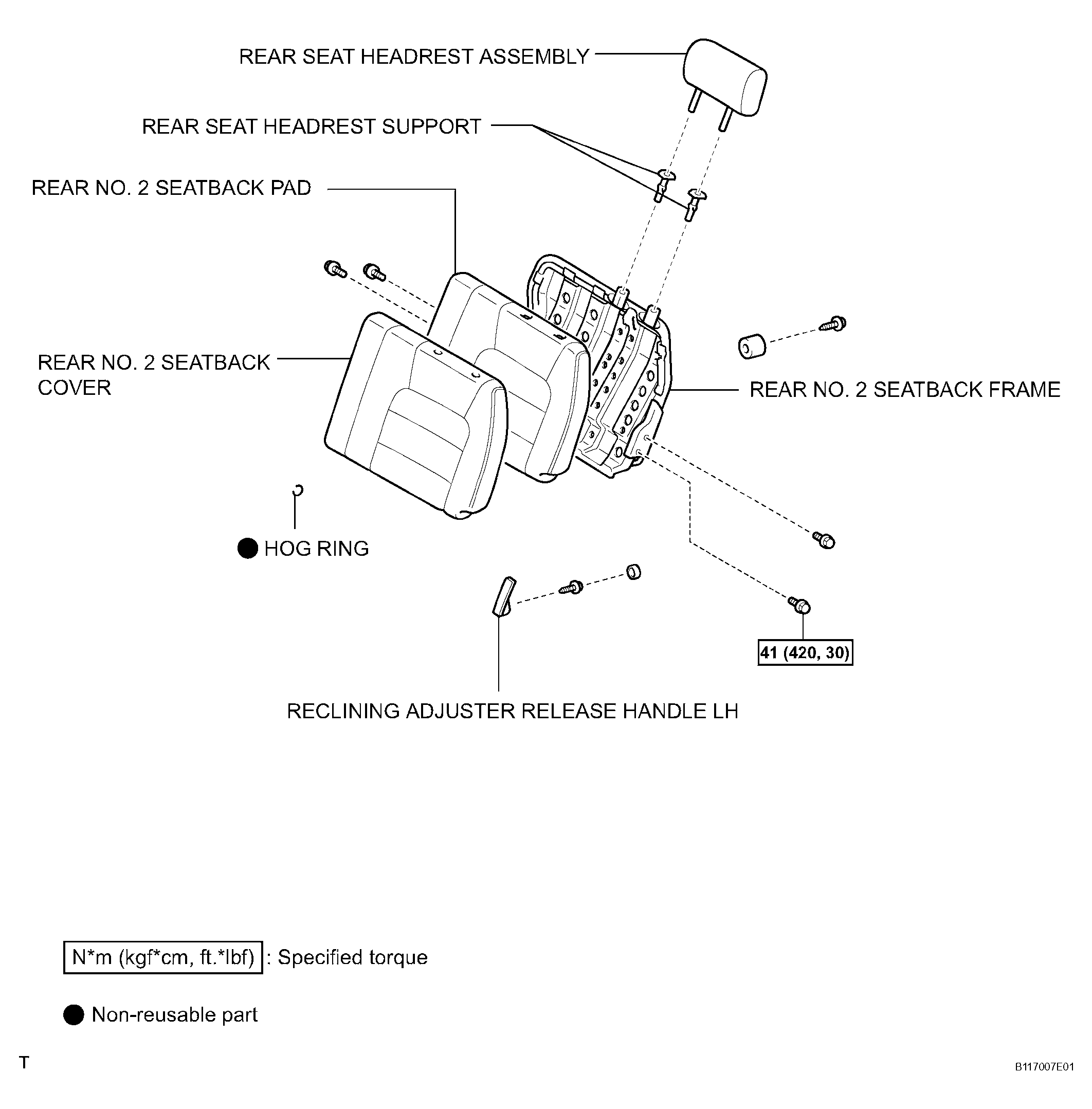

Fig 1: Identifying Rear No. 2 Seat Assembly Components And Replacements (1 Of 2)
G04438941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

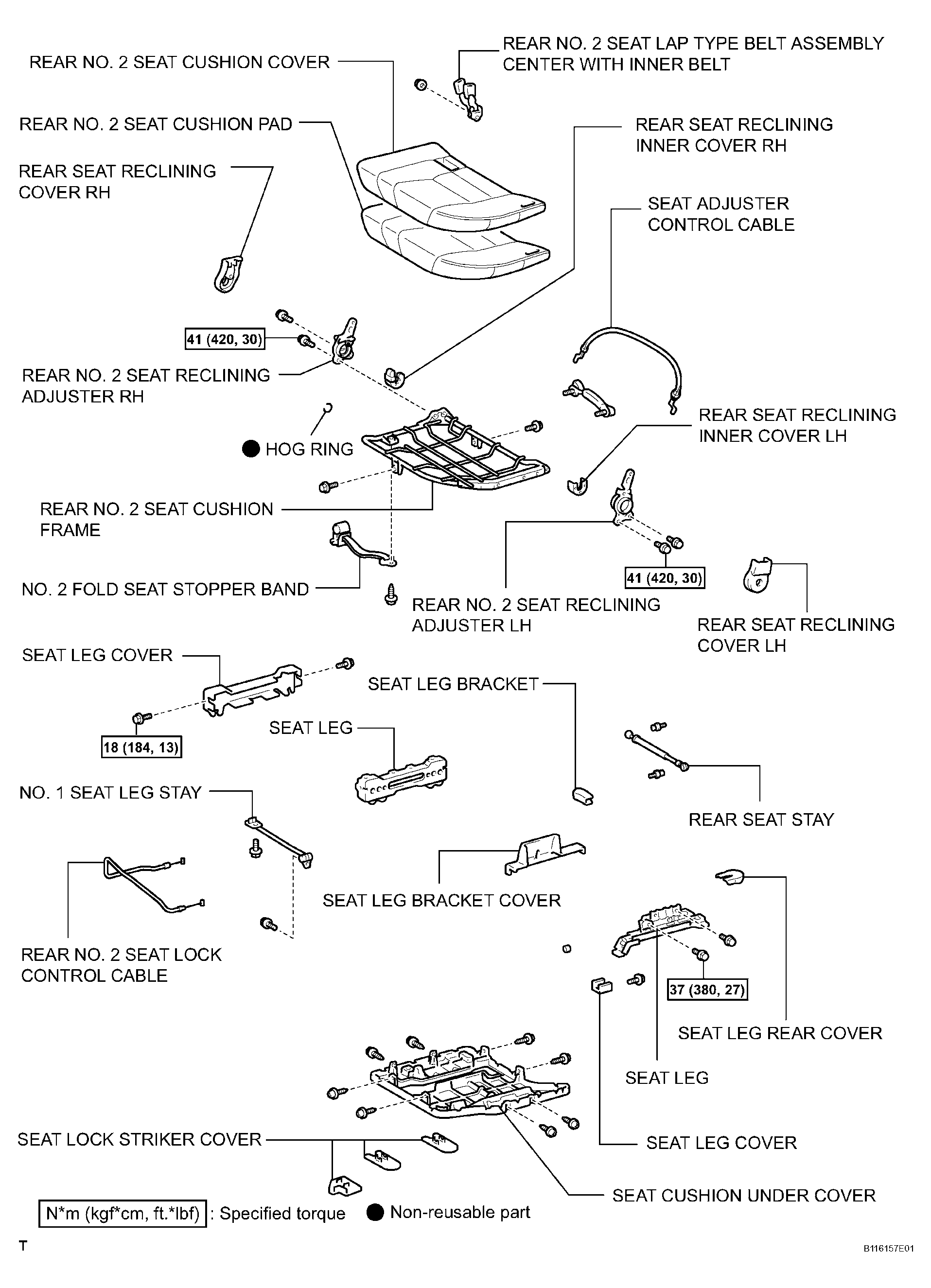

Fig 2: Identifying Rear No. 2 Seat Assembly Components And Replacements (2 Of 2)
G04438942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
