Power Seat Switch: Inspection

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT FRONT POWER SEAT SWITCH LH
    1. Check the front power seat switch.
      1. Check the continuity between the terminals when each switch is operated.

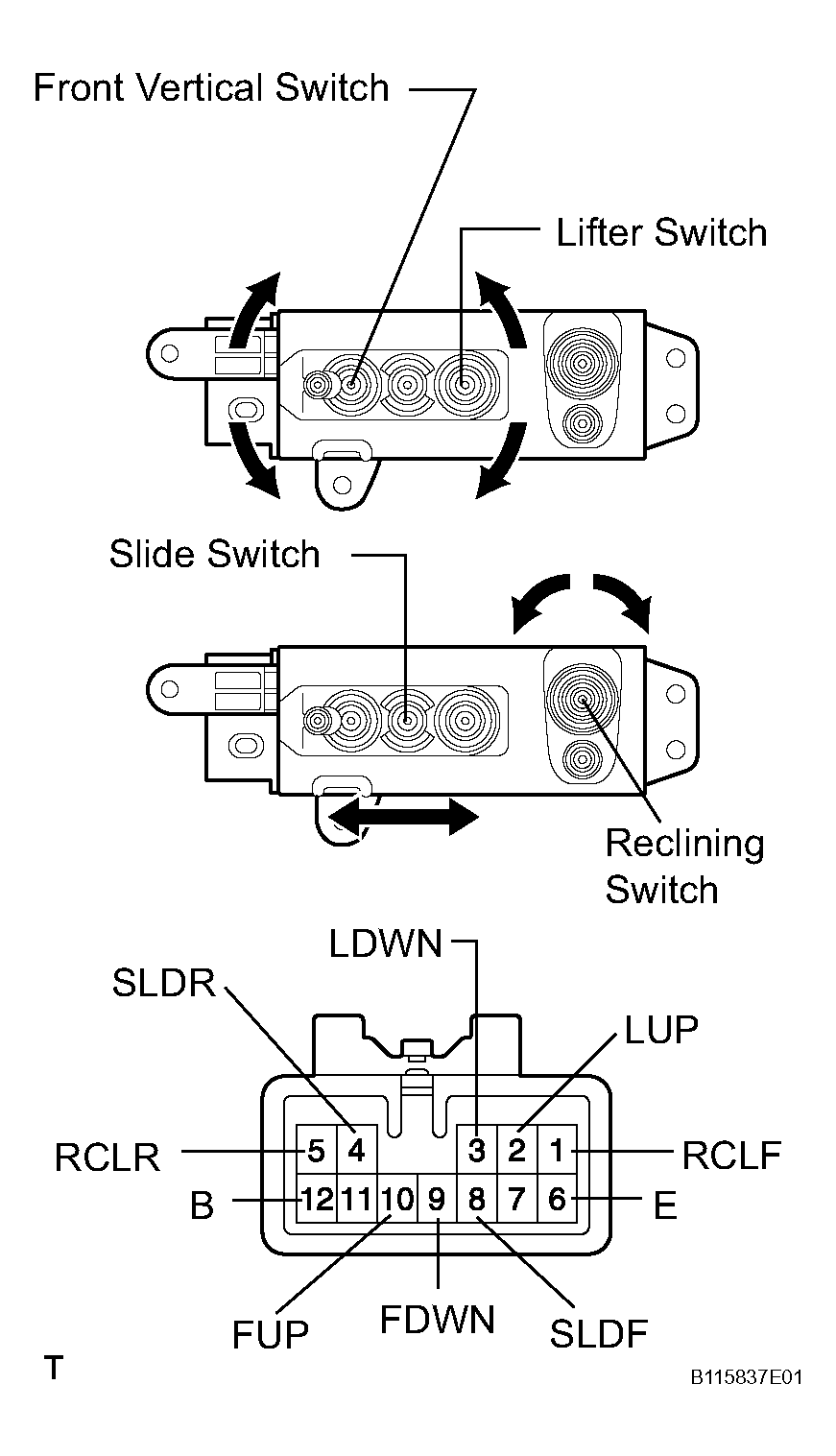

        Fig 1: Inspecting Front Power Seat Switch LH
        G04438950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        OK:

        Slide switch

        FRONT POWER SEAT SWITCH LH (SLIDE SWITCH)

        Tester Connection Switch Condition Specified Condition
        4 (SLDR) - 6 (E) FRONT Continuity
        8 (SLDF) - 12 (B) FRONT Continuity
        6 (E) - 8 (SLDF) OFF Continuity
        4 (SLDR) - 6 (E) OFF Continuity
        4 (SLDR) - 12 (B) REAR Continuity
        6 (E) - 8 (SLDF) REAR Continuity

        Front vertical switch

        FRONT POWER SEAT SWITCH LH (FRONT VERTICAL SWITCH)

        Tester Connection Switch Condition Specified Condition
        6 (E) - 9 (FDWN) UP Continuity
        10 (FUP) - 12 (B) UP Continuity
        6 (E) - 9 (FDWN) OFF Continuity
        6 (E) - 10 (FUP) OFF Continuity
        6 (E) - 10 (FUP) DOWN Continuity
        9 (FDWN) - 12 (B) DOWN Continuity

        Lifter switch

        FRONT POWER SEAT SWITCH LH (LIFTER SWITCH)

        Tester Connection Switch Condition Specified Condition
        2 (LUP) - 12 (B) UP Continuity
        3 (LDWN) - 6 (E) UP Continuity
        2 (LUP) - 6 (E) OFF Continuity
        3 (LDWN) - 6 (E) OFF Continuity
        2 (LUP) - 6 (E) DOWN Continuity
        3 (LDWN) - 12 (B) DOWN Continuity

        Reclining switch

        FRONT POWER SEAT SWITCH LH (RECLINING SWITCH)

        Tester Connection Switch Condition Specified Condition
        1 (RCLF) - 12 (B) FRONT Continuity
        5 (RCLR) - 6 (E) FRONT Continuity
        1 (RCLF) - 6 (E) OFF Continuity
        5 (RCLR) - 6 (E) OFF Continuity
        1 (RCLF) - 6 (E) REAR Continuity
        5 (RCLR) -12 (B) REAR Continuity

        If the continuity is not as specified, replace the switch.

    2. Check the front power seat switch circuit.
      1. Disconnect the switch connector and connect the seat wire harness to the floor wire harness.
      2. Check the connector on the wire harness side.

        OK:

        FRONT POWER SEAT SWITCH CIRCUIT LH

        Tester Connection Switch Condition Specified Condition
        6 (E) - Body ground Always Continuity
        12 (B) - Body ground Always Battery positive voltage

        If the circuit is not as specified, inspect the circuits connected to other parts.

        Fig 2: Checking Front Power Seat Switch Circuit
        G04438951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT FRONT POWER SEAT SWITCH RH
    1. Check the front power seat switch.
      1. Check the continuity between the terminals when each switch is operated.

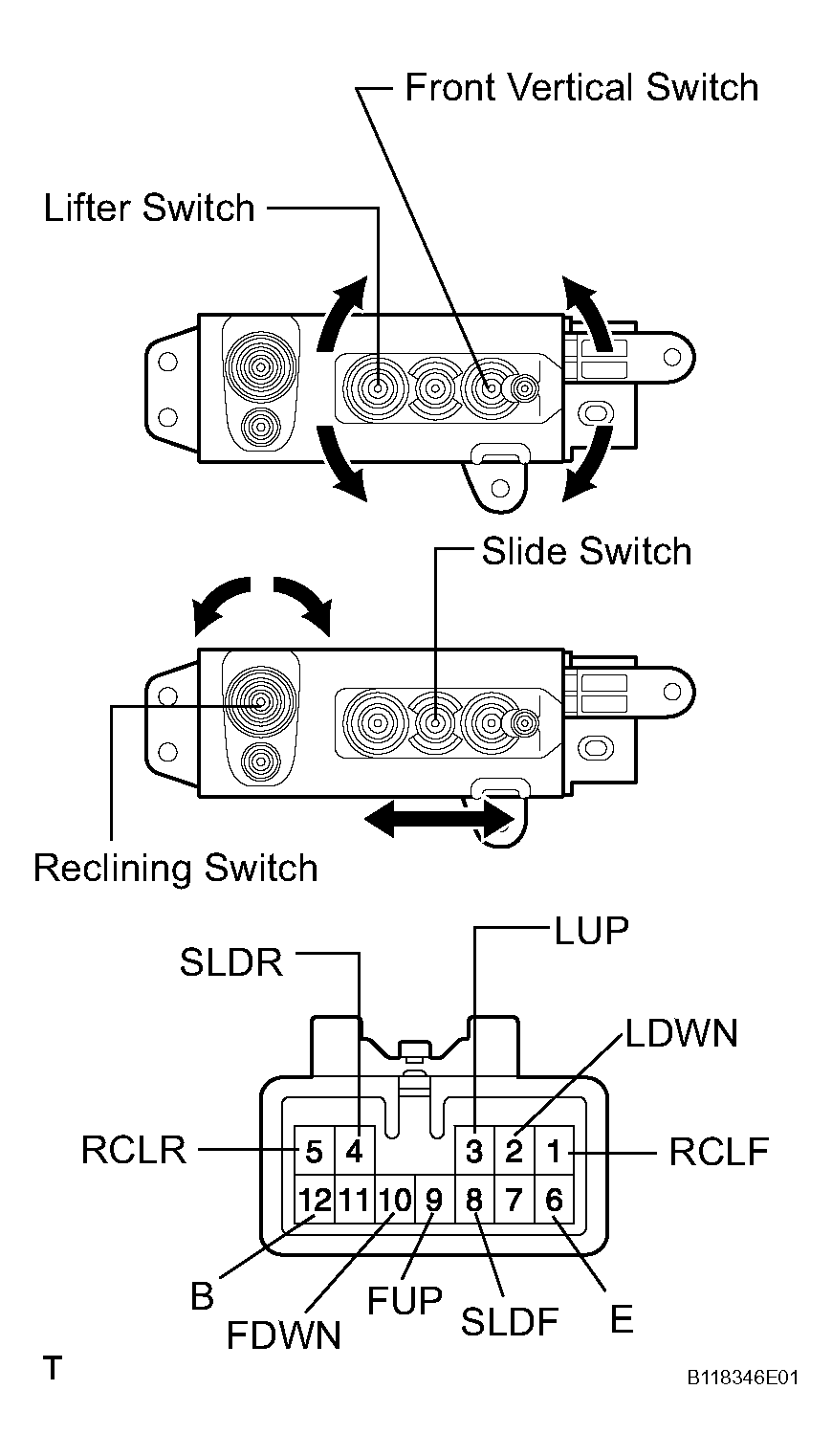

        Fig 3: Checking Front Power Seat Switch RH
        G04438952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        OK: Slide switch

        Slide switch

        FRONT POWER SEAT SWITCH RH (SLIDE SWITCH)

        Tester Connection Switch Condition Specified Condition
        4 (SLDR) - 6 (E) FRONT Continuity
        8 (SLDF) - 12 (B) FRONT Continuity
        4 (SLDR) - 6 (E) OFF Continuity
        6 (E) - 8 (SLDF) OFF Continuity
        4 (SLDR) - 12 (B) REAR Continuity
        6 (E) - 8 (SLDF) REAR Continuity

        Front vertical switch

        FRONT POWER SEAT SWITCH RH (FRONT VERTICAL SWITCH)

        Tester Connection Switch Condition Specified Condition
        6 (E) - 10 (FDWN) UP Continuity
        9 (FUP) - 12 (B) UP Continuity
        6 (E) - 9 (FUP) OFF Continuity
        6 (E) - 10 (FDWN) OFF Continuity
        6 (E) - 9 (FUP) DOWN Continuity
        10 (FDWN) - 12 (B) DOWN Continuity

        Lifter switch

        FRONT POWER SEAT SWITCH RH (LIFTER SWITCH)

        Tester Connection Switch Condition Specified Condition
        2 (LDWN) - 6 (E) UP Continuity
        3 (LUP) - 12 (B) UP Continuity
        2 (LDWN) - 6 (E) OFF Continuity
        3 (LUP) - 6 (E) OFF Continuity
        2 (LDWN) - 12 (B) DOWN Continuity
        3 (LUP) - 6 (E) DOWN Continuity

        Reclining switch

        FRONT POWER SEAT SWITCH RH (RECLINING SWITCH)

        Tester Connection Switch Condition Specified Condition
        1 (RCLF) - 12 (B) FRONT Continuity
        5 (RCLR) - 6 (E) FRONT Continuity
        1 (RCLF) - 6 (E) OFF Continuity
        5 (RCLR) - 6 (E) OFF Continuity
        1 (RCLF) - 6 (E) REAR Continuity
        5 (RCLR) - 12 (B) REAR Continuity

        If the continuity is not as specified, replace the switch.

    2. Check the front power seat switch circuit.
      1. Disconnect the switch connector and connect the seat wire harness to the floor wire harness.
      2. Inspect the connector on the wire harness side.
        Fig 4: Checking Front Power Seat Switch Circuit
        G04438953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        OK

        FRONT POWER SEAT SWITCH RH

        Tester Connection Switch Condition Specified Condition
        6 (E) - Body ground Always Continuity
        12 (B) - Body ground Always Battery positive voltage

        If circuit is not as specified, inspect the circuits connected to other parts.
