Reassembly (2006/01-)

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Do not use seat accessories (such as cushions or covers) that cover the front seat. Also, do not modify or replace the upholstery of the front seat. Doing so may prevent the front passenger airbag system from activating correctly, disable the system or cause the front passenger airbag to inflate accidentally, and result in death or serious injury.
  • Wear protective gloves. Sharp areas on the seatback frame and seat adjuster may injure your hands.
  • Replace the occupant classification ECU, occupant classification sensor, seat cushion cover pad, seat cushion cover and seat cushion seat heater as a 5 part set.

HINT:

  1. INSTALL SEAT POSITION AIRBAG SENSOR
    1. Install the airbag sensor with a new bolt.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

    2. Connect the connector.
    Fig 1: Installing Seat Position Airbag Sensor
    G04438889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL SEAT POSITION CONTROL RELAY
    1. Install the seat position control relay with the 2 bolts.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

    2. Connect the connectors.
  3. INSTALL OCCUPANT CLASSIFICATION ECU (for Front Passenger Side)
    NOTE: Replace the occupant classification ECU, occupant classification sensor, seat cushion cover pad, seat cushion cover and seat cushion seat heater as a 5 part set.
    1. Install the occupant classification ECU (see REMOVAL ).
  4. INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY
    1. Install the spacer to the seatback frame.
    2. Install the lumbar support with the 2 bolts.

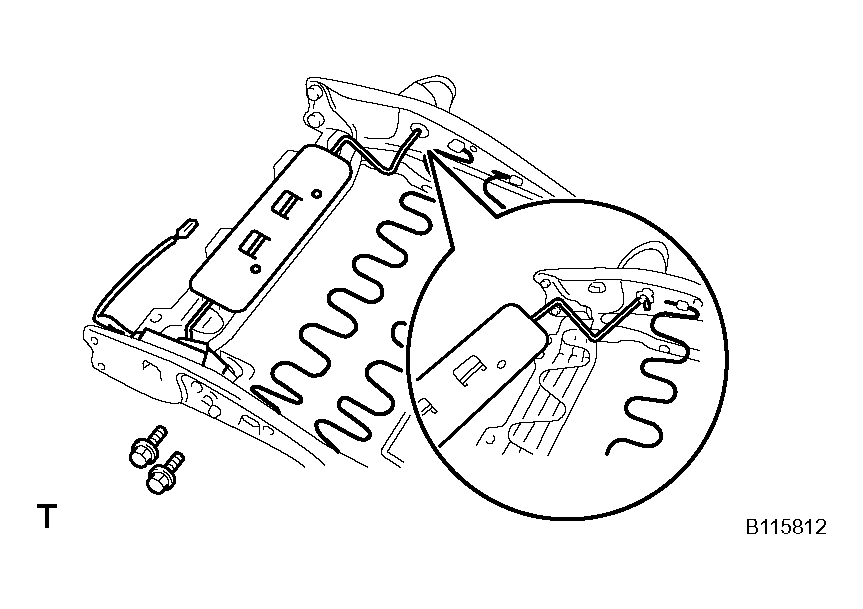

    Fig 2: Installing Lumbar Support Adjuster
    G04438890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL FRONT SEATBACK HEATER
    1. Turn the seatback cover inside out.
    2. Using a tacker, install the seatback heater to the seatback cover with the tack pins.
      NOTE: Do not substitute other metal parts for the tack pins. Insufficient distance between the heater and the cover may result in damage to the heater.

      HINT:

      • Using Fig 3 for "A" and "B":

        Fasten the cover and the heater with the tack pins, matching the seam with the V slit of the heater.

      • Sewing thread can be substituted for the tack pins. However, allow a distance of 6 to 7 mm (0.24 to 0.28 in.) between both sewed parts of the heater and the cover.

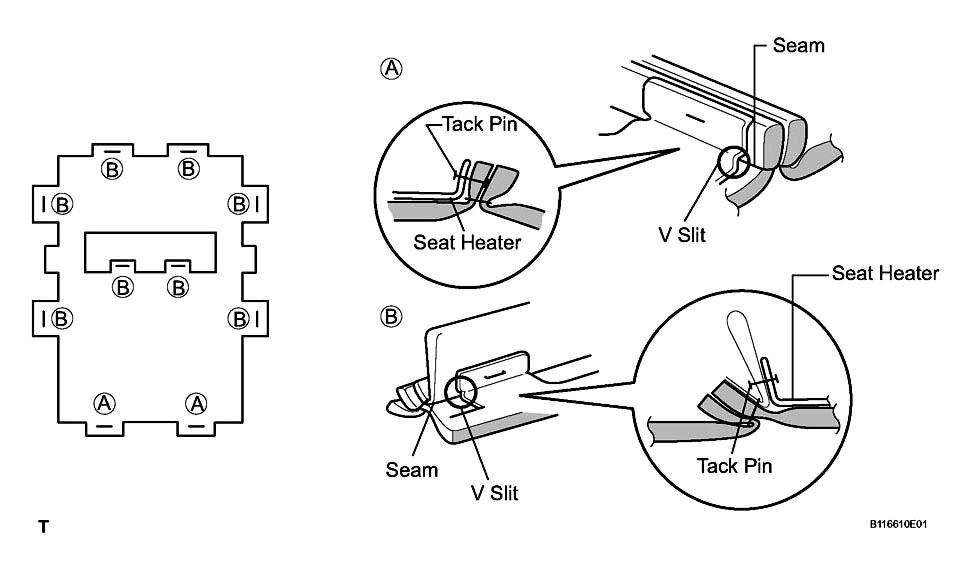

        Fig 3: Installing Seatback Heater To Seatback Cover With Tack Pins
        G04438891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Thread the wires through the listing pocket.
      Fig 4: Installing Wires
      G04438892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Turn the seatback cover inside out to put it back to its original position.
  6. INSTALL FRONT SEATBACK COVER
    1. Using hog ring pliers, install the seatback cover to the seatback pad with new hog rings.
      Fig 5: Installing Seatback Cover
      G04438893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the seatback cover with pad to the seatback frame.
    3. w/o Front seat side airbag:

      Using hog ring pliers, install new hog rings.

    4. w/Front seat side airbag:

      Using hog ring pliers, install new hog rings, Then. install the clamps and the 2 bolts.

      Torque: 4.7 N*m (48 kgf*cm, 42 in.*lbf)

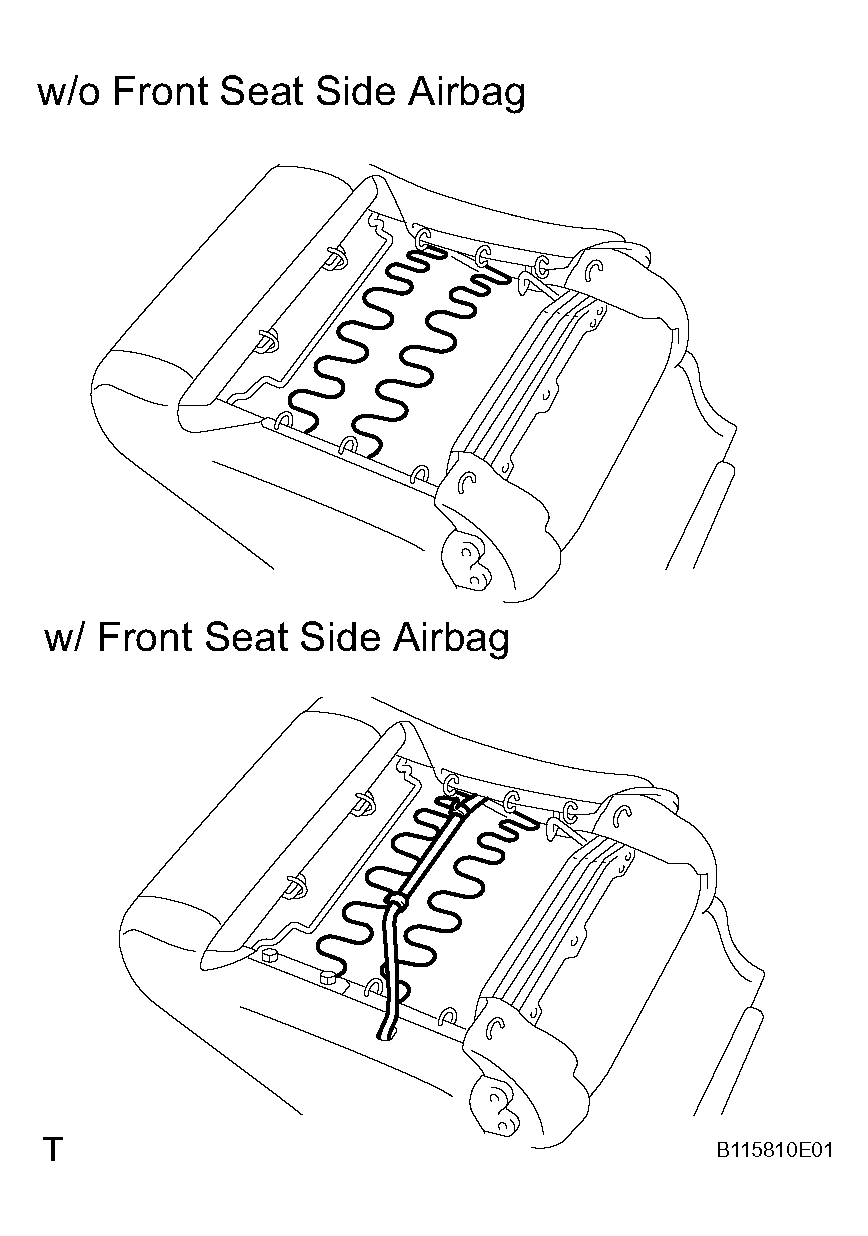

      Fig 6: Installing Front Seat Airbag
      G04438894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the 2 headrest supports.
  7. INSTALL FRONT ARMREST ASSEMBLY
    1. Install the bush to the seatback.
    2. Install the armrest with the bolt.

      Torque: 37 N*m (380 kgf*cm, 27 ft.*lbf)

    3. Install the No. 1 seat armrest cap.
  8. INSTALL FRONT SEATBACK ASSEMBLY
    1. w/o Front seat side airbag:

      Install the reclining adjuster inside shield RH with the screw.

    2. w/Front seat side airbag:

      Place the airbag connector along the inner seat adjuster, and then install the reclining adjuster inside shield with the screw so that the connector is placed in between them.

      NOTE: When handling the airbag connector take care not to damage the airbag wire harness.
    3. Install the reclining adjuster inside shield LH with the screw.
      Fig 7: Installing Reclining Adjuster Inside Shield LH
      G04438895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the seatback with the 4 bolts.

      Torque: 43 N*m (440 kgf*cm, 32 ft.*lbf)

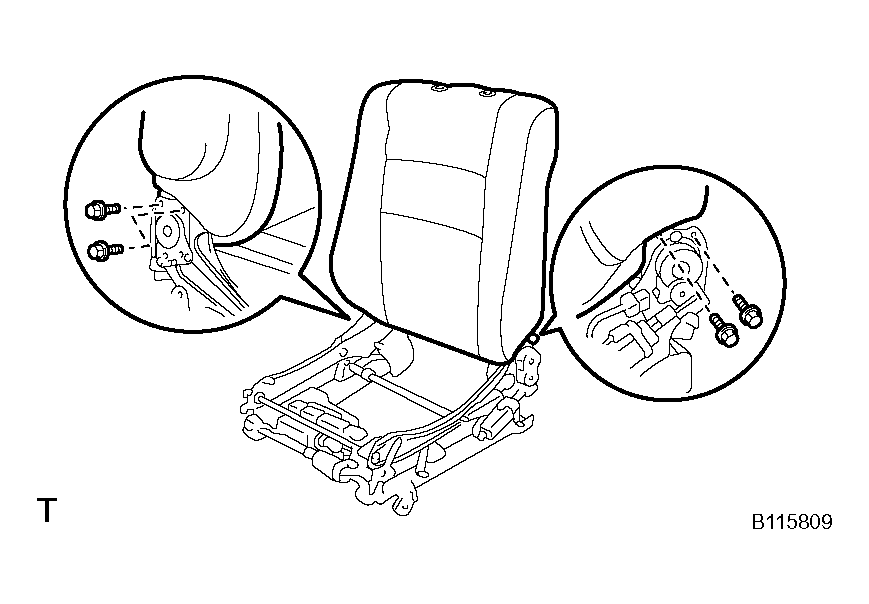

      Fig 8: Installing Seatback
      G04438896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using hog ring pliers, install new hog rings.
    6. Attach the hook.
      Fig 9: Attaching Hook
      G04438897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Connect the connectors.
  9. INSTALL OCCUPANT CLASSIFICATION SENSOR (for Front Passenger Side)
    NOTE: Replace the occupant classification ECU, occupant classification sensor, seat cushion cover pad, seat cushion cover and seat cushion seat heater as a 5 part set.
    1. Install the occupant classification sensor (see REMOVAL ).
  10. INSTALL FRONT SEAT CUSHION HEATER
    NOTE: Replace the occupant classification ECU, occupant classification sensor, seat cushion cover pad, seat cushion cover and seat cushion seat heater as a 5 part set.
    1. Turn the seat cushion cover inside out.
    2. Using a tacker, install the seat cushion heater to the seat cushion cover with the tack pins.
      Fig 10: Installing Seat Cushion Heater To Seat Cushion Cover With Tack Pins
      G04438898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Do not substitute other metal parts for the tack pins. Insufficient distance between the heater and the cover may result in damage to the heater.

      HINT:

      • Using Fig 11 for "A" and "B":

        Fasten the cover and the heater with the tack pins, matching the seam with the V slit of the heater.

      • Using Fig 11 for "C":

        Fasten the outstretched cloth pad and the heater with the tack pins, matching the edge of the cloth pad with the V slit of the heater.

      • Sewing thread can be substituted for the tack pins. However, allow a distance of 6 to 7 mm (0.24 to 0.28 in.) between both sewed parts of the heater and the cover.

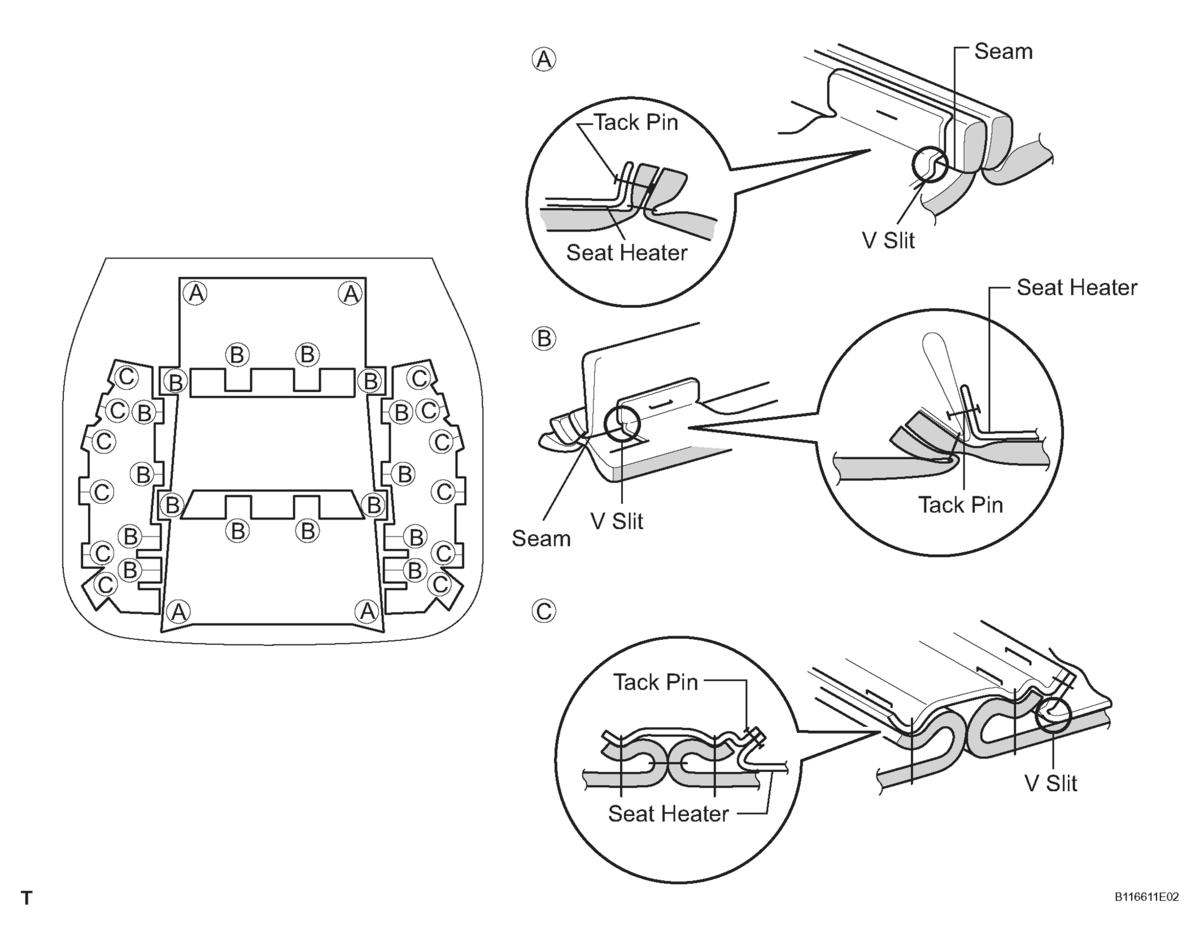

        Fig 11: Installing Front Seat Cushion Heater
        G04438899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Thread the wires through the listing pocket.
    4. Turn the seat cushion cover inside out to put it back to its original position.
    Fig 12: Installin Seat Wires
    G04438900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL FRONT SEAT CUSHION COVER
    NOTE: Replace the occupant classification ECU, occupant classification sensor, seat cushion cover pad, seat cushion cover and seat cushion seat heater as a 5 part set.
    1. Using hog ring pliers, install the seat cushion cover to the seat cushion pad with new hog rings.
      Fig 13: Installing Seat Cushion Cover
      G04438901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using hog ring pliers, install the seat cushion cover with pad to the seat cushion frame with new hog rings.
    3. Attach the hook.
  12. INSTALL FRONT SEAT CUSHION ASSEMBLY
    1. Install the seat cushion to the seat adjuster with the 4 bolts.

      Torque: 21 N*m (210 kgf*cm, 15 ft.*lbf)

    2. Attach the wire harness clamp.
      Fig 14: Installing Front Seat Cushion Assembly
      G04438902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL FRONT NO. 1 SEAT CUSHION SHIELD INNER LH
    1. Install the cushion shield with the screw.
      Fig 15: Installing Cushion Shield
      G04438903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL SEAT TRACK LOWER RAIL PROTECTOR
    1. Attach the claws to install the rail protector.
    2. Install the screw.
      Fig 16: Installing Seat Track Lower Rail Protector
      G04438904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL FRONT SEAT CUSHION SHIELD INNER LH
    1. Install the cushion shield with the 3 screws.
      Fig 17: Installing Front Seat Cushion Shield Inner LH
      G04438905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL FRONT SEAT INNER BELT ASSEMBLY LH
    1. Install the inner belt with the bolt.

      Torque: 42 N*m (430 kgf*cm, 31 ft.*lbf)

    2. Connect the connector and attach the clamp.
      Fig 18: Installing Front Seat Inner Belt Assembly LH
      G04438906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL FRONT SEAT CUSHION SHIELD LH
    1. Install the lumbar support switch with the 2 screws.
      Fig 19: Installing Lumbar Support Switch
      G04438907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the power seat switch with the 3 screws.
    3. Connect the connectors as shown in Fig 20.
      Fig 20: Connecting Connectors
      G04438908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the cushion shield with the 4 screws.
      Fig 21: Installing Cushion Shield
      G04438909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the 2 power seat switch knobs.
  18. INSTALL FRONT SEATBACK BOARD SUBASSEMBLY LH
    1. Push the seatback board in the direction indicated by the arrow to attach the 2 hooks.
      Fig 22: Pushing Seatback Board To Attach Hooks
      G04438910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the 2 claws to install the seatback board.
      Fig 23: Installing Seatback Board
      G04438911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL FRONT SEAT HEADREST ASSEMBLY
