Components (2006/01-)

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

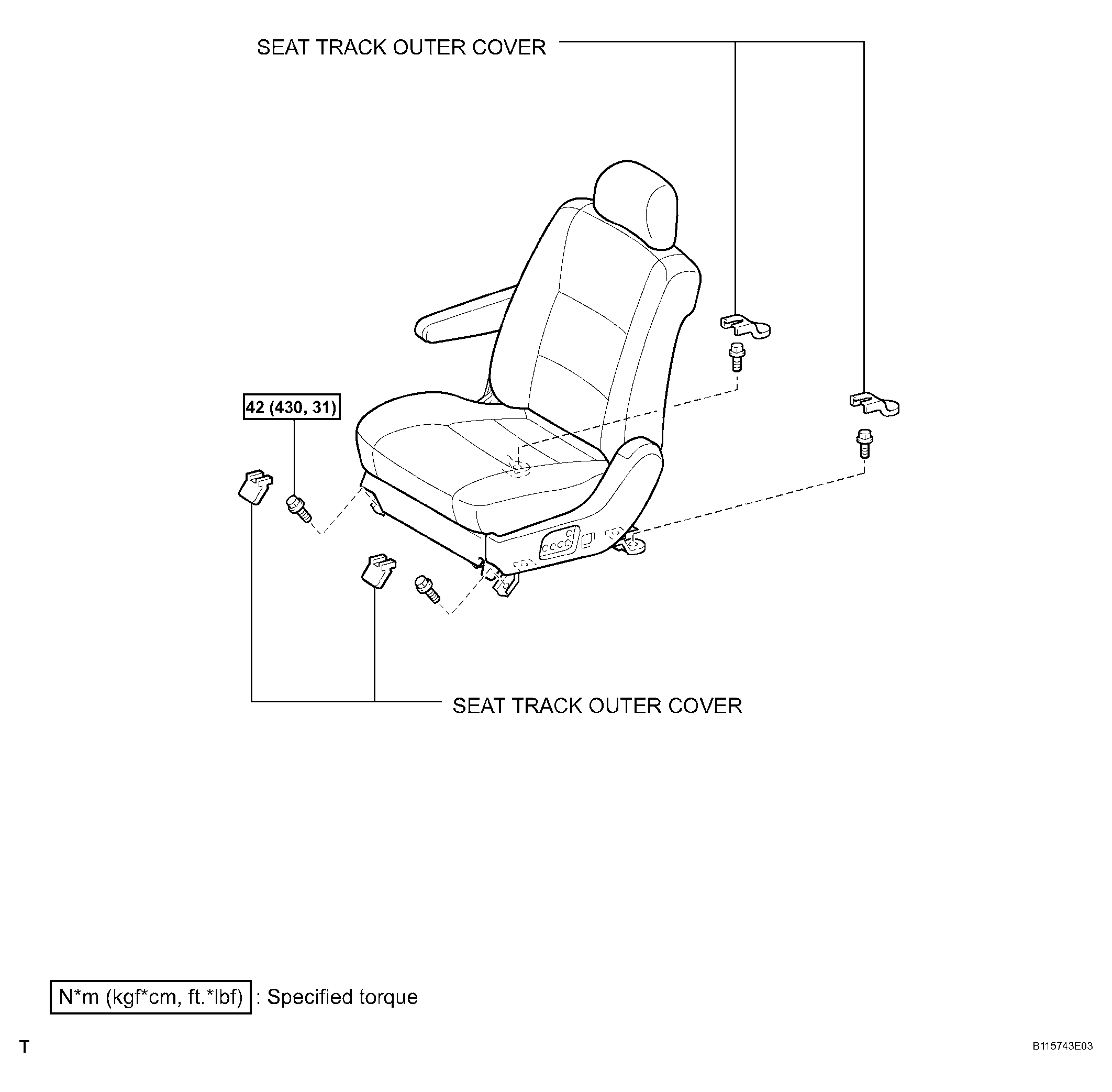

Fig 1: Identifying Front Seat Assembly Components And Replacements (2006/01-) (1 Of 3)
G04438803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

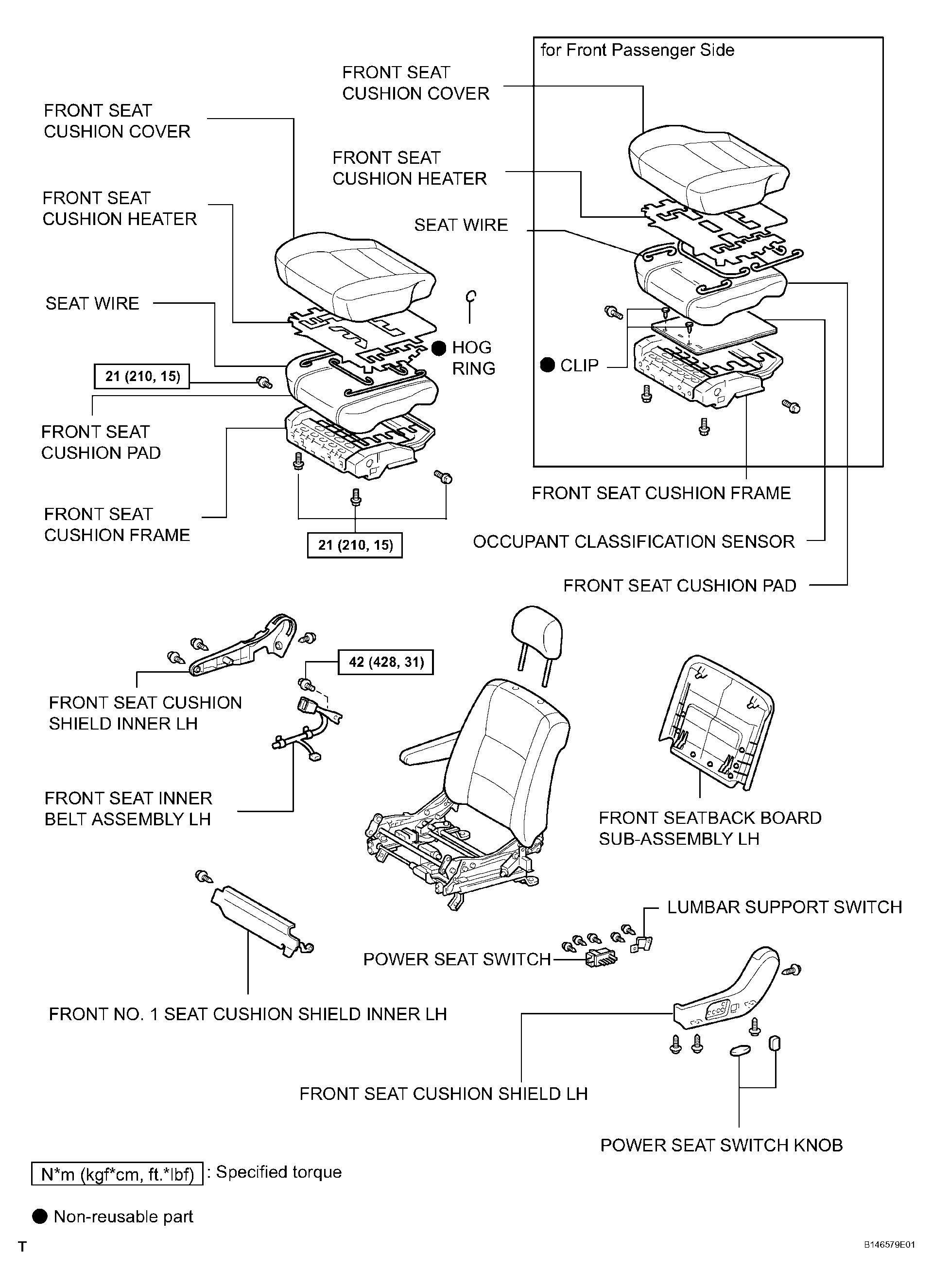

Fig 2: Identifying Front Seat Assembly Components And Replacements (2006/01-) (2 Of 3)
G04438804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

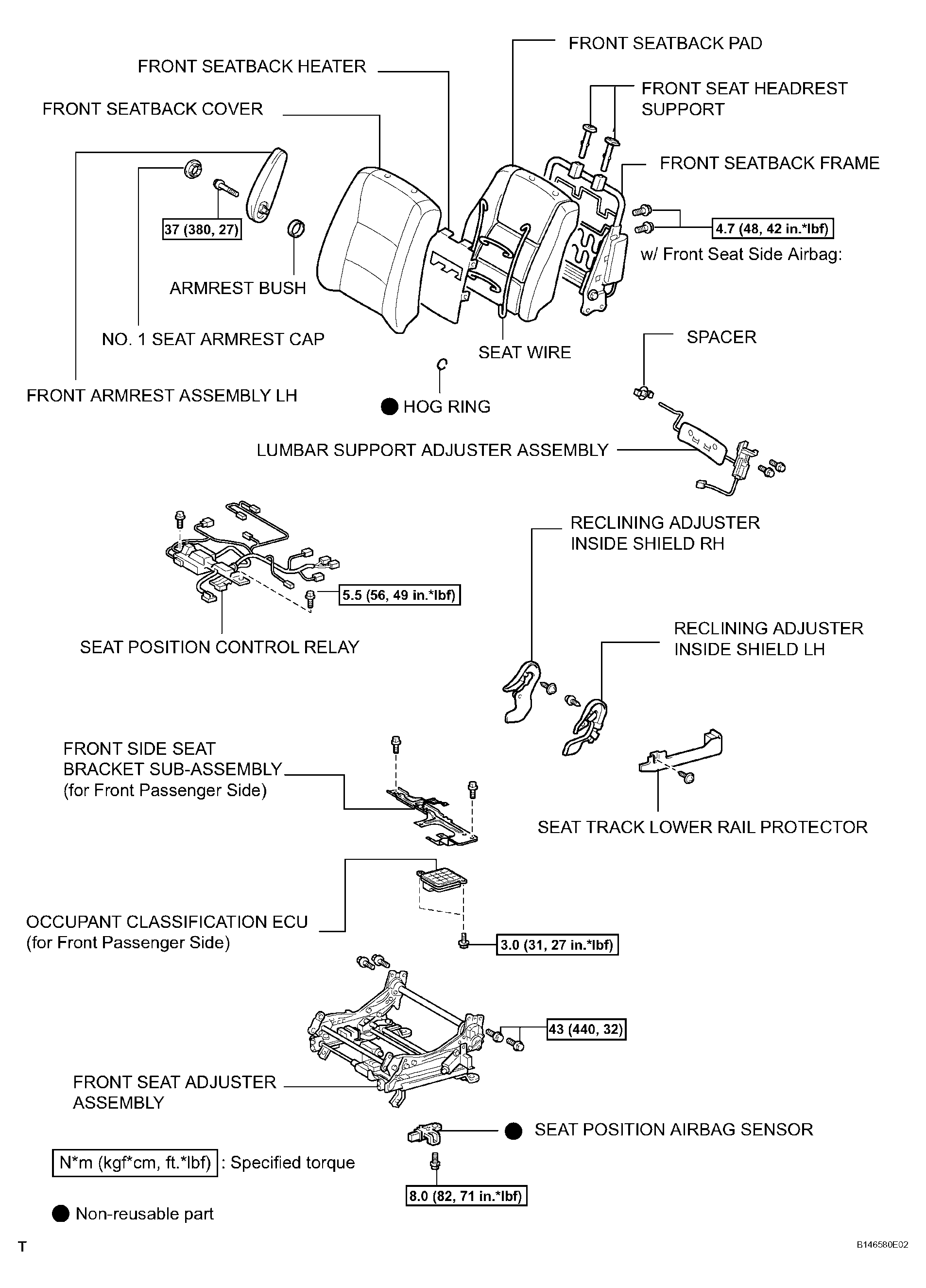

Fig 3: Identifying Front Seat Assembly Components And Replacements (2006/01-) (3 Of 3)
G04438805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
