Components (2005/05-2006/01)

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

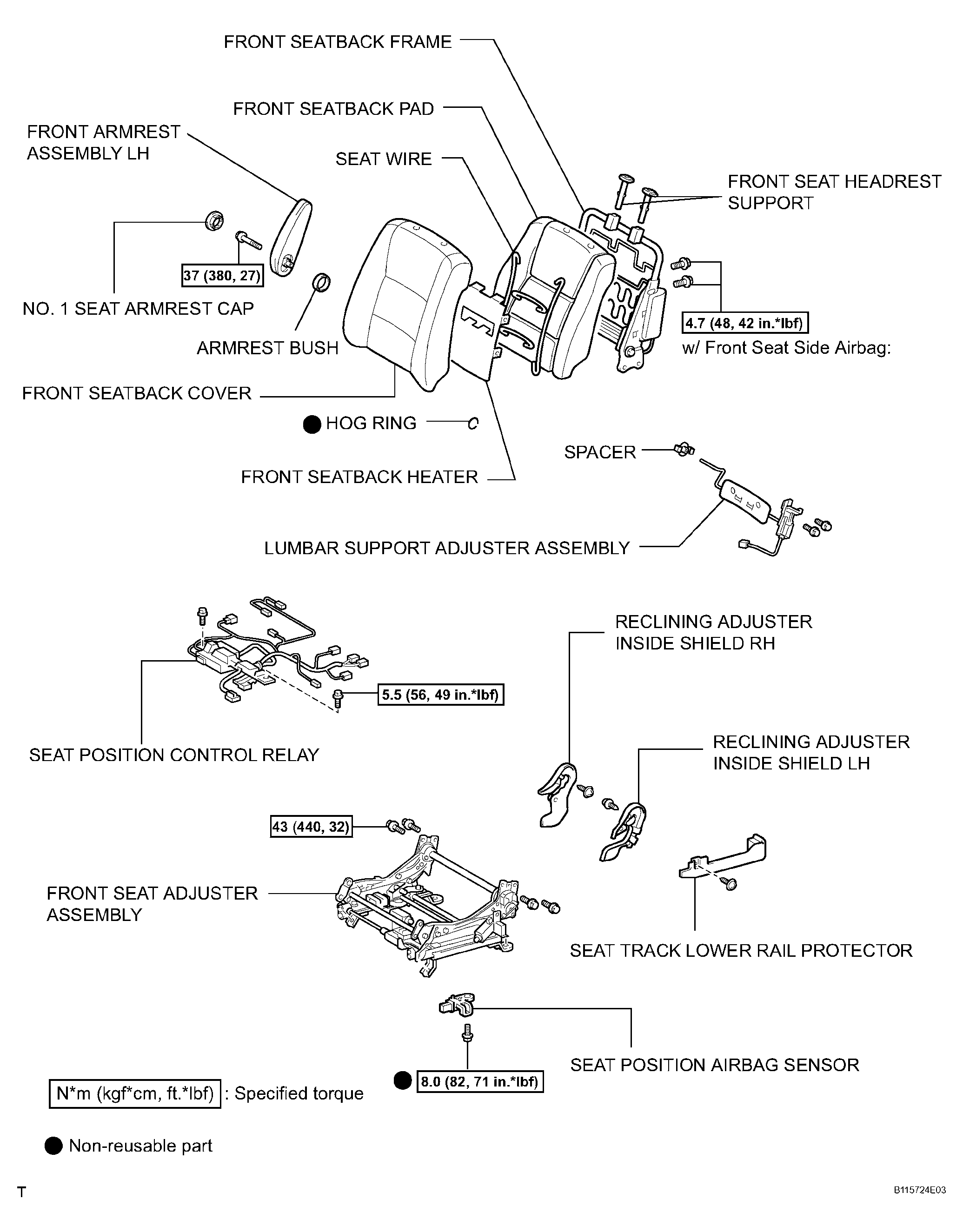

Fig 1: Identifying Front Seat Assembly Components And Replacements (2005/05-2006/01) (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

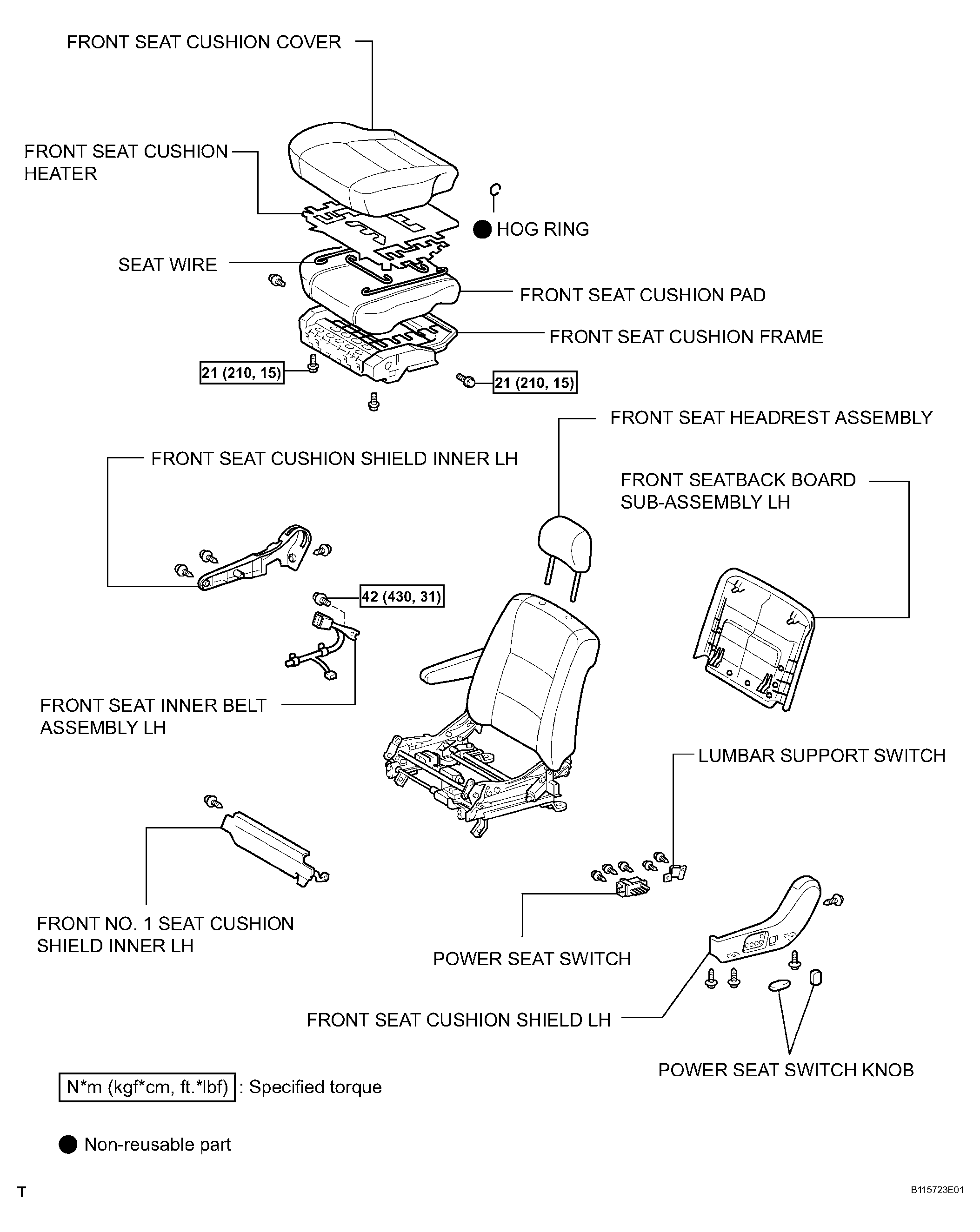

Fig 2: Identifying Front Seat Assembly Components And Replacements (2005/05-2006/01) (2 Of 3)

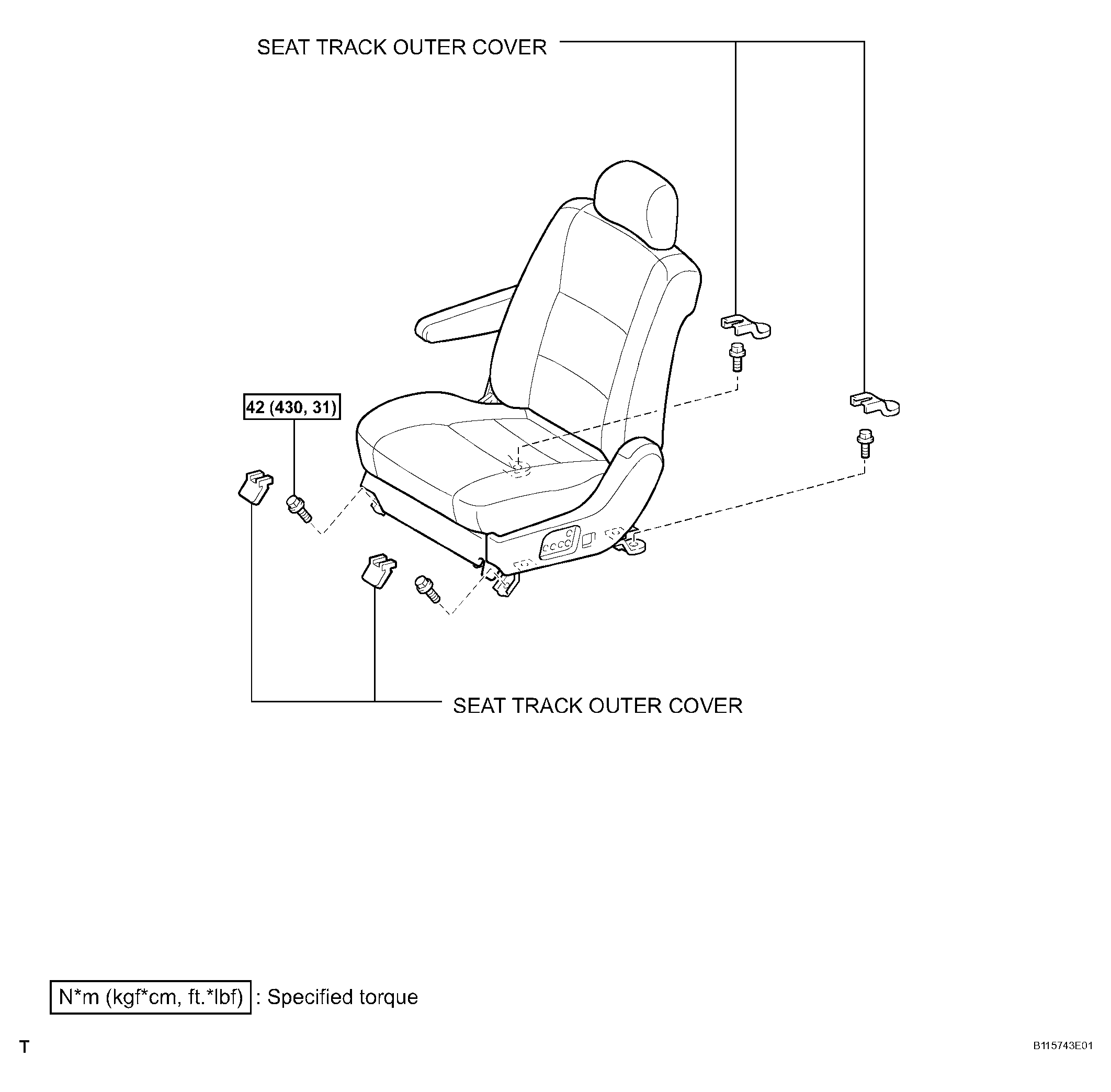

Fig 3: Identifying Front Seat Assembly Components And Replacements (2005/05-2006/01) (3 Of 3)
