Terminals Of Ecu
WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

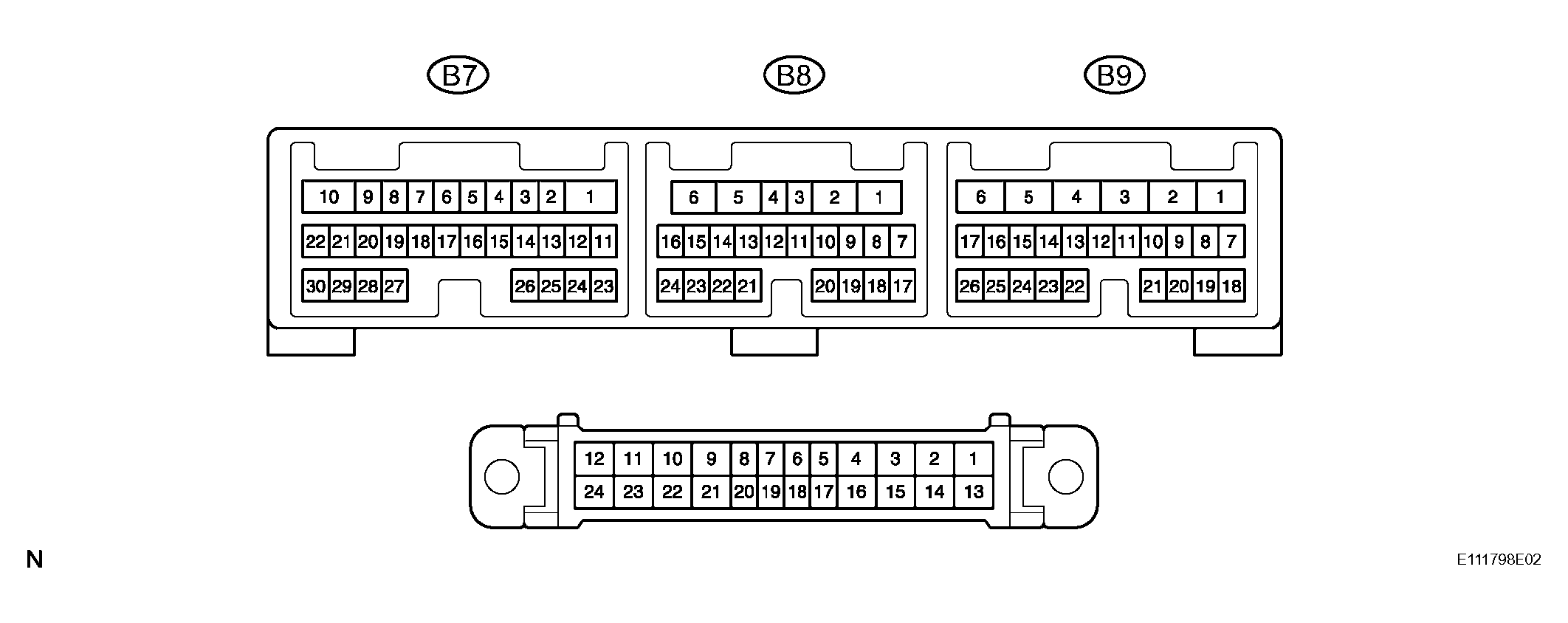

- CHECK MAIN BODY ECU MAIN BODY ECU CONNECTOR TERMINALS TABLE
Symbols (Terminal No.) Wiring Color Condition Specified Condition BECU (11) - Body ground - - Body ground Always 11 to 14 V SIG (10) - Body ground - - Body ground Ignition switch ON 11 to 14 V GND1 (4) - Body ground - - Body ground Always Below 1 Ω GND2 (16) - Body ground - - Body ground Always Below 1 Ω DBKL (B7-13) - Body ground G - Body ground Driver seat buckle switch is on (seat belt is fastened) Below 1 V
